Spark ignition system of yourTo y o t a
The spark ignition system in your Toyota meets all require-
ments of the Canadian InterferenceCausing Equipment
Standard.
Installation of a mobiletwoway radio system
As the installation of a mobile twoway radio system in
your vehicle could affect electronic systems such as multi-
port fuel injection system/sequential multiport fuel injection
system, cruise control system, antilock brake system,
SRS airbag system and seat belt pretensioner system, be
sure to check with your Toyota dealer for precautionary
measures or special instructions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.

’02 Rav4_U (L/O 0108)
vii2002 MY RAV4_U (OM42503U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Keys and Doors7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
3 Seats, Seat belts, Steering wheel and Mirrors27
. . . . . . . . . . . . . . . . . . . . .
4 Lights, Wipers and Defogger79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Gauges, Meters and Service reminder indicators87
. . . . . . . . . . . . . . . . . .
6 Ignition switch, Transmission and Parking brake97
. . . . . . . . . . . . . . . . . . .
7 Car audio system109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
8 Air conditioning system127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Other equipment135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 153 . . . . . . . . . . . . .
3 STARTING AND DRIVING 169 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY 183 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPEARANCE CARE 205 . . . . . . . .
6 VEHICLE MAINTENANCE AND CARE 211 . . . . . . . . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 Introduction217
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
2 Engine and Chassis225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
3 Electrical components239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
8 SPECIFICATIONS 253 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND UNIFORM TIRE QUALITY GRADING 261 . . . . . . . . . . . . . . . . . . . . . . . . . .
1 0 INDEX 265 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Table of contents

’02 Rav4_U (L/O 0108)
32002 MY RAV4_U (OM42503U)
1. Power rear view mirror control switches
2. Instrument panel light control knob
3. Engine immobiliser system indicatorlight
4. Headlight, turn signal and front fog light switches
5. Wiper and washer switches
6. Front passenger ’s seat belt reminder light
7. Car audio
8. Clock display
9. Emergency flasher switch
10. Rear window and outside rear view mirror defogger switch
11. Air conditioning controls
12. Cigarette lighter
13. Ashtray
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Power door lock switch (without power windows)

’02 Rav4_U (L/O 0108)
52002 MY RAV4_U (OM42503U)
Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Headlight high beam indicator light SRS warning light
∗1
Turn signal indicator lights
Driver ’s seat belt reminder light
∗
1Open door warning light∗1
Low fuel level warning light∗1
Automatic transmission fluid temperature warning
light∗1
Antilock brake system warning light∗1or
Low windshield washer fluid level warning light∗1
or
Front passenger ’s seat belt reminder light∗1
or
Automatic transmission indicator lights
Indicator symbols on the instrument panel

’02 Rav4_U (L/O 0108)
152002 MY RAV4_U (OM42503U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time, parking lights
and tail lights flash.
Check to see that all the side doors and
back door are securely locked.
If any of side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. At this time, parking lights
and tail lights flash twice.
—Wireless remote control

’02 Rav4_U (L/O 0108)
272002 MY RAV4_U (OM42503U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Rear seats 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Flattening seatbacks 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Head restraints 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver airbag and front passenger airbag 50
. . . . . . . . . . . . . . . . . . .
Child restraint 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Antiglare inside rear view mirror 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun visors 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 3

’02 Rav4_U (L/O 0108)
282002 MY RAV4_U (OM42503U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
foldeddown seatback, or in the
luggage compartment or cargo area.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
Adjust the driver’s seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION
Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
Do not put objects under the seats.
The objects may interfere with the
seatlock mechanism or unexpect-
edly push up the seat position ad-
justing lever. Otherwise the seat
may suddenly move, causing the
driver to lose control of the vehicle.
While adjusting the seat, do not put
your hands under the seat or near
the moving parts. Otherwise you
may catch and injure your hands or
fingers.
SeatsFront seats—
—Seat adjustment precautions

’02 Rav4_U (L/O 0108)
292002 MY RAV4_U (OM42503U)

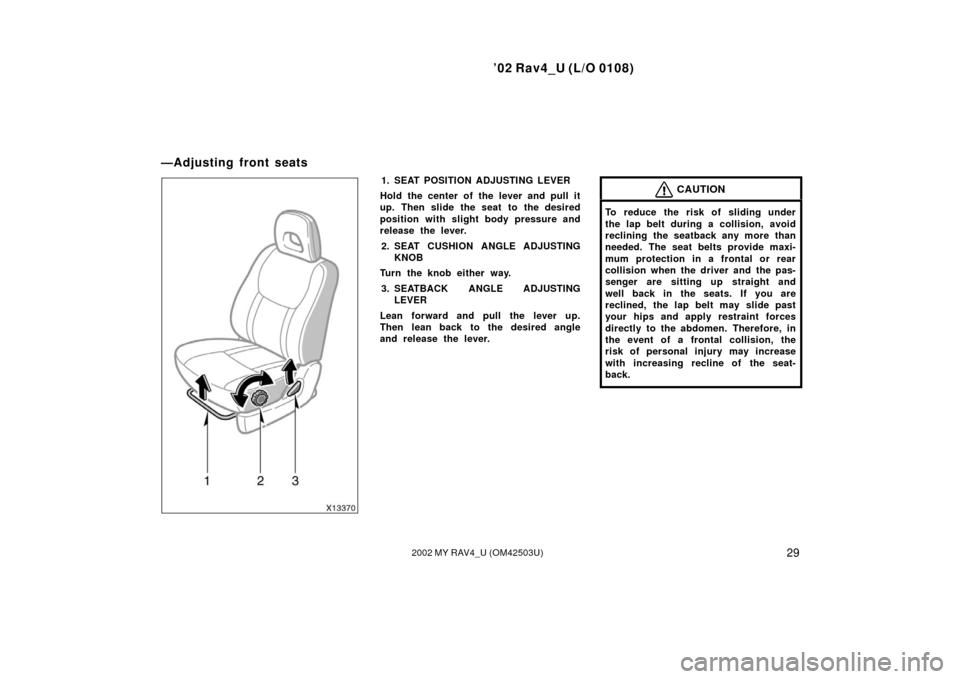

1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
2. SEAT CUSHION ANGLE ADJUSTING KNOB
Turn the knob either way.
3. SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.CAUTION
To reduce the risk of sliding under
the lap belt during a collision, avoid
reclining the seatback any more than
needed. The seat belts provide maxi-
mum protection in a frontal or rear
collision when the driver and the pas-
senger are sitting up straight and
well back in the seats. If you are
reclined, the lap belt may slide past
your hips and apply restraint forces
directly to the abdomen. Therefore, in
the event of a frontal collision, the
risk of personal injury may increase
with increasing recline of the seat-
back.
—Adjusting front seats
