2002 TOYOTA RAV4 belt

’02 Rav4_U (L/O 0108)
302002 MY RAV4_U (OM42503U)
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
that the seat does not hit a passen-
ger or luggage.
Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a col-
lision.
After adjusting the seat position,
try sliding it forward and backward
to make sure it is lock in position.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See “Luggage stowage
precautions” on page 164 in Section 2 for
precautions in loading luggage.
Rear seats—
—Rear seat precautions—Adjusting rear seats

’02 Rav4_U (L/O 0108)
312002 MY RAV4_U (OM42503U)
1. SEAT POSITION ADJUSTING LEVER
Hold the center of the lever and pull it
up. Then slide the seat to the desired
position with slight body pressure and
release the lever.
When a person sits in the rear center
position, adjust both seat cushions to
the same position.
Do not place anything under the seats. It
might interfere with the seatlock mecha-
nism.
2. SEATBACK ANGLE ADJUSTING STRAP
Pull the strap up. Then lean back to the
desired angle and release the strap.
When a person sits in the rear center
position, align both seatbacks at the
same angle.
CAUTION
Adjustments should not be made
while the vehicle is moving.
Adjust both seat cushions to the
same position and align both seat-
backs at the same angle when a
person sits in the rear center posi-
tion. Otherwise, the person cannot
wear the seat belt properly and this
may cause serious injuries in a col-
lision.
To reduce the risk of sliding under
the lap belt during a collision,
avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
passengers are sitting up straight
and well back in the seats. If you
are reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a frontal
collision, the risk of personal injury
may increase with increasing recline
of the seatback.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
NOTICE
Do not fold the seatback forward
while the luggage cover is set.

’02 Rav4_U (L/O 0108)
322002 MY RAV4_U (OM42503U)
BEFORE FOLDING UP REAR SEAT
Stow the rear center seat belt, do the
following:1. Pull the seat belt out of its cover a little and insert the concave end tab
into the higher slot of the cover.2. Insert the round end tab into thecover. You will hear a click when the
tabs are locked in the seat belt cov-
er. Make sure the tabs are securely
locked in the cover.
NOTICE
The seat belt must be stowed before
you fold the seatback.
FOLDING UP REAR SEATS
1. Hold the center of the lever and pull it up. Then slide the front seat fully
forward.
Folding up the rear seats will enlarge the
luggage compartment. See “Luggage stow-
age precautions” on page 164 in Section
2 for precautions in loading luggage.
—Folding up rear seats

’02 Rav4_U (L/O 0108)
352002 MY RAV4_U (OM42503U)
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.1. Fold up rear seats. (See “—Foldingup rear seats” on page 32 in this
section for instructions.)2. Unlock the seat by pulling the lockrelease lever. Pull the seat toward
you slightly and lift.
Removing the rear seats will enlarge the
luggage compartment. See “Luggage stow-
age precautions” on page 164 in Section
2 for precautions in loading luggage.
—Removing rear seats

’02 Rav4_U (L/O 0108)
372002 MY RAV4_U (OM42503U)

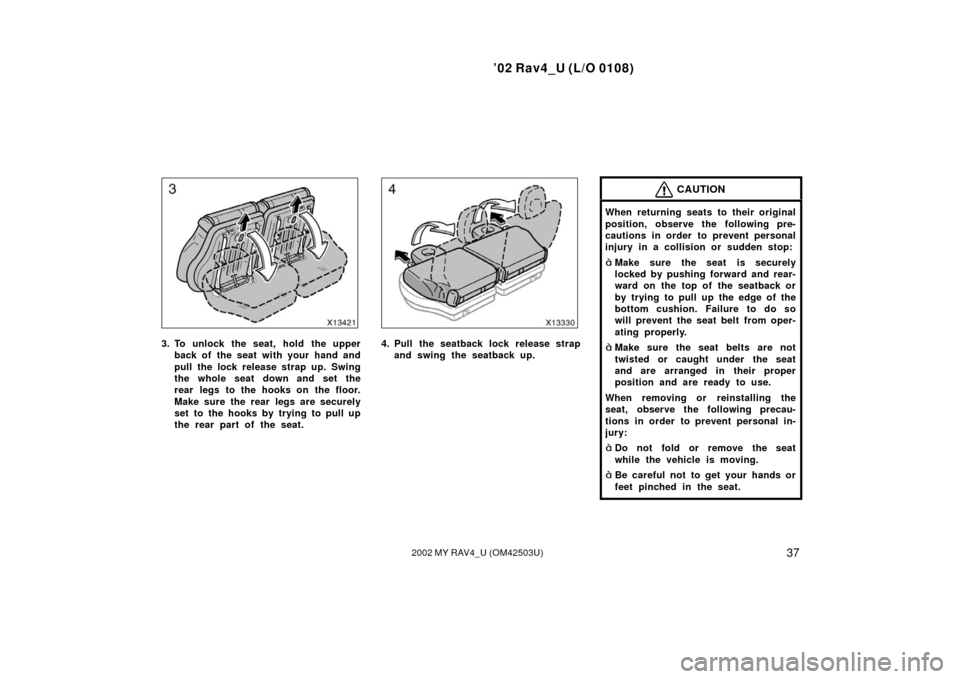

3. To unlock the seat, hold the upperback of the seat with your hand and
pull the lock release strap up. Swing
the whole seat down and set the
rear legs to the hooks on the floor.
Make sure the rear legs are securely
set to the hooks by trying to pull up
the rear part of the seat.4. Pull the seatback lock release strapand swing the seatback up.
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent personal
injury in a collision or sudden stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
When removing or reinstalling the
seat, observe the following precau-
tions in order to prevent personal in-
jury:
Do not fold or remove the seat
while the vehicle is moving.
Be careful not to get your hands or
feet pinched in the seat.

’02 Rav4_U (L/O 0108)
382002 MY RAV4_U (OM42503U)
Be careful not to hit the removed
seat against a person or drop it on
yourself.
After folding or installing the seat,
push it forward and backward to
make sure it is locked in position.
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
When reinstalling the seat, be care-
ful not to hit the seat against you
or inside of the vehicle.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent rear
seat occupants from using seat
belts properly.
For flattening seatbacks, do the follow-
ing: 1. Hold the center of the lever and pull it up. Then slide the rear seat fully
backward and pull it forward slightly
till it locks.2. Remove the head restraint. Hold thecenter of the lever and pull it up.
Then slide the seat further forward
than the frontmost lock position.
Flattening seatbacks
(front seat only)

’02 Rav4_U (L/O 0108)
402002 MY RAV4_U (OM42503U)
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 57 for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
Seat belts—
—Seat belt precautions

’02 Rav4_U (L/O 0108)
412002 MY RAV4_U (OM42503U)
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See “Cleaning the interior”
on page 209 in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Front and rear seat belts
