2002 TOYOTA RAV4 fog light

’02 Rav4_U (L/O 0108)
vii2002 MY RAV4_U (OM42503U)
1 OPERATION OF INSTRUMENTS AND CONTROLSPage
1 Overview of instruments and controls
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Keys and Doors7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
3 Seats, Seat belts, Steering wheel and Mirrors27
. . . . . . . . . . . . . . . . . . . . .
4 Lights, Wipers and Defogger79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Gauges, Meters and Service reminder indicators87
. . . . . . . . . . . . . . . . . .
6 Ignition switch, Transmission and Parking brake97
. . . . . . . . . . . . . . . . . . .
7 Car audio system109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
8 Air conditioning system127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Other equipment135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
2 INFORMATION BEFORE DRIVING YOUR TOYOTA 153 . . . . . . . . . . . . .
3 STARTING AND DRIVING 169 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 IN CASE OF AN EMERGENCY 183 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 CORROSION PREVENTION AND APPEARANCE CARE 205 . . . . . . . .
6 VEHICLE MAINTENANCE AND CARE 211 . . . . . . . . . . . . . . . . . . . . . . . . .
7 DOITYOURSELF MAINTENANCE
1 Introduction217
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
2 Engine and Chassis225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
3 Electrical components239
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
8 SPECIFICATIONS 253 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
9 REPORTING SAFETY DEFECTS FOR U.S. OWNERS AND UNIFORM TIRE QUALITY GRADING 261 . . . . . . . . . . . . . . . . . . . . . . . . . .
1 0 INDEX 265 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
Table of contents

’02 Rav4_U (L/O 0108)
32002 MY RAV4_U (OM42503U)
1. Power rear view mirror control switches
2. Instrument panel light control knob
3. Engine immobiliser system indicatorlight
4. Headlight, turn signal and front fog light switches
5. Wiper and washer switches
6. Front passenger ’s seat belt reminder light
7. Car audio
8. Clock display
9. Emergency flasher switch
10. Rear window and outside rear view mirror defogger switch
11. Air conditioning controls
12. Cigarette lighter
13. Ashtray
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Power door lock switch (without power windows)

’02 Rav4_U (L/O 0108)
792002 MY RAV4_U (OM42503U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior lights 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Windshield wipers and washer 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 85
. . . . . . . . . . . .
SECTION 1 4

’02 Rav4_U (L/O 0108)
822002 MY RAV4_U (OM42503U)

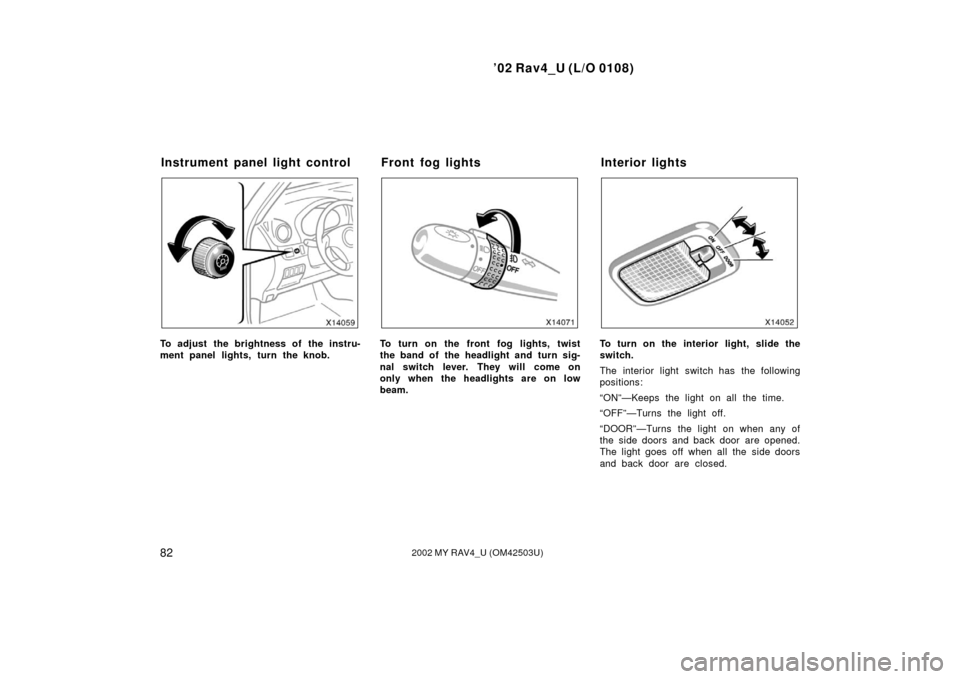

To adjust the brightness of the instru-
ment panel lights, turn the knob.To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors and back door are opened.
The light goes off when all the side doors
and back door are closed.
Instrument panel light control Front fog lightsInterior lights

’02 Rav4_U (L/O 0108)
852002 MY RAV4_U (OM42503U)
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
On some models, the heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.
CAUTION
Since the mirror surfaces can get hot,
keep your hands off them when the
defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stopandgo driving. The defoggers are
not designed for drying rain water or for
melting snow.
If the outside rear view mirrors are heavi-
ly coated with ice, use a spray deicer
before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window and outside rear
view mirror defoggers

’02 Rav4_U (L/O 0108)
2442002 MY RAV4_U (OM42503U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent yourself from burning,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights—60/55A
Front fog lights—51B
Parking and front
side marker lights1685C
Front turn signal
lights (without
front fog lights)
7440A21C
Front turn signal
lights (with front
fog lights)
744021C
Rear turn signal
lights744021C
Stop/tail and rear
side marker lights744321/5C
Backup lights744021C
License plate light1685C
High mounted stop
light744021C
Replacing light bulbs—

’02 Rav4_U (L/O 0108)
2462002 MY RAV4_U (OM42503U)
“TOP” mark
3. Install the rubber cover with the“TOP” mark upward, and snuggle on
the boss. Plug in the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Loosen the retainer screw with a Phillipshead screwdriver and take
out the front turn signal light unit.2. Remove the front fog light unit.
—Front fog lights

’02 Rav4_U (L/O 0108)
2472002 MY RAV4_U (OM42503U)
3. Unplug the connector while depress-ing on the tab.
If the connector is tight, wiggle it.4. Turn the bulb and remove it.5. Install a new bulb and the connector into the mounting hole. Install the
front fog light unit then the front
turn signal light unit, and tighten the
retainer screw.
