The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
HeadlightsHB260/55A
Parking/front side
marker/front turn
signal lights
1157NA5/21B
Rear turn signal
lightsWY21W21C
Rear side
marker/stop/tail
lights
74435/21C
Backup lights744021C
License plate lightsW5W5C
High mounted
stoplight92118C
Interior light—8D
Trunk light1943.8C
A: HB2 halogen bulbs
B: Single end bulbs (amber)
C: Wedge base bulbs
D: Double end bulbs
—Headlights
SU73036
1. Unplug the connector. Remove the
rubber cover.
If the connector is tight, wiggle it.

2002MY ECHO (U) L/O0109
2112002 ECHO (OM52463U)
SU73037

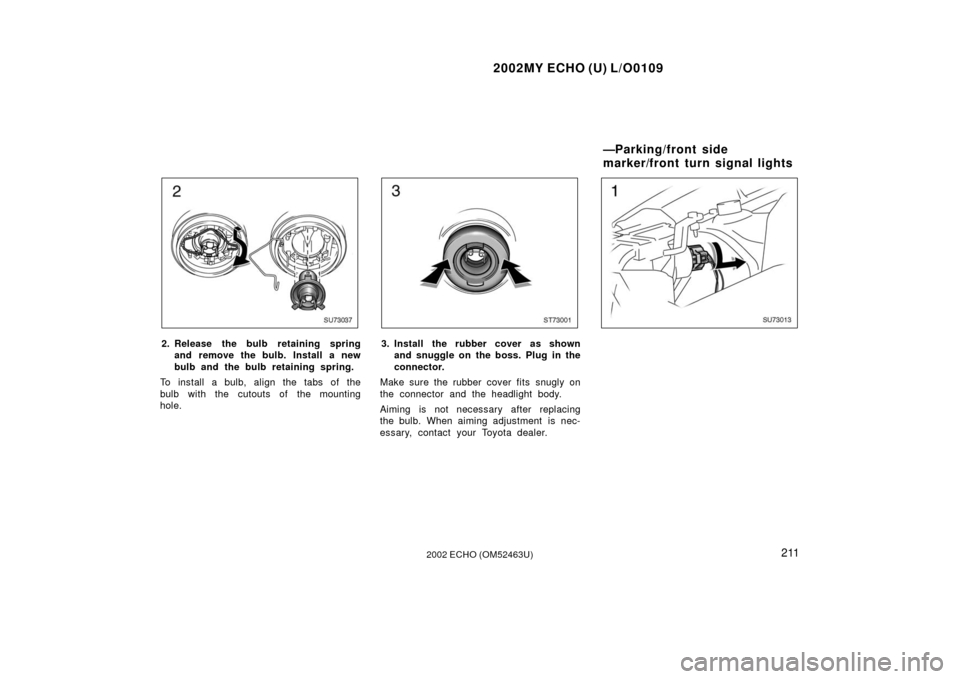

2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
ST73001
3. Install the rubber cover as shown and snuggle on the boss. Plug in the
connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
SU73013
—Parking/front side
marker/front turn signal lights

2001MY ECHO (U) L/O0008
2122002 ECHO (OM52463U)
SU73014SU73033
SU73019
SU73020

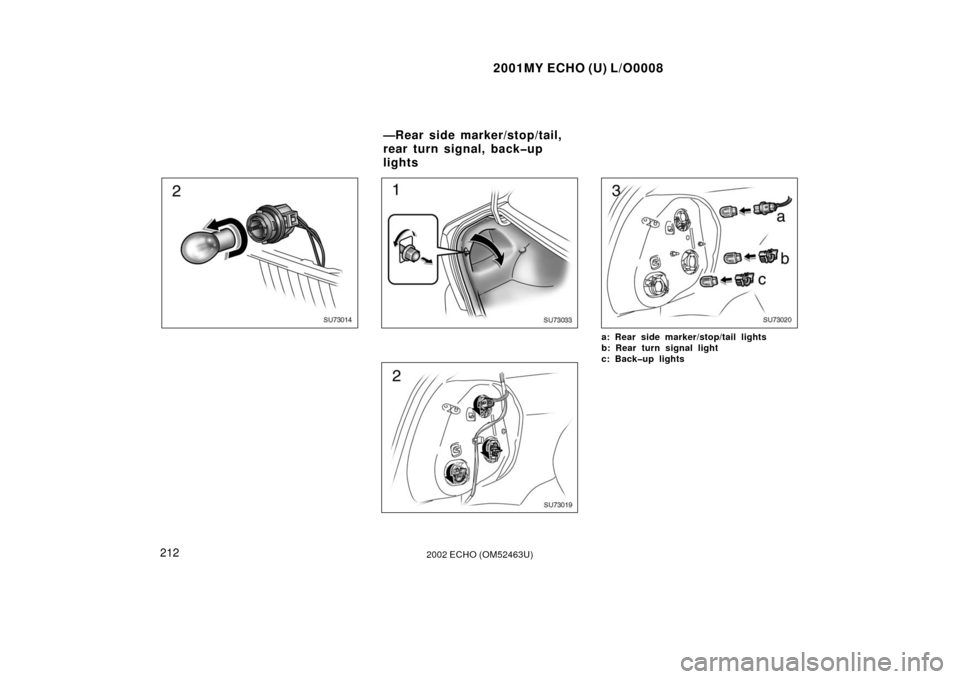

a: Rear side marker/stop/tail lights
b: Rear turn signal light
c: Backup lights
—Rear side marker/stop/tail,
rear turn signal, backup
lights

2002MY ECHO (U) L/O0109
2132002 ECHO (OM52463U)

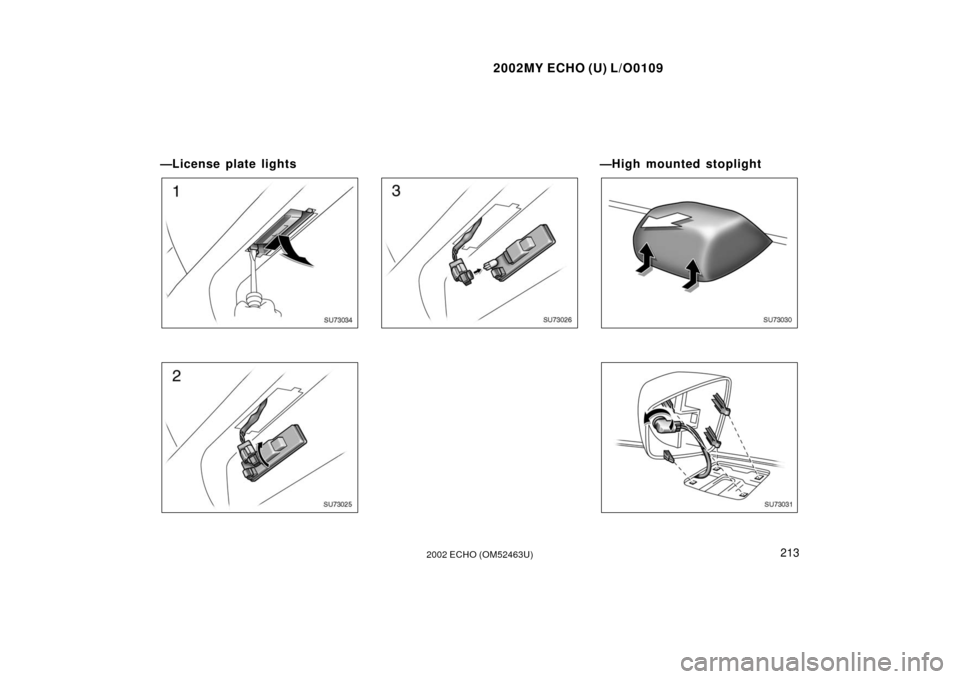

—License plate lights
SU73034
SU73025
SU73026
—High mounted stoplight
SU73030
SU73031

2001MY ECHO (U) L/O0008
2142002 ECHO (OM52463U)
SU73032

2002MY ECHO (U) L/O0109
2152002 ECHO (OM52463U)
SPECIFICATIONS
Dimensions and weight216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Engine 216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 217
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

2001MY ECHO (U) L/O0008
2162002 ECHO (OM52463U)
Dimensions and weight
Overall length mm (in):4145 (163.1)
Overall width mm (in):
1660 (65.3)
Overall height mm (in): 1510 (59.4)
∗
Wheelbase mm (in):2370 (93.3)
Front tread mm (in):
1440(56.6)
Rear tread mm (in): 1420(55.9)
Vehicle capacity weight
(occupants+luggage) kg(lb):
351 (775)
∗:Unladen vehicle
Engine
Model: 1NZFE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0  84.7 (2.95  3.33)
Displacement, cm
3 (cu. in.):
1497 (91.3)
Fuel
Fuel type: Unleaded gasoline, Octane Rating 87 (Re-search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 45 (11.9, 9.9)

2002MY ECHO (U) L/O0109
2172002 ECHO (OM52463U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.150.25 (0.0060.010)
Exhaust 0.250.35 (0.0100.014)
Spark plug type: DENSO K16RU
NGK BKR5EYA
Spark plug gap, mm(in.): 0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT3373F (used belt), lbf: Generator belt 100 20
Power steering pump belt 65 10 ENGINE LUBRICATION
Oil capacity (drain and ref
ill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
Oil grade: API grade SJ “EnergyConserving”, SL
“EnergyConserving” or ILSAC multi-
grade engine oil is recommended.
Recommended oil viscosity (SAE):
OIL05U
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.612.8 V Fully charged
12.212.4 V Half charged
11.812.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
