Headlights and turn signals
SP14001
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlights and
tail lights left on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Vehicles for the U. S. A.: The headlights
automatically turn to full intensity in the
twilight even with the light switch in the
“OFF” position.
SP14014
HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

2002MY ECHO (U) L/O0109
752002 ECHO (OM52463U)
SP14015

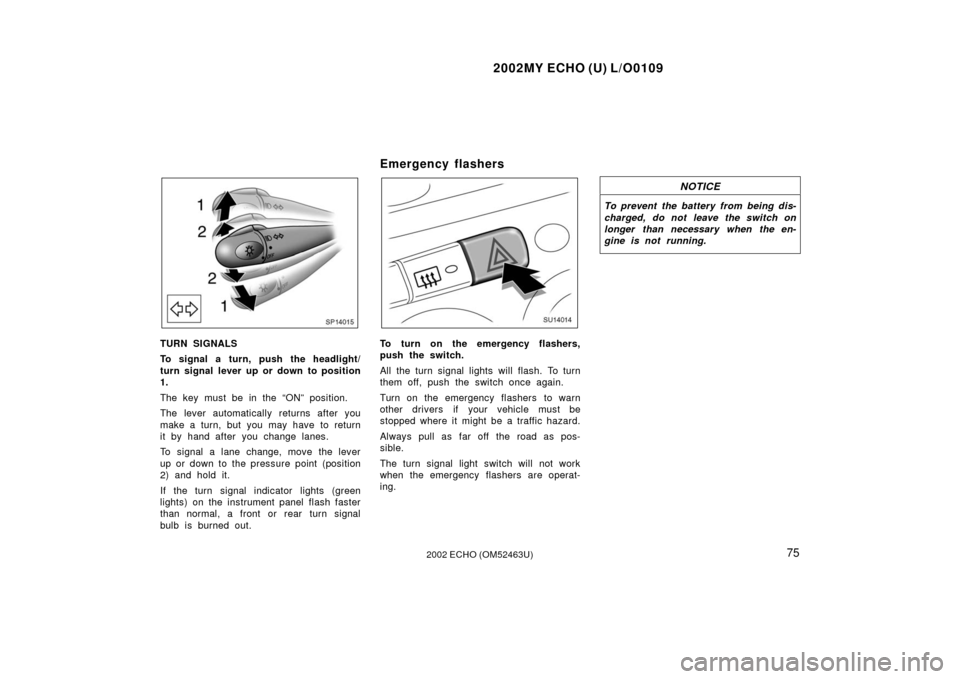

TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
SU14014
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.

2001MY ECHO (U) L/O0008
762002 ECHO (OM52463U)

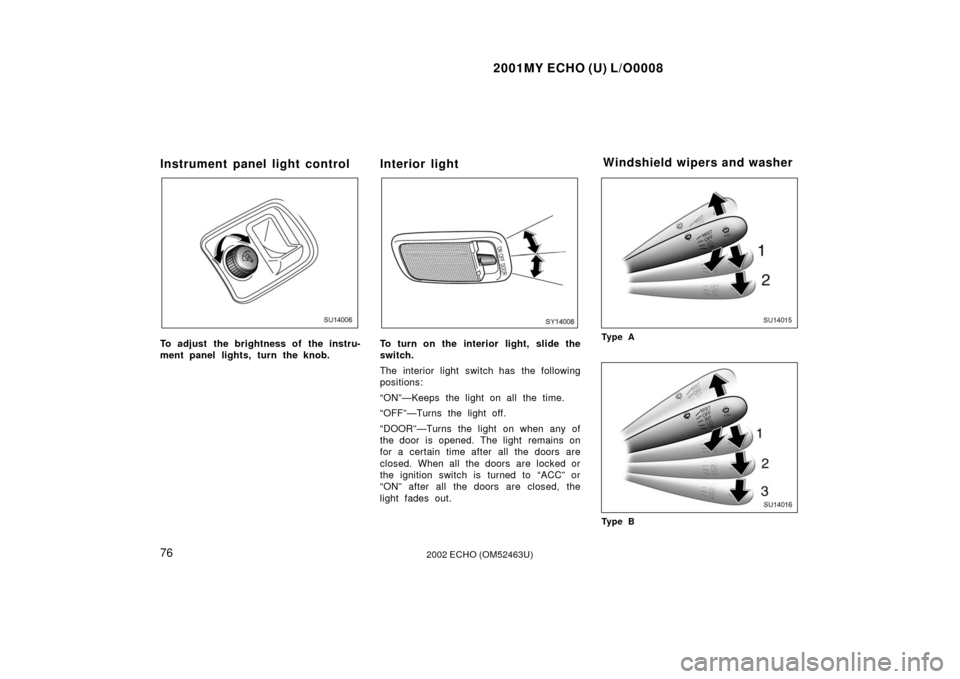

Instrument panel light control
SU14006
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior light
SU14007
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the door is opened. The light remains on
for a certain time after all the doors are
closed. When all the doors are locked or
the ignition switch is turned to “ACC” or
“ON” after all the doors are closed, the
light fades out.
SU14015
Ty p e A
SU14016
Ty p e B
Windshield wipers and washer

2002MY ECHO (U) L/O0109
772002 ECHO (OM52463U)
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Ty p e A —Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B —
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. To squirt washer fluid, pull the lever
toward you.
For instructions on adding washer fluid,
see “Adding washer fluid” in Section 73.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger
SU14013
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.

2001MY ECHO (U) L/O0008
782002 ECHO (OM52463U)
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stopand
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
 When cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.

2002MY ECHO (U) L/O0109
792002 ECHO (OM52463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature indicator and warning light 80
. . . . . . . . . .
Odometer and two trip meters 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 82
. . . . . . . . . . . . . . .
SECTION 1 5

2001MY ECHO (U) L/O0008
802002 ECHO (OM52463U)
Fuel gauge
SU15004
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
If the fuel level approaches “E” or the low
fuel level warning light flashes, fill the fuel
tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SU15005
High engine coolant
temperature
warning light in red
Low engine
coolant
temperature
indicator light in
blue
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light will come on when the ignition
key is turned to the “ON” position. After
a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Toyota dealer
as soon as possible to service the ve-
hicle.
Engine coolant temperature
indicator and warning light

2002MY ECHO (U) L/O0109
812002 ECHO (OM52463U)
If the high engine coolant temperature
warning light flashes, your engine is too
hot. If your vehicle overheats, stop your
vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stopandgo traffic.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your
vehicle overheats” in Section 4.
Odometer and two trip meters
SU15003
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Shows two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset knob—It can reset the
two trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
