2002 TOYOTA ECHO Owners Manual

2001MY ECHO (U) L/O0008
662002 ECHO (OM52463U)

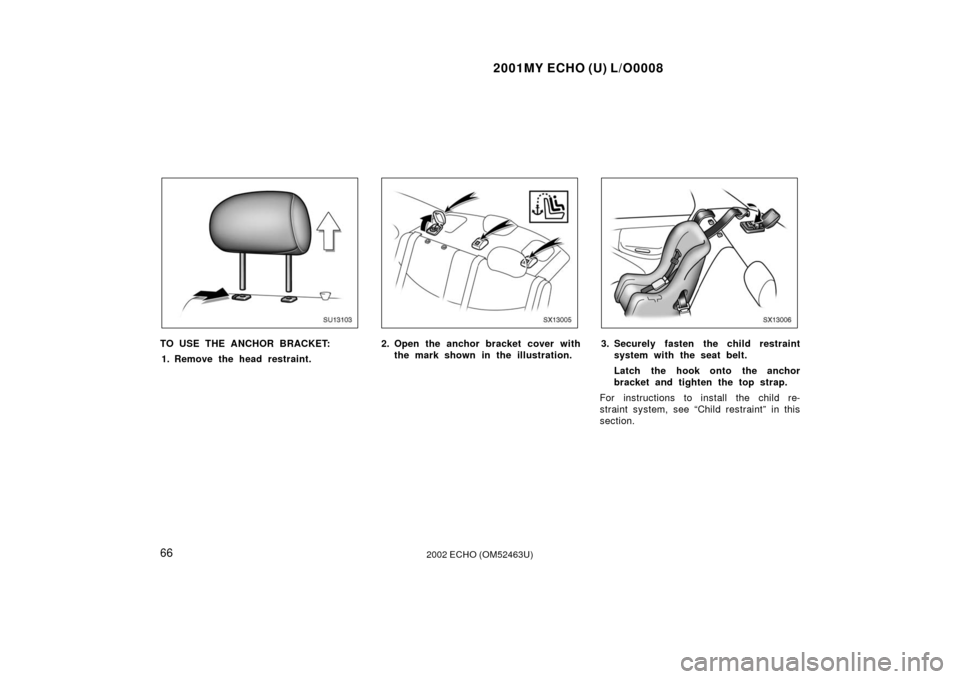

SU13103
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
SX13005
2. Open the anchor bracket cover with the mark shown in the illustration.
SX13006
3. Securely fasten the child restraintsystem with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.

2002MY ECHO (U) L/O0109
672002 ECHO (OM52463U)
CAUTION
Make sure the top strap is securely
latched, and check that the child
restraint system is secure by push-
ing and pulling it in different direc-
tions.
Follow all the installation instruc-
tions provided by its manufacturer.
SX13007
4. Replace the head restraint.
Be sure to replace all covers when the
anchor bracket is not in use.
SU13129
The lower anchorages for the child re-
straint system interfaced with the
FMVSS225 specification are installed in
the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint system interfaced with the
FMVSS225 specification can be fixed with
these anchorages. In this case, it is not
necessary to fix the child restraint system
with a seat belt on the vehicle.
—Installation with child
restraint lower anchorages

2001MY ECHO (U) L/O0008
682002 ECHO (OM52463U)

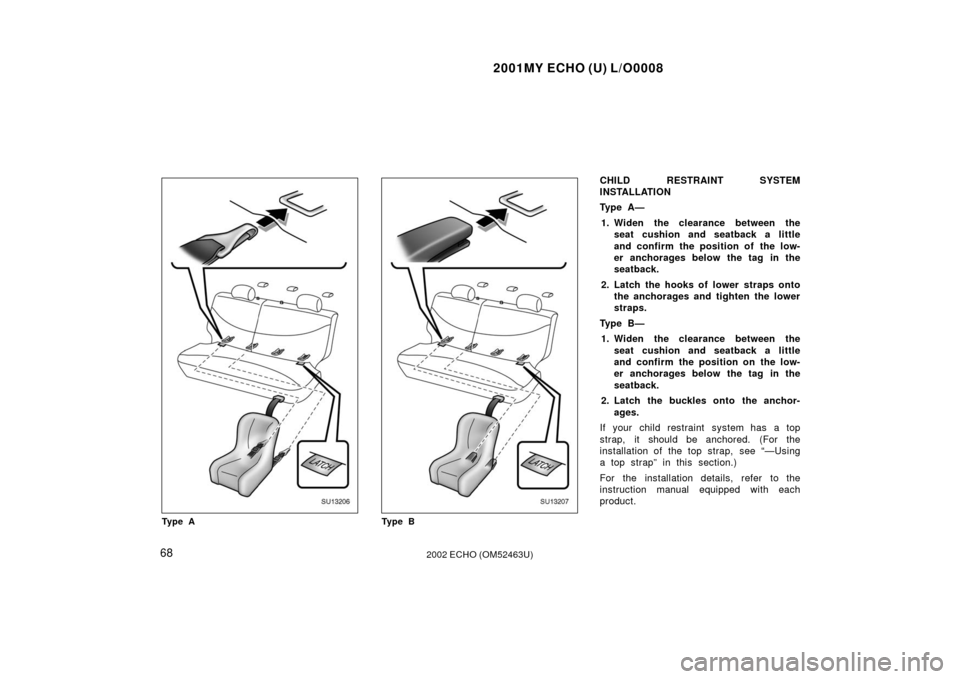

SU13206
Ty p e A
SU13207
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A —1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages below the tag in the
seatback.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position on the low-
er anchorages below the tag in the
seatback.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” in this section.)
For the installation details, refer to the
instruction manual equipped with each
product.

2002MY ECHO (U) L/O0109
692002 ECHO (OM52463U)
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not put a child restraint system
on the rear seat if it interferes with
the lock mechanism of the front
seats. This can cause severe injury
to the child and front passenger in
case of sudden braking or a colli-
sion.

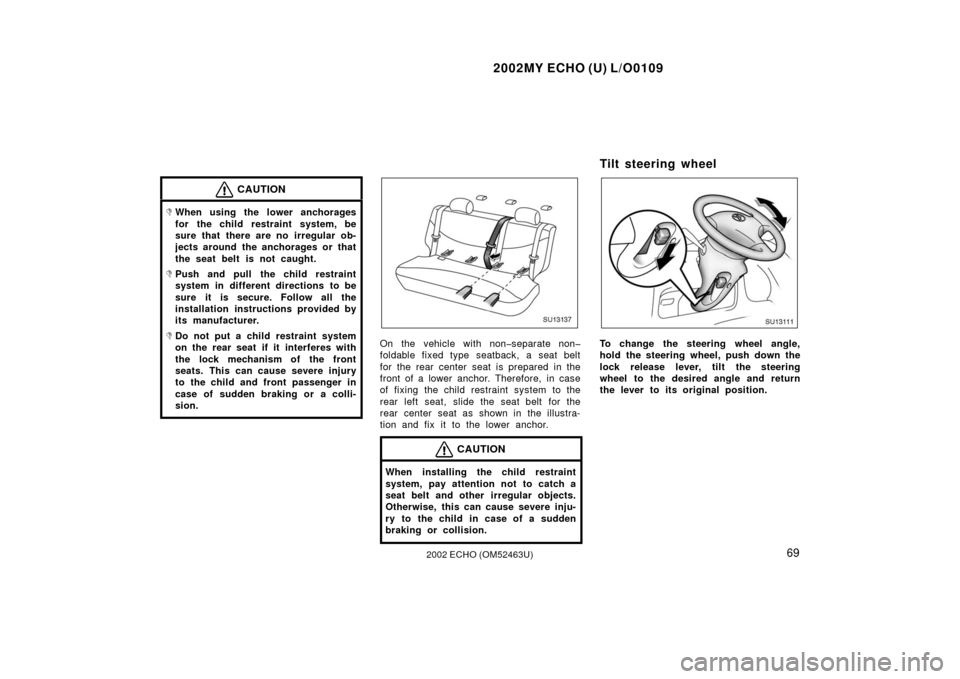

SU13137
On the vehicle with nonseparate non
foldable fixed type seatback, a seat belt
for the rear center seat is prepared in the
front of a lower anchor. Therefore, in case
of fixing the child restraint system to the
rear left seat, slide the seat belt for the
rear center seat as shown in the illustra-
tion and fix it to the lower anchor.
CAUTION
When installing the child restraint
system, pay attention not to catch a
seat belt and other irregular objects.
Otherwise, this can cause severe inju-
ry to the child in case of a sudden
braking or collision.
Tilt steering wheel
SU13111
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.

2001MY ECHO (U) L/O0008
702002 ECHO (OM52463U)
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. It may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or serious inju-
ries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—

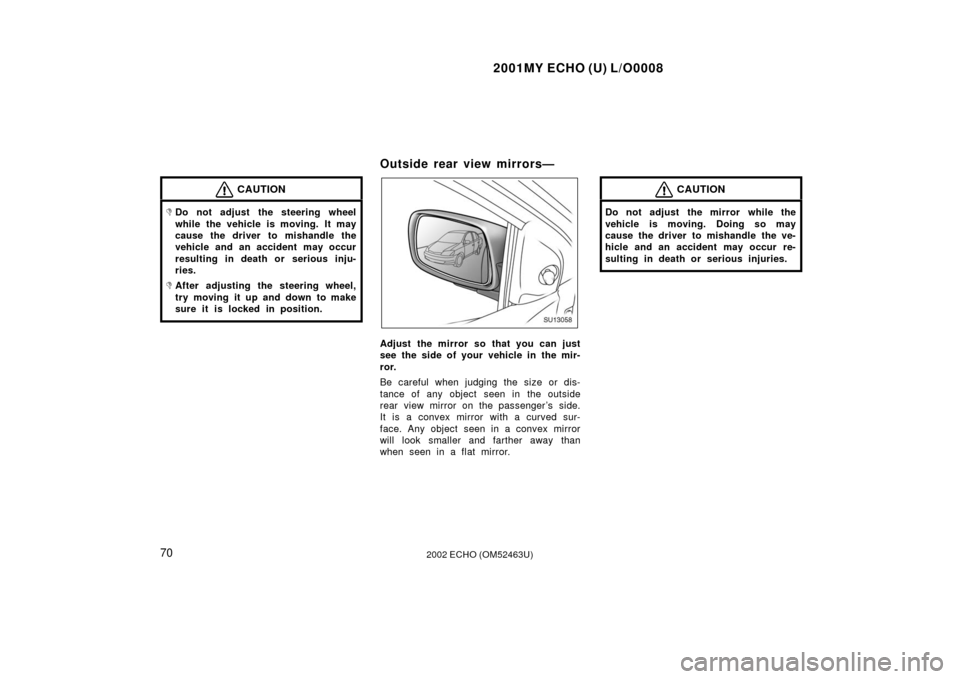

SU13058
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.

2002MY ECHO (U) L/O0109
712002 ECHO (OM52463U)
SY13077a
To adjust the rear view mirror, simply
operate the control lever.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
SP13503
Adjust the mirror so you can just see
the rear of your vehicle in the mirror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in personal injuries.
—Rear view mirror remote
controlAntiglare inside rear view
mirror

2001MY ECHO (U) L/O0008
722002 ECHO (OM52463U)
Vanity mirror
SU13061
To use the vanity mirrors, swing down
the sun visor and open the cover.

2002MY ECHO (U) L/O0109
732002 ECHO (OM52463U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 75
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Windshield wipers and washer 76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 4
