2002 TOYOTA CELICA child restraint

’02MY CELICA U (L/O 0108)
582002 MY CELICA_U (OM20792U)
1. Sit the child on a booster seat. Runthe lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” for de-
tails.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s s houlder. Fail-
ure to do so could reduce the
amount of protection in an accident
and increase the chance of injury.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.

’02MY CELICA U (L/O 0108)
592002 MY CELICA_U (OM20792U)

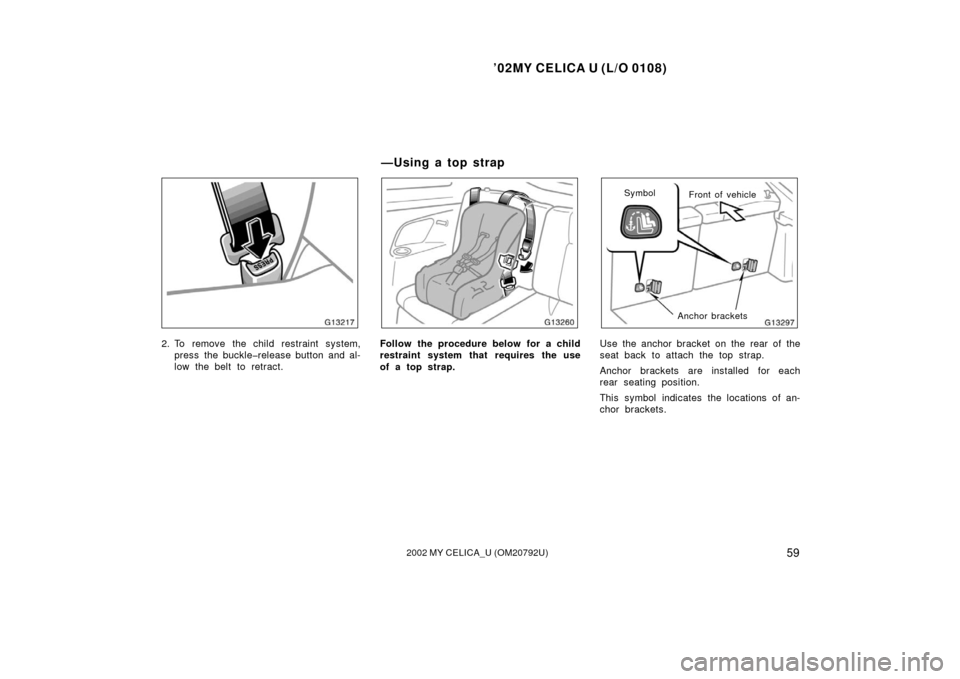

2. To remove the child restraint system,press the bucklerelease button and al-
low the belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Front of vehicle
Symbol
Anchor brackets
Use the anchor bracket on the rear of the
seat back to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of an-
chor brackets.
— U sin g a to p st rap

’02MY CELICA U (L/O 0108)
602002 MY CELICA_U (OM20792U)
TO USE THE ANCHOR BRACKET:1. Find the label on the rear of the seat back carpet. Tear the slit next to the
label by hand.
2. Fix the child restraint system withthe seat belt.
Latch the hook onto the exposed an-
chor bracket and tighten the top
strap.
For instructions to install the child re-
straint system, see “Child restraint” in this
section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
