2002 TOYOTA CELICA child restraint

’02MY CELICA U (L/O 0108)
482002 MY CELICA_U (OM20792U)
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
Make sure that you have complied
with all installation instructions pro-
vided by the child restraint
manufacturer and that the system is
properly secured.
A child restraint system for a small
child or baby must itself be properly
restrained on the seat with the lap por-
tion of the lap/shoulder belt. You must
carefully consult the manufacturer ’s in-
structions which accompany the child
restraint system.
To provide proper restraint, use a child
restraint system following the manufactur-
er ’s instructions about the appropriate age
and size of the child for the child restraint
system.
Install the child restraint system correctly
following the instructions provided by its
manufacturer. General directions are also
provided under the following illustrations.
The child restraint system should be
installed on the rear seat. According to
accident statistics, the child is safer when
properly restrained in the rear seat than
in the front seat.CAUTION
Never install a rearfacing child re-
straint system on the front seat. In
the event of an accident, the force
of the rapid inflation of the airbag
can cause death or serious injury if
a rearfacing child restraint system
is installed on the front seat.
Unless it is unavoidable, do not
install a forwardfacing child re-
straint system on the front seat.
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
—Child restraint system

’02MY CELICA U (L/O 0108)
492002 MY CELICA_U (OM20792U)
After installing the child restraint
system, make sure it is secured in
place following the manufacturer ’s
instructions. If it is not restrained
securely, it may cause death or se-
rious injury to the child in the
event of a sudden stop or accident.
When not using the child restraint system,
keep it secured with the seat belt or place
it somewhere other than the passenger
compartment. This will prevent it from in-
juring passengers in the event of a sud-
den stop or accident.
Your vehicle has anchors for securing the
top strap of a child restraint system.
For instructions on how to use the anchor
bracket, see “—Using a top strap” in this
section.Child restraint systems are divided into
the following 3 types according to the
child’s age and size.
(A) Infant seat
(B) Convertible seat
(C) Booster seat
Install the child restraint system following
the instructions provided by its manufac-
turer.
(A) Infant seat
(B) Convertible seat
—Types of child restraint
system

’02MY CELICA U (L/O 0108)
512002 MY CELICA_U (OM20792U)
Do not install a rearfacing child
restraint system on the rear seat if
it interferes with the lock mecha-
nism of the front seats. This can
cause death or serious injury to the
child and front passenger in case
of sudden braking or a collision.
If the driver ’s seat position does
not allow sufficient space for safe
installation, install the child re-
straint system at another position.
1. Run the lap and shoulder belt throughor around the infant seat following the
instructions provided by its manufactur-
er and insert the tab into the buckle
taking care not to twist the belt. Keep
the lap portion of the belt tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this can prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.

’02MY CELICA U (L/O 0108)
522002 MY CELICA_U (OM20792U)
2. Fully extend the shoulder belt to put itin the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the infant seat securely, make
sure the belt is in the lock mode before
letting the belt retract.3. While pressing the infant seat firmly against the seat cushion and seatback,
let the shoulder belt retract as far as
it will go to hold the infant seat secure-
ly.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.

’02MY CELICA U (L/O 0108)
532002 MY CELICA_U (OM20792U)

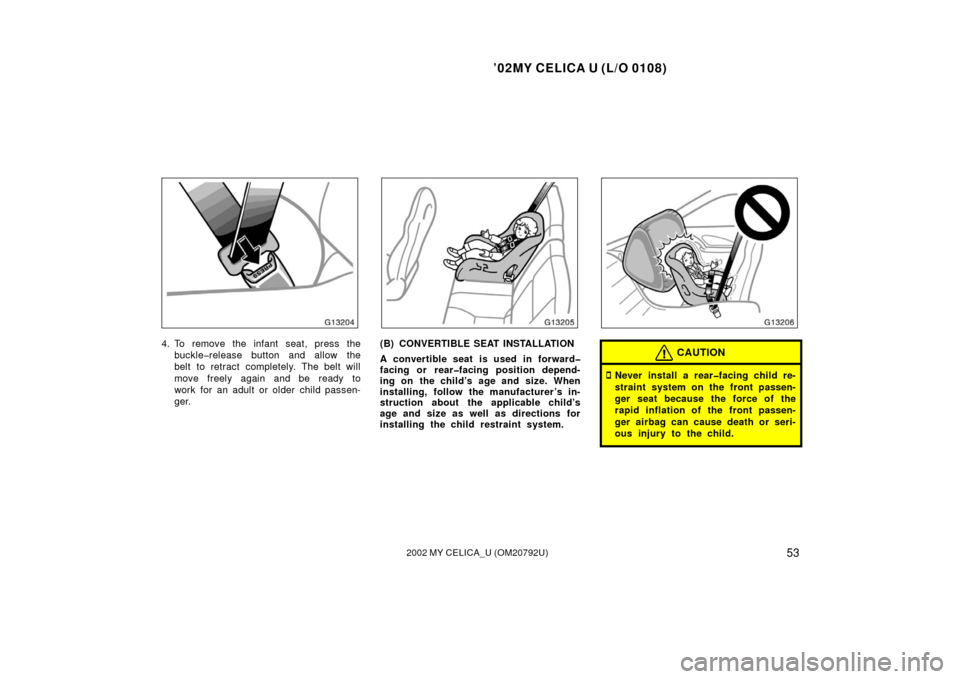

4. To remove the infant seat, press thebucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(B) CONVERTIBLE SEAT INSTALLATION
A convertible seat is used in forward
facing or rearfacing position depend-
ing on the child’s age and size. When
installing, follow the manufacturer’s in-
struction about the applicable child’s
age and size as well as directions for
installing the child restraint system.CAUTION
Never install a rearfacing child re-
straint system on the front passen-
ger seat because the force of the
rapid inflation of the front passen-
ger airbag can cause death or seri-
ous injury to the child.

’02MY CELICA U (L/O 0108)
542002 MY CELICA_U (OM20792U)
Move seat
fully back
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbags inflate,
because the impact could cause
death or serious injury to the child.
Do not put a rearfacing child re-
straint system on the rear seat if it
interferes with the lock mechanism
of the front seats. This can cause
death or serious injury to the child
and front passenger in case of sud-
den braking or a collision.
If your driving position is not satis-
factory, install the child restraint
system at another position.

’02MY CELICA U (L/O 0108)
562002 MY CELICA_U (OM20792U)
3. While pressing the convertible seatfirmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, pressthe bucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.

’02MY CELICA U (L/O 0108)
572002 MY CELICA_U (OM20792U)

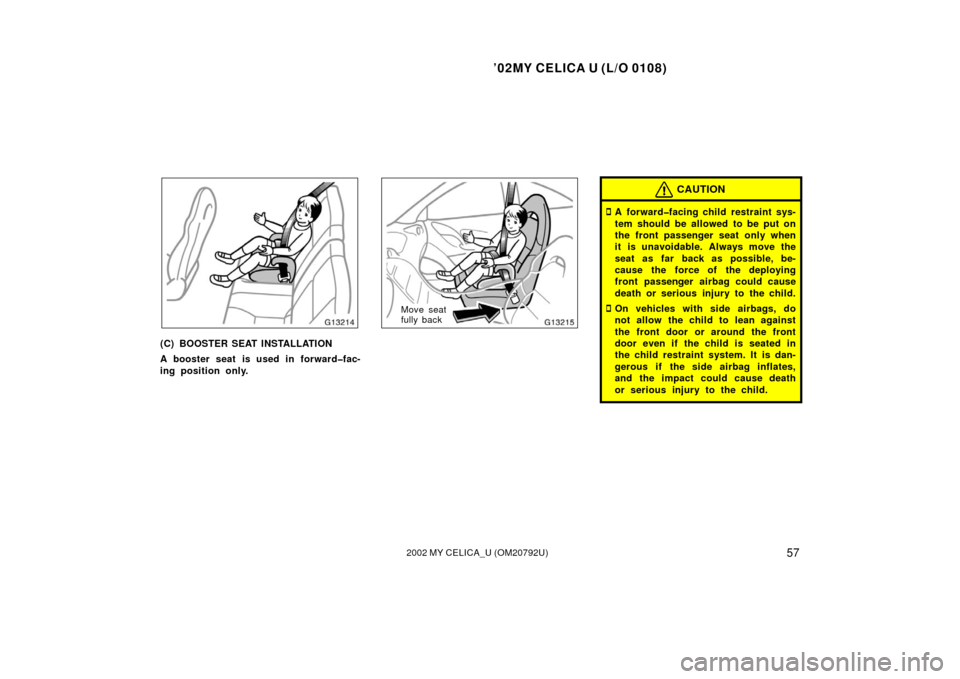

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.
Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be put on
the front passenger seat only when
it is unavoidable. Always move the
seat as far back as possible, be-
cause the force of the deploying
front passenger airbag could cause
death or serious injury to the child.
On vehicles with side airbags, do
not allow the child to lean against
the front door or around the front
door even if the child is seated in
the child restraint system. It is dan-
gerous if the side airbag inflates,
and the impact could cause death
or serious injury to the child.
