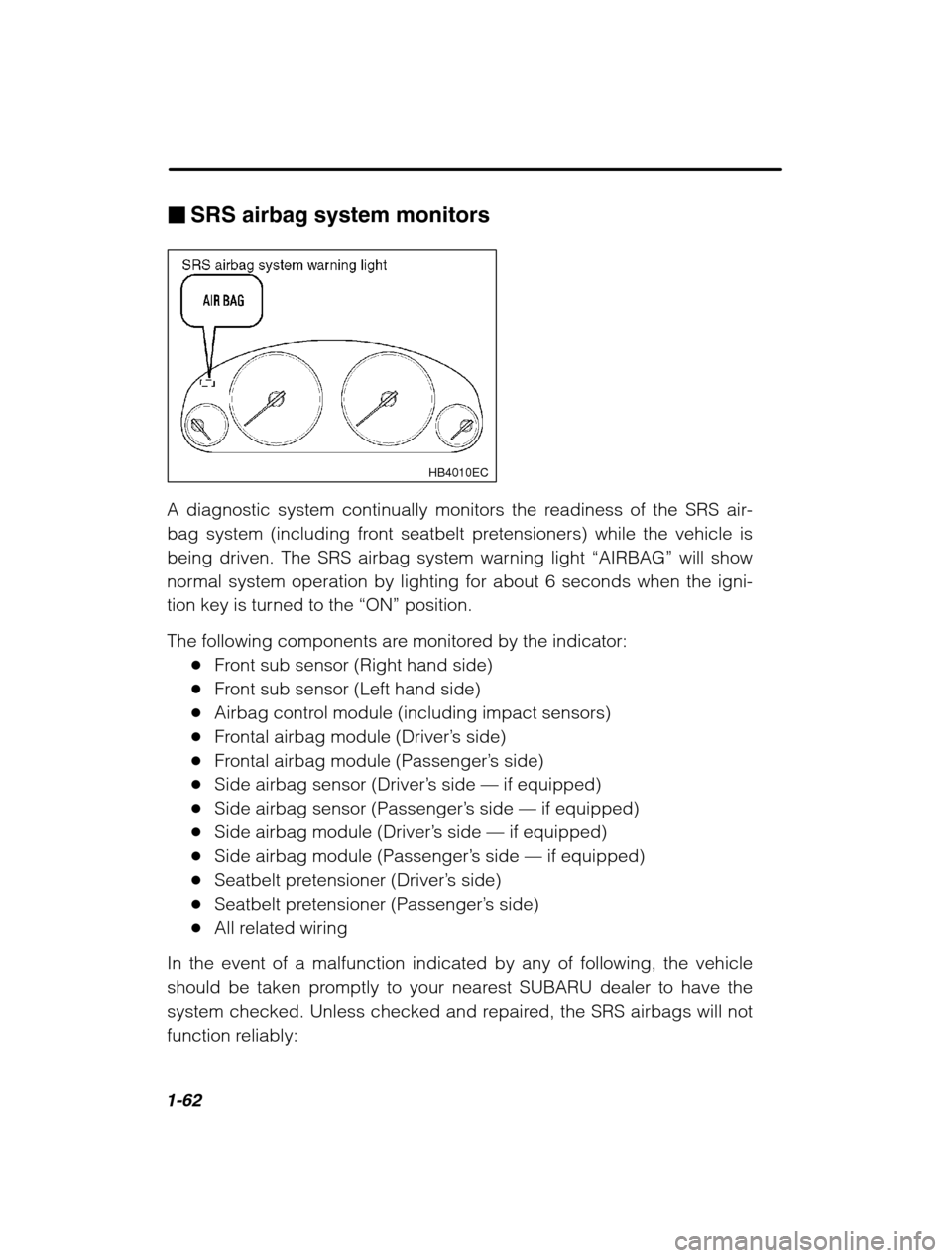

SRS airbag system monitors
HB4010EC
A diagnostic system continually monitors the readiness of the SRS air-
bag system (including front seatbelt pretensioners) while the vehicle is
being driven. The SRS airbag system warning light “AIRBAG” will show
normal system operation by lighting for about 6 seconds when the igni-
tion key is turned to the “ON” position.
The following components are monitored by the indicator: Front sub sensor (Right hand side)
Front sub sensor (Left hand side)
Airbag control module (including impact sensors)
Frontal airbag module (Driver ’s side)
Frontal airbag module (Passenger ’s side)
Side airbag sensor (Driver ’s side — if equipped)
Side airbag sensor (Passenger ’s side — if equipped)
Side airbag module (Driver ’s side — if equipped)
Side airbag module (Passenger ’s side — if equipped)
Seatbelt pretensioner (Driver ’s side)
Seatbelt pretensioner (Passenger ’s side)
All related wiring
In the event of a malfunction indicated by any of following, the vehicle
should be taken promptly to your nearest SUBARU dealer to have the
system checked. Unless checked and repaired, the SRS airbags will not
function reliably:

Seat, seatbelt and SRS airbags1-63
–
CONTINUED –
Flashing or flickering of the indicator light.
No illumination of the warning light when the ignition switch is first
turned to the “ON” position.
Continuous illumination of the warning light.
Illumination of the warning light while driving.
SRS airbag system servicing
WARNING
When discarding an airbag module or scrapping the entire car
damaged by a collision, consult your SUBARU dealer. The SRS airbag has no user-serviceable parts. Do not use
electrical test equipment on any circuit related to the SRS airbag
system. For required servicing of the SRS airbag, see your near-
est SUBARU dealer. Tampering with or disconnecting the sys-
tem’ s wiring could result in accidental inflation of the SRS airbag
or could make the system inoperative, which may result in seri-
ous injury. The wiring harnesses of the SRS airbag system arecovered with yellow insulation and system connectors are yellowfor easy identification.
CAUTION
If you need service or repair in areas listed below, we recommend
that you have an authorized SUBARU dealer perform the work. The
SRS airbag control module, impact sensors and airbag modules
are stored in these areas.
Under the center console
Inside each front fender
Steering wheel and column and nearby areas
Top of the dashboard on front passenger ’s side and nearby
areas Each front seat and nearby area (only for vehicles with SRS
side airbags) Inside each center pillar

Keys and doors2-13
–
CONTINUED –
times. If you have two current transmitters, program each one twice. If
you have three current transmitters, program two of them once and
the third one twice. This process will leave only current transmittercodes in the system ’s memory.
NOTE
Make sure no one else is operating their keyless entry system within range of your vehicle when programming transmitters. If
someone else were to operate their remote transmitter while youare programming your transmitters, it is possible that their trans-mitter code will be programmed into your system, allowing themunauthorized access to your vehicle.
Security system (if equipped)
The security system helps to protect your vehicle and valuables from
theft. The horn sounds and the parking lights flash if someone attempts
to break into your vehicle. The starter motor is also interrupted to prevent
starting the vehicle without a key.
The system can be armed and disarmed with the remote transmitter.
The system does not operate when the key is inserted into the ignitionswitch. System operation
The security system will give the following alarm indications when trig-
gered: The parking lights will flash and the horn will sound intermittently.
In addition, the starter motor will not operate. The alarm automatically resets after 30 seconds; however, the
alarm will reactivate if the vehicle is tampered with again. The alarmwill continue for six times if any sensor continues to be activated.
The alarm is triggered by: Opening a door, the rear gate or trunk lid.
Application of physical shock to the vehicle (e.g. breaking glass or
forced entry). Note that there are two alarm levels for shock: warning

2-14
and alarm. In warning mode, the alarm detects lower level vibrations
and triggers 2 warning chirps on the horn and two flashes on the
lights as a deterrent to would be vandals. In alarm mode, higher lev-
els of shock are detected and the system will go into full alarm.Ignition switch being turned on while in armed state.
NOTE
With the valet mode selected, the security system does not oper-
ate and the parking lights do not flash when the remote transmit-ter is used for locking and unlocking.The security system indicator light in the combination meter
flashes twice per second to show that the valet mode is selected.For details, refer to “Valet mode ” in this section.
Arming the system
n To arm the system using remote transmitter
HB2033BB
Press to Arm the system. Press to Disarm the system.
HB1000EB
1. Close all windows and moonroofs (if so equipped).
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehicle.
4. Make sure that the engine hood (and the trunk lid) are locked.
5. Close all doors (and the rear gate on the station wagon).
6. Briefly press the “LOCK/ARM” button (for less than two seconds).
All doors (and the rear gate on the station wagon) will lock, the hornwill sound one time, the parking lights will flash one time and the indi-
cator light starts flashing slowly (approximately once every two

2-24
Trunk lid (Sedan)WARNING
To prevent dangerous exhaust gas from entering the vehicle,
always keep the trunk lid closed while driving. Help prevent young children from locking themselves in the
trunk. When leaving the vehicle, either close all windows and lockall doors or cancel the inside trunk lid release. Also make certainthat the trunk is closed. On hot or sunny days, the temperature inthe trunk could quickly become high enough to cause death orserious heat-related injuries including brain damage, particularlyfor small children.
To open and close the trunk lid from outside
HBF013CB
To open the trunk lid from outside, insert the key and turn it clockwise.
To close the trunk lid, lightly press the trunk lid down until the latchengages.

3
Instruments and controls Ignition switch3-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key reminder chime 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key interlock release (AT vehicles only) 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning flasher 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Meters and gauges 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Trip meter 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature indicator (if equipped) 3-9 . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature gauge 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning and indicator lights 3-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt warning light and chime 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system warning light 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECK ENGINE warning light/Malfunction indicator lamp 3-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charge warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AT OIL TEMPerature warning light (for AT vehicles) 3-14 . . . . . . . . . . . . . .
ABS warning light 3-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door open warning lights 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low fuel warning light 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-wheel drive warning light (for AT vehicles) 3-17 . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security system status indicator light (if equipped) 3-18 . . . . . . . . . . . . . .
Shift position indicator (for AT vehicles) 3-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light control switch 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime running light system 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination brightness control 3-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking light switch 3-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instruments and controls3-3
–
CONTINUED –
Ignition switch
WARNING
Never turn the ignition switch to “LOCK” while the vehicle is be-
ing driven or towed because that will lock the steering wheel, pre- venting steering control. And when the engine is turned off, it
takes a much greater effort than usual to steer.
The ignition switch has four positions: LOCK, ACC, ON and START.
HB4000CA
LOCK
The key can only be inserted or removed in this position. The ignition
switch will lock the steering wheel when you remove the key.
If turning the key is difficult, turn the steering wheel slightly to the right
and left as you turn the key.

3-10
Temperature gauge
CAUTION
If the pointer exceeds the normal operating range, safely stop the
vehicle as soon as possible.
See “ In case of emergency ” in chapter 9.
HB2012BB
The temperature gauge shows engine coolant temperature when the
ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with the outside temper-
ature and driving conditions.
We recommend that you drive moderately until the pointer of the temper-
ature gauge reaches near the middle of the range. Engine operation is
optimum with the engine coolant at this temperature range and high rev-
ving operation when the engine is not warmed up enough should beavoided.
Warning and indicator lights
Several of the warning and indicator lights come on momentarily and
then go out when the ignition switch is initially turned to the “ON” posi-
tion. This permits checking the operation of the bulbs.
Apply the parking brake and turn the ignition switch to the “ON” position.
The following lights come on:
