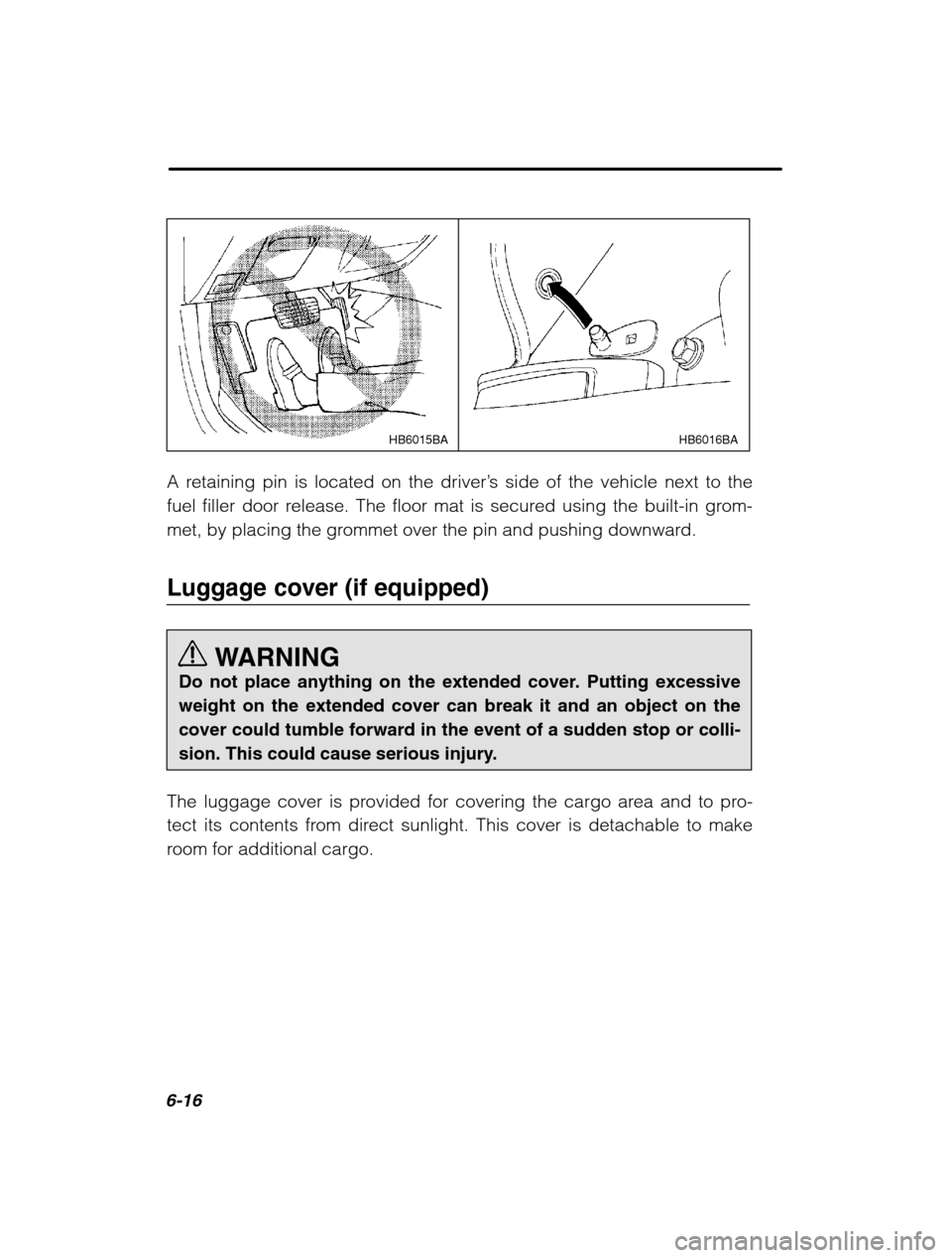

6-16
HB6016BA
HB6015BA
A retaining pin is located on the driver ’s side of the vehicle next to the
fuel filler door release. The floor mat is secured using the built-in grom-
met, by placing the grommet over the pin and pushing downward.
Luggage cover (if equipped)
WARNING
Do not place anything on the extended cover. Putting excessive weight on the extended cover can break it and an object on the
cover could tumble forward in the event of a sudden stop or colli-
sion. This could cause serious injury.
The luggage cover is provided for covering the cargo area and to pro-
tect its contents from direct sunlight. This cover is detachable to make
room for additional cargo.

7-4
In addition, some gasoline suppliers are now producing reformulated
gasolines, which are designed to reduce vehicle emissions. SUBARU
approves the use of reformulated gasoline.
If you are not sure what the fuel contains, you should ask your service station operators if their gasolines contain detergents and oxygenates
and if they have been reformulated to reduce vehicle emissions. As additional guidance, only use fuels suited for your vehicle as ex-
plained below.Fuel should be unleaded and have an octane rating no lower than
that specified in this manual. Methanol (methyl or wood alcohol) is sometimes mixed with un-
leaded gasoline. Methanol can be used in your vehicle ONLY if it
does not exceed 5% of the fuel mixture AND if it is accompanied by
sufficient quantities of the proper cosolvents and corrosion inhibitors
required to prevent damage to the fuel system. Do not use fuel con-
taining methanol EXCEPT under these conditions.
If undesirable driveability problems are experienced and you sus-
pect they may be fuel related, try a different brand of gasoline before
seeking service at your SUBARU dealer. Fuel system damage or driveability problems which result from the
use of improper fuel are not covered under the SUBARU Limited War-
ranty.
Fuel filler lid and cap Refueling
WARNING
Gasoline vapor is highly flammable. Before refueling, always
first stop the engine and make sure that there are no lighted ciga- rettes, open flames or electrical sparks in the adjacent area. When opening the cap, do not remove the cap quickly. Fuel
may be under pressure and spray out of the fuel filler neck espe-
cially in hot weather, which may cause injury.

Starting and operating7-7
–
CONTINUED –
If the fuel filler cap is not tightened until it clicks or if the tether
is caught under the cap, the CHECK ENGINE warning light may come on. Refer to the “Warning and indicator lights ” section lo-
cated in chapter 3.
State emission testing (U.S. only)
WARNING
Testing of an All-Wheel Drive vehicle must NEVER be performed
on a single two-wheel dynamometer. Attempting to do so willresult in uncontrolled vehicle movement and may cause an acci-
dent or injuries to persons nearby.
CAUTION
Resultant vehicle damage due to improper testing is not covered
under the SUBARU Limited Warranty and is the responsibility ofthe state inspection program or its contractors or licensees.
At state inspection time, remember to tell your inspection or service
station in advance not to place your Subaru AWD vehicle on a two-
wheel dynamometer. Otherwise, serious transmission damage willresult.
Some states have started using dynamometers in their state inspection
programs in order to meet their obligation under federal law to implement
stricter vehicle emission standards to reduce air pollution from cars. A
dynamometer is a treadmill or roller-like testing device that allows your
car’ s wheels to turn while the car remains in one place. Depending on
the severity of a state ’s air pollution problems, the states must adopt
either a “basic” or “enhanced” vehicle emission inspection test. Nor-
mally, a portion of the basic emission test consists of an emission
inspector inserting an analyzer probe into the exhaust pipe of an idling
vehicle for a short period of time. States with more severe air pollution
problems are required to adopt an enhanced vehicle emission test. This
test simulates actual driving conditions on a dynamometer and permits

7-8
more accurate measurement of tailpipe emitted pollution than the basic emission test.
The U.S. Environmental Protection Agency (EPA) and states using two-
wheel dynamometers in their emission testing programs haveEXEMPTED Subaru AWD vehicles from the portion of the testing pro-
gram that involves a two-wheel dynamometer.
There are some states that use four-wheel dynamometers in their testing
programs. When properly used, that equipment will not damage an AWD Subaru vehicle.
Under no circumstances should the rear wheels be jacked off the
ground, nor should the driveshaft be disconnected for state emission testing.
Preparing to drive
You should perform the following checks and adjustments every day be-
fore you start driving.
1. Check that all windows, mirrors, and lights are clean and unob- structed.
2. Check the appearance and condition of the tires. Also check tires for
proper inflation.
3. Look under the vehicle for any sign of leaks.
4. Check that the hood, trunk and rear gate are fully closed.
5. Check the adjustment of the seat.
6. Check the adjustment of the inside and outside mirrors.
7. Fasten your seatbelt. Check that your passengers have fastened theirseatbelts.
8. Check the operation of the warning and indicator lights when the igni-
tion switch is turned to the “ON” position.
9. Check the gauges, indicator and warning lights after starting the en-gine. NOTE Engine oil, engine coolant, brake fluid, washer fluid and other fluid
levels should be checked daily, weekly or at fuel stops.

Starting and operating7-9
–
CONTINUED –
Starting the engine
CAUTION
Do not operate the starter motor continuously for more than ten
seconds. If the engine fails to start after operating the starter forfive to ten seconds, wait for ten seconds or more before tryingagain.
Starting the engine for a manual transmission vehicle
1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Press the clutch pedal to the floor and shift the shift lever into neutral.
Hold the clutch pedal to the floor while starting the engine. The starter
motor will only operate when the clutch pedal is pressed fully to the floor.
4. Turn the ignition switch to the “ON” position and check the operation
of the warning and indicator lights. Refer to the “Warning and indicator
light” section (chapter 3).
5. Turn the ignition switch to the “START” position without depressing
the accelerator pedal. Release the key immediately after the engine has
started.
If the engine does not start within ten seconds, wait a while and then turn the ignition switch to the “START” position again while depressing the ac-
celerator pedal half way down.
6. Confirm that all warning and indicator lights have gone off after the
engine has started. The fuel injection system automatically lowers the
idle speed as the engine warms up.
Starting the engine for an automatic transmission ve- hicle
CAUTION
If you restart the engine while the vehicle is moving, shift the se- lector lever into the “N” position. Do not attempt to place the se-
lector lever of a moving vehicle into the “P” position.

7-10
1. Apply the parking brake.
2. Turn off unnecessary lights and accessories.
3. Shift the selector lever to the “P” or “N” position (preferably “P” posi-
tion). The starter will only operate when the select lever is at the “P” or
“N” position.
4. Turn the ignition switch to the “ON” position and check the operation
of the warning and indicator lights. Refer to the “Warning and indicator
lights” section (chapter 3).
5. Turn the ignition switch to the “START” position without depressing
the accelerator pedal. Release the key immediately after the engine has
started.
If the engine does not start within ten seconds, wait a while and then turnthe ignition switch to the “START” position again while depressing the ac-
celerator pedal half way down.
6. Confirm that all warning and indicator lights have gone out after the
engine has started. The fuel injection system automatically lowers the
idle speed as the engine warms up.
While the engine is warming up, make sure that the selector lever is at the “P” or “N” position and that the parking brake is applied.
Starting the engine during cold weather below –4°F
(–20 °C)
If the engine is difficult to start using the normal method (without de-
pressing the accelerator pedal), turn the ignition switch to the “START”
position while slightly depressing the accelerator pedal.
Starting a flooded engine
If the engine does not start, it may be flooded (excessive fuel in the en-gine).
In case of a flooded engine, turn the starter motor for five seconds with
the accelerator pedal fully depressed. Repeat this two or three times until
the engine starts. Release the ignition switch and accelerator pedal as
soon as the engine starts.

7-16
To shift the selector lever from the “P” to the any other position, you
have to depress the brake pedal fully when the ignition switch is in the
“ON” position. This prevents the vehicle from lurching when it is
started.
If the shift lever does not move from the “P” position with the brake
pedal depressed, refer to the “Shift lock release ” section in this chap-
ter. R (Reverse)
This position is for backing the vehicle.
To shift from the “N” to “R” position, first stop the vehicle completely
then move the lever to the “R” position.
N (Neutral)
WARNING
Do not drive the vehicle with the selector lever in the “N” (neutral)
position. Engine braking has no effect in this condition and the risk of an accident is consequently increased.
This position is for restarting a stalled engine.
In this position the wheels and transmission are not locked. In this
position, the transmission is neutral; the vehicle will roll freely, even onthe slightest incline unless the parking brake or foot brake is on. D (Drive)
This position is for normal driving.
The transmission automatically shifts into a suitable gear from 1st to
4th according to the vehicle speed and the acceleration you require.
When more acceleration is required in this position, press the acceler- ator pedal fully to the floor and hold that position. The transmission
will automatically downshift to 3rd, 2nd or 1st gear. When you release
the pedal, the transmission will return to the original gear position. n While climbing a grade
When driving up a hill, undesired upshift to 4th gear is prevented from

Starting and operating7-21
–
CONTINUED –
Power steering
CAUTION
Do not hold the steering wheel at the fully locked position left or right for more than five seconds. This may damage the powersteering pump.
The power steering system operates only when the engine is running.
If you lose power steering assist because the engine stops or the system
fails to function, you can steer but it will take much more effort. NOTE Right after the engine has been started and before it has warmed up, you may hear a noise coming from areas adjacent to the powersteering pump which is located at the right-front area of the enginecompartment. This noise is normal. It does not indicate power steer-ing system trouble. Braking Braking tips
WARNING
Never rest your foot on the brake pedal while driving. This can
cause dangerous overheating of the brakes and needless wearon the brake pads and linings.
When the brakes get wet
When driving in rain or after washing the vehicle, the brakes may get
wet. As a result, brake stopping distance will be longer. To dry the
brakes, drive the vehicle at a safe speed while lightly depressing thebrake pedal to heat up the brakes.
