2002 SUBARU OUTBACK warning light

Instruments and controls3-19
–
CONTINUED –
“Replacing bulbs ” section in chapter 11.
High beam indicator light
This light shows that the headlights are in the high beam mode.
This indicator light also comes on when operating headlight flasher. Clock
HB2013BA
To set the time, turn the setting knob clockwise to advance and counter-
clockwise to retard the time.
Light control switch
WARNING
To prevent battery discharge resulting from accidentally leaving your lights on when your vehicle is parked, the light switch oper-ates only when the ignition switch is in the “ON” position. In any
other position, the vehicle ’s lights will be out.
If you park your vehicle on a roadside at night, use the hazardwarning flasher to alert the other drivers.

Instruments and controls3-21
–
CONTINUED –
To flash the headlights, pull the lever toward you and then release it.
The high beam will stay on for as long as you hold the lever. The
headlight flasher works even though the lighting switch is in the “OFF”
position.
When the headlights are on high beam, the high beam indicator light “ a ” on the instrument panel also comes on.
Daytime running light system
WARNING
The tail lights, parking lights, and side marker lights are notturned on by the daytime running light system. The light switchmust always be turned to the “a ” position when it is dark out-
side.
The low beam headlights will automatically come on at reduced bright-
ness when the engine has started, under the following conditions: The parking brake is fully released.
The light switch is in the “OFF” or “p ” position.
Turn signal lever
HB2015BB
Right turn Left turn
To activate the right turn signal, push the turn signal lever up. To activate
the left turn signal, push the turn signal lever down. When the turn is fin-

3-24
Fog light switch (if equipped)
The fog lights operate only when the headlights are on low beam. Push
the fog light switch to turn the fog lights on.
Press the switch again to turn them off.
HB2025BB
The indicator light located on the switch will illuminate when the fog
lights are on.
Wiper and washerWARNING
In freezing weather, do not use the windshield washer until the
windshield is sufficiently warmed by the defroster.Otherwise the washer fluid can freeze on the windshield, blocking
your view.
CAUTION
Do not operate the washer continuously for more than ten se-
conds, or when the washer fluid tank is empty. This may cause
overheating of the washer motor. Check the washer fluid level fre-
quently, such as at fuel stops.

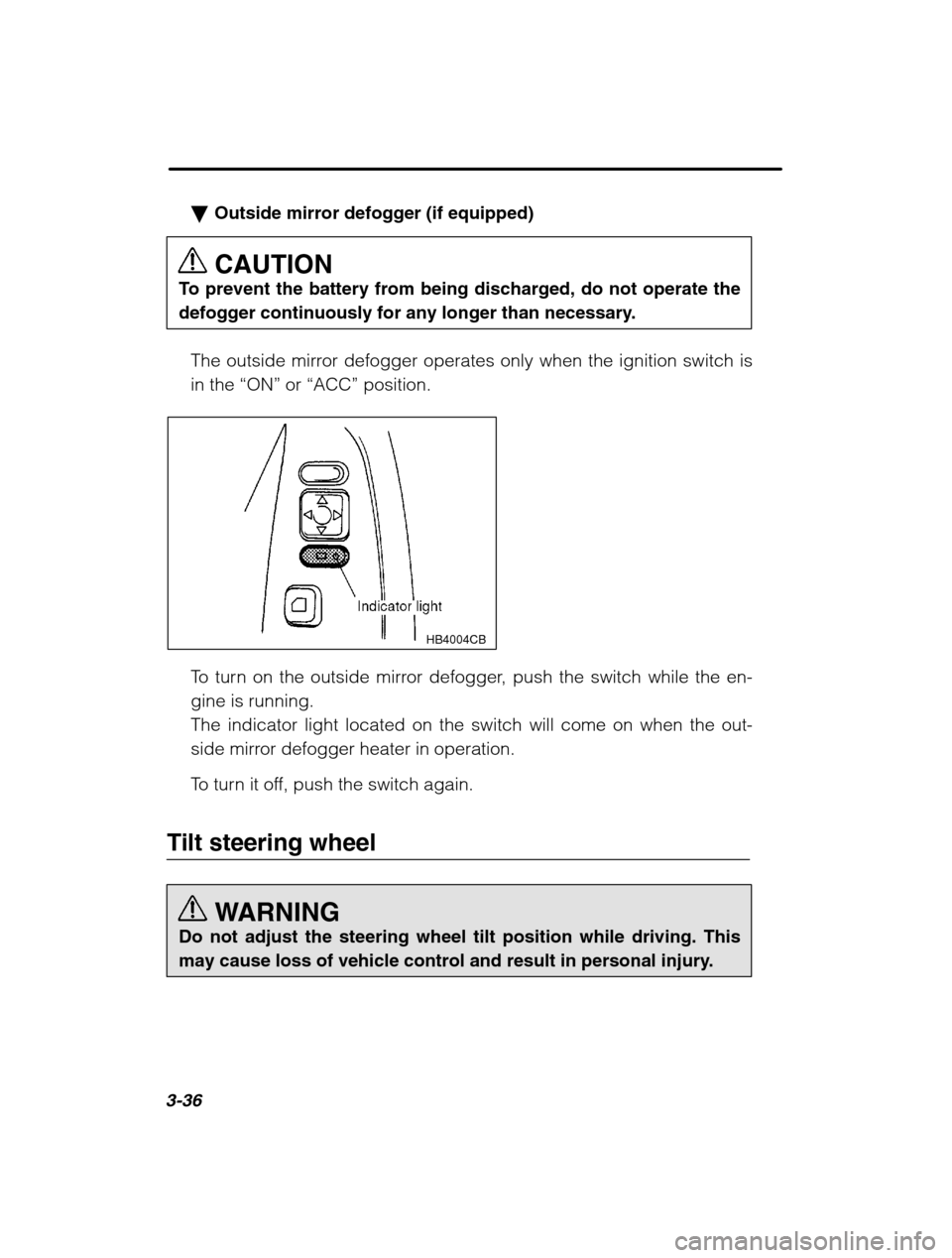

3-36
Outside mirror defogger (if equipped) CAUTION
To prevent the battery from being discharged, do not operate the
defogger continuously for any longer than necessary.
The outside mirror defogger operates only when the ignition switch isin the “ON” or “ACC” position.
HB4004CB
To turn on the outside mirror defogger, push the switch while the en- gine is running.The indicator light located on the switch will come on when the out-
side mirror defogger heater in operation.
To turn it off, push the switch again.
Tilt steering wheel
WARNING
Do not adjust the steering wheel tilt position while driving. This
may cause loss of vehicle control and result in personal injury.

4-6
nAir inlet selection button
WARNING
Continued operation in the ON position may fog up the windows.
Switch to the OFF position as soon as the outside dusty condi-tion clears.
HB5008BB
ON position (Recirculation): Interior air is recirculated inside the ve-
hicle. Push the air inlet selection button to the ON position. The indi- cator light will come on.OFF position (Fresh Air): Outside air is drawn into the passenger
compartment. Push the air inlet selection button again to the OFF
position. The indicator light will go off.

Climate control4-9
–
CONTINUED –
Bi-level heating
HB5014AA
This setting allows you to direct air of different temperatures from the
instrument panel and foot outlets. The air from the foot outlets is
slightly warmer than from the instrument panel outlets.
1. Set the air inlet selection button to the “OFF” position.
2. Set the air flow control dial to the “
” position.
3. Set the temperature control dial to the desired temperature level.
4. Set the fan speed control dial to the desired speed.
Setting the temperature control dial fully turned to the red area or blue
area decreases the temperature difference between the air from the
instrument panel outlets and the air from the foot outlets. Ventilation
WARNING
Continued operation in the “ON” position may fog up the win-
dows. Switch to the “OFF” position as soon as the outside dusty
condition clears.

Climate control4-17
–
CONTINUED –
nMODE — Air flow control switch
(Ventilation) : Air flows through the instrument panel outlets.
(Bi-level) : Air flows through the instrument panel outlets and the foot outlets.
(Heat) : Air flows through the foot outlets and some through the windshield defroster outlets.
(Heat-def) : Air flows through the windshield defroster out- lets and foot outlet.
n Air inlet selection switch
WARNING
Continued operation in the “
” position may fog up the win-
dows. Switch to the “
” position as soon as the outside
dusty condition clears.
HB4032BB
Select the air inlet by pushing the air inlet selection switch.
: Interior air recirculates inside the passenger ’s compartment.
Use this position when quickly warming up the passenger
compartment or cooling it down or when preventing outside
air from entering the passenger compartment from the out-
side air. The indicator light “
” on the control panel
comes on when this switch is pushed.

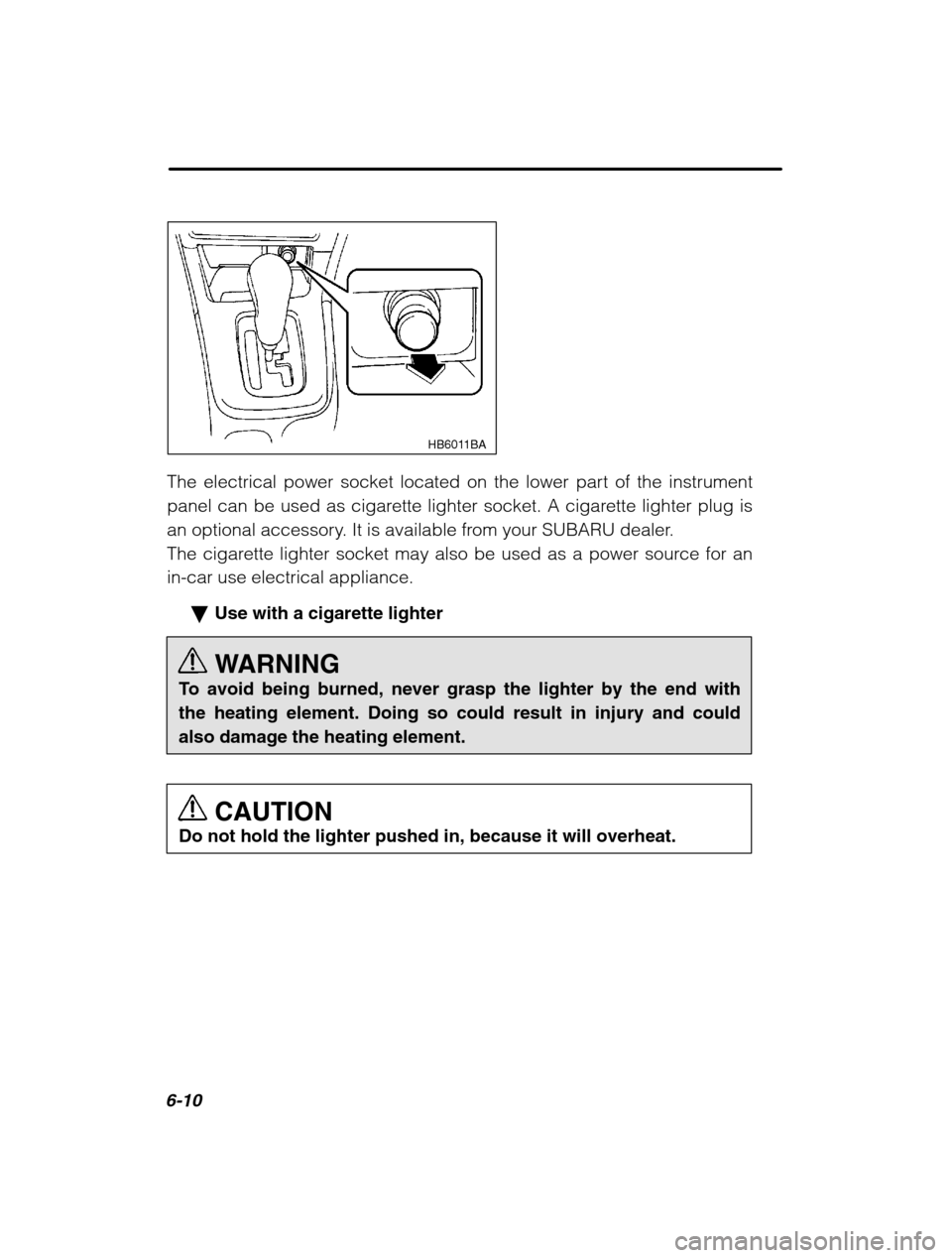

6-10
HB6011BA
The electrical power socket located on the lower part of the instrument
panel can be used as cigarette lighter socket. A cigarette lighter plug is
an optional accessory. It is available from your SUBARU dealer.
The cigarette lighter socket may also be used as a power source for anin-car use electrical appliance.Use with a cigarette lighter
WARNING
To avoid being burned, never grasp the lighter by the end withthe heating element. Doing so could result in injury and couldalso damage the heating element.
CAUTION
Do not hold the lighter pushed in, because it will overheat.
