2002 Peugeot 406 Dag Owner's Manual

MAINTENANCE OF YOUR 406
27

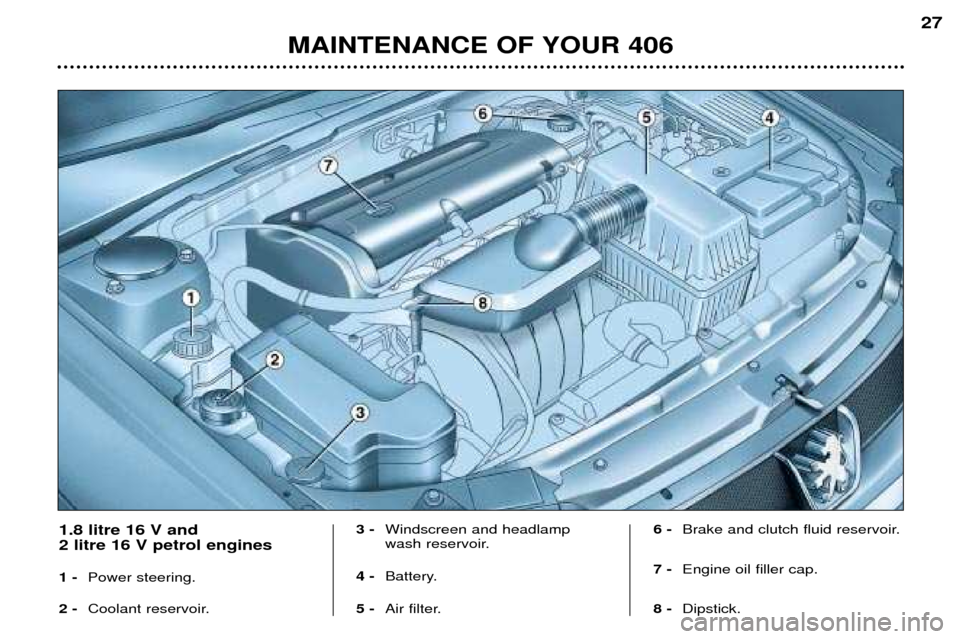

1.8 litre 16 V and 2 litre 16 V petrol engines 1 -Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
28

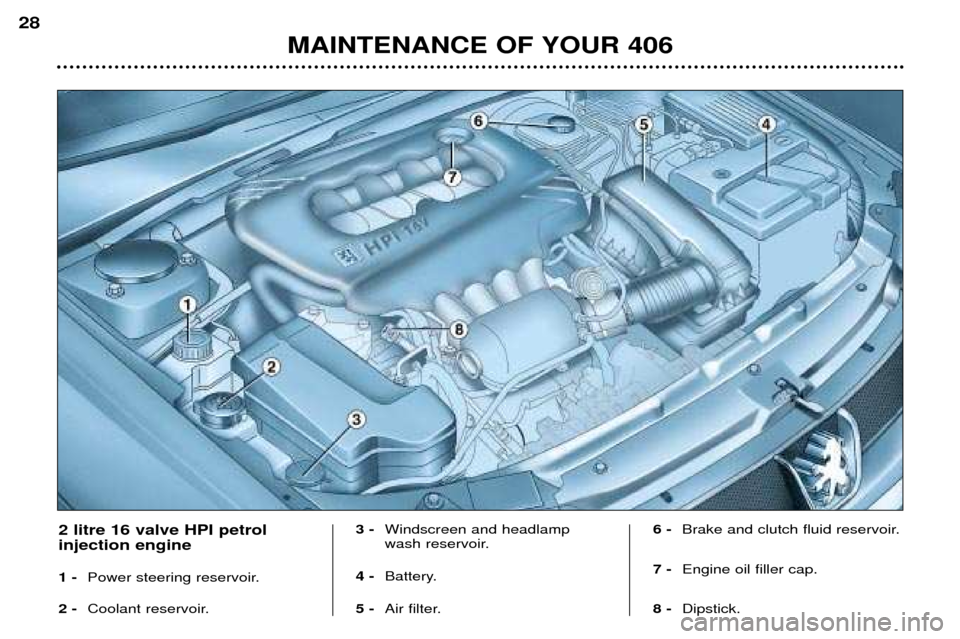

2 litre 16 valve HPI petrol injection engine 1 - Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
29

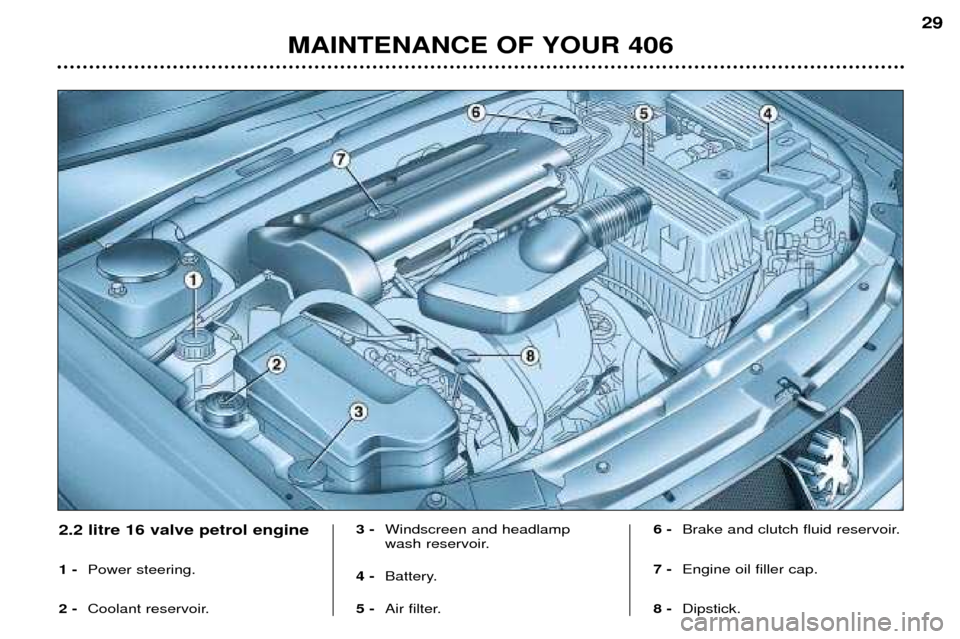

2.2 litre 16 valve petrol engine 1 -Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
30

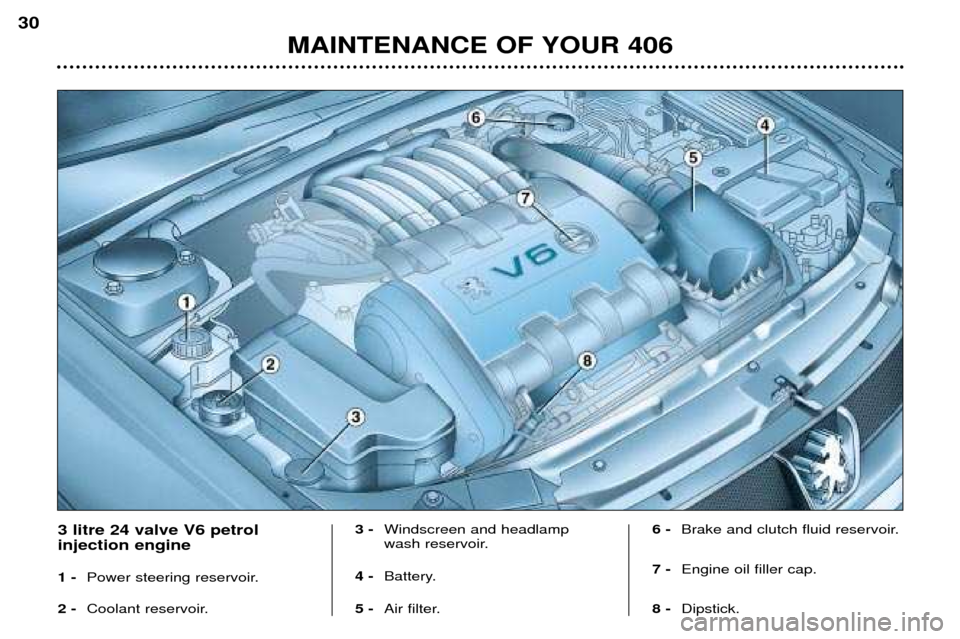

3 litre 24 valve V6 petrol injection engine 1 -Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
31

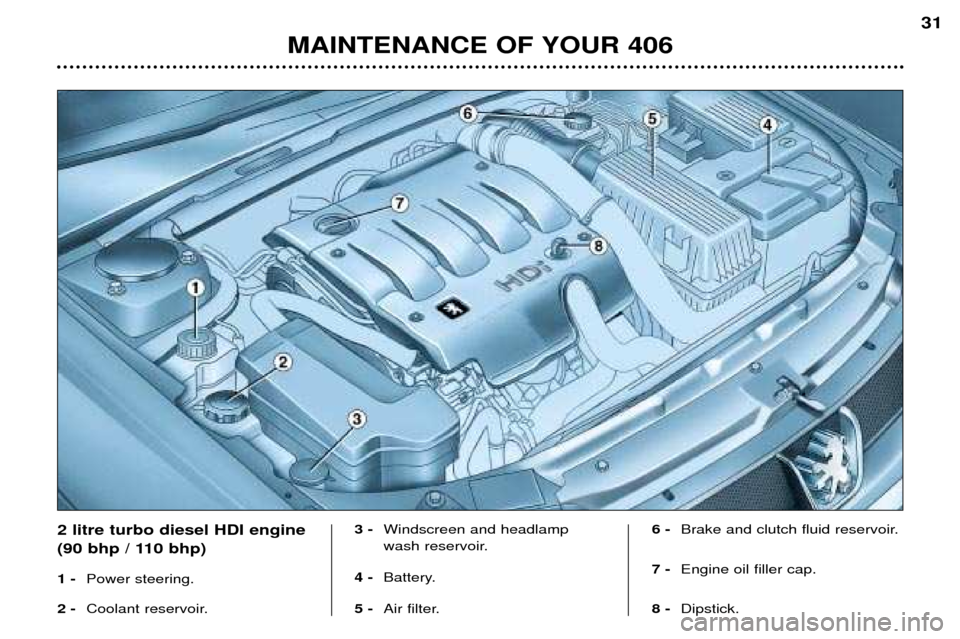

2 litre turbo diesel HDI engine
(90 bhp / 110 bhp) 1 - Power steering.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

MAINTENANCE OF YOUR 406
32

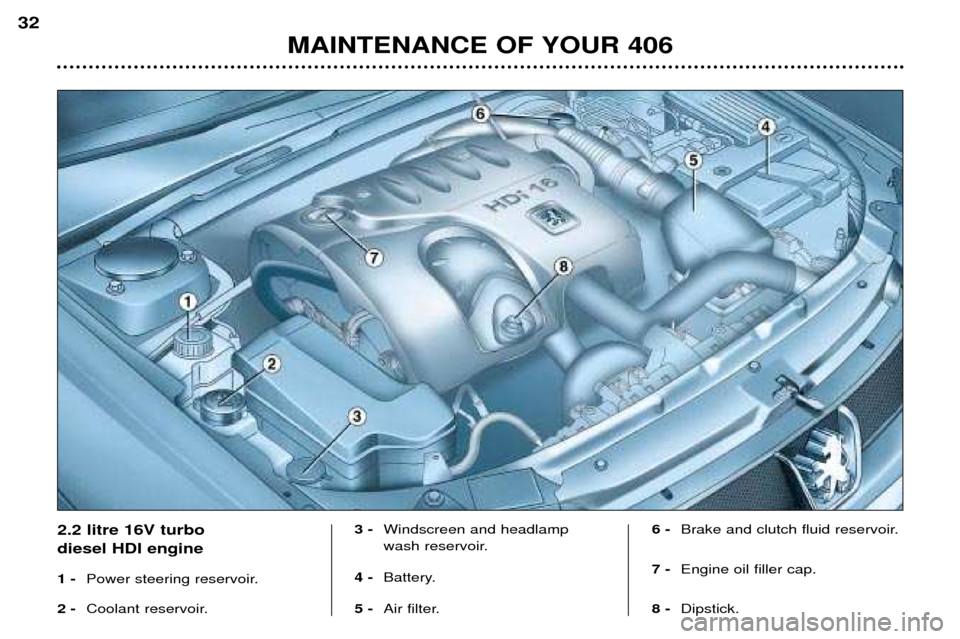

2.2 litre 16V turbo diesel HDI engine 1 -Power steering reservoir.
2 - Coolant reservoir. 3 -
Windscreen and headlamp
wash reservoir.
4 - Battery.
5 - Air filter. 6 -
Brake and clutch fluid reservoir.
7 - Engine oil filler cap.
8 - Dipstick.

CHECKING THE LEVELS Engine Checking the oil levelCheck the level regularly and top up between changes. Maximumconsumption is 0.5 litres per600 miles (1 000 km). The oil level should be checked with the vehicle level and the engine cold.There are two marks onthe dipstick: A= maximum
B = minimum
Oil change: according to the manu-
facturer's servicing schedule.
- Dipstick. Never fill past the maxi- mum mark A.
- Oil level gauge on the instrument panel.
Viscosity selection In all cases, the oil selected must meet the manufacturer's require-ments.
MAINTENANCE OF YOUR 406
34
Oil filter Change the filter regularly according to the servicing schedule. Used oilPrevent used oil from coming into prolonged contact with the skin. Do not dispose of used oil into drains or onto the ground.
To maintain the reliability of engines and emission control systems, theuse of additives in the engine oil isprohibited. Brakes and clutch Checking the brake and clutch fluid level:
- The level should always be above the DANGER mark on the reser-
voir.
- If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change
- must be carried out according to the manufacturer's servicing sche- dule.
- use fluids approved by the manu- facturer, which fulfil DOT 4 stan-dards. Cooling system Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan. Because this fancan operate with the ignition keyremoved and because the coolingsystem is pressurised, wait for atleast one hour after the engine hasstopped before carrying out anywork. In the event of a breakdown and to avoid any risk of burns, slacken thecap to the first notch to release thepressure. When the pressure hasdropped, remove the cap and top upthe level.

MAINTENANCE OF YOUR 406
35
Only use products appro-
ved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as important as the power steeringand the braking system, PEUGEOT selects and offersquite specific products. Power steering reservoir Open the reservoir with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4.5 litres or 9 litres withheadlamp wash). Battery
At the start of winter, have your bat-
tery checked by a PEUGEOT dealer. Air filter Regular replacement of the filter ele- ment is essential. If you drive in
very dusty conditions, change ittwice as often.Brake pads Brake pad wear depends on the style of driving, in particular forvehicles that are used in town, forshort journeys. It may be necessaryto check the thickness of the padseven between services. Handbrake Where the handbrake travel is too great or there is a reduction in theperformance of the system, thehandbrake should be adjusted, evenbetween services.Have the system checked by a
PEUGEOT dealer. Manual gearbox This does not need an oil change. Check the level according to themanufacturer's servicing schedule. Automatic autoadaptive gearbox This does not need an oil change. Have the level checked by a
PEUGEOT dealer according to themanufacturer's servicing schedule.
