2002 Peugeot 406 Dag Owner's Manual

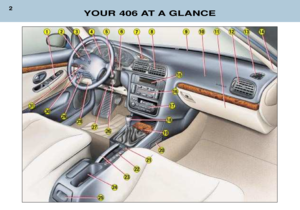

YOUR 406 AT A GLANCE
2

10 -Passenger air bag.
11 - Glove box.
12 - Side adjustable heating/ ventilation vent and air flowregulation.
13 - Window demisting vent.
14 - Speaker (tweeter) location.
15 - Multi-function display.

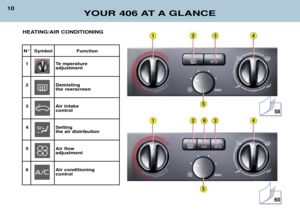

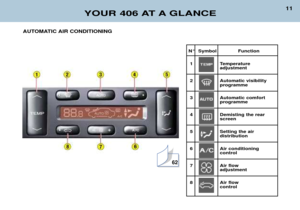

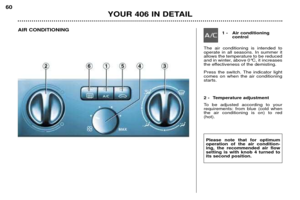

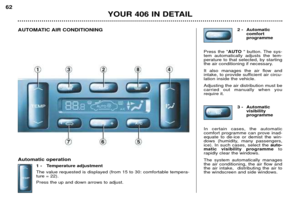

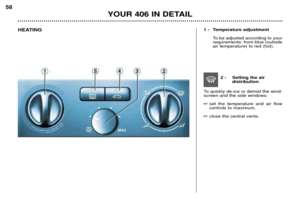

16 - Heating/ventilation controls.

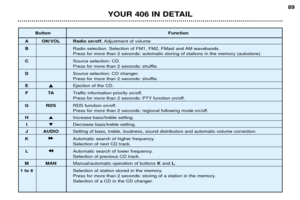

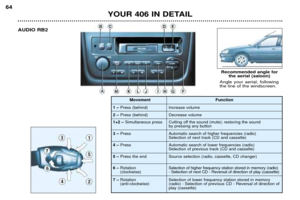

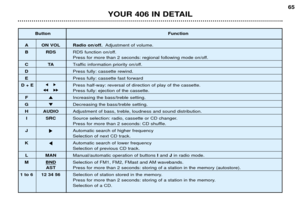

17 - Radio.

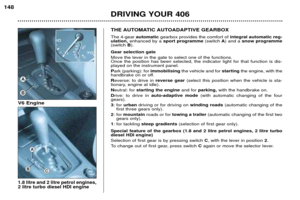

18 - Gear lever.
19 - Front ashtray.
20 - Rear footwell heating vent.
21 - Lighter. 22 -
Heated seat switches. Coin storage.Passenger air bag disarming switch.
23 - Handbrake.
24 - Cup-holder.
25 - Rear ashtray.
26 - Steering lock and ignition.
27
-Steering wheel adjustment.

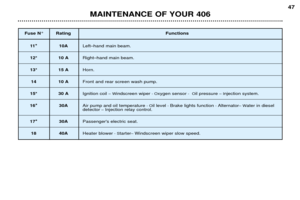

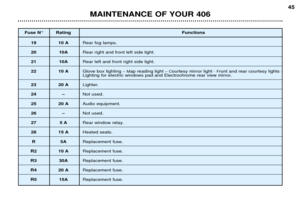

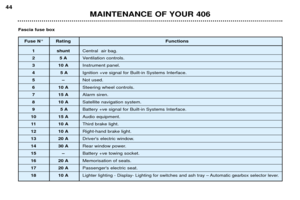

28 - Fuse box.
29 - Electronic Stability Program- me (ASR/ESP) switch.
30 - Headlamp height adjustment.
31 - Cruise control
YOUR 406 AT A GLANCE
3
1 - Electric mirror controls. Window controls.Rear window locking control.
2 - Lights and direction indicators stalk. Arming/disarming of automatic switching on of lights.
3 - Driver's air bag. Horn.

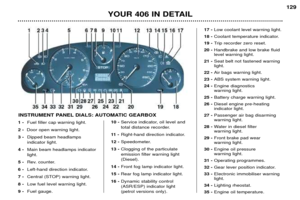

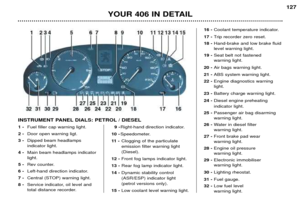

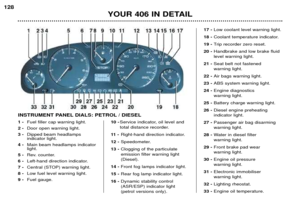

4 - Instrument dials.

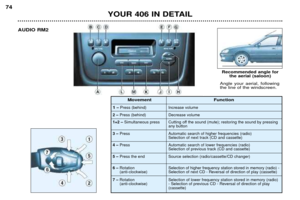

5 - Radio remote control stalk.
6 - Windscreen wash-wipe stalk.

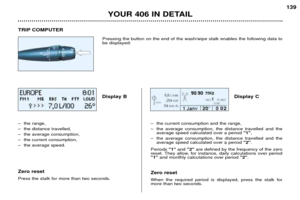

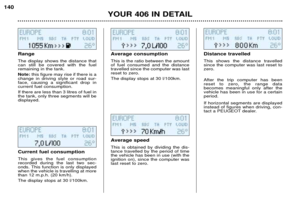

Trip computer stalk.
7 - Hazard warning lights switch.
8 - Central adjustable heating/ ventilation vents and air flowregulation.
9 - Windscreen demistingvents.

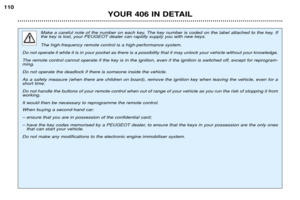

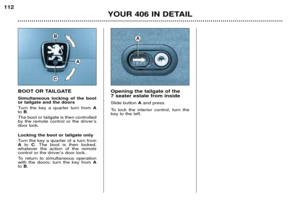

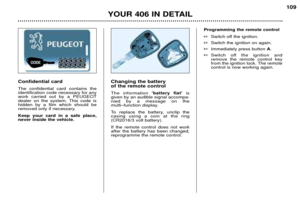

THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the locks on the frontdoors, the glove box and the pas-senger air bag disarming switch. Central locking

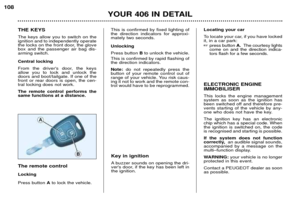

From the driver's door, the keys allow you to lock and unlock thedoors and the boot. If one of thefront doors is open, the centrallocking does not work. The remote control performs the same functions at a dis-tance.The remote control LockingPressing button
Alocks the
vehicle.This is confirmed by the fixed lighting of the direction indicatorsfor approximately two seconds. Unlocking Pressing button B unlocks the
vehicle.This is confirmed by the rapid fla- shing of the direction indicators. STARTING
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces- sories can be used. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter.

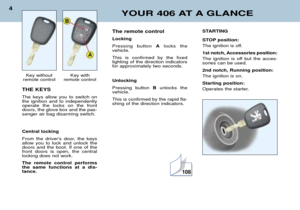

YOUR 406 AT A GLANCE
4
108
Key without
remote control Key with
remote control

Front/rear fog lamps (ring B) Rotate the ring forwards to switch
on and rearwards to switch off.
On/off status is displayed by theindicator light on the instrumentpanel.Front fog lamps (1st rotation of the ringforwards).Front fog lampsand rear fog lamp(2nd rotation of thering forwards).

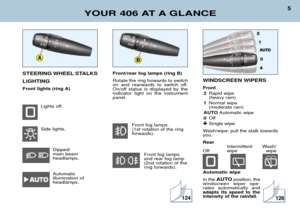

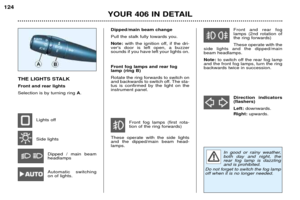

STEERING WHEEL STALKS LIGHTING
Front lights (ring A)
Lights off. Side lights.
Dipped/ main beam headlamps. Automatic illumination ofheadlamps. WINDSCREEN WIPERS Front
2 Rapid wipe (heavy rain)
1 Normal wipe (moderate rain)
AUTO Automatic wipe
0 Off
∀Single wipe
Wash/wipe: pull the stalk towards you. Rear Intermittent Wash/
Off wipe wipe
YOUR 406 AT A GLANCE
5

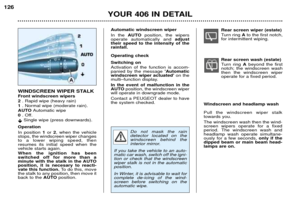

Automatic wipe In the AUTO position, the
windscreen wiper ope- rates automatically andadapts its speed to theintensity of the rainfall.
124126

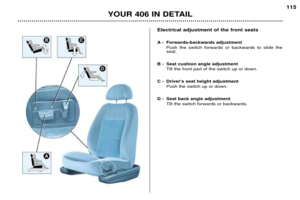

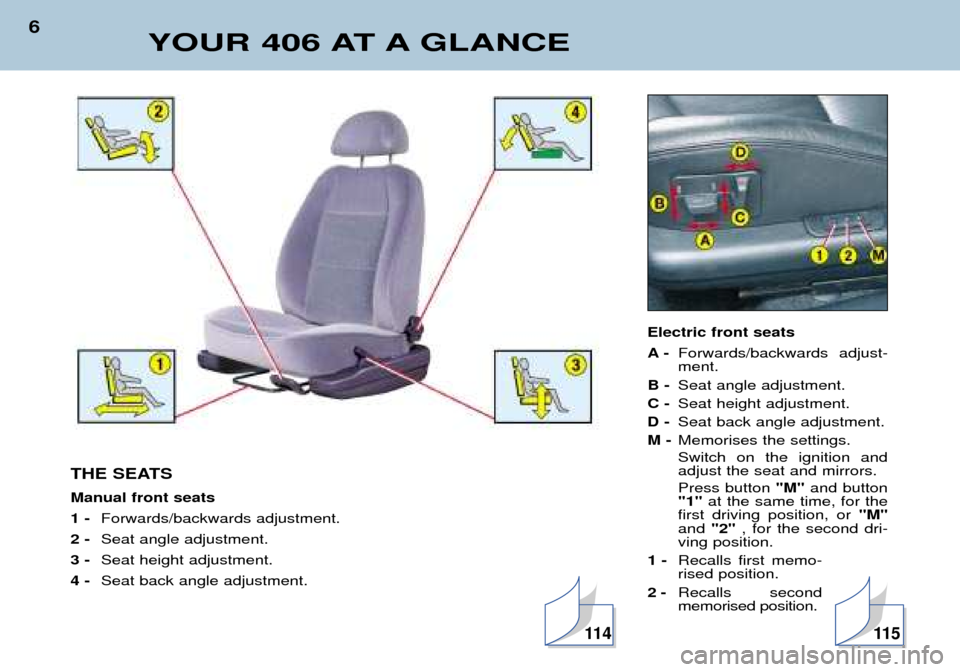

Electric front seats
A- Forwards/backwards adjust- ment.
B - Seat angle adjustment.
C - Seat height adjustment.
D - Seat back angle adjustment.
M - Memorises the settings. Switch on the ignition and adjust the seat and mirrors. Press button "M"and button
"1" at the same time, for the
first driving position, or "M"
and "2", for the second dri-
ving position.
1 - Recalls first memo- rised position.
2 - Recalls secondmemorised position.
YOUR 406 AT A GLANCE
6
11 5
THE SEATS Manual front seats 1 -Forwards/backwards adjustment.
2 - Seat angle adjustment.
3 - Seat height adjustment.
4 - Seat back angle adjustment.
11 4

YOUR 406 AT A GLANCE
8
SIDE AIR BAGS
Side air bags are incorporated into the backs of the front seats,on the door side.
They are triggered individually, on whichever side the collisionoccurs.Operating check
This is by means of the warninglight on the instrument panel. It comes on for 6 seconds when the ignition is switched on. If the warning light:
- does not come on when the
ignition is switched on or,
- does not go out after six seconds, contact a Peugeot
dealer.

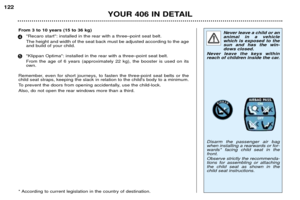

Passenger air bag precautions For a vehicle fitted with a disar- ming switch:
- disarm the airbag if you install a rear-facing childseat.
- arm the air bag for anadult
passenger.
For a vehicle not fitted with adisarming switch:
-do not install rear-
facing child seats on the front pas-senger seat.
Never place your feet or anyobject on the fascia.

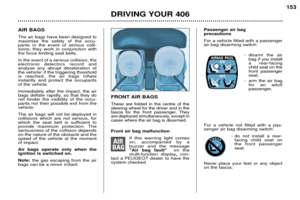

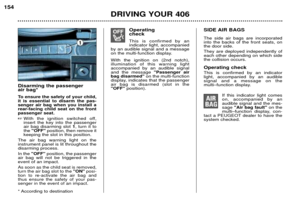

FRONT AIR BAGS Disarming the passenger air bag
 Insert the ignition key in swit-ch 1and turn it:
- to the " ON" position, the pas-
senger air bag is armed
- to the " OFF" position, the
passenger air bag is disar- med.
Operating check
This lights for six seconds whenthe ignition is switched on. With the ignition on (2nd notch), illumination of this warning lightaccompanied by an audible signaland the message "Passenger air
bag disarmed" on the multi–func-
tion display indicates that the pas-senger air bag is disarmed (switchin the "OFF" position).
The warning light remains onthroughout the disarming process.
153

YOUR 406 AT A GLANCE
9

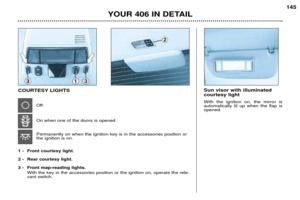

COURTESY LIGHTOff Lights when one of the doors is opened. Permanently lit, with the key in the acces-sories position or withthe ignition on.
Manual mode:
press or pull the
switch gently. The window stopsas soon as the switch is released. Automatic mode: press or pull
the switch fully. A single press completely opens or closes the
window. Safety auto-reverse: when the window on the driver's side risesand meets an obstacle, it stopsand lowers again.

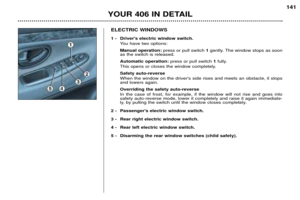

1 - Driver's electric window
2 - Passenger's electric window.
3 - Rear left electric window.
4 - Rear right electric window.
5 - Disarming the rear window
switches. ELECTRIC WINDOWS
141145

SEAT BELTS Front seat belt height adjustment Pinch control 1and slide it.
To lock the seat beltsPull the strap, then insert the end into the buckle.
YOUR 406 AT A GLANCE
7
STEERING WHEEL
HEIGHT AND DEPTHADJUSTMENT  Pull handle Ato unlock the
steering wheel. Adjust the height and depth of the steering wheel thenlock it by pushing handle Ain

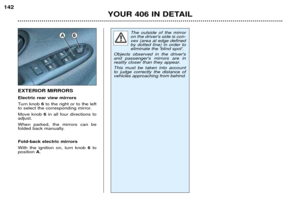

fully.ELECTRIC MIRRORS
Turn knob 6to the right or left to
select the corresponding mirror. Then move the knob in all four directions to adjust. Fold-back electric mirrors With the ignition switched on, turn knob 6to position A.
144121142
