2002 Peugeot 307 Break Dag Owner's Manual

2YOUR 307 AT A GLANCE

YOUR 307 AT A GLANCE
1. Driver's airbag. Horn.
2. Lights and direction indicators stalk.
3. Audio remote control stalk.
4. Instrument dials.
5. Windscreen wash-wipe stalk.
Trip computer stalk.
6. Alarm button.
7. Central locking button.
8. Hazard warning lights switch.
9. Multifunction display.
10. Brightness sensor.
11. Dynamic Stability control (ESP/ASR) switch*.
12. Central adjustable hea- ting/ ventilation vent and air flow regulation. 13. Windscreen demisting
vents.
14. Speaker (tweeter) location.
15. Side window demisting vent.
16. Side adjustable heating/ ventilation vent and air flow regulation.
17. Passenger air bag.
18. Glove box.

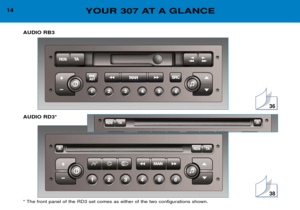

19. RB3, RD3 audio equipment.
20. Heated seat switches.
21. CD changer.
22. Heating / air conditioning controls.
23. Front ashtray.
24. Rear footwell heating vent.
25. 12 V accessories socket. 26. Gear lever.
27. Cup / can holder.
28. Handbrake.
29. Rubbish container.
30. Coin storage.
Passenger air bag disarming switch.
31. Steering lock and ignition.
32. Steering wheel adjustment control.
33. Fuse box.
34. Electric mirror controls. Window controls. Rear window lockingcontrol.
35. Headlamp height adjustment.
36. Cruise control.
* During the year. 3

Unlocking Press button Bto unlock the
vehicle. This is indicated by rapid flashing of thedirection indicators. Note : If the vehicle is
locked and unlocking is activated inadvertently withoutthe doors being opened within 30 seconds, the vehicle will lock
automatically.
STARTING
STOP position:
the ignition is off.
1st notch, Accessories position:
the ignition is off but the acces-sories can be used. 2nd notch, Running position: the ignition is on. Starting position:
operates the starter.
The remote control key Locking ➜
Press button Ato lock the
vehicle. This is confirmed by fixed lighting of the direction indi-cators for approximately twoseconds.
Note: a long press on button A,
in addition to deadlocking, automa-tically locks the windows* and thesunroof*.ows* and the sunroof*.
Vehicles fitted with deadlocking*
Deadlocking* renders theinternal and external doorlocking controls inoperative.
➜ Press button Ato deadlock
the vehicle.
This is indicated by the directionindicators lighting continuouslyfor approximately two seconds. Note : a long press on button A
permits automatic closing of teh windows*and the sunroof*, inaddition to deadlocking.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking to
normal locking. This is indicatedby the direction indicators ligh-ting continuously for approxima-tely two seconds, accompaniedby a brief sound of the horn.
* According to specification
65
YOUR 307 AT A GLANCE
THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the front doors, the fuel fillercap, the glove box and thepassenger air bag disarming switch. Central locking
From the driver's door, the keys allow you to lock, deadlock* orunlock the doors and the tailgateand to fold back the exterior mir-rors*. If one of the doors or the boot is open, it is impossible to operatethe central locking; a bleep indi-cates locking by remote control. The remote control performs the same functions at a distance.
4

STEERING WHEEL
STALKS LIGHTING
Front and rear lights (ring A)Lights off. Side lights on.
Dipped/ main beam headlampson. Automatic switching on of lights*
Front fog lamps * and rear foglamp
Turn the ring towards the front to switch on and towards the rear to
switch off. The on/off status isshown by the indicator light onthe instrument panel. Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp.
Vehicles fitted with front foglamps and a rear fog lamp(ring C) Front fog lamps (first rota-tion of the ring forwards).
Front fog lampsand rear fog lamp(second rotation ofthe ring
forwards)
* According to specification WINDSCREEN WIPERS Front
2 Rapid wipe (heavy rain)
1 Normal wipe (moderately heavy rain)
AUTO Automatic wipe*
0 Stop
Single wipe
Wash-wipe: pull the stalktowards you. Rear
Stop Intermittent W ash-
wipe wipe
Automatic wipe*In the AUTO position,
the system automatically adjusts the wiper timingto the intensity of therainfall.
7274
YOUR 307 AT A GLANCE5

FRONT SEATS 1. Forwards-backwards
adjustment.
2 . Access to rear seats
(3 door).
3 . Seat back angle adjustment.
4 . Driver or passenger* seat
height adjustment.
5 . Front heated seats switch*.
6 . Front removable armrest*
(5 door).
7 . Head restraint height and
angle adjustment.
To raise or lower the head restraint, pull it forwards, sli-ding it at the same time.
Never drive with thehead restraints removed.
8 . Storage drawer*.
* According to specification
58
6YOUR 307 AT A GLANCE

REAR SEATS
To fold down the rear left seat (2/3 part) or right seat (1/3 part): Always start with the cushion, never with the seat back (there is a risk of damage):Ð Move the seat(s) forward if necessary, Ð Lift the front of the seat 1,
Ð Tilt the seat 1against the front seat(s),
Ð Check that the seat belt is in the correct position on the side of the seat back,Ð Pull control 2to unlock the seat back 3,
Ð Place the head restraints in the low position,
Ð Tilt the seat back 3.
When refitting: Ð Fold down the seat back and lock it (the red marker of control 2 must not be visible at this point), Ð Fold down the cushion.
Take care not to trap the seat belts.
60
YOUR 307 AT A GLANCE7

Operating checkWith the ignition switched on (2nd notch on the key),the warning light comingon, accompanied by an
audible signal and the message"Passenger air bag disarmed"
on the multifunction display, indi-cates that the passenger air bag isdisarmed ( "OFF"position).
The warning light remains onthroughout the disarming process. Side air bags* and curtain air bags** Side air bags are incorporated into the front seat back frame, onthe door side. Curtain air bags are incorporated into the door pillars and the top ofthe passenger compartment. They are deployed independently
of each other, depending onwhich side the collision occurs.
* According to country.
** According to specifi- cation.
AIR BAGS The air bag system has been desi- gned to maximise the safety of theoccupants in the event of seriouscollisions. It works in conjunctionwith the force limiting seat belts. Front air bags These are folded in the centre of the steering wheel for the driverand in the fascia for the front
passenger. They are deployed
simultaneously, except in caseswhere the passenger air bag isdisarmed. Precautions regarding the passenger air bag ➜
disarm the air bag if you ins- tall a rear facing child seat,
➜ activate the air bag for an
adult passenger.
9192
Disarming the passenger air bag* ➜with the ignition off, insert the key into slot 1and turn the
passenger air bag switch tothe "OFF" position.
As soon as you remove the childseat, turn the air bag switch to the"ON" position, to activate the air
bag again.
8
YOUR 307 AT A GLANCE

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT ➜Pull handle Ato unlock the
steering wheel.
➜ Adjust the height and depth of the steering wheel.
➜ Lock it by pushing handle Ain
fully.
ELECTRIC WINDOWS 1. Driver's electric window
2. Passenger's electric window.3. Rear right electric window*.4. Rear left electric window*.5. Disarming the rear window switches*. Safety auto-reverse*:
When the driver's window is closing and meets an obstacle, it stops and lowersagain.
ELECTRIC MIRRORS*
Manual mode: ➜ Press or pull the switch lightly. The window stops as soon asthe switch is released. Automatic mode*: ➜
Press or pull the switch firmly. One touch completely opens
or closes the window.
➜ Turn button 6to the right or left
to select the corresponding
mirror.
➜ Then move the button 7in all
four directions to adjust.
➜ Turn button 6back to the
centre position. When parking the vehicle, themirrors can be folded back
manually, electrically* bypulling button
6rear-
wards or automatically*on locking the vehicle.
* According to specification
78
7980
9YOUR 307 AT A GLANCE
