Low fuel level warning light From the time this light comes on, the range remaining is approximately 30 miles(50 km). OPENING THE BONNET Inside the vehicle:
Push the
handle on the left side, under the fascia. Outside the vehicle: Lift the catch, raise thebonnet and secure thestrut to keep the bonnetopen.
7171
10
FILLING WITH FUEL This operation must be carried out with the engine switched off.
➜ Open the fuel filler cap.
➜ Insert the key then turn it to the left.
➜ Remove the cap and hook it onto the clip on the inside of the flap.
A label on the inside of the flap shows which type of fuel to use.
When you fill your tank, do not continue after the third cut-off of the pump. This could cause a malfunction. The capacity of the tank is approximately 13 gallons (60 litres). ➜ After filling the tank, lock the cap and close the flap.YOUR 307 AT A GLANCE

AUTOMATIC GEARBOX "PORSCHE TIPTRONIC SYSTEM" The four speed automaticgearbox offers a choice between the comfort of
automatic integral regulation enhanced by a sportand snow programme,
or the pleasure of manual gear changing.
Gear selection gate ➜ Move the lever in the gate to select one of the functions. Once the function is selected, the indicator light for that function is displayed on the instrument panel screen.
S: sport programme.


snow programme.
P ark: to park or to start the engine , with the
handbrake on or off. R everse: to reverse(select this function with the
vehicle stationary and the engine at idle).N eutral: to start the engine or to park, with the
handbrake on.Note: if position Nis engaged by mistake while the
car is moving, allow the engine to return to idling speed before engaging function Dto accelerate.
D rive: for automatic gear changing.
M anual: for manual gear changing.
To change the four gearsmanually:
➜ Push the lever to the +symbol to change up to the next gear and pull
the handle towards the -symbol to change down to the next gear.
Note: the S(sport) and

(snow) programmes do not operate when in
manual mode. Moving Off With the engine running, to move
off from position
P:
➜ It is essential to press thebrake pedal to exit positionP,
➜ Select the function required R,
D or M, then gradually release
the pressure on the brakepedal; the vehicle will move
off immediately.
You can also move off from posi-tion N:
➜ Release the handbrake, withyour foot on the brake.
➜ Select function R, D or Mthen
gradually release the pressureon the brake pedal; the vehicle
will move off immediately.
When the engine is idlingwith the brakes notapplied, if function R, D
or Mis selected, the
vehicle moves without the acce-lerator being pressed. For this reason, do not
leave children unatten-
ded inside the car, withthe engine running.86
11YOUR 307 AT A GLANCE

52
54
12YOUR 307 AT A GLANCE
N¡ SymbolFunction
HEATING / AIR CONDITIONING
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6

56
13YOUR 307 AT A GLANCE
N¡ Symbol Function

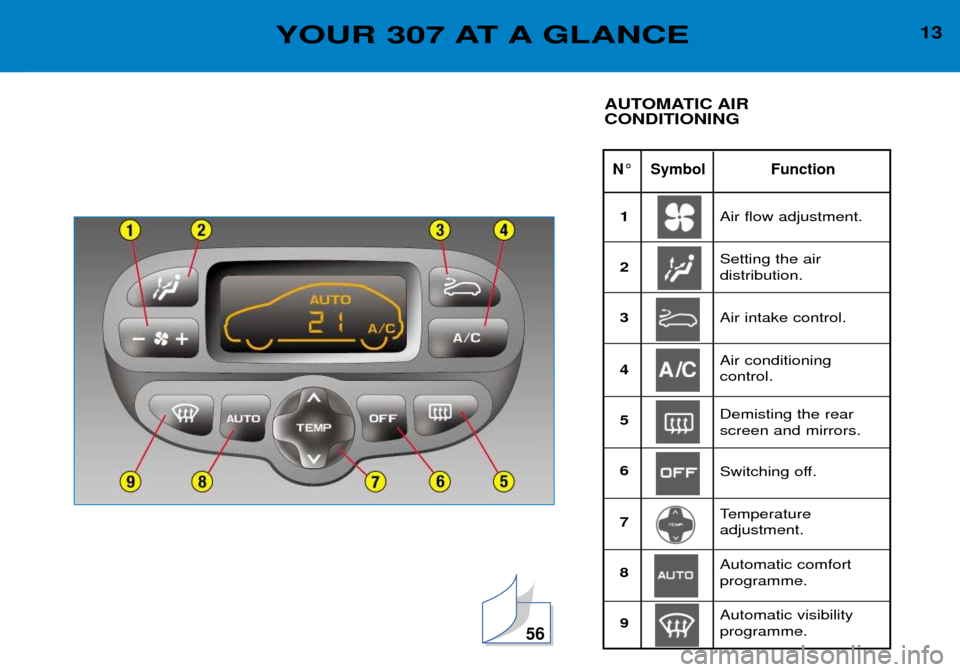

AUTOMATIC AIR CONDITIONING
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 89 Air intake control. Air conditioning control.
Switching off.
Demisting the rear screen and mirrors.
Temperature adjustment. Automatic comfort programme. Automatic visibility programme.

36
38
14YOUR 307 AT A GLANCE
AUDIO RB3 AUDIO RD3*
* The front panel of the RD3 set comes as either of the two configurations shown.

PEUGEOT SERVICING The maintenance cycle of your 307 is based on level A(including the replacement of the engine oil, the oil filter and a set
of checks) and level Cservices [ level Aservice + workshop operations carried out every 40,000 miles (60 000 km)] in
accordance with the tables on the following pages. So that the driving conditions and your style of driving, may be taken into account, your 307 is fitted with a service
indicator which modulates the intervals for level A service:
¥ every 20,000 miles (30 000 km) maximum or 2 years for petrol engines,
¥ every 12,000 miles (20 000 km) maximum or 2 years for direct injection diesel engines,
The frequency of level Aservices specific to your vehicle will be determined by three parameters :
¥ the number of engine revolutions,
¥ the engine oil temperature,
¥ prolonged periods when the vehicle is not in use. Depending on these three elements, the service indicatorwill suggest a service interval which is more or less the same as
the initial programme. Depending on the conditions of use, one or more level Aservices may be carried out between two
level C services.
Depending on the mileage recorded, your dealer may offer to carry out the level Cservice to avoid the visits being too close
together.
PEUGEOT SERVICING
18

The extension of the service intervals means that the engine oil must be checked regularly: topping up of the oil between two oil changes is normal.
It is for this reason that the PEUGEOT network is offering you an intermediate visit between regular services. The
date of this visit is not shown by the service indicator. It is to be carried out between two services.
A PEUGEOT professional will carry out a quick check, and will top up the fluid levels if necessary (oil, coolant, screen wash up to 2 litres).
If the oil level is too low, there is a risk of significant damage to the engine: check the engine oil level at least every 3,000 miles (5 000 km). The extended service intervals have been made possible by developments to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL THAT YOU USE ONLY ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED
BY THE MANUFACTURER (see pages on "Lubricants").
PEUGEOT SERVICING 19

SERVICE INDICATOR Located on the instrument panel with the total distance recorder (total andtrip distances), this programmes ser-vice intervals depending on the useof the vehicle. Operation
A few moments after the ignition has been switched on, the spanner sho-wing the service symbols lights up;the display for the total distancerecorder tells you (in round figures)the distance remaining before yournext service. Example: 4 800 miles remain before
the next service is due. When the ignition is switched on and for a fewseconds, the display shows: A few seconds after switching on theignition, the total distance recorderresumes normal operation and thedisplay shows the total and trip dis-tances. The distance remaining before the next service is less than 1000miles
A few seconds after switching on the ignition, the total distance recorderresumes normal operation and the
spanner remains lit. This indicatesthat a service should be carried out
shortly.The service is overdue Each time the ignition is switched on and for a few seconds, the symboland the excess distance flash. Note:
with the engine running the
symbol flashes until the service has been carried out.
PEUGEOT SERVICING
