2002 MAZDA MODEL PROTÉGÉ engine

5-24
Driving Your Mazda
Form No. 8Q36-EA-01F
Warning/Indicator Lights and Beeps
Warning/Indicator Lights
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-26
Charging System Warning Light 5-27
Engine Oil Pressure Warning Light 5-28
Check Engine Light 5-28
ABS Warning Light 5-29
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-29
Low Fuel Warning Light 5-30
Warning/Indicator lights will appear in any of the highlighted areas
J39L(02MY).book Page 24 Thursday, November 1, 2001 10:49 AM

5-26
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q36-EA-01F

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-16).
2. After adding fluid, check the light
again.If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-29).
J39L(02MY).book Page 26 Thursday, November 1, 2001 10:49 AM

5-27
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q36-EA-01F

Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If the warning light comes on while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
Don't continue driving when the
charging system warning light is
illuminated.
CAUTION
J39L(02MY).book Page 27 Thursday, November 1, 2001 10:49 AM

5-28
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q36-EA-01F

Engine Oil Pressure Warning
Light
This warning light indicates low engine
oil pressure.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
2. Turn off the engine and inspect the
engine oil level (page 8-11). If it’s low,
add oil.
3. Check the light.
If the light remains on even after you add
oil, have your vehicle towed to the nearest
service station or to an Authorized Mazda
Dealer.

Check Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
•The fuel tank level being very low or
approaching empty.
•The engine’s electrical system has a
problem.
•The emission control system has a
problem.
•The fuel-filler cap is missing or not
tightened securely.
If the check engine light flashes
continuously, decrease your speed and
consult an Authorized Mazda Dealer as
soon as possible. Don’t run the engine if oil pressure is
low. It could result in extensive engine
damage.
CAUTION
J39L(02MY).book Page 28 Thursday, November 1, 2001 10:49 AM

5-29
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q36-EA-01F

ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is OK, the warning light comes on
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
J39L(02MY).book Page 29 Thursday, November 1, 2001 10:49 AM

5-33
Driving Your Mazda
Form No. 8Q36-EA-01F
Switches and Controls

Headlights
To turn on the lights, turn the knob on the
end of the control lever.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when any door is opened.

Headlight High-Low Beam
Push the lever forward for high beams.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Lighting Control
Lever Position OFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
High beams
Low beams
J39L(02MY).book Page 33 Thursday, November 1, 2001 10:49 AM

6-2
Interior Comfort
Form No. 8Q36-EA-01F
Climate Control System

Operating the Climate Control
System
Operate the climate control system with
the engine running.

Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.

Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.

Check the Refrigerant before
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The optional air conditioner is filled with
R134a, a refrigerant that will not damage
the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
Operating Tips
J39L(02MY).book Page 2 Thursday, November 1, 2001 10:49 AM

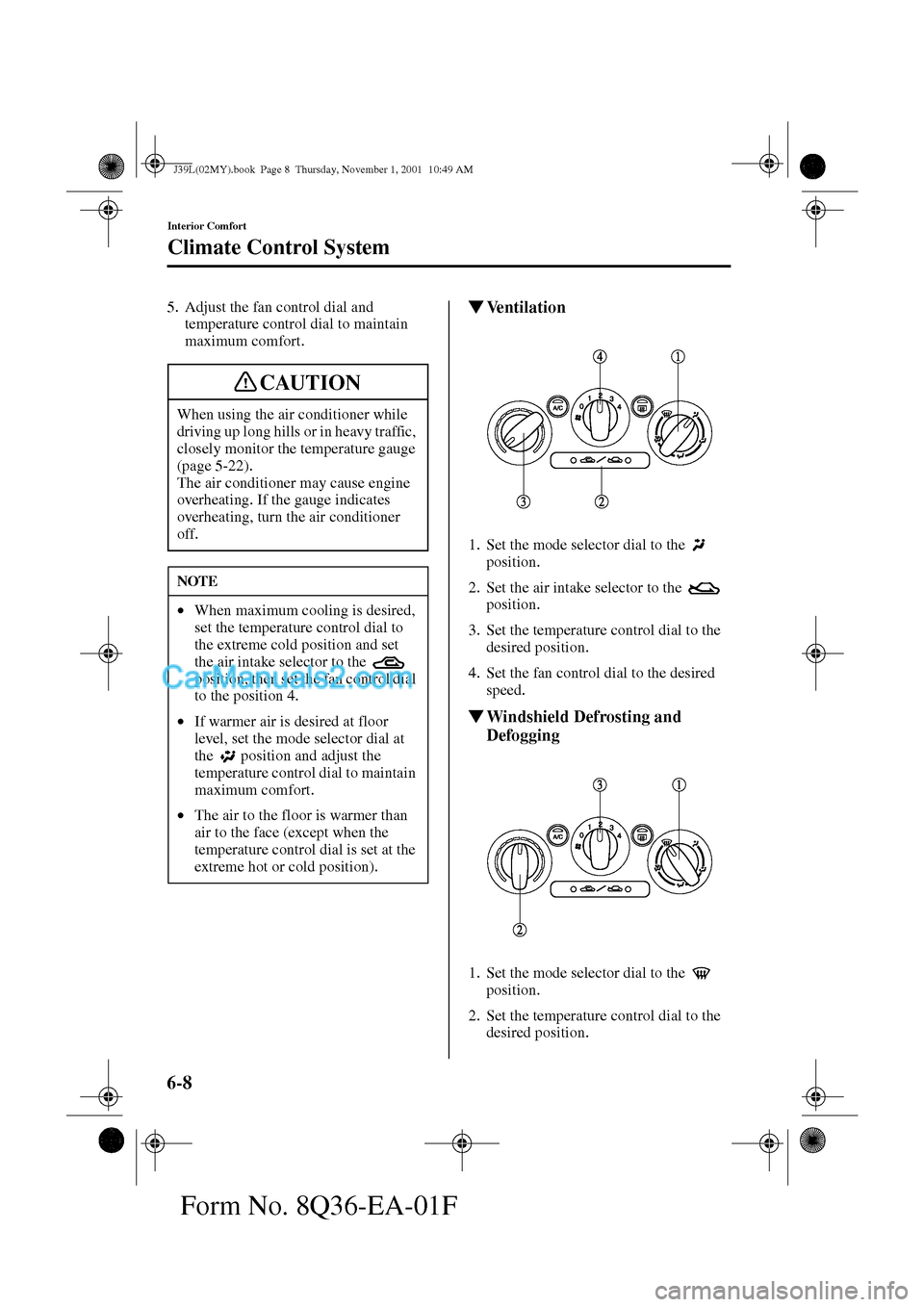

6-8
Interior Comfort
Climate Control System
Form No. 8Q36-EA-01F
5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
Ve n t i l a t i o n
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.

Windshield Defrosting and
Defogging
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
desired position. When using the air conditioner while
driving up long hills or in heavy traffic,
closely monitor the temperature gauge
(page 5-22).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off.
NOTE
•When maximum cooling is desired,
set the temperature control dial to
the extreme cold position and set
the air intake selector to the
position, then set the fan control dial
to the position 4.
•If warmer air is desired at floor
level, set the mode selector dial at
the position and adjust the
temperature control dial to maintain
maximum comfort.
•The air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
CAUTION
J39L(02MY).book Page 8 Thursday, November 1, 2001 10:49 AM
