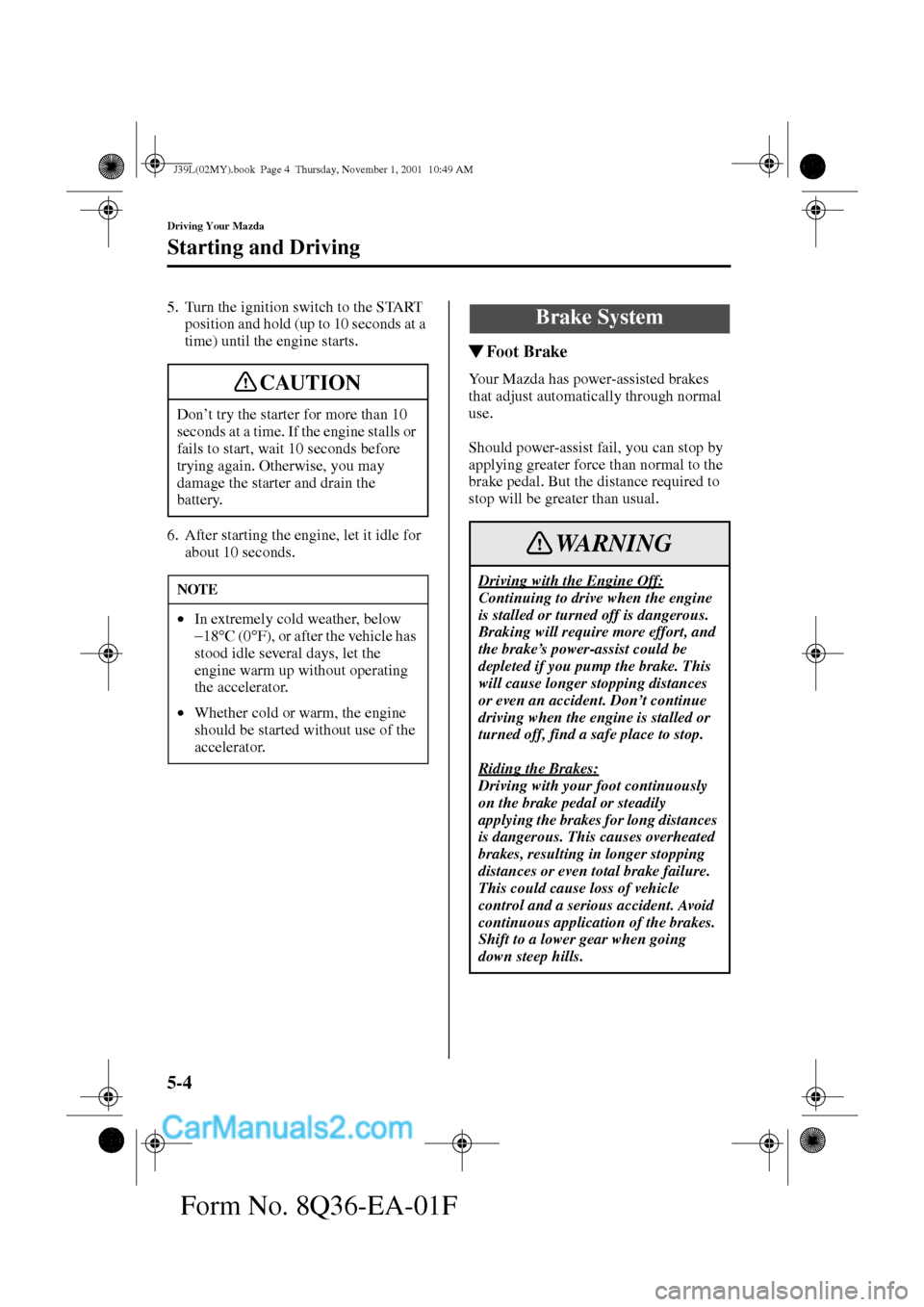

2002 MAZDA MODEL PROTÉGÉ engine

5-4
Driving Your Mazda
Starting and Driving
Form No. 8Q36-EA-01F
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at a
time) until the engine starts.
6. After starting the engine, let it idle for
about 10 seconds.

Foot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual. Don’t try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the
battery.
NOTE
•In extremely cold weather, below
−18
°C (0
°F), or after the vehicle has
stood idle several days, let the
engine warm up without operating
the accelerator.
•Whether cold or warm, the engine
should be started without use of the
accelerator.
CAUTION
Brake System
Driving with the Engine Off:
Continuing to drive when the engine
is stalled or turned off is dangerous.
Braking will require more effort, and
the brake’s power-assist could be
depleted if you pump the brake. This
will cause longer stopping distances
or even an accident. Don’t continue
driving when the engine is stalled or
turned off, find a safe place to stop.
Riding the Brakes:
Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long distances
is dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Shift to a lower gear when going
down steep hills.
WARNING
J39L(02MY).book Page 4 Thursday, November 1, 2001 10:49 AM

5-6
Driving Your Mazda
Starting and Driving
Form No. 8Q36-EA-01F
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-16).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-29).
Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J39L(02MY).book Page 6 Thursday, November 1, 2001 10:49 AM

5-8
Driving Your Mazda
Starting and Driving
Form No. 8Q36-EA-01F

Brake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.

Manual Transaxle Shift Pattern
The shift pattern of the transaxle is
conventional, as shown.
Press the clutch pedal all the way down
while shifting; then release it slowly.
A safety feature prevents accidental
shifting from 5 to reverse. The shift lever
must be put in neutral before being shifted
to reverse.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
Driving with Worn Disc Pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult
an Authorized Mazda Dealer.
WARNING
Manual Transaxle
Operation
Neutral position
J39L(02MY).book Page 8 Thursday, November 1, 2001 10:49 AM

5-10
Driving Your Mazda
Starting and Driving
Form No. 8Q36-EA-01F

Transaxle Ranges
The shift lever must be in P or N to
operate the starter.
P (Park)
P locks the transaxle and prevents the
front wheels from rotating.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except as
explained under Rocking the Vehicle
(page 4-7).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.D (Drive)
D is the normal driving position. From a
stop, the transaxle will automatically shift
through a 4-gear sequence.
2 (Second)
The 2 position is helpful when driving in
heavy, slow-moving traffic and climbing
hills, for engine braking assist when going
down hills, or for starting on slick
surfaces and other situations where gentle
acceleration may be necessary.
Do not exceed 108 km/h (67 mph) in the 2
position.
1 (Low)
Use the 1 position for maximum power in
hard-pulling situations, or for climbing
and descending very steep grades.
Do not exceed 57 km/h (35 mph) in the 1
position.
Holding the Vehicle with P:
Setting the shift lever to the P position
without using the parking brake to
hold the vehicle is dangerous. If P
fails to hold, the vehicle could move
and cause an accident. To hold the
vehicle, set the shift lever to P AND
set the parking brake.
•Shifting into P or R while the
vehicle is moving can damage your
transaxle.
•Shifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transaxle.
WARNING
CAUTION
Shifting from N or P:
It’s dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move
suddenly, causing an accident or
serious injury. If the engine is
running faster than idle, don’t shift
from N or P into a driving gear.
WARNING
J39L(02MY).book Page 10 Thursday, November 1, 2001 10:49 AM

5-11
Driving Your Mazda
Starting and Driving
Form No. 8Q36-EA-01F

Shift-Lock System
For your safety, the automatic transaxle
has a shift-lock, which prevents shifting
out of P unless the brake pedal is
depressed.
To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Push and hold the lock-release button.
4. Move the shift lever.

Overdrive
Overdrive operation
In D, the transaxle automatically shifts to
overdrive, which improves fuel economy
and reduces noise.
To allow engine braking when going
down a steep grade, make sure the
overdrive button is in the off position.
And for a smoother ride with less shifting,
don’t use it when:
•Going up a steep grade.
•Driving in stop-and-go traffic.
•Pulling heavy loads.
To turn off the overdrive, push the
button.
The transaxle will then shift through a
three-gear sequence in D.
Shift patterns without overdrive:
D = 1st, 2nd, 3rd
2 = 2nd
1 = 1st
To turn it on, push the button again.
Shift patterns with overdrive:
D = 1st, 2nd, 3rd, 4th
2 = 2nd
1 = 1st
NOTE
•When the ignition switch is in the
LOCK position, the transaxle
cannot be shifted from P.
•To be sure the vehicle is in park,
the ignition key cannot be
removed unless the shift lever is in
P.Overdrive button
J39L(02MY).book Page 11 Thursday, November 1, 2001 10:49 AM

5-13
Driving Your Mazda
Starting and Driving
Form No. 8Q36-EA-01F
Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.With cruise control, you can set and
automatically maintain any speed of more
than about 40 km/h (25 mph).

Cruise Set Indicator Light
This light comes on when a cruising speed
is set.
Power Steering
Never hold the steering wheel to the
extreme left or right for more than five
seconds with the engine running.
This could damage the power steering
system.
CAUTION
Cruise Control
Cruise Control Use:
Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
•Heavy or unsteady traffic
•Slippery or winding roads
•Similar restrictions that require
inconsistent speed
Don’t use cruise control in these
situations.
WARNING
J39L(02MY).book Page 13 Thursday, November 1, 2001 10:49 AM

5-20
Driving Your Mazda
Form No. 8Q36-EA-01F
Instrument Cluster and Indicators
1 Speedometer .............................................................................................................. 5-21
2 Odometer and Trip Meter .......................................................................................... 5-21
3 Tachometer ................................................................................................................ 5-22
4 Engine Coolant Temperature Gauge ......................................................................... 5-22
5 Fuel Gauge ............................................................................................................... 5-23
Meters and Gauges
With tachometer
Without tachometer
J39L(02MY).book Page 20 Thursday, November 1, 2001 10:49 AM

5-22
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q36-EA-01F

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).

Engine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
NOTE
•Only the trip meters record tenths of
kilometers (miles).
•The trip record will be erased when;
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 999.9
km (mile).
Don’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Red zone
CAUTION
Driving with an overheated engine can
cause serious engine damage
(page 7-13).
CAUTION
