2002 MAZDA MODEL MX-5 MIATA light

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8Q42-EA-01F

Schedule 2
I
: Inspect: Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.)
R: Replace
L :Lubricate
*: According to state and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance
services be performed at the recommended time or kilometrage (mileage) period to ensure long-term
reliability.
Maintenance Interval
Maintenance
Item Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
× 1000 Km 8 1624324048566472808896
(× 1000 Miles) (5) (10) (15) (20) (25) (30) (35) (40) (45) (50) (55) (60)
Engine valve clearance I
Engine timing belt Replace every 96,000km (60,000miles)
Drive belts (tension) II
Engine oil Puerto Rico Replace every 5,000km (3,000miles) or 3 months
others RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Cooling system II
Engine coolant Replace at first 72,000km (45,000miles) or 36 months ;
after that, every 48,000km (30,000miles) or 24 months
Engine coolant level IIIIIIIIIIII
Idle speed II
Air filter I
*R
I *R
Fuel lines and hoses*II
Hoses and tubes for emission*I
Spark plugs RR
Function of all lights IIIIIIIIIIII
Brake lines, hoses and connections II
Brake and clutch fluid level IIIIIIIIIIII
Disc brakes IIII
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages II
Power steering fluid level IIIIIIIIIIII
Manual transmission oil RR
Rear differential oil RR
Front suspension ball joints II
Driveshaft dust boots II
Bolts and nuts on chassis and body IIII
Exhaust system heat shields II
All locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
J07L(02MY).book Page 5 Monday, June 11, 2001 4:52 PM

8-8
Maintenance and Care
Scheduled Maintenance
Form No. 8Q42-EA-01F
I: Inspect: Inspect and clean, repair, adjust, or replace if necessary.
(Oil-permeated air filter cannot be cleaned using the air-blow method.)
R : Replace
T: Tighten
L : Lubricate
*1: Also inspect and adjust the power steering and air conditioner drive belts, if installed.
*2: Replacement of the timing belt is required at every 100,000 km {60,000 miles}. Failure to replace the timing belt may result in damage to the engine.
*3: If the vehicle is operated under any of the following conditions, change the engine oil and oil filter more often than recommended intervals.
a) Driving in dusty conditions.
b) Extended periods of idling or low speed operation.
c) Driving for long period in cold temperatures or driving regularly at short distance only.
*4: If the vehicle is operated in very dusty or sandy areas, inspect and if necessary, clean or replace the air filter more often than the recommended intervals.
*5: If the brakes are used extensively (for example, continuous hard driving or mountain driving)
or if the vehicle is operated in extremely humid climates, change the brake fluid annually.
*6: This is a full function check of electrical systems such as lights, wiper and washer systems (including wiper blades), and power windows.
Maintenance
Interval
Maintenance
Item Number of months or kilometers (miles), whichever comes first
Months 6 121824 30 36 42485460667278849096
× 1000 Km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
(× 1000 Miles) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72) (78) (84) (90) (96)
Engine valve clearance Inspect every 100,000 km (60,000 miles) or 60 months
Drive belts
*1IIII I I IIIIIIIIII
Engine timing belt*2Replace every 100,000 km (60,000 miles)
Engine oil*3RRRR R R RRRRRRRRRR
Engine oil filter*3RRRR R R RRRRRRRRRR
Cooling system II I IIIII
Engine coolant Replace every 2 years
Idle speed II I IIIII
Air filter
*4IR I RIRIR
Fuel filter R RRR
Fuel lines and hoses II I IIIII
Spark plugs R R RRR
Evaporative system II I IIIII
E.G.R. system II I IIIII
All electrical system
*6 II I IIIII
Head light alignment I I III
Brake pedals and clutch pedals IIII I I IIIIIIIIII
Brake lines, hoses and
connections II I IIIII
Clutch fluid IIII I I IIIIIIIIII
Brake fluid
*5I I IR I I IRI I IRI I IR
Parking brake IIII I I IIIIIIIIII
Power brake unit and hoses II I IIIII
Disc brakes IIII I I IIIIIIIIII
J07L(02MY).book Page 8 Monday, June 11, 2001 4:52 PM

8-30
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it
’s properly
inflated and stored.
The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.
Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (60 psi).

Replacing a Wheel
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
• Don
’t use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
• The temporary spare tire has a tread
life of up to 5,000 km (3,000 miles),
depending on road conditions and
driving habits.
• When the tread wear solid-band
indicator appears, replace the tire
with the same type of temporary
spare.
CAUTION
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
A wrong-sized wheel may adversely
affect
•Tire fit
• Wheel and bearing life
• Ground clearance
• Snow-chain clearance
• Speedometer calibration
• Headlight aim
• Bumper height
WARNING
CAUTION
J07L(02MY).book Page 30 Monday, June 11, 2001 4:52 PM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F
Light Bulbs
Front-turn signal lights/Parking lights
Side-marker lights Interior light
Trunk lights/
License plate lights
High-mount brake light
Rear-turn signal lights Brake lights/Taillights Reverse lights
Headlights
J07L(02MY).book Page 31 Monday, June 11, 2001 4:52 PM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F
Your Mazda’s headlights have replaceable
halogen bulbs.
Replacing a Headlight Bulb
1. Make sure the headlight switch is off.
2. Lift the hood and find the bulb in the
rear of the headlight body.
3. Turn the socket and bulb assembly counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Remove the bulb from the electrical connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order of removal.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Do not touch the glass surface
Ta b
Low beam bulb
High beam bulb
Ta b
J07L(02MY).book Page 32 Monday, June 11, 2001 4:52 PM

8-34
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F

Replacing a Bulb (Front)
To replace the fog light bulbs, contact an Authorized Mazda Dealer.

Replacing a Bulb (Interior)
Side-marker lights
Front-turn signal lights/Parking lights
Interior light
J07L(02MY).book Page 34 Monday, June 11, 2001 4:52 PM

8-35
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F

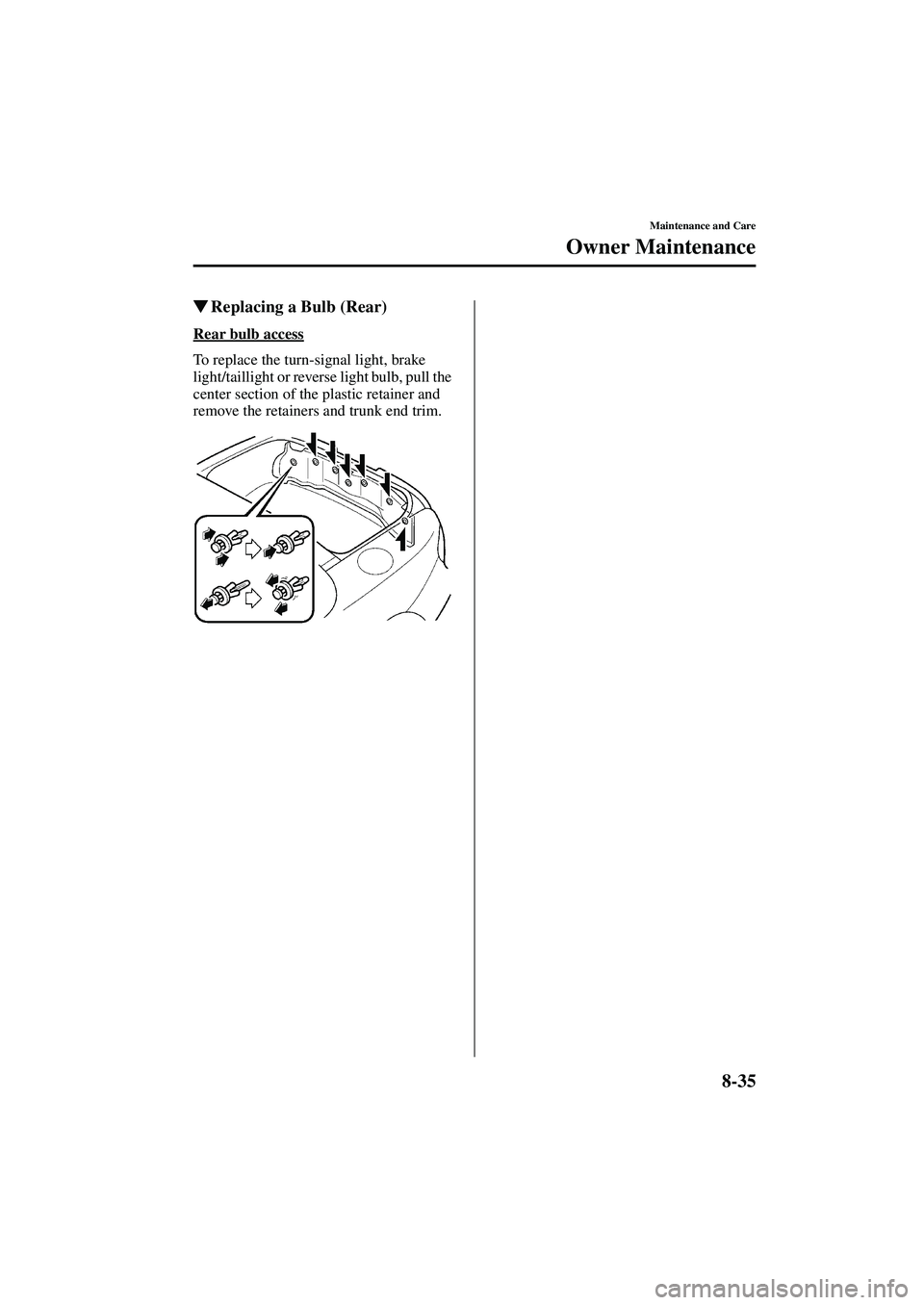

Replacing a Bulb (Rear)
Rear bulb access
To replace the turn-signal light, brake
light/taillight or reverse light bulb, pull the
center section of the plastic retainer and
remove the retainers and trunk end trim.
J07L(02MY).book Page 35 Monday, June 11, 2001 4:52 PM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8Q42-EA-01F

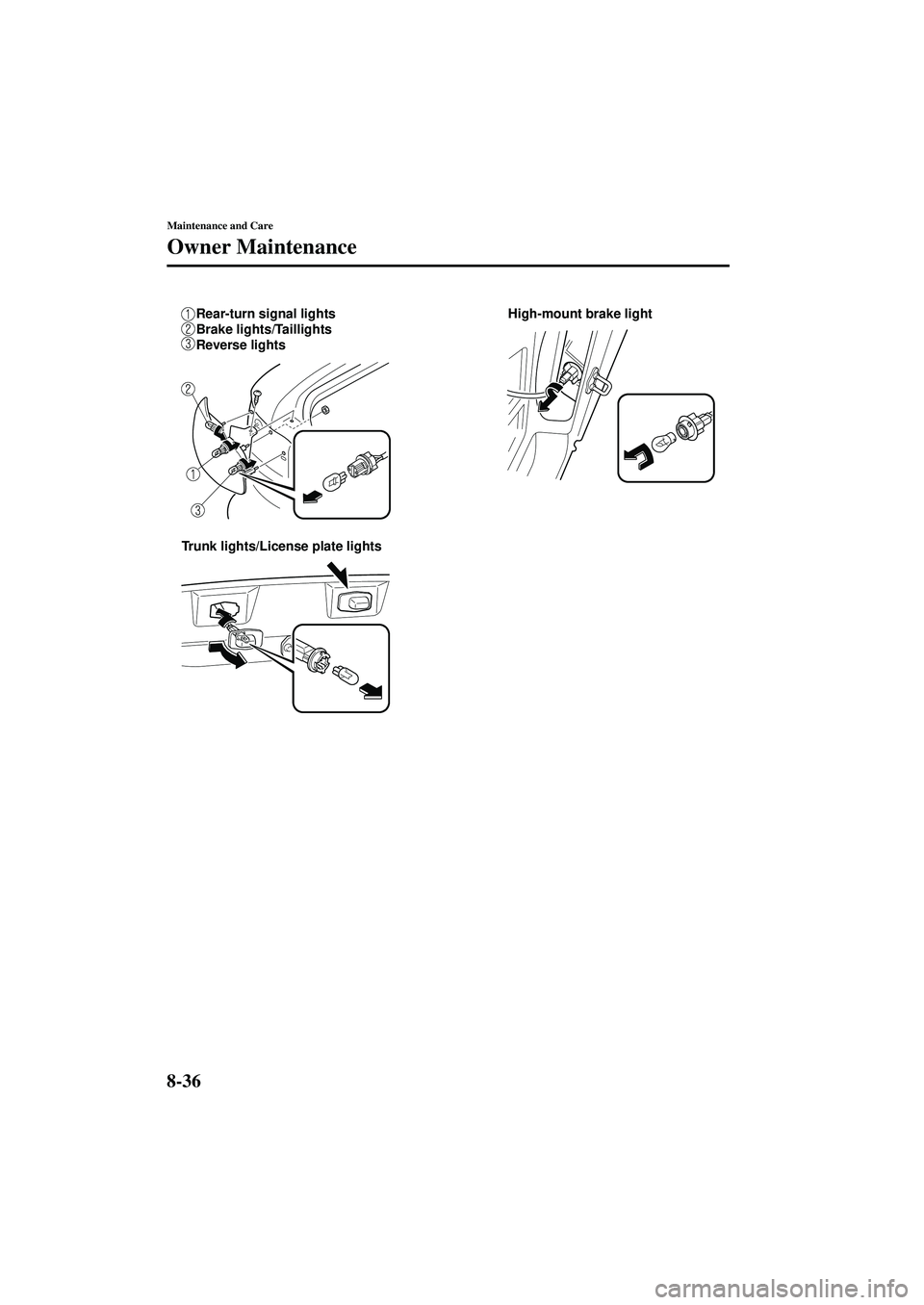

High-mount brake light
Trunk lights/License plate lights Rear-turn signal lights
Brake lights/Taillights
Reverse lights
