2002 LAND ROVER DISCOVERY ECU

DOORS
REPAIRS 76-1-11

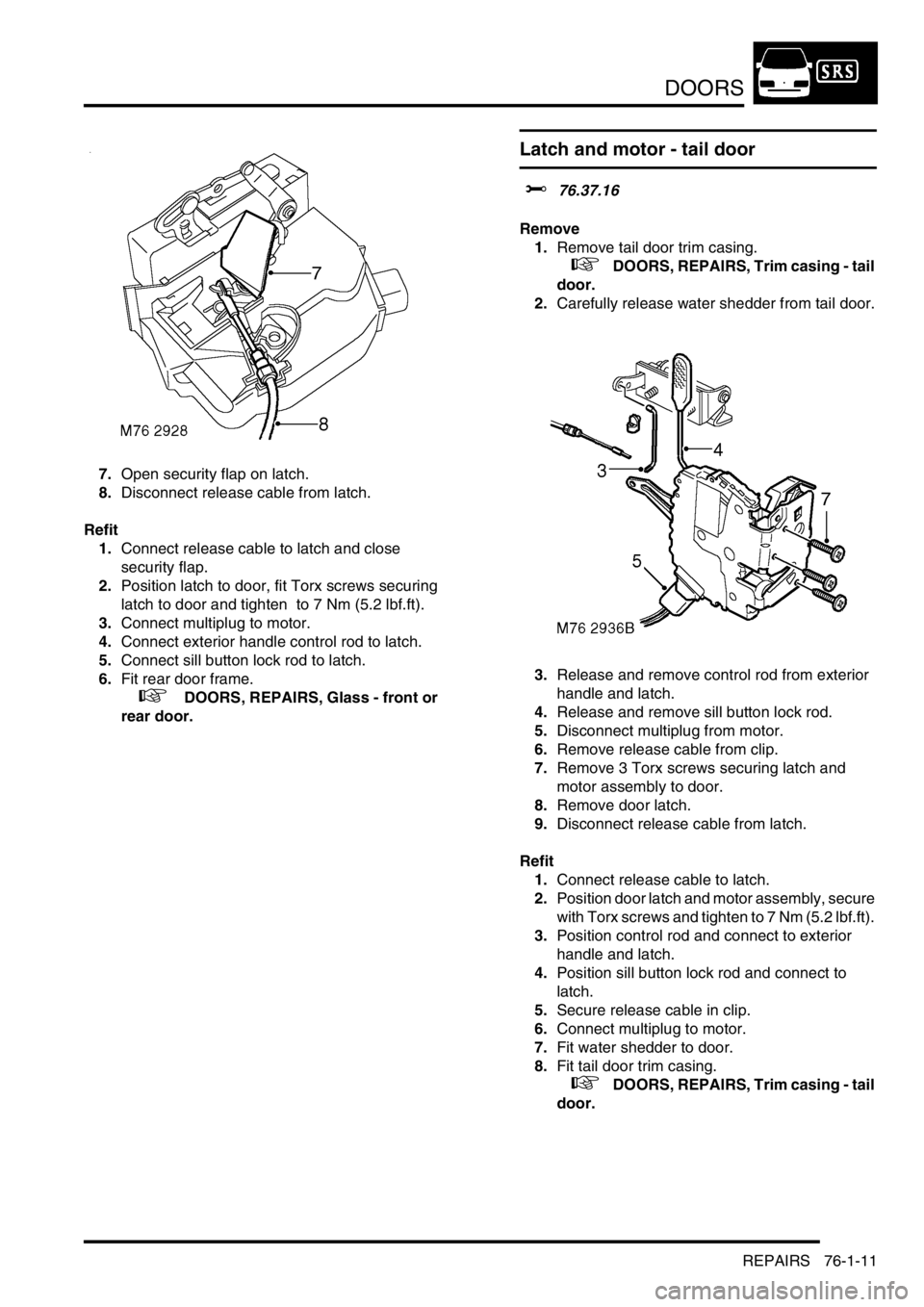

7.Open security flap on latch.
8.Disconnect release cable from latch.
Refit
1.Connect release cable to latch and close
security flap.
2.Position latch to door, fit Torx screws securing
latch to door and tighten to 7 Nm (5.2 lbf.ft).
3.Connect multiplug to motor.
4.Connect exterior handle control rod to latch.
5.Connect sill button lock rod to latch.
6.Fit rear door frame.

+ DOORS, REPAIRS, Glass - front or
rear door.
Latch and motor - tail door
$% 76.37.16
Remove
1.Remove tail door trim casing.

+ DOORS, REPAIRS, Trim casing - tail
door.
2.Carefully release water shedder from tail door.
3.Release and remove control rod from exterior
handle and latch.
4.Release and remove sill button lock rod.
5.Disconnect multiplug from motor.
6.Remove release cable from clip.
7.Remove 3 Torx screws securing latch and
motor assembly to door.
8.Remove door latch.
9.Disconnect release cable from latch.
Refit
1.Connect release cable to latch.
2.Position door latch and motor assembly, secure
with Torx screws and tighten to 7 Nm (5.2 lbf.ft).
3.Position control rod and connect to exterior
handle and latch.
4.Position sill button lock rod and connect to
latch.
5.Secure release cable in clip.
6.Connect multiplug to motor.
7.Fit water shedder to door.
8.Fit tail door trim casing.

+ DOORS, REPAIRS, Trim casing - tail
door.

DOORS
76-1-12 REPAIRS
Handle - exterior - rear door
$% 76.58.02
Remove
1.Remove rear door trim casing.

+ DOORS, REPAIRS, Trim casing -
rear door.
2.Carefully release water shedder from door.
3.Release control rod from latch.
4.Remove Torx bolt securing exterior handle to
door.
5.Remove exterior handle.
6.Remove control rod from exterior handle.
Refit
1.Fit control rod to exterior handle.
2.Position exterior handle and secure to door with
Torx bolt.
3.Connect control rod to latch.
4.Fit water shedder to door.
5.Fit rear door trim casing.

+ DOORS, REPAIRS, Trim casing -
rear door.
Handle - exterior - tail door
$% 76.58.05
Remove
1.Remove tail door trim casing.

+ DOORS, REPAIRS, Trim casing - tail
door.
2.Carefully release water shedder from door.
3.Remove control rod between exterior handle
and door latch.
4.Remove 2 nuts securing exterior handle to
door.
5.Remove exterior handle.
Refit
1.Position exterior handle to door. Fit nuts and
tighten to 7 Nm (5.2 lbf.ft).
2.Connect control rod to exterior handle and door
latch.
3.Fit water shedder to door.
4.Fit tail door trim casing.

+ DOORS, REPAIRS, Trim casing - tail
door.

DOORS
REPAIRS 76-1-13

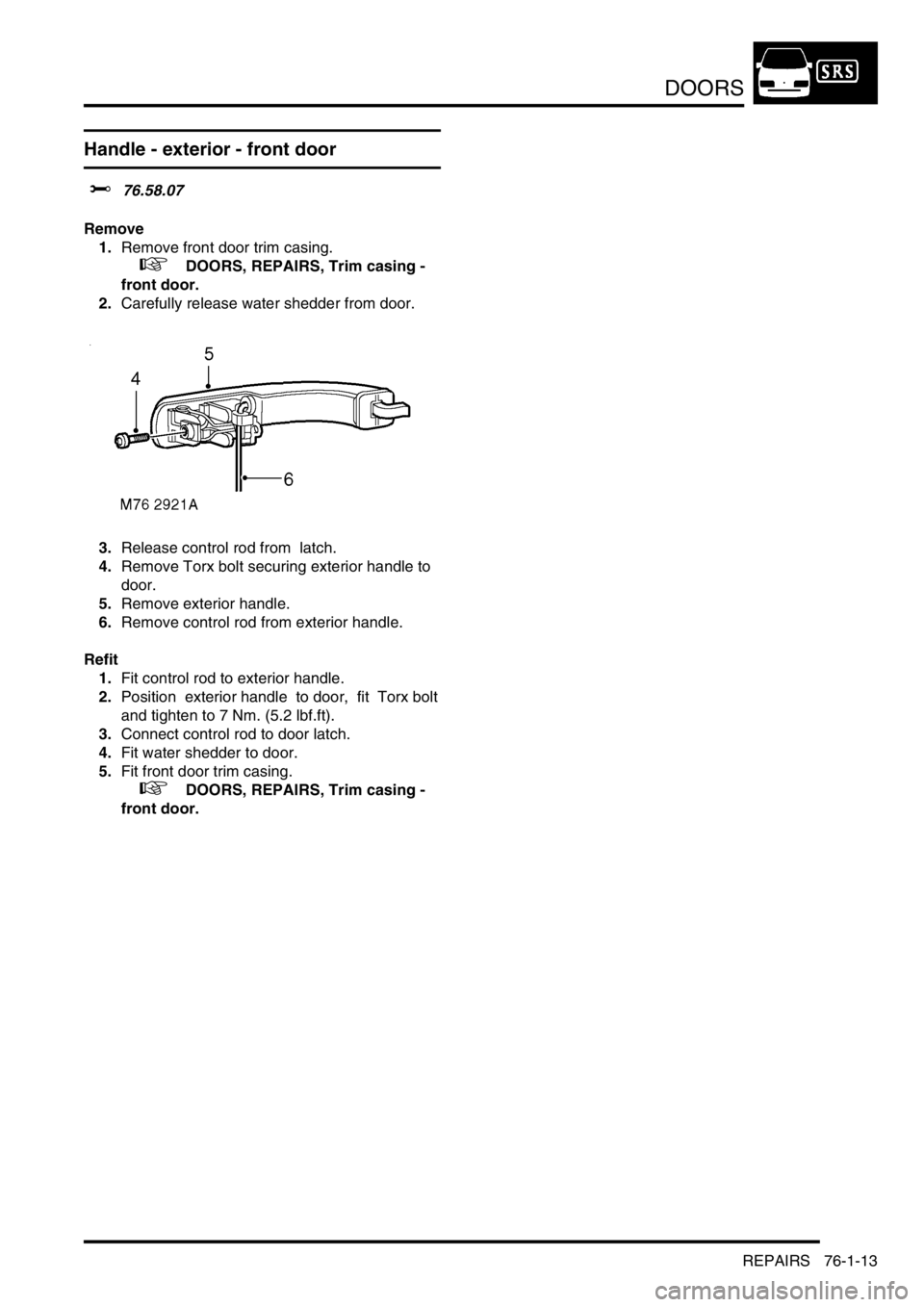

Handle - exterior - front door
$% 76.58.07
Remove
1.Remove front door trim casing.

+ DOORS, REPAIRS, Trim casing -
front door.
2.Carefully release water shedder from door.
3.Release control rod from latch.
4.Remove Torx bolt securing exterior handle to
door.
5.Remove exterior handle.
6.Remove control rod from exterior handle.
Refit
1.Fit control rod to exterior handle.
2.Position exterior handle to door, fit Torx bolt
and tighten to 7 Nm. (5.2 lbf.ft).
3.Connect control rod to door latch.
4.Fit water shedder to door.
5.Fit front door trim casing.

+ DOORS, REPAIRS, Trim casing -
front door.

EXTERIOR FITTINGS
REPAIRS 76-2-1
EXTERIOR FITTINGS REPAIRS
Wing - front - up to 03MY
$% 76.10.24
Remove
1.Remove front repeater lamp.

+ LIGHTING, REPAIRS, Lamp - front
repeater.
2.Remove front wheel arch liner.

+ EXTERIOR FITTINGS, REPAIRS,
Liner - wheel arch - front.
3.Remove 5 screws securing wheel arch liner
extension to bumper valance and remove liner.
4.Remove side repeater lamp from wing,
disconnect multiplug and remove lamp.5.Remove bolt securing front of wing to bracket
on body.
6.Remove screw securing headlamp surround
panel to wing.
7.Remove nut securing wing to bracket on sill
finisher.

EXTERIOR FITTINGS
76-2-2 REPAIRS
8.Remove 8 bolts securing wing to body and
remove wing.
Refit
1.Position wing to body.
2.Connect side repeater lamp to multiplug and fit
to wing.
3.Position wing to body, align wing to bonnet and
front door so that the correct gaps are achieved
and tighten bolts to 17 Nm (13 lbf.ft).
4.Check alignment of wing to bonnet and front
door. If necessary, adjust wing to achieve
correct gaps.
5.Fit and tighten nut securing wing to bracket on
sill finisher to 17 Nm (13 lbf.ft).
6.Fit and tighten screw securing wing to
headlamp surround panel.
7.Fit and tighten bolt securing front of wing to
bracket on body to 17 Nm (13 lbf.ft).
8.Fit wheel arch liner extension to bumper and
secure with screws.
9.Fit front wheel arch liner.

+ EXTERIOR FITTINGS, REPAIRS,
Liner - wheel arch - front.
10.Fit front repeater lamp.

+ LIGHTING, REPAIRS, Lamp - front
repeater.
Wing - front - from 03MY
$% 76.10.24
Remove
1.Remove the headlamp assembly.

+ LIGHTING, REPAIRS, Headlamp -
from 03MY.
2.Remove the front wheel arch liner.

+ EXTERIOR FITTINGS, REPAIRS,
Liner - wheel arch - front.
3.Remove screw securing wheel arch liner
extension panel to the inner wing.
4.Remove 6 screws securing wheel arch liner
extension panel to the front bumper and
remove the extension panel.
5.Release side repeater lamp from front wing,
disconnect the multiplug and remove the lamp.

EXTERIOR FITTINGS
REPAIRS 76-2-3
6.Remove bolt securing front wing lower support
bracket to the body.
7.Remove nut securing sill finisher to the front
wing lower support bracket.
8.Remove 3 bolts securing front wing rear edge
to the body and collect the bracket.9.Remove bonnet sealing rubber from the front
wing flange.
10.Remove bolt securing front wing to the front
support bracket.
11.Remove 5 bolts securing front wing to the body
and remove the front wing.
NOTE: Do not carry out further dismantling if
component is removed for access only.
12.Remove nut securing lower support bracket to
the front wing and remove the bracket.
13.Remove the front wing wheel arch finisher.
Refit
1.Clean front wing body mounting brackets.
2.Fit and secure the front wheel arch finisher to
the front wing.
3.Position lower support bracket to the front wing,
fit nut and tighten to 8 Nm (6 lbf.ft).
4.Position front wing to body, fit bracket and bolts
but do not tighten at this stage.
5.Check and adjust alignment of the front wing to
the bonnet and door.
6.Tighten the front wing retaining bolts to 8 Nm (6
lbf.ft).
7.Fit bonnet sealing rubber to the front wing
flange.
8.Fit bolt securing lower support bracket to the
body and tighten to 8 Nm (6 lbf.ft).
9.Fit nut securing sill finisher to the front wing
lower support bracket and tighten to 8 Nm (6
lbf.ft).
10.Fit bolt securing front wing to the front support
bracket and tighten to 8 Nm (6 lbf.ft).
11.Fit side repeater lamp to the front wing and
connect the multiplug.

EXTERIOR FITTINGS
76-2-4 REPAIRS
12.Fit front wheel arch liner extension panel to the
front bumper and secure with screws.
13.Fit and tighten screw securing front wheel arch
liner extension panel to the inner wing.
14.Fit the front wheel arch liner.

+ EXTERIOR FITTINGS, REPAIRS,
Liner - wheel arch - front.
15.Fit the headlamp assembly.

+ LIGHTING, REPAIRS, Headlamp -
from 03MY.
Rear folding step
$% 76.10.41
Remove
1.Remove 2 bolts securing step and damper
assembly to chassis.
2.Remove step and damper assembly.
3.Remove 2 patch lock nuts securing damper to
step and discard nuts.
4.Remove damper from step.
Refit
1.Fit damper to step and secure with new patch
lock nuts. Tighten nuts to 17 Nm (13 lbf.ft).
2.Position step and damper assembly to chassis
and secure with bolts. Tighten bolts to 45 Nm
(33 lbf.ft).

EXTERIOR FITTINGS
REPAIRS 76-2-5

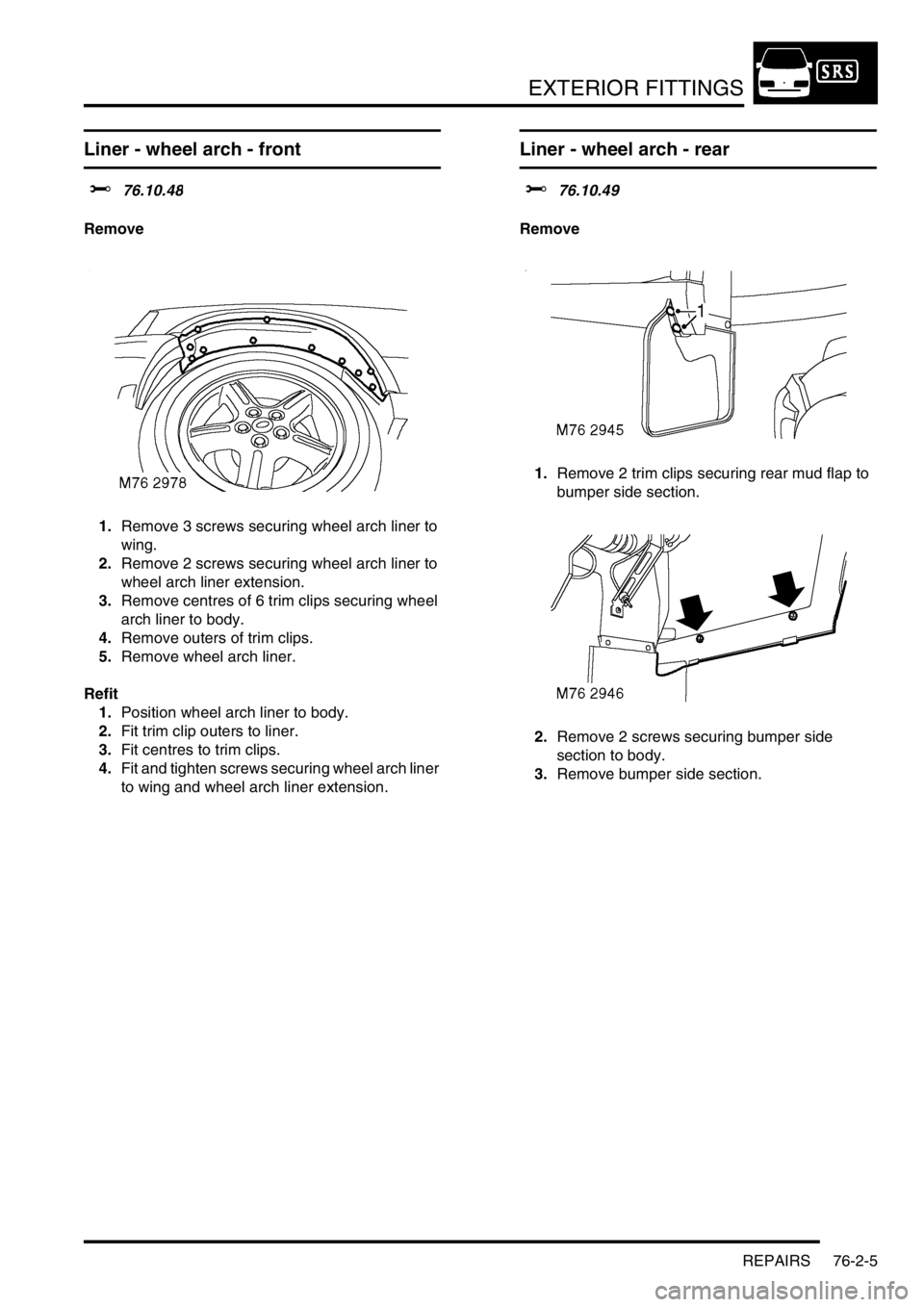

Liner - wheel arch - front
$% 76.10.48
Remove
1.Remove 3 screws securing wheel arch liner to
wing.
2.Remove 2 screws securing wheel arch liner to
wheel arch liner extension.
3.Remove centres of 6 trim clips securing wheel
arch liner to body.
4.Remove outers of trim clips.
5.Remove wheel arch liner.
Refit
1.Position wheel arch liner to body.
2.Fit trim clip outers to liner.
3.Fit centres to trim clips.
4.Fit and tighten screws securing wheel arch liner
to wing and wheel arch liner extension.
Liner - wheel arch - rear
$% 76.10.49
Remove
1.Remove 2 trim clips securing rear mud flap to
bumper side section.
2.Remove 2 screws securing bumper side
section to body.
3.Remove bumper side section.
