2002 LAND ROVER DISCOVERY lock

GENERAL DATA
04-13
Transfer box - LT230SE
Automatic gearbox - ZF4HP22/24
Rear axle
Front axle
Type LT230SE, two speed reduction with front and rear drives
Reduction ratios:

High range 1.211 : 1

Low range 3.32 : 1
Low range gear to high/low range hub clearance 0.05 to 0.15 mm (0.002 to 0.006 in)
High range gear to high/low range hub clearance 0.05 to 0.15 mm (0.002 to 0.006 in)
Mainshaft input gear bearing pre-load 0.05 mm (0.002 in)
Intermediate gear bearing pre-load Torque intermediate shaft nut to 88 Nm (65 lbf.ft)
Type ZF4HP22, electro-hydraulic shift control with fluid torque
converter
Gears 4 forward, 1 reverse
Gear ratios:

First 2.480:1

Second 1.480:1

Third 1.000:1

Fourth 0.728:1

Reverse 2.086:1
Torque converter lock-up Engaged in third and fourth gears above 72 km/h (45 mph)
Input shaft axial end-float 0.2 to 0.4 mm (0.008 to 0.016 in)
Type Solid axle casing incorporating a spiral bevel differential and drive
shafts
Reduction ratio 3.538:1
Type Solid axle casing incorporating spiral bevel differential and drive
shafts with constant velocity joints.
Reduction ratio 3.538:1

GENERAL DATA
04-14
Steering
Note: Measurements taken at EEC kerb weight.
Type Hydraulically assisted worm and roller
Steering wheel turns lock to lock 3.5
Steering wheel diameter 400 mm (15.7 in)
Turning circle, kerb to kerb 11.9 metres (39.1 feet)
PAS pump Hobourn Automotive Ltd. Series 500, belt driven
PAS pump pressure - engine at idle with steering at
full lock21 to 62 bar (305 to 900 lbf/in
2
Delivery pressure (nominal) 100 bar (1450 lbf.in2) 8.5 litres/min (15.1 pints/min) (18.1 US pints/
min)
Steering geometry:

Camber angle - Front, up to VIN 2A 754807 -
unladen condition

Camber angle - Front, from VIN 2A 754808 -
unladen condition

Camber angle - Rear - unladen condition–10' ± 30'
+20' ± 30'
–10' ± 30'

Cross camber - Front and rear 1° (Maximum)

Castor angle - unladen condition 3° 45' ± 45'

Cross castor 1° (Maximum)

Toe out - Front

Toe in - Rear– 0° 10' ± 0° 10' (total)
+ 0° 5' ± 0° 15' (total)
Thrust angle 20' (Maximum)

Swivel pin inclination 13° 11'

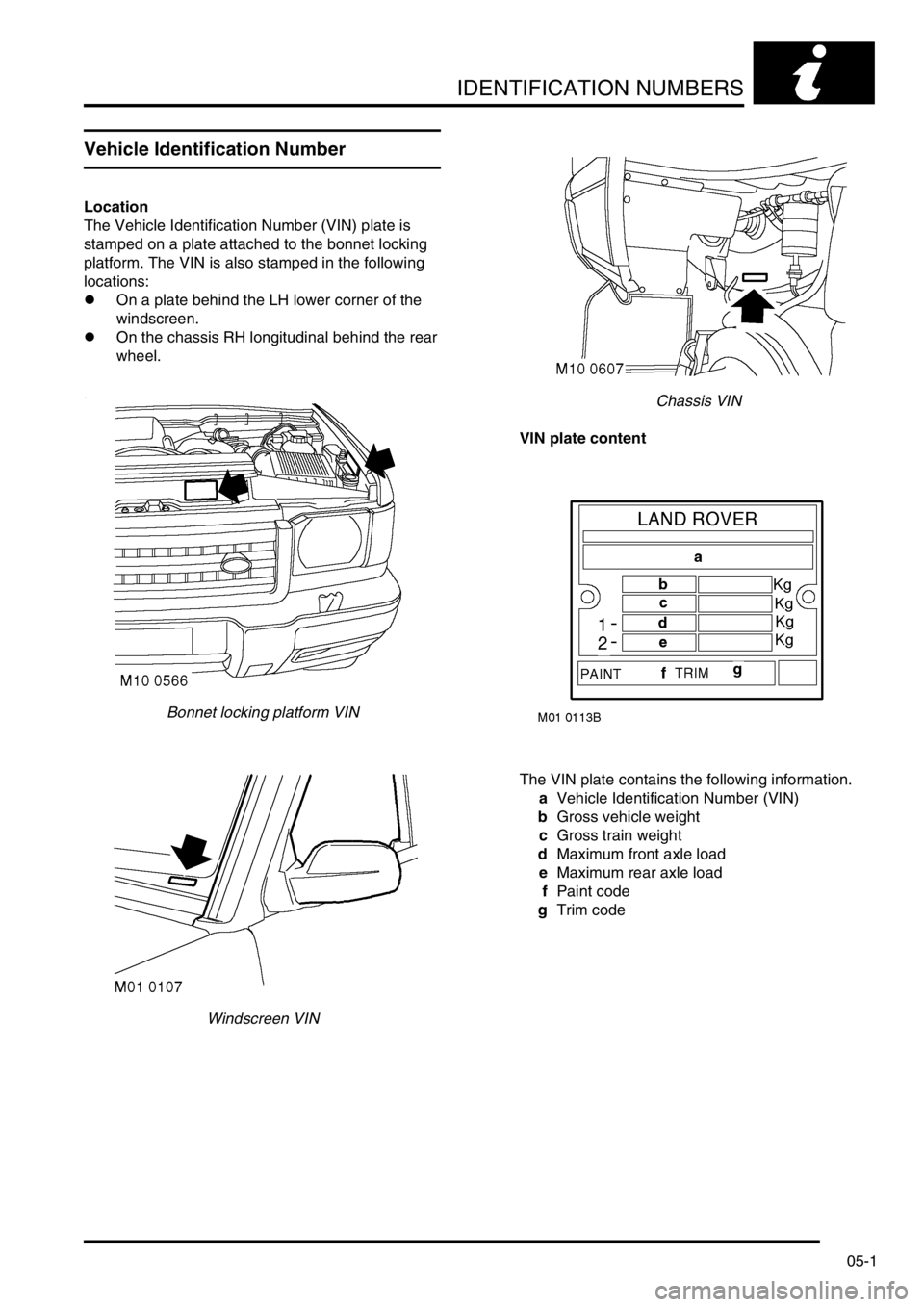

IDENTIFICATION NUMBERS
05-1
IDE NTIFICATION NUMBERS
Vehicle Identification Number
Location
The Vehicle Identification Number (VIN) plate is
stamped on a plate attached to the bonnet locking
platform. The VIN is also stamped in the following
locations:
lOn a plate behind the LH lower corner of the
windscreen.
lOn the chassis RH longitudinal behind the rear
wheel.
Bonnet locking platform VIN
Windscreen VINChassis VIN
VIN plate content
The VIN plate contains the following information.
aVehicle Identification Number (VIN)
bGross vehicle weight
cGross train weight
dMaximum front axle load
eMaximum rear axle load
fPaint code
gTrim code

IDENTIFICATION NUMBERS
05-3
Identification Number Locations
Engine number
V8 Engine
Td5 Engine
Stamped on the LH side of the cylinder block below
the exhaust manifoldManual gearbox number
Stamped on the RH side of the gearbox casing,
adjacent to the oil drain plug.
Automatic gearbox number
Stamped on a plate attached to the LH side of the
gearbox casing adjacent to the selector mechanism.

TORQUE WRENCH SETTINGS
06-2
Engine Td5
TORQUE DESCRIPTION METRIC IMPERIAL
ACE pump bolts25 Nm (18 lbf.ft)
A/C compressor bolts 25 Nm (18 lbf.ft)
Alternator support bracket to cylinder head bolts 25 Nm (18 lbf.ft)
Alternator/vacuum pump oil feed pipe union 10 Nm (7 lbf.ft)
Camshaft cover to camshaft carrier bolts 10 Nm (7 lbf.ft)
Camshaft sprocket to camshaft bolts 37 Nm (27 lbf.ft)
Centrifuge cover bolts 10 Nm (7 lbf.ft)
Centrifuge oil drain pipe to sump bolts (or nuts) 10 Nm (7 lbf.ft)
Centrifuge to oil drain pipe bolts 10 Nm (7 lbf.ft)
Centrifuge to oil cooler housing bolts 25 Nm (18 lbf.ft)
CKP sensor bolt10 Nm (7 lbf.ft)
Coolant pipe bolt50 Nm (37 lbf.ft)
Connecting rod bolts, then a further 80°20 Nm (15 lbf.ft)
Crankshaft pulley bolt 460 Nm (340 lbf.ft)
Crankshaft pulley TV damper bolts 80 Nm (59 lbf.ft)
Crankshaft rear oil seal housing bolts 10 Nm (7 lbf.ft)
Cylinder head bolts initial tighten 30 Nm (22 lbf.ft)
Cylinder head bolts final tighten, then a further 90°, then a further 180° and finally a
further 45°65 Nm (48 lbf.ft)
Dipstick tube to camshaft carrier bolt 10 Nm (7 lbf.ft)
Drive plate (automatic transmission) to crankshaft bolts 115 Nm (85 lbf.ft)
EGR pipe clamp to cylinder head bolt - if fitted 25 Nm (18 lbf.ft)
EGR pipe Allen screws 10 Nm (7 lbf.ft)
Engine mounting (front) to cylinder block bolts 48 Nm (35 lbf.ft)
Engine mounting (front) to chassis nuts 85 Nm (63 lbf.ft)
Engine mounting bracket (rear, LH & RH) to gearbox bolts 85 Nm (63 lbf.ft)
Engine mounting bracket (rear, LH & RH) nuts 45 Nm (33 lbf.ft)
Flywheel to crankshaft (manual transmission) bolts, then a further 90°40 Nm (30 lbf.ft)
Front crossmember bolts 26 Nm (20 lbf.ft)
Fuel connector block bolts 25 Nm (18 lbf.ft)
Fuel cooler to inlet manifold bolts 25 Nm (18 lbf.ft)
Gearbox housing to engine bolts 50 Nm (37 lbf.ft)
Heater pipe to cylinder head bolts 25 Nm (18 lbf.ft)
Main bearing cap bolts then a further 90°33 Nm (24 lbf.ft)
Oil cooler housing to cylinder block bolts 25 Nm (18 lbf.ft)
Oil cooler pipe clip bolts 10 Nm (7 lbf.ft)
Oil filter adaptor housing to oil cooler housing bolts 25 Nm (18 lbf.ft)
Oil pick-up strainer screws 10 Nm (7 lbf.ft)
Oil pressure switch 15 Nm (11 lbf.ft)
Oil pump drive sprocket bolt 25 Nm (18 lbf.ft)
Oil pump pressure relief valve plug 25 Nm (18 lbf.ft)
Oil pump and stiffener assembly to cylinder block bolts 13 Nm (10 lbf.ft)
Oil sump to cylinder block bolts 25 Nm (18 lbf.ft)
Oil sump to gearbox bell housing bolts 13 Nm (10 lbf.ft)
PAS pump bracket bolts 27 Nm (20 lbf.ft)
PAS pump pulley bolts 27 Nm (20 lbf.ft)
Rocker arm adjusting screw locknuts 16 Nm (12 lbf.ft)

TORQUE WRENCH SETTINGS
06-3
Rocker shaft bolts 32 Nm (24 lbf. ft)
Timing chain adjustable guide bolt 25 Nm (18 lbf.ft)
Timing chain cover bolts 27 Nm (20 lbf.ft)
Timing chain cover to cylinder block stud 7 Nm (5.2 lbf.ft)
Timing chain fixed guide retaining pin 25 Nm (18 lbf.ft)
Timing chain cover to cylinder head nut and bolt 25 Nm (18 lbf.ft)
Timing chain fixed guide (M6) bolt 10 Nm (7 lbf.ft)
Timing chain fixed guide (M10) bolt 45 Nm (33 lbf.ft)
Timing chain lubrication jet bolt 10 Nm (7 lbf.ft)
Timing chain tensioner 45 Nm (33 lbf.ft)
Torque converter to drive plate (automatic transmission) bolts 50 Nm (37 lbf.ft)
Turbocharger heatshield bolts 10 Nm (7 lbf.ft)
Turbocharger oil feed pipe banjo bolt 25 Nm (18 lbf.ft)
Turbocharger to exhaust manifold nuts 30 Nm (22 lbf.ft)
Vacuum pump oil feed pipe to cylinder head union 10 Nm (7 lbf.ft)
Viscous fan nut45 Nm (33 lbf.ft)
Fuel spill return pipe unions - if fitted 20 Nm (15 lbf.ft)TORQUE DESCRIPTION METRIC IMPERIAL

TORQUE WRENCH SETTINGS
06-4
Engine V8
TORQUE DESCRIPTION METRIC IMPERIAL
Engine mounting bolts (rear, LH & RH) to gearbox bolts 85 Nm (63 lbf.ft)
Engine mounting (rear, LH & RH) nuts 45 Nm (33 lbf.ft)
Cylinder head bolts tighten, then 90°, then a further 90°20 Nm (15 lbf.ft)
Rocker shaft bolts 40 Nm (30 lbf.ft)
Alternator mounting bracket 40 Nm (30 lbf.ft)
Auxiliary drive belt tensioner 45 Nm (33 lbf.ft)
Engine earth lead 22 Nm (16 lbf.ft)
Rocker cover bolts 8 Nm (6 lbf.ft)
Torque converter to drive plate 50 Nm (37 lbf.ft)
A/C compressor 22 Nm (16 lbf.ft)
ACE pump 22 Nm (16 lbf.ft)
Flywheel to crankshaft 78 Nm (58 lbf.ft)
Crankshaft sensor 6 Nm (5 lbf.ft)
Crankshaft sensor cover 6 Nm (5 lbf.ft)
Spacer and hub to crankshaft 85 Nm (63 lbf.ft)
Drive plate and clamp ring 45 Nm (33 lbf.ft)
Oil pick up strainer 10 Nm (7 lbf.ft)
Filter head adaptor 13 Nm (10 lbf.ft)
Filter head 8 Nm (6 lbf.ft)
Sump bolts 22 Nm (16 lbf.ft)
Oil pressure switch 15 Nm (11 lbf.ft)
Timing gear cover to cylinder block 22 Nm (16 lbf.ft)
Oil cooler pipe to timing gear cover 15 Nm (11 lbf.ft)
Crankshaft pulley bolt 270 Nm (200 lbf.ft)
Coolant outlet elbow 22 Nm (16 lbf.ft)
Auxiliary housing 40 Nm (30 lbf.ft)
Jockey pulley 50 Nm (37 lbf.ft)
Camshaft gear 50 Nm (37 lbf.ft)
Rocker shaft bolts 40 Nm (30 lbf.ft)
Connecting rod bolts
Final torque - turn through 80 °20 Nm (15 lbf.ft)
Initial torque - all main bearing cap bolts and side bolts 13.5 Nm (10 lbf.ft)
Final torque - main bearing cap side bolts 11 to 15 45 Nm (33 lbf.ft)
Final torque - main bearing cap bolts 1 to 8 72 Nm (53 lbf.ft)
Final torque - main bearing cap bolts 9 and 10 92 Nm (68 lbf.ft)
Final torque - main bearing cap side bolts 16 to 20 45 Nm (33 lbf.ft)
Viscous fan nut 45 Nm (33 lbf.ft)
Camshaft thrust plate bolts 22 Nm (16 lbf.ft)
Secondary Air Injection adapters 33 Nm (24 lbf.ft)

TORQUE WRENCH SETTINGS
06-6
Engine management system - V8
Cooling system
Manifolds and exhaust systems - Td5
TORQUE DESCRIPTION METRIC IMPERIAL
Spark plugs20 Nm (15 lbf.ft)
Fuel tank cradle45 Nm (33 lbf.ft)
ECT sensor10 Nm (7 lbf.ft)
CKP sensor6 Nm (4.4 lbf.ft)
CMP sensor8 Nm (6 lbf.ft)
KS sensor22 Nm (16 lbf.ft)
Throttle body10 Nm (7 lbf.ft)
Plenum chamber22 Nm (16 lbf.ft)
Breather adaptor6 Nm (4.4 lbf.ft)
Throttle cable abutment bracket 10 Nm (7 lbf.ft)
TP sensor 2.2 Nm (1.6 lbf.ft)
IACV sensor8 Nm (6 lbf.ft)
HO
2S sensor45 Nm (33 lbf.ft)
Ignition coils8 Nm (6 lbf.ft)
Fuel rail9 Nm (7 lbf.ft)
TORQUE DESCRIPTION METRIC IMPERIAL
Cylinder block drain plug 30 Nm (22 lbf.ft)
Coolant pump24 Nm (18 lbf.ft)
Coolant pump pulley 22 Nm (16 lbf.ft)
Coolant pump cover - Td5 10 Nm (7 lbf.ft)
TORQUE DESCRIPTION METRIC IMPERIAL
Front pipe to turbocharger 27 Nm (20 lbf.ft)
Inlet manifold25 Nm (18 lbf.ft)
Tail pipe25 Nm (18 lbf.ft)
Fuel cooler25 Nm (18 lbf.ft)
EGR valve10 Nm (7 lbf.ft)
Exhaust manifold25 Nm (18 lbf.ft)
Exhaust manifold heatshield (M6) bolts 10 Nm (7 lbf.ft)
Exhaust manifold heatshield (M8) bolts 25 Nm (18 lbf.ft)
EGR pipe Allen screws 10 Nm (7 lbf.ft)
