2002 LAND ROVER DISCOVERY dimensions

GENERAL DATA
04-18
Dimensions
* Measurement taken with vehicle at unladen weight.
Weights
NOTE: The rear axle load for vehicles with self levelling suspension can be increased to a maximum of 1928 kg (4249
lb) when towing, provided road speed is limited to 60 mph (100 km/h).
NOTE: Axle weights are non additive. The individual maximum weights and gross vehicle weight must not be
exceeded.
Overall length - including towing hitch 4715 mm (185.6 in)
Overall length - including spare wheel 4705 mm (185.24 in)
Overall width (excluding mirrors) 1885 mm (74.2 in)
Overall height - Open sunroof * 2015 mm (79.3 in)
Overall height (without roof bars) * 1940 mm (76.40 in)
Minimum ground clearance * 253.5 mm (10.0 in)
Wheelbase 2540 mm (100.00 in)
Turning circle (kerb to kerb) 11.9 metres (39.1 feet)
Track - front 1540 mm (60.63 in)
Track - rear 1560 mm (61.42 in)
kgs lbs
Unladen weight:

V8 models 2095 - 2235 4619 - 4928

Td5 model 2150 - 2280 4740 - 5027
Max.GVW:

All 5 seat vehicles (coil springs) 2750 6063

All 7 seat Diesel engine vehicles (coil springs)
2880 6347

All 7 seat Petrol engine vehicles (coil springs)
2825 6215

V8 models with self levelling suspension 2825 6228

Td5 models with self levelling suspension 2880 6349
Max. front axle load 1200 2646
Max. rear axle load:

With coil springs 1720 3792

With self levelling suspension 1800 3968

ENGINE - V8
12-2-64 OVERHAUL
10.Check the following valve dimensions. Renew
valves as necessary.
lValve head diameter 'A': Inlet = 39.75 to
40.00 mm (1.56 to 1.57 in).
lValve head diameter 'A': Exhaust = 34.23 to
34.48 mm (1.35 to 1.36 in).
lValve stem diameter 'B': Inlet = 8.664 to
8.679 mm (0.341 to 0.342 in).
lValve stem diameter 'B': Exhaust – 4.0 litre
engines up to engine nos. 55D 05677A; 56D
50787A and 97D 05504A = 8.651 to 8.666
mm (0.340 to 0.341 in).
lValve stem diameter 'B': Exhaust – 4.0 litre
engines from engine nos. 55D 05678A; 56D
50788A and 97D 05505A and all 4.6 litre
engines = 8.641 to 8.656 mm (0.340 to
0.341 in)
11.Check installed height of valve.
lValve installed height, end of valve to base
of spring seat, 'C' = 44.163 to 45.288 mm
(1.741 to 1.802 in).12.Check condition of valve springs. Valve
springs must be replaced as a complete
set.
lValve spring free length = 48.30 mm (1.90
in).
lValve spring fitted length = 40.40 mm (1.59
in).
l Spring load - valve closed = 339
± 10 N (76
± 2.25 lbf).
lSpring load - valve open = 736
± 10 N (166
± 2.25 lbf).
13.Check valve stem to guide clearance using the
following procedures:
14.Insert each valve into its respective guide.
15.Extend valve head approximately 13 mm (0.6
in) out of valve seat and position a DTI gauge
to rear of valve head.
16.Move valve towards front of cylinder head and
zero DTI gauge ensuring that stylus of gauge
remains in contact with valve head.
17.Move valve towards rear of cylinder head and
record gauge reading to give valve stem to
guide clearance.
l Valve stem to guide clearance 'D': Inlet =
0.025 to 0.066 mm (0.001 to 0.002 in).
l Valve stem to guide clearance 'D': Exhaust
– 4.0 litre engines up to engine nos. 55D
05677A; 56D 50787A; 97D 05504A = 0.038
to 0.078 mm (0.0015 to 0.003 in).
lValve stem to guide clearance 'D': Exhaust
– 4.0 litre engines from engine nos. 55D
05678A; 56D 50788A; 97D 05505A and all
4.6 litre engines = 0.048 to 0.088 mm
(0.0019 to 0.0035 in).
18.Renew valve guides as necessary.
19.Using valve guide remover tool LRT-12-037
press valve guide into combustion face side of
cylinder head.

ENGINE - V8
12-2-68 OVERHAUL
Inspect
1.Clean carbon from piston. Inspect piston for
distortion, cracks and burning.
2.Remove piston rings from piston.
3.Measure and record piston diameter at 90
° to
gudgeon pin axis and 10 mm (0.4 in) from
bottom of the skirt. The piston must be 0.02 to
0.045 mm (0.001 to 0.002 in) smaller than the
cylinder bore.
4.Check gudgeon pin bore in piston for signs of
wear and overheating.
5.Pistons fitted on production are graded 'A' or
'B', the grade letter is stamped on the piston
crown.
lPiston diameter: Grade 'A' = 93.970 to
93.985 mm (3.6996 to 3.7002 in).
lPiston diameter: Grade 'B' = 93.986 to 94.00
mm (3.7002 to 3.7007 in).
6.Worn cylinders fitted with grade 'A' pistons may
be honed to accept the grade 'B' piston
provided that specified cylinder bore and
ovality limits are maintained. Grade 'B'
pistons are supplied as service
replacements. Do not attempt to de-glaze
cylinder bores.
7.Check gudgeon pins for signs of wear and
overheating.
8.Check clearance of gudgeon pin in piston.
l Gudgeon pin to piston clearance = 0.006 to
0.015 mm (0.0002 to 0.0006 in).
9.Check overall dimensions of gudgeon pin.
Gudgeon pins are only supplied as an
assembly with replacement pistons.
lGudgeon pin length = 60.00 to 60.50 mm
(2.362 to 2.382 in).
lGudgeon pin diameter = 23.995 to 24.00
mm (0.9446 to 0.9448 in)10.Measure cylinder bore wear and ovality in two
axis 40 to 50 mm (1.6 to 2 in) from top of bore.
The temperature of piston and cylinder
block must be the same to ensure accurate
measurement. Do not attempt to de-glaze
cylinder bores.
lGrade 'A' pistons: Cylinder bore = 94.00 to
94.015 mm (3.7007 to 3.7013 in).
lGrade 'B' pistons: Cylinder bore = 94.016 to
94.030 mm (3.7014 to 3.7019 in).
lMaximum ovality = 0.013 mm (0.0005 in).
11.Check alignment of connecting rods.
Reassembly
1.Pistons have a 5 mm (0.2 in) offset gudgeon pin
which can be identified by an arrow mark on
the piston crown. This arrow must always point
towards the front of the engine.
2.Assemble pistons to connecting rods with
arrow on piston pointing towards domed
shaped boss on connecting rod for RH bank of
cylinders and arrow pointing away from domed
shaped boss for LH bank of cylinders.

SEATS
76-5-16 REPAIRS
8.Release pretensioner multiplug from seat
frame and disconnect.
9. Electrically operated seats: Disconnect 2
seat motor multiplugs.
10.Remove front seat.
Refit
1.Fit front seat in vehicle.
2. Electrically operated seats: Connect seat
motor multiplugs.
3.Connect pretensioner multiplug and secure to
seat frame.
4.Fit Torx bolts and nut securing front seat to floor
and tighten to 45 Nm (33 lbf.ft).
5.Fit front seat belt lower anchorage bolt to front
seat and tighten to 32 Nm (24 lbf.ft).
6.Fit cap to lower anchorage bolt.
7.Fit lower trim casing to seat and secure with
screws and trim clip.
8.Connect battery earth lead.
Seat - third row
$% 78.10.45
Remove
1.Manufacture a spring retainer bracket to the
dimensions given above.
2.Position third row seat in deployed position.
3.Remove the cup holder (where applicable).

CHASSIS AND BODY DIMENSIONS
CHASSIS DIMENSIONS 77-1-1
CHASSIS AND BODY DIMENSIONS CHASSIS DIMENSIONS

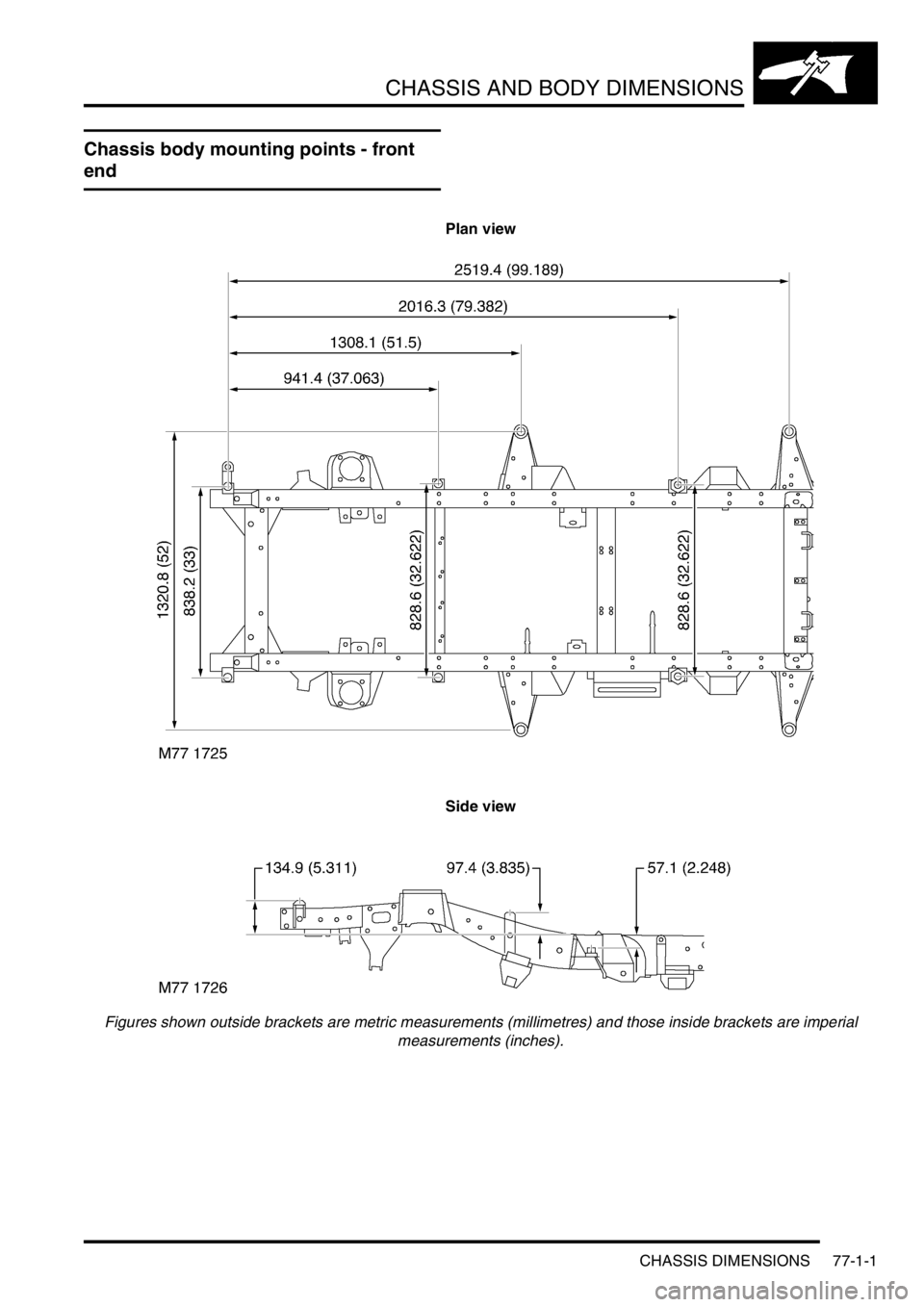

Chassis body mounting points - front
end
Plan view
Side view
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).

CHASSIS AND BODY DIMENSIONS
77-1-2 CHASSIS DIMENSIONS

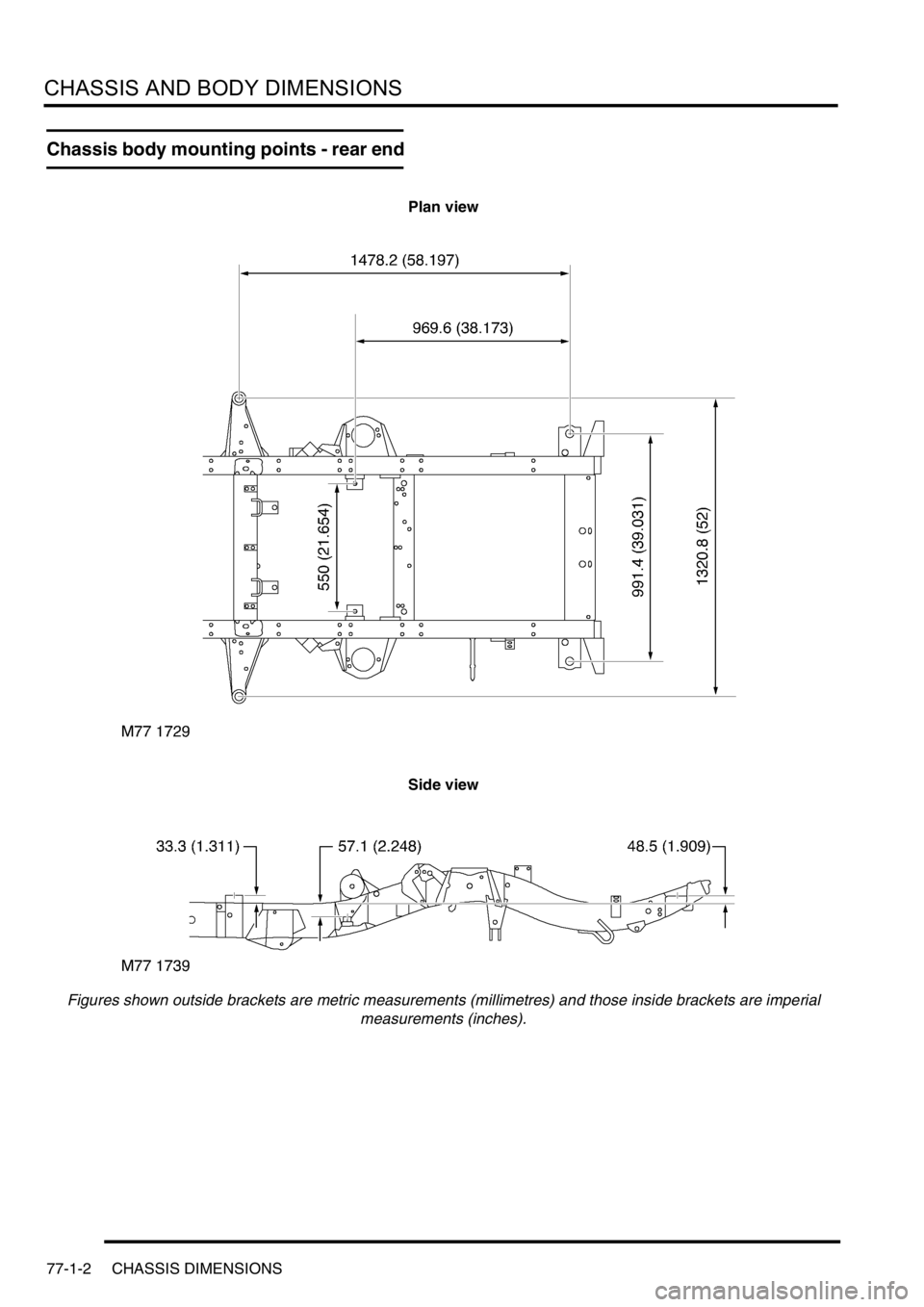

Chassis body mounting points - rear end
Plan view
Side view
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).

CHASSIS AND BODY DIMENSIONS
CHASSIS DIMENSIONS 77-1-3

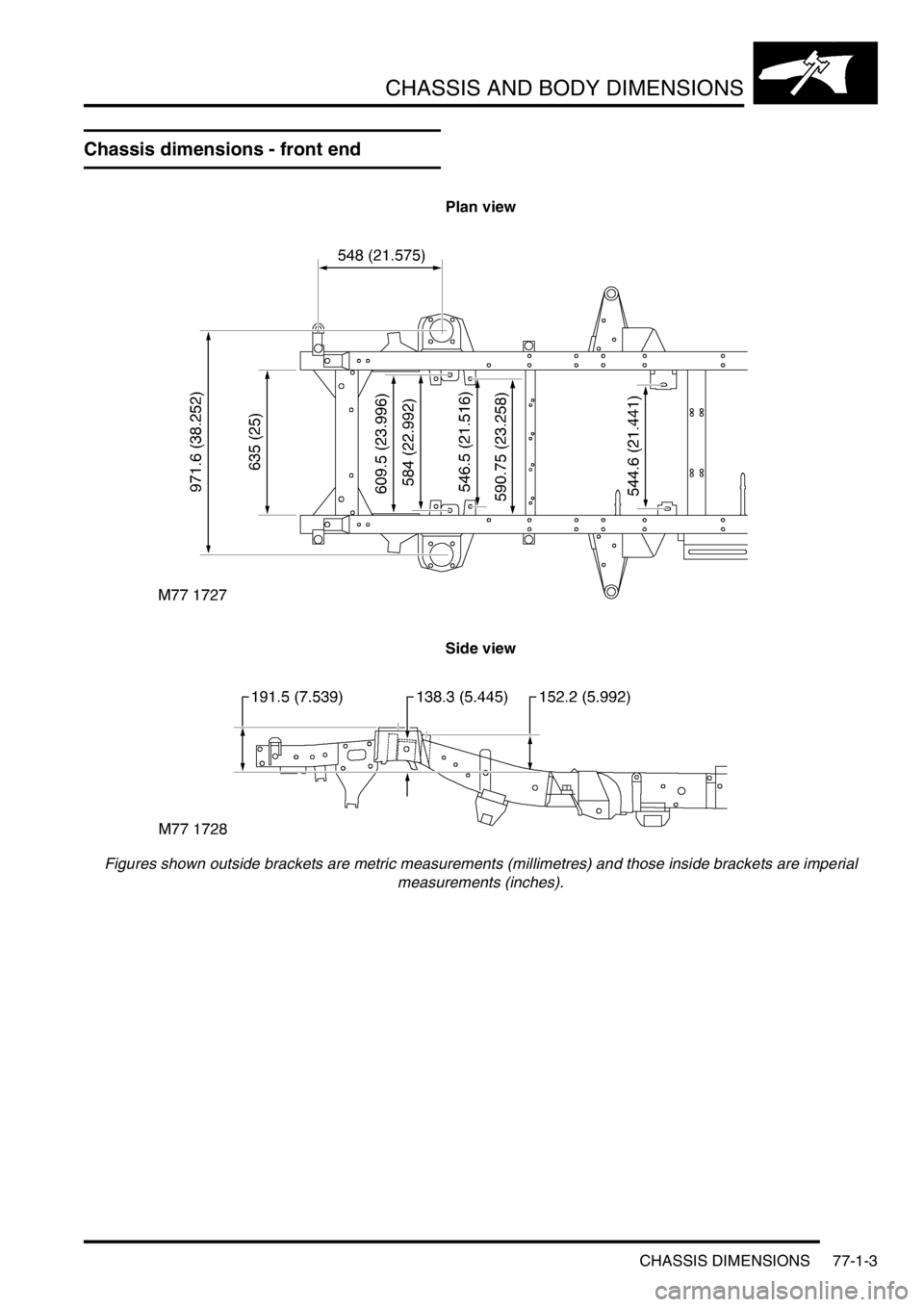

Chassis dimensions - front end
Plan view
Side view
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).

CHASSIS AND BODY DIMENSIONS
77-1-4 CHASSIS DIMENSIONS

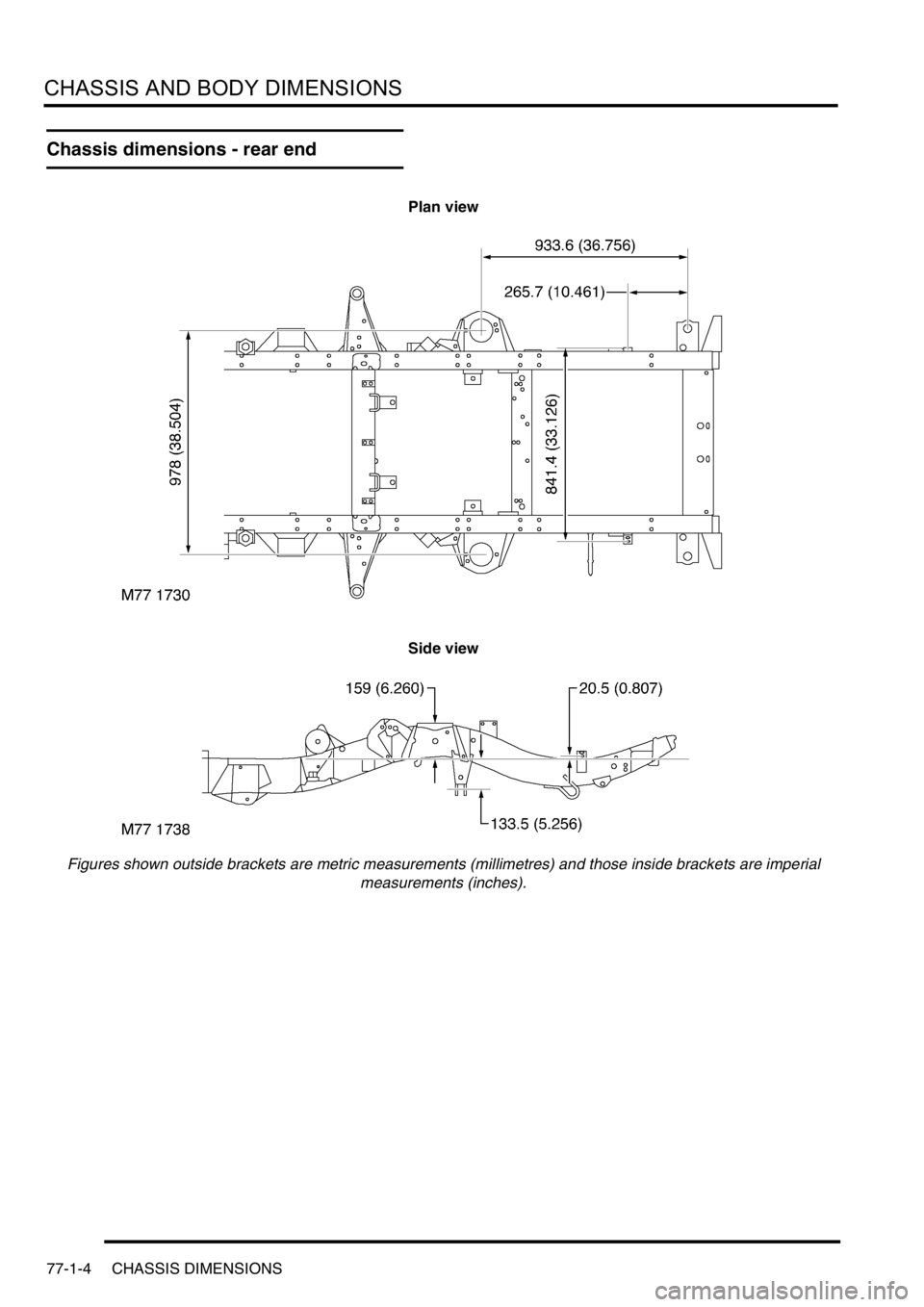

Chassis dimensions - rear end
Plan view
Side view
Figures shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
