TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±25
DTC P0218 Transmission Fluid Over Temperature
D07R200004
Circuit Description
The Transmission Fluid Temperature (TFT) sensor is a
thermister that controls the signal voltage to the PCM.
The PCM supplies a 5±volt reference to the sensor on
circuit RED/BLK. When the transmission fluid is cold, the
sensor resistance is high and the PCM will sense high
signal voltage. As the fluid temperature warms to a
normal transmission operating temperature of 100
C
(212
F), the sensor resistance becomes less and the
voltage decreases to 1.5 to 2.0 volts.
This DTC detects a high transmission temperature for a
long period of time. This is a type ªDº DTC.
Conditions For Setting The DTC

No TFT DTCs P0712 or P0713.

TFT is greater than 135
C (275
F).

All conditions met for 21 seconds.
Action Taken When The DTC Sets

Hot mode TCC Shift Pattern.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).

ATF Lamp ON. (TFT is greater than 145
C (293
F))

Disable E±side TCC OFF request.
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warm±up cycles without a failure
reported.
The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connections at
the PCM and transmission 7-way connector. Look
for possible bent, backed out, deformed or damaged
terminals. Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring. Inspect for a broken wire inside
the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Check harness routing for a potential short to ground
in circuit RED/BLK.

Scan tool TFT sensor temperature should rise
steadily to about 100
C (212
F), then stabilize.

Check for a ªskewedº (mis±scaled) sensor by
comparing the TFT sensor temperature to the
ambient temperature after a vehicle cold soak. A
ªskewedº sensor can cause delayed garage shifts or
TCC complaints.

Check for a possible torque converter stator problem.

Verify customer driving habits, trailer towing, etc.
Test Description
The numbers below refer to the step numbers on the
diagnostic chart.
3. This test checks for a ªskewedº sensor or shorted
circuit.
4. This test simulates a TFT DTC P0713.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±33
DTC P0711 Transmission Fluid Temperature (TFT) Sensor Performance
D07R200004
Circuit Description
The TFT sensor is a thermister that controls the signal
voltage to the PCM. The PCM supplies a 5 volt reference
signal to the sensor on circuit RED/BLK. When the
transmission fluid is cold, the sensor resistance is high
and the PCM detects high signal voltage. As the
transmission fluid temperature increases to normal
operating temperature of 100
C (212
F), the sensor
resistance becomes less and the voltage decreases to
1.5 to 2 volts.
When the PCM detects a TFT sensor that remains at the
startup value, or a sensor that has a change delta of
greater than 20
C (36
F) less than 1 second, DTC P0711
sets. DTC P0711 is a type D.
Conditions For Setting The DTC

No VSS DTCs P0722 or P0723.

No Transmission Component Slipping DTC P1870.

Engine is running.

TFT is between 20 A/D (Analog/Digital) counts and
248 A/D counts.

TFT is between ±40
C (±40
F) and +21
C (69.8
F)
at engine startup.

Engine coolant temperature is greater than 70
C
(150
F).

Engine coolant temperature has changed by greater
than 50
C (90
F) since engine startup.

Vehicle speed has been greater than 5 mph for
greater than 410 seconds since engine startup
(cumulative timer).

TCC slip speed has been greater than 120 rpm for
greater than 410 seconds since engine startup
(cumulative timer).

Battery voltage is between 10 and 16 volts.
All of the above is true and either of the following occurs:

If the sensor is stuck, the TFT has not changed for
greater than 2 counts (from startup temperature) for
greater than 410 seconds.
If the sensor shows an unrealistic change, the TFT
exhibits a change delta of greater than 20
C (36
F),
greater than 14 times in 7 seconds.
Action Taken When The DTC Sets

Transmission default temperature will be:
80
C (176
F) if engine temperature code is set.
100
C (212
F) if engine temperature is warm.
80
C (176
F) if engine run time is greater than 5
minutes.
21
C (69.8
F) if engine run time is less than 5
minutes.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connection at the
PCM. Inspect the wiring for poor electrical
connections at the transmission 7-way connector.
Look for the following conditions:
a. A bent terminal
b. A backed out terminal
c. A damaged terminal
d. Poor terminal tension
e. A chafed wire
f. A broken wire inside the insulation

7A1±36
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0712 Transmission Fluid Temperature (TFT) Sensor Circuit Low Input
D07R200004
Circuit Description
The TFT sensor is a thermister that controls the signal
voltage to the PCM. The PCM supplies a 5±volt reference
signal to the sensor on circuit RED/BLK. When the
transmission fluid is cold, the sensor resistance is high.
The PCM detects high signal voltage. As the
transmission fluid temperature increases to the normal
operating temperature of 100
C (212
F), the sensor
resistance becomes less and the voltage decreases to
1.5 to 2 volts. With transmission fluid over temperature
and DTC P0218 also set, check the transmission cooling
system.
This DTC detects a continuous short to ground in the TFT
signal circuit or the TFT sensor. This is a type ªDº DTC.
Conditions For Setting The DTC

Battery voltage is between 10 and 16 volts.

Ignition is ªonº.

TFT sensor indicating a voltage less than 0.4 volts.

All conditions met for 20 seconds.
Action Taken When The DTC Sets

Transmission default temperature will be:
80
C (176
F) if engine temperature code is set.
100
C (212
F) if engine temperature is warm.
80
C (176
F) if engine run time is greater than 5
minutes.
21
C (69.8
F) if engine run time is less than 5
minutes.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.
The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Check harness routing for a potential short to ground
in circuit RED/BLK. Scan tool TFT display should rise
steadily to about 100
C (212
F), then stabilize.

Inspect the wiring for poor electrical connection at the
PCM and transmission 7-way connector. Look for
possible bent, backed out, deformed or damaged
terminals. Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring. Inspect for a broken wire inside
the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

The temperature to resistance value scale may be
used to test the TFT sensor at the various
temperature levels to evaluate the possibility of a
ªskewedº (mis±scaled) sensor.
A ªskewedº sensor could result in delayed garage
shifts or TCC complaints.

Verify customer driving habits, trailer towing, etc.
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
3. This test checks for a short to ground or a ªskewedº
sensor.
4. This test checks for an internal fault within the
transmission by creating an open.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±39
DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input
D07R200004
Circuit Description
The TFT sensor is a thermistor that controls the signal
voltage to the PCM. The PCM supplies a 5±volt reference
signal to the sensor on circuit RED/BLK. When the
transmission fluid is cold, the sensor resistance is high
and the PCM will sense high signal voltage. As the
transmission fluid temperature warms to the normal
operating temperature of 100
C (212
F), the sensor
resistance becomes less and the voltage decreases to
about 1.5 to 2 volts.
This DTC detects a continuous open or short to power in
the TFT signal circuit or the TFT sensor. This is a type ªDº
DTC.
Conditions For Setting The DTC

Battery voltage is between 10 and 16 volts.

Ignition is ªonº.

TFT sensor indicating a voltage greater than 4.86
volts.

All conditions met for 20 seconds.
Action Taken When The DTC Sets

Transmission default temperature will be:
80
C (176
F) if engine temperature code is set.
100
C (212
F) if engine temperature is warm.
80
C (176
F) if engine run time is greater than 5
minutes.
21
C (69.8
F) if engine run time is less than 5
minutes.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.
The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connection at the
PCM and transmission 7-way connector. Look for
possible bent, backed out, deformed or damaged
terminals. Check for weak terminal tension as well.
Also check for a chafed wire that could short to bare
metal or other wiring. Inspect for a broken wire inside
the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Scan tool displays transmission fluid temperature in
degrees. After transmission is operating, the
temperature should rise steadily to about 100
C
(212
F), then stabilize.

The temperature to resistance value scale may be
used to check the TFT sensor at the various
temperature levels to evaluate the possibility of a
ªskewedº (mis±scaled) sensor.
A ªskewedº sensor could result in hard shifts or TCC
complaints.
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
3. This check verifies problem in the TFT sensor circuit.
4. This test simulates a TFT sensor DTC P0712. If the
PCM recognizes the low signal voltage (high
temperature), and the scan tool displays 146
C
(295
F) or greater, the PCM and wiring are OK.
5. This test checks the TFT sensor and internal wiring
harness.

7A1±42
TRANSMISSION CONTROL SYSTEM (4L30±E)

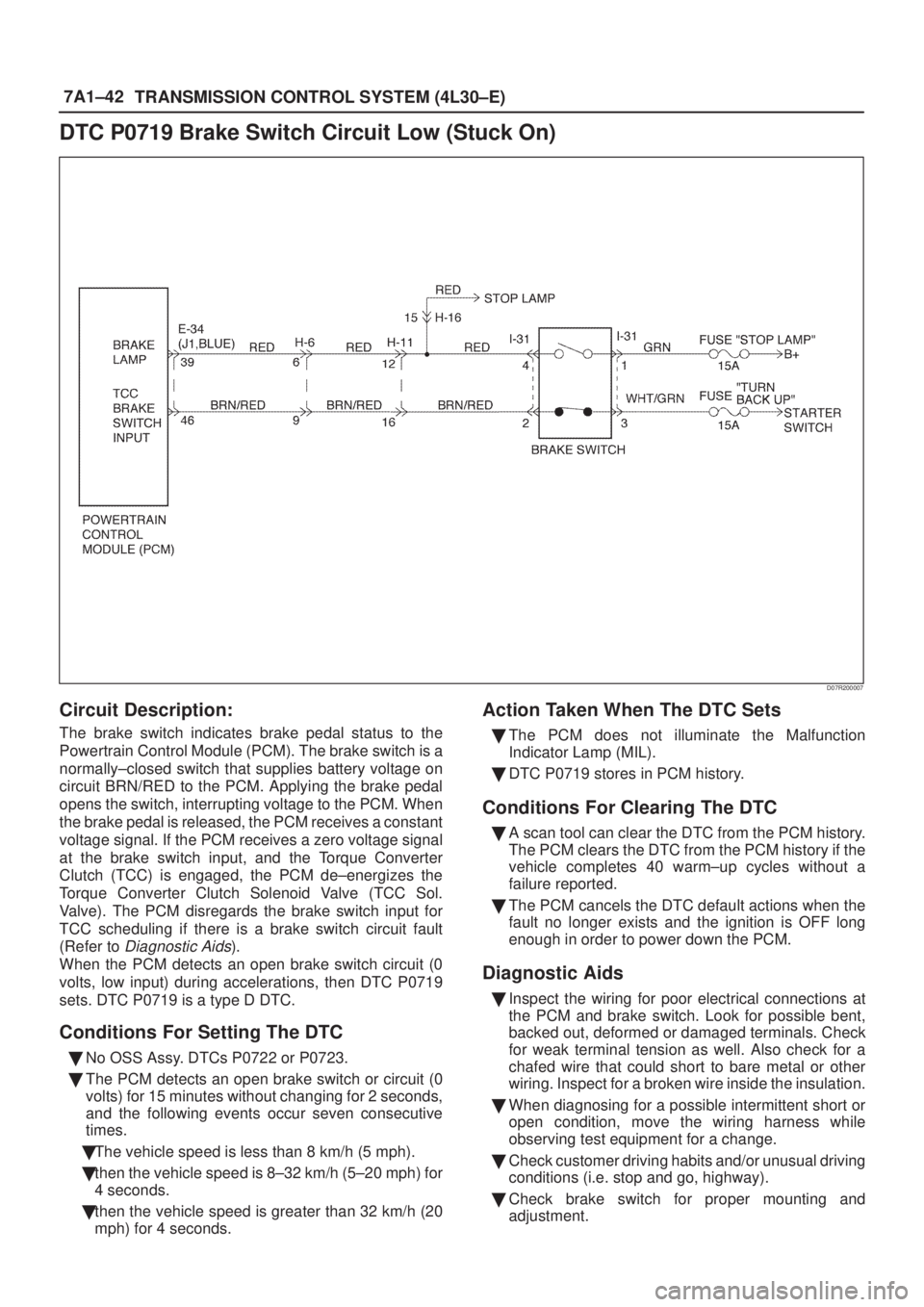

DTC P0719 Brake Switch Circuit Low (Stuck On)
D07R200007
Circuit Description:
The brake switch indicates brake pedal status to the
Powertrain Control Module (PCM). The brake switch is a
normally±closed switch that supplies battery voltage on
circuit BRN/RED to the PCM. Applying the brake pedal
opens the switch, interrupting voltage to the PCM. When
the brake pedal is released, the PCM receives a constant
voltage signal. If the PCM receives a zero voltage signal
at the brake switch input, and the Torque Converter
Clutch (TCC) is engaged, the PCM de±energizes the
Torque Converter Clutch Solenoid Valve (TCC Sol.
Valve). The PCM disregards the brake switch input for
TCC scheduling if there is a brake switch circuit fault
(Refer to
Diagnostic Aids).
When the PCM detects an open brake switch circuit (0
volts, low input) during accelerations, then DTC P0719
sets. DTC P0719 is a type D DTC.
Conditions For Setting The DTC

No OSS Assy. DTCs P0722 or P0723.

The PCM detects an open brake switch or circuit (0
volts) for 15 minutes without changing for 2 seconds,
and the following events occur seven consecutive
times.

The vehicle speed is less than 8 km/h (5 mph).

then the vehicle speed is 8±32 km/h (5±20 mph) for
4 seconds.

then the vehicle speed is greater than 32 km/h (20
mph) for 4 seconds.
Action Taken When The DTC Sets

The PCM does not illuminate the Malfunction
Indicator Lamp (MIL).

DTC P0719 stores in PCM history.
Conditions For Clearing The DTC

A scan tool can clear the DTC from the PCM history.
The PCM clears the DTC from the PCM history if the
vehicle completes 40 warm±up cycles without a
failure reported.

The PCM cancels the DTC default actions when the
fault no longer exists and the ignition is OFF long
enough in order to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connections at
the PCM and brake switch. Look for possible bent,
backed out, deformed or damaged terminals. Check
for weak terminal tension as well. Also check for a
chafed wire that could short to bare metal or other
wiring. Inspect for a broken wire inside the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Check customer driving habits and/or unusual driving
conditions (i.e. stop and go, highway).

Check brake switch for proper mounting and
adjustment.

7A1±48
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0723 Automatic Transmission Output Speed Sensor (OSS) Intermittent
D07R200006
Circuit Description
Output speed information is provided to the PCM by the
OSS, which is a permanent magnet (PM) generator. The
PM generator produces a pulsing AC voltage. The AC
voltage level and number of pulses increases as the
speed of the vehicle increases. The PCM then converts
the pulsing voltage to output speed, which is used for
calculations. The vehicle speed can be displayed with a
scan tool.
This DTC detects a fast decrease of output speed when
engine running in a drive gear range. This is a type ªBº
DTC.
Conditions For Setting The DTC
Drive range

Engine running time is greater than 5 seconds.

Output speed is greater than 1300 rpm for 2 second.

NORAW±NOLAST < 200 rpm for 2 seconds.

NORAW: Latest raw data of output shaft speed.

NOLAST: Fitered previous data of output speed.

Transmission negative output speed change is
greater than 1300 rpm.

Conditions met for 3 seconds.
Action During Detection Time

Output speed value is frozen
Action Taken When The DTC Sets

Fixed to 4th gear.

Maximum line pressure.

Inhibit TCC engagement.

For lamp illuminate refer to
DTC type definition (type
B).
Conditions For Clearing The MIL/DTC

The PCM will turn off the MIL and CHECK TRANS
Lamp after three consecutive ignition cycles without a
failure reported.

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

A OSS DTC P0723 will set when output speed has
been detected and is lost.

Inspect the wiring for poor electrical connection at the
PCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.
Test Description
The numbers below refer to the step numbers on the
diagnostic chart:
4. This test checks the OSS circuit.
5. This test checks the integrity of the OSS.
7. This test checks the 5±volt and ground circuit of the
PCM.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±51
DTC P0724 Brake Switch Circuit High (Stuck Off)
D07R200007
Circuit Description:
The brake switch indicates brake pedal status to the
Powertrain Control Module (PCM). The brake switch is a
normally±closed switch that supplies battery voltage on
circuit BRN/RED to the PCM. Applying the brake pedal
opens the switch, interrupting voltage to the PCM. When
the brake pedal is released, the PCM receives a constant
voltage signal. If the PCM receives a zero voltage signal
at the brake switch input, and the Torque Converter
Clutch (TCC) is engaged, the PCM de±energizes the
Torque Converter Clutch Solenoid Valve (TCC Sol.
Valve). The PCM disregards the brake switch input for
TCC scheduling if there is a brake switch circuit fault
(Refer to
Diagnostic Aids).
When the PCM detects a closed brake switch circuit (12
volts, high input) during decelerations, then DTC P0724
sets. DTC P0724 is a type D DTC.
Conditions For Setting The DTC

No OSS Assy. DTCs P0722 or P0723.

The PCM detects a closed brake switch circuit (12
volts) without changing and the following events
occur seven consecutive times.

The vehicle speed is greater than 32 km/h (20 mph)
for 4 seconds.

then the vehicle speed is between 8±32 km/h (5±20
mph) for 4 seconds.

then the vehicle speed is less than 8 km/h (5 mph).
Action Taken When The DTC Sets

The PCM does not illuminate the Malfunction
Indicator Lamp (MIL).

DTC P0724 stores in PCM history.
Conditions For Clearing The DTC

A scan tool can clear the DTC from the PCM history.
The PCM clears the DTC from the PCM history if the
vehicle completes 40 warm±up cycles without a
failure reported.

The PCM cancels the DTC default actions when the
fault no longer exists and the ignition is OFF long
enough in order to power down the PCM.
Diagnostic Aids

Inspect the wiring for poor electrical connection at the
PCM. Look for possible bent, backed out, deformed
or damaged terminals. Check for weak terminal
tension as well. Also check for a chafed wire that
could short to bare metal or other wiring. Inspect for a
broken wire inside the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Check customer driving habits and/or unusual traffic
conditions (i.e. stop and go, expressway).

Check brake switch for proper mounting and
adjustment.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±75
DTC P1850 Brake Band Apply Solenoid Malfunction
D07R200010
Circuit Description

The brake band apply solenoid is a normally open
solenoid which controls the flow of fluid for brake band
application. The Powertrain Control Module (PCM)
uses Pulse Width Modulation (PWM) and changes
the duty cycle to control the solenoid. The PCM turns
the solenoid on (energized) and off (deenergized) at a
constant frequency. The length of time the solenoid is
energized during each on/off cycle is called the pulse
width. By varying or ªmodulatingº the pulse width, the
solenoid output pressure is changed. Since the
solenoid is normally open, increasing the pulse width
increases the duty cycle and decreases the output
pressure. PWM control provides smooth band
application without an accumulator. The band is only
applied in first and second gears.

In the event of an electrical failure (open), the
solenoid regulates at the maximum oil flow (0% duty
cycle).

The solenoid is activated by a current. This current is
produced by applying a voltage to one side (the High
side) and a ground to the other side (Low side).

The High Side Driver (HSD) is a circuit of the PCM
that acts as a switch between the solenoids and the
supply voltage. The High side of the solenoid is
permanently supplied with voltage. When the ignition
is off, the HSD is turned off.This DTC detects a continuous open or short to ground in
the brake band apply solenoid circuit or the brake band
apply solenoid. This is a type ªDº DTC.
Conditions For Setting The DTC

Battery voltage is between 10 and 16 volts.

Ignition is ªonº, Engine ªrunº.

The PCM commands the solenoid ªonº and the
voltage remains high (B+), or the PCM commands
the solenoid ªoffº and the voltage remains low (zero
volts).

All conditions met in 1.34 ~ 1.56 seconds.
Action Taken When The DTC Sets

Inhibit brake band apply solenoid.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
