TRANSMISSION CONTROL SYSTEM (4L30±E)

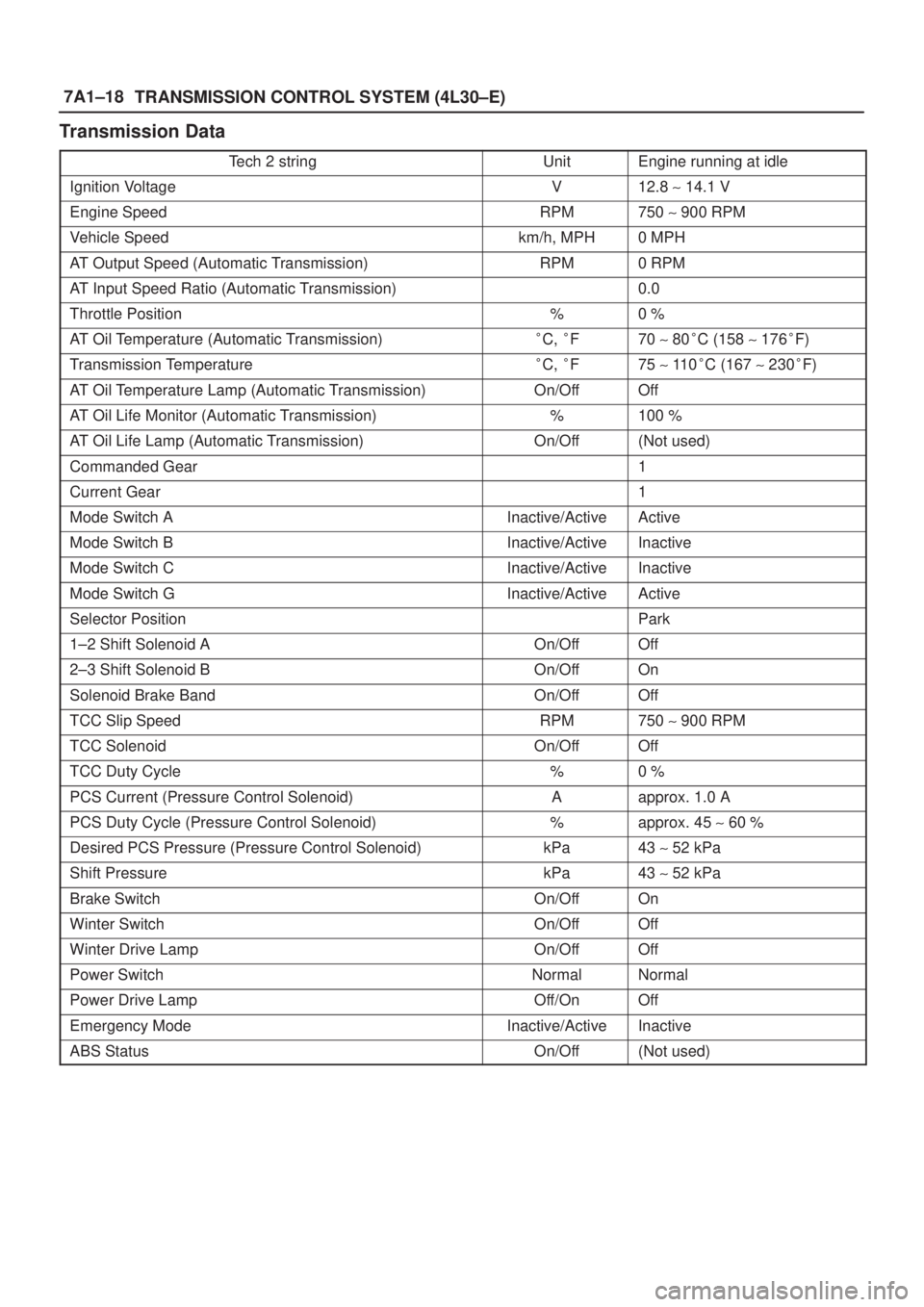

Transmission Data
Tech 2 stringUnitEngine running at idle
Ignition VoltageV12.8 ~ 14.1 V
Engine SpeedRPM750 ~ 900 RPM
Vehicle Speedkm/h, MPH0 MPH
AT Output Speed (Automatic Transmission)RPM0 RPM
AT Input Speed Ratio (Automatic Transmission)0.0
Throttle Position%0 %
AT Oil Temperature (Automatic Transmission)
C,
F70 ~ 80
C (158 ~ 176
F)
Transmission Temperature
C,
F75 ~ 11 0
C (167 ~ 230
F)
AT Oil Temperature Lamp (Automatic Transmission)On/OffOff
AT Oil Life Monitor (Automatic Transmission)%100 %
AT Oil Life Lamp (Automatic Transmission)On/Off(Not used)
Commanded Gear1
Current Gear1
Mode Switch AInactive/ActiveActive
Mode Switch BInactive/ActiveInactive
Mode Switch CInactive/ActiveInactive
Mode Switch GInactive/ActiveActive
Selector PositionPark
1±2 Shift Solenoid AOn/OffOff
2±3 Shift Solenoid BOn/OffOn
Solenoid Brake BandOn/OffOff
TCC Slip SpeedRPM750 ~ 900 RPM
TCC SolenoidOn/OffOff
TCC Duty Cycle%0 %
PCS Current (Pressure Control Solenoid)Aapprox. 1.0 A
PCS Duty Cycle (Pressure Control Solenoid)%approx. 45 ~ 60 %
Desired PCS Pressure (Pressure Control Solenoid)kPa43 ~ 52 kPa
Shift PressurekPa43 ~ 52 kPa
Brake SwitchOn/OffOn
Winter SwitchOn/OffOff
Winter Drive LampOn/OffOff
Power SwitchNormalNormal
Power Drive LampOff/OnOff
Emergency ModeInactive/ActiveInactive
ABS StatusOn/Off(Not used)

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±19

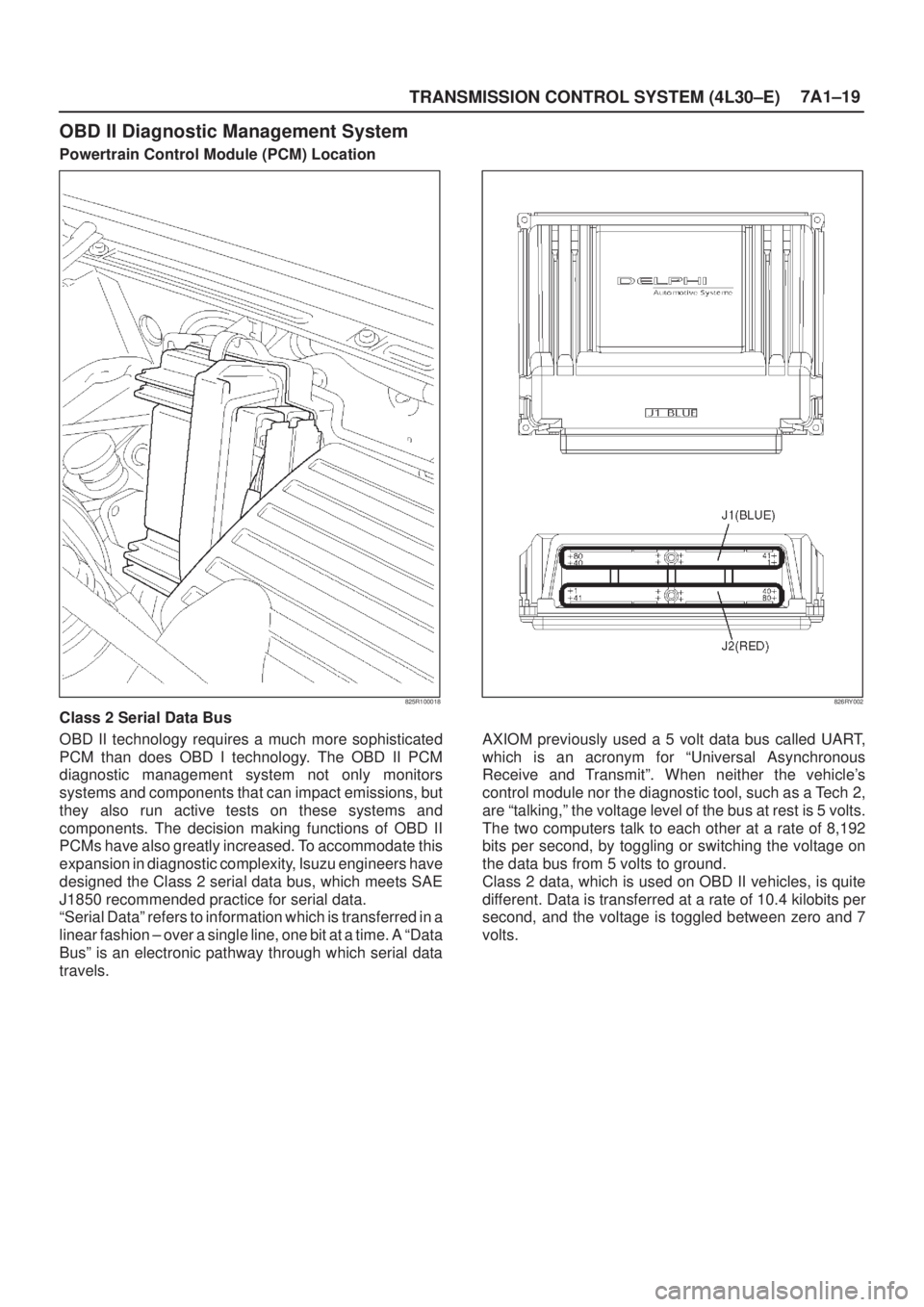

OBD II Diagnostic Management System
Powertrain Control Module (PCM) Location
825R100018826RY002
Class 2 Serial Data Bus
OBD II technology requires a much more sophisticated
PCM than does OBD I technology. The OBD II PCM
diagnostic management system not only monitors
systems and components that can impact emissions, but
they also run active tests on these systems and
components. The decision making functions of OBD II
PCMs have also greatly increased. To accommodate this
expansion in diagnostic complexity, Isuzu engineers have
designed the Class 2 serial data bus, which meets SAE
J1850 recommended practice for serial data.
ªSerial Dataº refers to information which is transferred in a
linear fashion ± over a single line, one bit at a time. A ªData
Busº is an electronic pathway through which serial data
travels.AXIOM previously used a 5 volt data bus called UART,
which is an acronym for ªUniversal Asynchronous
Receive and Transmitº. When neither the vehicle's
control module nor the diagnostic tool, such as a Tech 2,
are ªtalking,º the voltage level of the bus at rest is 5 volts.
The two computers talk to each other at a rate of 8,192
bits per second, by toggling or switching the voltage on
the data bus from 5 volts to ground.
Class 2 data, which is used on OBD II vehicles, is quite
different. Data is transferred at a rate of 10.4 kilobits per
second, and the voltage is toggled between zero and 7
volts.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±21
810RT022
PIN 1 ± DIAG. SW
PIN 2 ± J1850 Bus + L line on 2±wire systems, or
single wire (Class 2)
PIN 3 ± Active suspension diagnostic enable
PIN 4 ± Chassis ground pin
PIN 5 ± Signal ground pin
PIN 6 ± (Not used)
PIN 7 ± TOD diagnostic enable
PIN 8 ± TOD diagnostic enable
PIN 9 ± Primary UART
PIN 10 ± (Not used)
PIN 11 ± (Not used)
PIN 12 ± ABS diagnostic or CCM diagnostic enable
PIN 13 ± SIR diagnostic enable
PIN 14 ± (Not used)
PIN 15 ± (Not used)
PIN 16 ± Battery power from vehicle unswitched (4
AMP MAX.)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) looks the same as
the MIL you are already familiar with (ªCHECK ENGINEº
lamp). However, OBD II requires for it illuminate under a
strict set of guidelines. Basically, the MIL is turned on
when the PCM detects a DTC that will impact the vehicle's
emissions.
The MIL is under the control of the Diagnostic Executive.
The MIL will be turned on if a component or system which
has an impact on vehicle emissions indicates a
malfunction or fails to pass an emissions±related
diagnostic test. It will stay on until the system or
component passes the same test, for three consecutive
trips, with no emissions±related faults.
DTC Types
Each DTC is directly related to a diagnostic test. The
Diagnostic Management System sets DTC based on the
failure of the tests during a trip or trips. Certain tests must
fail two (2) consecutive trips before the DTC is set. The
following are the four (4) types of DTCs and the
characteristics of those codes:

Type A

Emissions related

Requests illumination of the MIL of the first trip with a
fail

Stores a History DTC on the first trip with a fail

Stores a Freeze Frame (if empty) (DTC Information
for 6VE1 engine)

Stores a Fail Record

Updates the Fail Record each time the diagnostic
test fails

Type B

Emissions related

ªArmedº after one (1) trip with a fail

ªDisarmedº after one (1) trip with a pass

Requests illumination of the MIL on the
second
consecutive trip
with a fail

Stores a History DTC on the second consecutive trip
with a fail (The DTC will be armed after the first fail)

Stores a Freeze Frame on the second consecutive
trip with a fail (if empty) (DTC Information for 6VE1
engine)

Stores a Fail Record when the first test fails (not
dependent on
consecutive trip fails)

Updates the Fail Record each time the diagnostic
test fails
(Some special conditions apply to misfire and fuel trim
DTCs)

Type C (if the vehicle is so equipped)

Non-Emissions related

Requests illumination of the Service Lamp or the
service message on the Drive Information Center
(DIC) on the
first trip with a fail

Stores a History DTC on the
first trip with a fail


Does not store a Freeze Frame

Stores Fail Record when test fails

Updates the Fail Record each time the diagnostic
test fails

Type D

Non-Emissions related

Not request illumination of any lamp

Stores a History DTC on the
first trip with a fail


Does not store a Freeze Frame

Stores Fail Record when test fails

Updates the Fail Record each time the diagnostic
test fails

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±23
Intermittent Conditions
If the Tech 2 displays a diagnostic trouble code as
intermittent, or if after a test drive a DTC does not
reappear though the detection conditions for this DTC are
present, the problem is most likely a faulty electrical
connection or loose wiring. Terminals and grounds should
always be the prime suspect. Intermittents rarely occur
inside sophisticated electronic components such as the
PCM.
Use the DTC information to understand which wires and
sensors are involved.
When an intermittent problem is encountered, check
suspect circuits for:
1. Poor terminal to wire connection.
2. Terminals not fully seated in the connector body
(backed out).
3. Improperly formed or damaged terminals.
4. Loose, dirty, or corroded ground connections:
HINT: Any time you have an intermittent in more than
one circuit, check whether the circuits share a
common ground connection.5. Pinched or damaged wires.
6. Electro±Magnetic Interference (EMI):
HINT: Check that all wires are properly routed away
from coil, and generator. Also check for improperly
installed electrical options, such as lights, 2±way
radios, etc.
Use the F2: SNAPSHOT mode of the Tech 2 to help
isolate the cause of an intermittent fault. The snapshot
mode will record information before and after the problem
occurs. Set the snapshot to ªtriggerº on the suspect DTC.
If you notice the reported symptom during the test drive,
trigger the snapshot manually.
After the snapshot has been triggered, command the
Tech 2 to play back the flow of data recorded from each of
the various sensors. Signs of an intermittent fault in a
sensor circuit are sudden unexplainable jump in data
values out of the normal range.
Transmission And PCM Identification
The chart below contains a list of all important information
concerning rear axle ratio, Powertrain Control Module
(PCM), and transmission identification.
VEHICLE
Rr axlePCMTRANSMISSION
TypeEngine
Rr axle
RatioISUZU Parts No.Calibration
CodeIsuzu Part No.Model Code
Isuzu /35LV64 3008±97287±830±0G268±96023±779±0YB (4y4)
Axiom3.5L V64.3008±09389±969±0G268±96024±169±0YE (4y2)
240R200001

7A1±24
TRANSMISSION CONTROL SYSTEM (4L30±E)
Diagnostic Trouble Code (DTC)
Identification
DTC
NUMBERDTC NAMEDTC TYPEMIL ªCHECK
ENGINEºªCHECK
TRANSº
P0218Transmission Fluid Over TemperatureD
P0705Transmission Range Switch (Mode Switch) Illegal
PositionD
P0706Transmission Range Switch (Mode Switch)
PerformanceD
P0711Transmission Fluid Temperature (TFT) Sensor
PerformanceD
P0712Transmission Fluid Temperature (TFT) Sensor
Circuit Low InputD
P0713Transmission Fluid Temperature (TFT) Sensor
Circuit High InputD
P0719Brake Switch Circuit Low (Stuck On)D
P0722Automatic Transmission Output Speed Sensor
(OSS) Low InputBONFlash
P0723Automatic Transmission Output Speed Sensor
(OSS) IntermittentBONFlash
P0724Brake Switch Circuit High (Stuck Off)D
P0730Gear Error Without Input SpeedCFlash
P0742Torque Converter Clutch (TCC) System Stuck OnBONFlash
P0748Pressure Control Solenoid (PCS) (Force Motor)
Circuit ElectricalCFlash
P0751Shift Solenoid A Performance (Stuck Off)BONFlash
P0752Shift Solenoid A Performance (Stuck On)BONFlash
P0753Shift Solenoid A ElectricalBONFlash
P0756Shift Solenoid B Performance (Stuck Off)BONFlash
P0757Shift Solenoid B Performance (Stuck On)BONFlash
P0758Shift Solenoid B ElectricalBONFlash
P1850Brake Band Apply Solenoid MalfunctionD
P1860TCC Solenoid ElectricalBONFlash
P1870Transmission Component Slipping (TCC Stuck
Off)BONFlash
DTC TYPEDEFINITION
BEmission related, turn on MIL (Check Engine) and flashing Check Trans after 2 consecutive trips
(Removal to confirmed)
CNon±emission related, flashing Check Trans on 1st failure
DNon±emission related, no lamps

7A1±26
TRANSMISSION CONTROL SYSTEM (4L30±E)
DTC P0218 Transmission Fluid Over Temperature
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
2Perform the following checks:

Check for possible engine system problems.

Transmission fluid checking procedure. Refer to
Checking
Transmission Fluid Level and Condition in Automatic
Transmission (4L30±E) Section.
Were the checks performed?Go to Step 3Ð
31. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFailure
Recordsº for reference, as data will be lost when ªClear Infoº
function is used.
3. Record the DTC ªFailure Recordsº.
Is the TFT sensor signal voltage less than 1.54 volts?
Go to Step 4
Go to Diagnostic
Aids
41. Turn the ignition ªoffº.
2. Disconnect the transmission 7±way connector E±42
(additional DTCs may set).
3. With the engine ªoffº, turn the ignition switch ªonº.
Is the TFT sensor signal voltage greater than 4.92 volts?
Go to Internal
Wiring Harness
Check
Go to Step 5
5Inspect/repair circuit RED/BLK for a short to ground.
Was a problem found?
Go to Step 7Go to Step 6
61. Inspect the PCM for poor connections.
2. Replace the PCM if no poor connections were found.
Is the replacement complete?
Go to Step 7Ð
71. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and ensure the following conditions
are met:
TFT is less than 125
C (257
F) for at least 10 seconds.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±27
DTC P0705 Transmission Range Switch (Mode Switch) Illegal Position
D07R200005
Circuit Description

The range switch supplies the Powertrain Control
Module (PCM) with information regarding the selector
lever position: P, R, N, D, 3, 2 or L. The selector lever
position is indicated by the state of four ON/OFF
contacts. The range switch is located on one side of
the transmission. It is on the transmission manual
shaft and is fixed to the main case.

The range switch is also used to provide the
information P or N to the engine crank wiring. The
engine can be cranked only if connector E±41
terminal 4(H) is connected to terminal 1(E) which is
connected to ground.

The range switch is also used to provide the backup
lamp power in reverse. This is the reason why the
range switch is supplied through a 15A fuse (TURN,
BACK UP). This fuse can burn due to a short circuit in
the back up lamp.
This DTC detects when a fuse is open or the range switch
circuit does not work. This is a type ªDº DTC.
Conditions For Setting The DTC

Range switch illegal positions met for 5 seconds.
Action Taken When The DTC Sets

Default to D position.

Inhibit torque management.

Maximum line pressure.
Turn Force Motor OFF.

The PCM will not illuminate the Malfunction Indicator
Lamp (MIL).
Conditions For Clearing The DTC

The DTC can be cleared from the PCM history by
using a scan tool.

The DTC will be cleared from history when the vehicle
has achieved 40 warmup cycles without a failure
reported.

The PCM will cancel the DTC default actions when
the fault no longer exists and the ignition is cycled ªoffº
long enough to power down the PCM.
Diagnostic Aids

Refer to accompanying chart for the normal range
signals and the illegal combinations.

Inspect the wiring for poor electrical connections at
the PCM and at the transmission 8±way connector.
Look for possible bent, backed out, deformed or
damaged terminals. Check for weak terminal tension
as well. Also check for a chafed wire that could short
to bare metal or other wiring. Inspect for a broken wire
inside the insulation.

When diagnosing for a possible intermittent short or
open condition, move the wiring harness while
observing test equipment for a change.

Refer to the
ªRange Switch Logic Tableº for further
information.

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±29
DTC P0705 Transmission Range Switch (Mode Switch) Illegal Position
StepActionYe sNo
1Were you sent here from the ªPowertrain On±Board Diagnostic
(OBD) System Checkº?
Go to Step 2
Go to OBD
System Check
Refer to
Driveability and
Emissions in
Engine section
2Perform the following checks:

The transmission linkage from the select lever to the manual
valve is adjusted properly.

Diagnostic circuit check.
Were the checks performed?
Go to Step 3Ð
31. Install the scan tool.
2. With the engine ªoffº, turn the ignition switch ªonº.
NOTE: Before clearing DTC(s), use the scan tool to record ªFreeze
Frameº and ªFailure Recordsº for reference, as data will be lost
when the ªClear Infoº function is used.
3. Record the DTC ªFreeze Frameº and ªFailure Recordsº.
4. Select each transmission range: DL, D2, D3, D4, N, R, and P.
Does each selected transmission range match the scan tool
ªRange Switchº display?
Go to Diagnostic
Aids
Go to Step 4
4Are all range switch pin displays incorrect?Go to Step 5Go to Step 6
5Check fuse and wiring to the 8±way connector terminal 5(D) for
opens.
Refer to
Mode Switch in Automatic Transmission (4L30±E)
section.
If no problem was found, replace the range switch.
Is the replacement complete?
Go to Step 9Ð
61. Disconnect the 8±way range switch connector.
2. Using ohmmeter, check continuity between terminal 5(D) and
respectively terminals 3(G), 6(C), 7(B) and 8(A) of the 8±way
range switch connector.
3. Move shift selector lever through all positions and compare
results with ªRange Switch Logic Tableº.
Is one range switch pin display incorrect?
Go to Step 7Go to Step 8
7Check the affected wiring and connector, and repair.
Is the repair complete?
Go to Step 9Ð
8Check the Powertrain Control Module (PCM) connectors for poor
connection.
If no problem was found, replace the PCM.
Is the replacement complete?
Go to Step 9Ð
91. After the repair is complete, use the scan tool to select ªDTCº,
then ªClear Infoº function and road test the vehicle.
2. Review the scan tool ªDTC Infoº.
Has the last test failed or is the current DTC displayed?
Begin diagnosis
again
Go to
Step 1
Repair verified
Exit DTC table
