Page 1177 of 2399

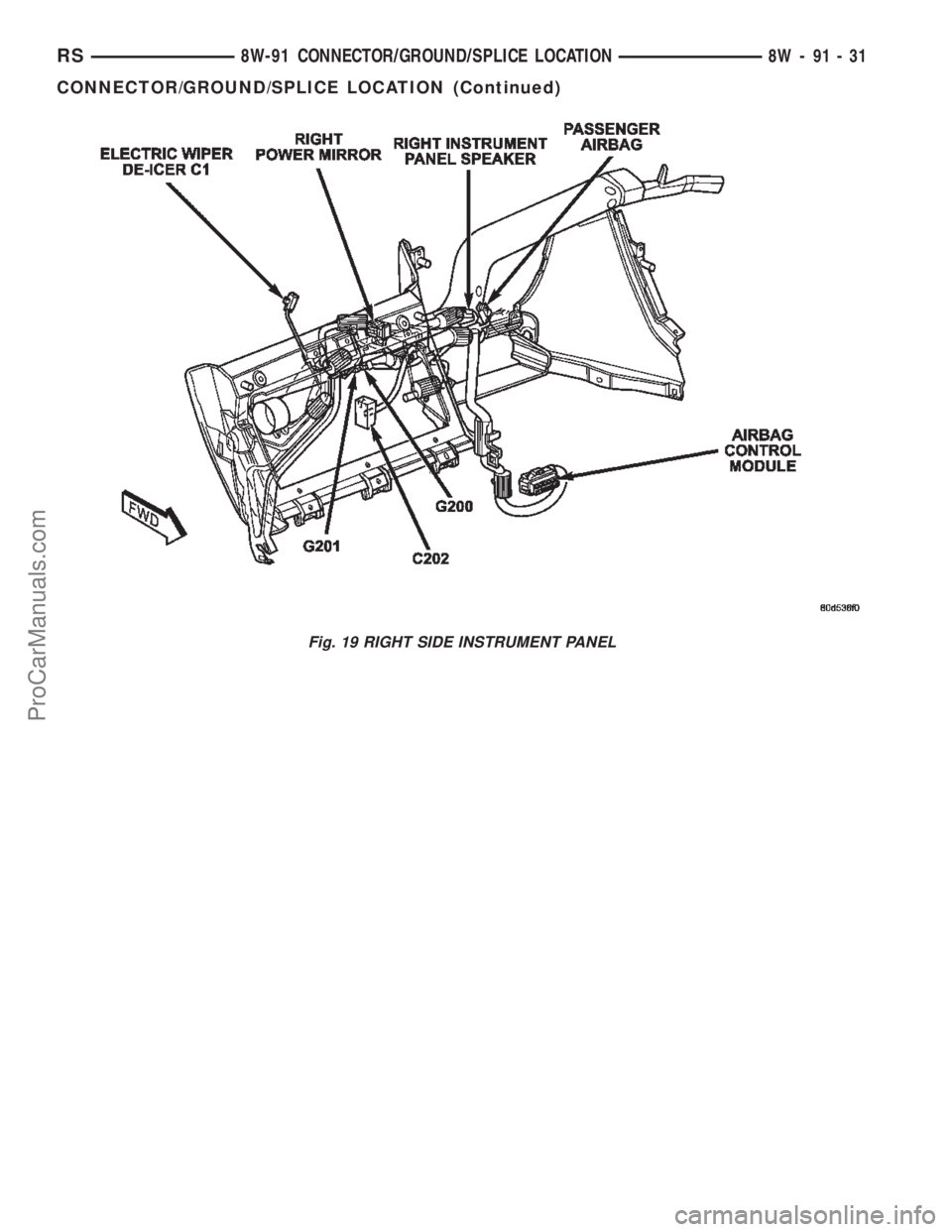

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 18 CENTER INSTRUMENT PANEL 8W - 91 - 30 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1178 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 19 RIGHT SIDE INSTRUMENT PANEL RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-31 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1179 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 20 CENTER INSTRUMENT PANEL RHD 8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1180 of 2399

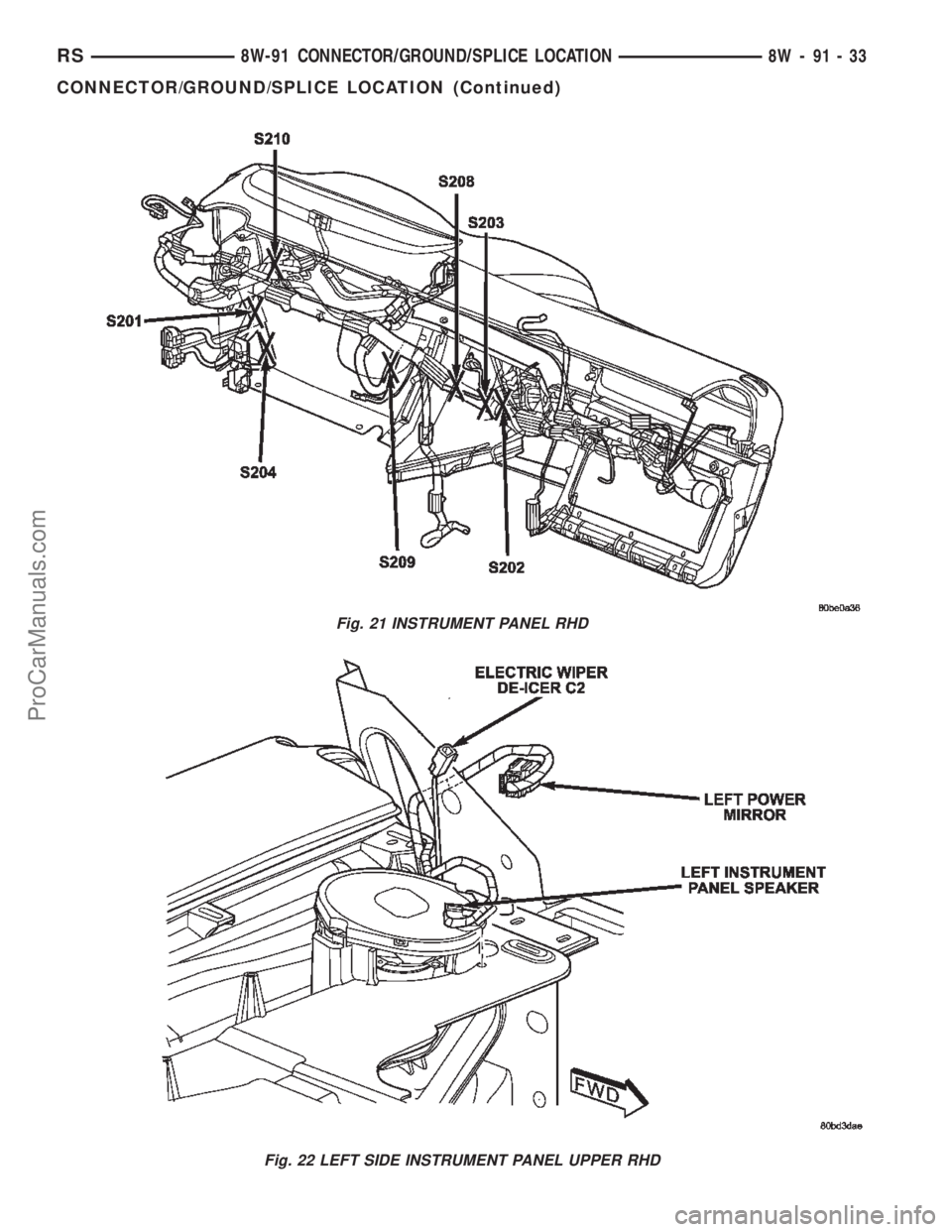

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 21 INSTRUMENT PANEL RHD Fig. 22 LEFT SIDE INSTRUMENT PANEL UPPER RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-33 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1181 of 2399

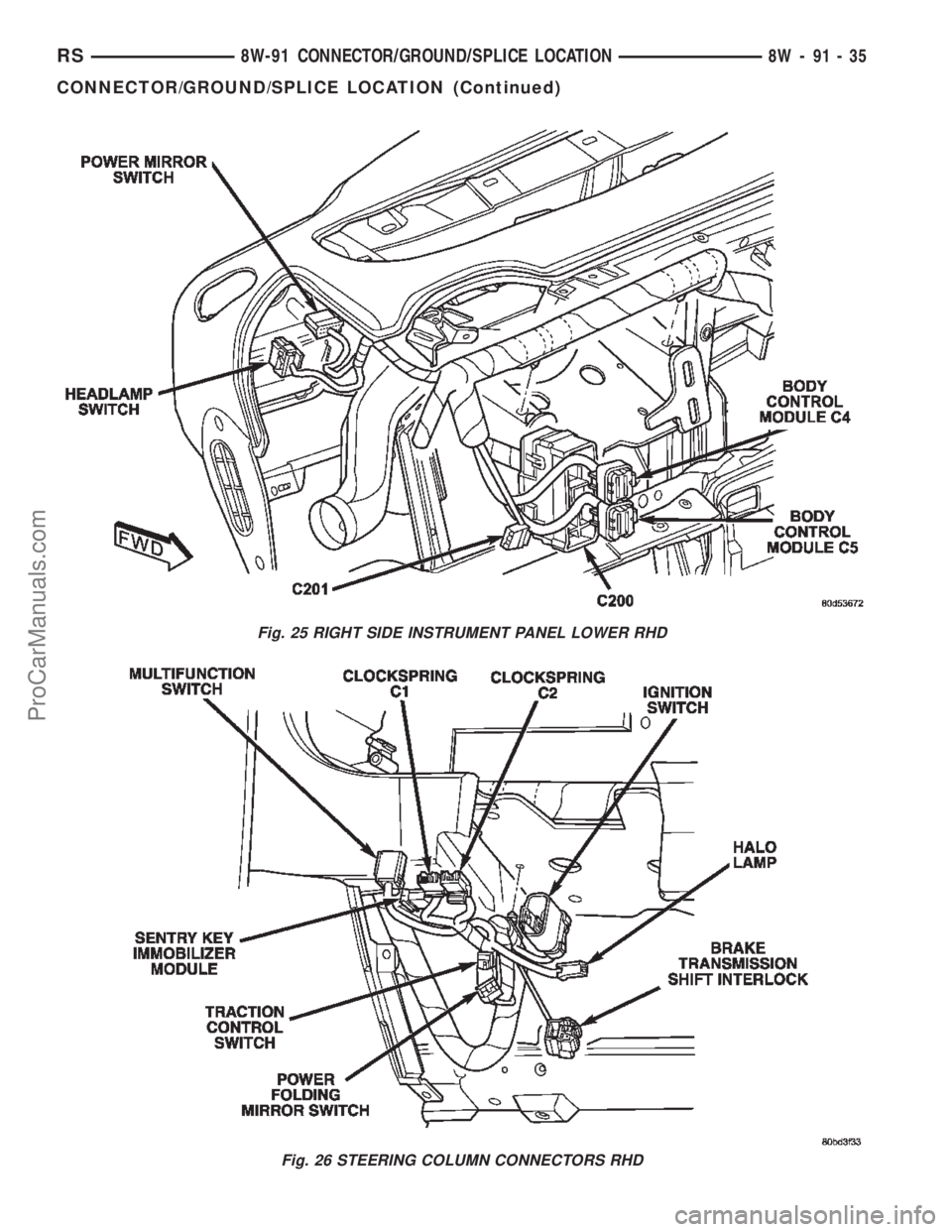

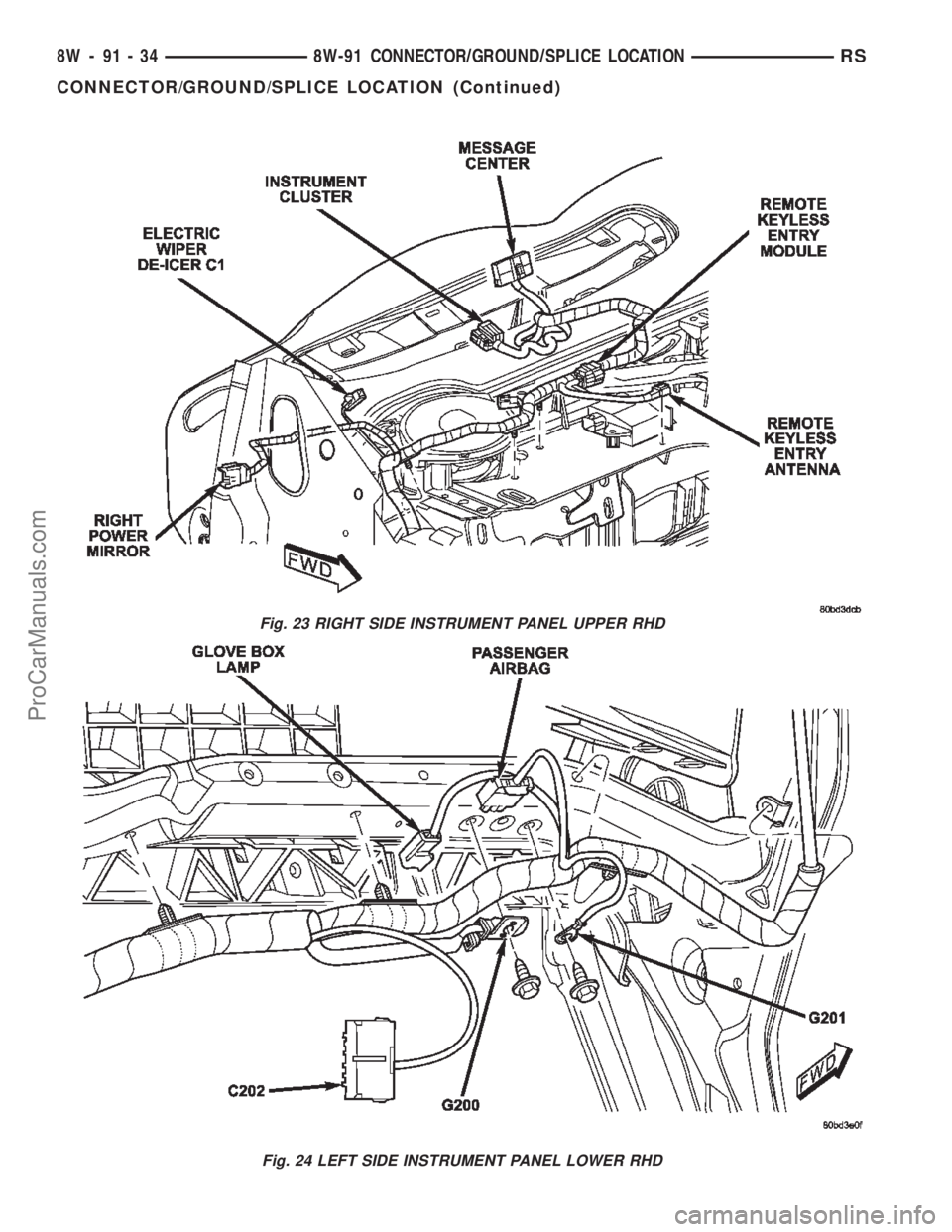

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 23 RIGHT SIDE INSTRUMENT PANEL UPPER RHD Fig. 24 LEFT SIDE INSTRUMENT PANEL LOWER RHD 8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManu

Page 1182 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 25 RIGHT SIDE INSTRUMENT PANEL LOWER RHD Fig. 26 STEERING COLUMN CONNECTORS RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-35 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1183 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 27 LEFT SIDE BODY LHD 8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1184 of 2399

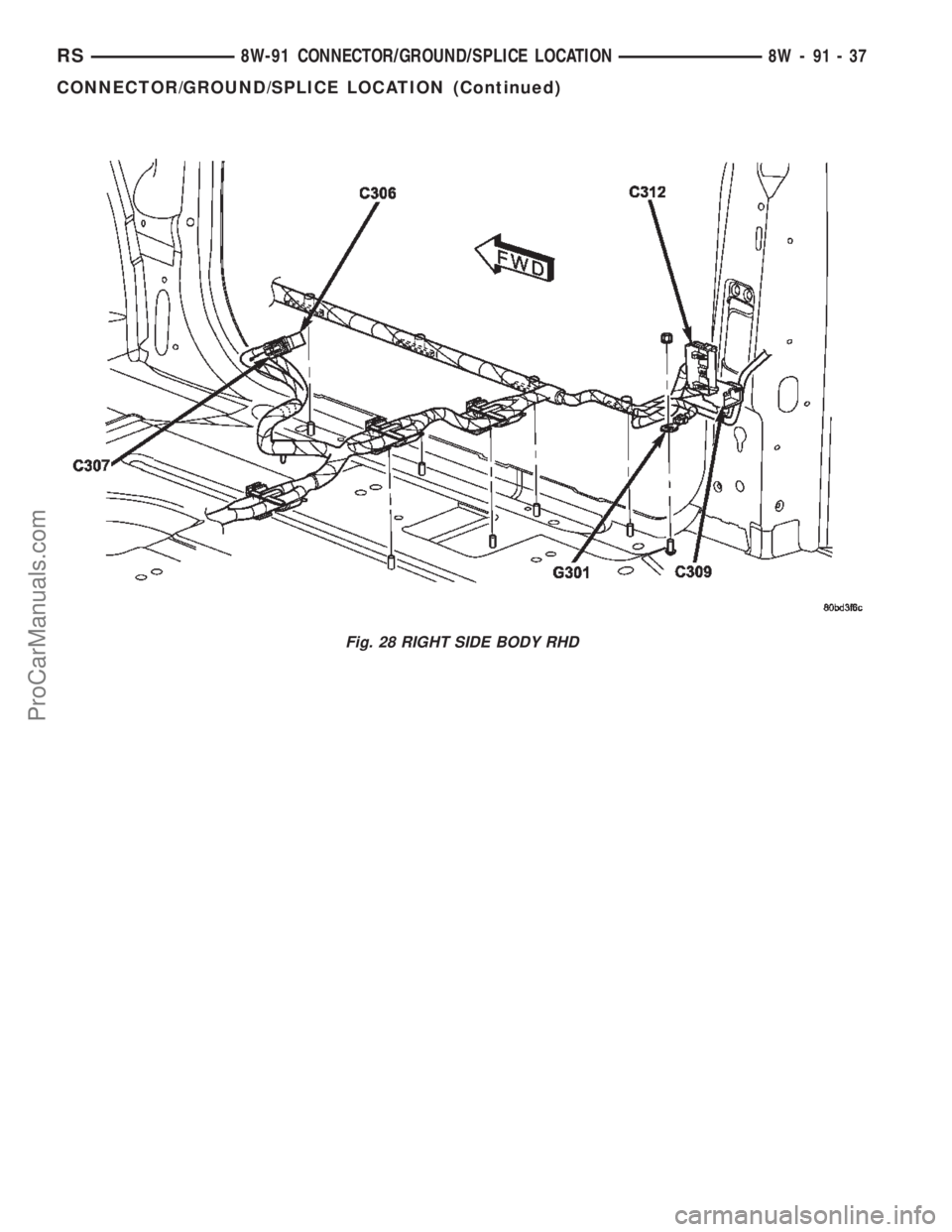

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 28 RIGHT SIDE BODY RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-37 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com
