2002 CHEVROLET TRACKER Owners Manual

4-44
Recreational Vehicle Towing
Recreational vehicle towing means towing your vehicle
behind another vehicle
-- such as behind a motorhome.
The two most common types of recreational vehicle towing
are known as ªdinghy towingº (towing your vehicle
with all four wheels on the ground) and ªdolly towingº
(towing your vehicle with two wheels on the ground and
two wheels up on a device known as a ªdollyº).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See ªDinghy
Towingº and ªDolly Towing,º following.
Here are some important things to consider before you
do recreational vehicle towing:

What's the towing capacity of the towing vehicle?
Be sure you read the tow vehicle manufacturer's
recommendations.

How far will you tow? Some vehicles have
restrictions on how far and how long they can tow.

Do you have the proper towing equipment? See your
dealer or trailering professional for additional advice
and equipment recommendations.

Is your vehicle ready to be towed? Just as you would
prepare your vehicle for a long trip, you'll want to
make sure your vehicle is prepared to be towed.
See ªBefore Leaving on a Long Tripº in the Index.
Dinghy Towing Four-Wheel-Drive Only
To tow your vehicle from the front (four-wheel-drive only),
do the following:
NOTICE:
If your vehicle is a two-wheel drive model,
do not tow it on all four wheels. If you do, your
transmission could be damaged and the damage
would not be covered by your warranty.

4-45
Follow these steps:
1. Set the parking brake.
2. Shift your automatic transmission into PARK (P),
or your manual transmission to SECOND (2).
3. With the ignition key in the ON position, move the
transfer case to NEUTRAL and make sure the
4WD light on the instrument panel cluster is off.
See ªFour
-Wheel Driveº in the Index.
4. Turn the ignition key to ACC to unlock the
steering wheel.
5. Release the parking brake.
NOTICE:
If you tow your four-wheel-drive vehicle from
the front, make sure to move the transfer case
into NEUTRAL or your vehicle could be badly
damaged and the damage would not be covered
by your warranty.
Stop towing every 200 miles (300 km) and start the
engine. Leave the transfer case shift lever in NEUTRAL.
Shift your automatic transmission to DRIVE (D); leave
a manual transmission in SECOND (2) with the clutch
engaged. Run the engine at medium speed for one minute
to circulate oil in the transfer case. Turn the ignition key
to ACC. Now, you can continue towing your vehicle.
NOTICE:
The front wheels transmit shocks during towing.
The steering column may not be strong enough to
withstand the shocks. Always unlock the steering
wheel before towing.
NOTICE:
Make sure that the towing speed does not
exceed 55 mph (90 km/h), or your vehicle could
be badly damaged.

4-46
CAUTION:
Shifting a four-wheel-drive vehicle's transfer
case into NEUTRAL can cause your vehicle to
roll even if the transmission is in Park (P), for an
automatic transmission, or if your vehicle is in
gear, for a manual transmission. You or others
could be injured. Make sure the parking brake
is firmly set before you shift the transfer case
to NEUTRAL.
Dolly Towing
To tow your vehicle from the rear, do the following:

4-47
The best way to tow your vehicle is from the rear.
Follow these steps:
1. Put the rear wheels on a dolly.
NOTICE:
Do not tow your vehicle with the rear wheels
in contact with the ground, or the transmission
could be damaged.
2. If your vehicle is a four-wheel-drive vehicle,
turn the ignition key to ON, move the transfer
case lever into NEUTRAL and make sure the 4WD
light on the instrument panel cluster is turned off.
See ªFour
-Wheel Driveº in the Index.
3. Turn the ignition key to ACC to unlock the
steering wheel.
4. Make sure the front wheels are facing straight
forward and secure the steering wheel with a
steering wheel clamping device designed for towing.
NOTICE:
Make sure that the towing speed does not
exceed 55 mph (90 km/h), or your vehicle could
be badly damaged.
CAUTION:
Shifting a four-wheel-drive vehicle's transfer
case into NEUTRAL can cause your vehicle to
roll even if the transmission is in PARK (P), for
an automatic transmission, or if your vehicle is
in gear, for a manual transmission. You or others
could be injured. Make sure the parking brake
is firmly set before you shift the transfer case
into NEUTRAL.

4-48
Loading Your Vehicle
Two labels on your vehicle show how much weight it
may properly carry. The tire
-loading information label
found on the driver's door lock pillar tells you the
proper size and recommended inflation pressures for
the tires on your vehicle.
The other label is the certification label, also found on
the driver's door lock pillar. It tells you the gross weight
capacity of your vehicle, called the Gross Vehicle Weight
Rating (GVWR). The GVWR includes the weight of the
vehicle, all occupants, fuel and cargo. Never exceed the
GVWR for your vehicle, or the Gross Axle Weight
Rating (GAWR) for either the front or rear axle.
And, if you do have a heavy load, you should spread it
out. Don't carry more than 400 lbs. (181 kg) in your
rear area when four people are in your two
-wheel-drive
vehicle. If you have a four
-wheel-drive vehicle, don't
carry more than 200 lbs. (91 kg) in your rear area when
four people are in your vehicle.

4-49

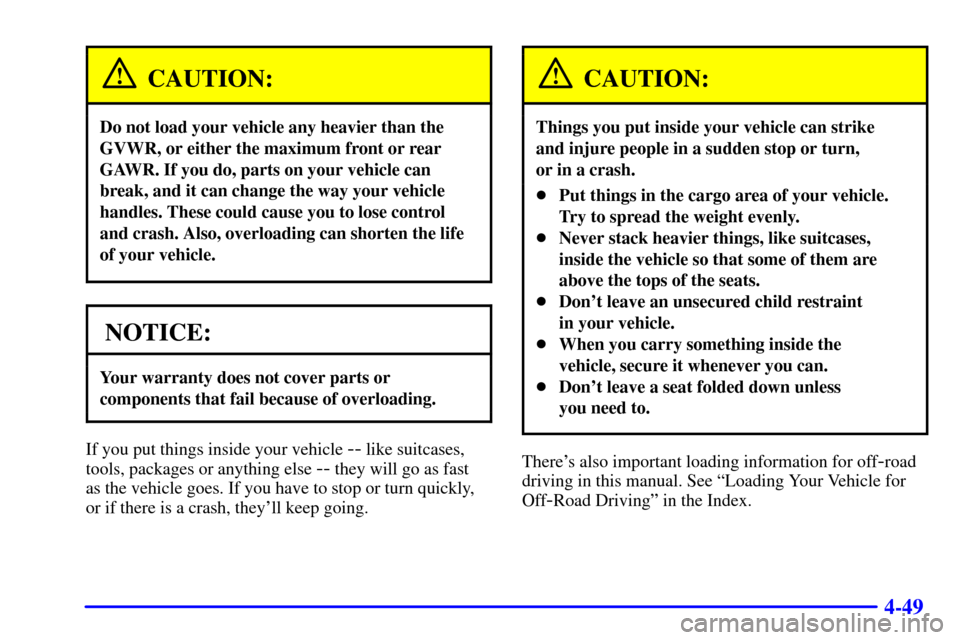

CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose control
and crash. Also, overloading can shorten the life
of your vehicle.
NOTICE:
Your warranty does not cover parts or
components that fail because of overloading.
If you put things inside your vehicle -- like suitcases,
tools, packages or anything else
-- they will go as fast
as the vehicle goes. If you have to stop or turn quickly,
or if there is a crash, they'll keep going.
CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn,
or in a crash.

Put things in the cargo area of your vehicle.
Try to spread the weight evenly.

Never stack heavier things, like suitcases,
inside the vehicle so that some of them are
above the tops of the seats.

Don't leave an unsecured child restraint
in your vehicle.

When you carry something inside the
vehicle, secure it whenever you can.

Don't leave a seat folded down unless
you need to.
There's also important loading information for off-road
driving in this manual. See ªLoading Your Vehicle for
Off
-Road Drivingº in the Index.

4-50
Towing a Trailer
CAUTION:
If you don't use the correct equipment and drive
properly, you can lose control when you pull a trailer.
For example, if the trailer is too heavy, the brakes
may not work well
-- or even at all. You and your
passengers could be seriously injured. Pull a trailer
only if you have followed all the steps in this section.
Ask your dealer for advice and information about
towing a trailer with your vehicle.
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty. To pull a trailer correctly, follow
the advice in this part, and see your dealer for
important information about towing a trailer with
your vehicle.
Your vehicle can tow a trailer. To identify what the
vehicle trailering capacity is for your vehicle, you
should read the information in ªWeight of the Trailerº
that appears later in this section. But trailering is
different than just driving your vehicle by itself.
Trailering means changes in handling, durability and
fuel economy. Successful, safe trailering takes correct
equipment, and it has to be used properly.
That's the reason for this section. In it are many
time
-tested, important trailering tips and safety rules.
Many of these are important for your safety and that
of your passengers. So please read this section carefully
before you pull a trailer.
Load
-pulling components such as the engine,
transmission, wheel assemblies and tires are forced
to work harder against the drag of the added weight.
The engine is required to operate at relatively higher
speeds and under greater loads, generating extra heat.
What's more, the trailer adds considerably to wind
resistance, increasing the pulling requirements.

4-51 If You Do Decide To Pull A Trailer
If you do, here are some important points:

There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live but
also where you'll be driving. A good source for this
information can be state or provincial police.

Consider using a sway control. You can ask a hitch
dealer about sway controls.

Don't tow a trailer at all during the first 500 miles
(800 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.

Then, during the first 500 miles (800 km) that you
tow a trailer, don't drive over 50 mph (80 km/h) and
don't make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at the
heavier loads.

If you have an automatic transmission, you can use
THIRD (3) (or, as you need to, a lower gear) when
towing a trailer. Operating your vehicle in THIRD (3)
when towing a trailer will minimize heat buildup and
extend the life of your transmission. If you have a
manual transmission and you are towing a trailer,
it's better not to use the highest gear.Three important considerations have to do with weight:

the weight of the trailer,

the weight of the trailer tongue

and the weight on your vehicle's tires.
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than 1,000 lbs. (450 kg) for
two
-door models and 1,500 lbs. (680 kg) for four-door
models. But even that can be too heavy.
It depends on how you plan to use your rig. For example,
speed, altitude, road grades, outside temperature and
how much your vehicle is used to pull a trailer are all
important. And, it can also depend on any special
equipment that you have on your vehicle.
You can ask your dealer for our trailering information or
advice, or you can write us at:
Chevrolet
Chevrolet Customer Assistance
P.O. Box 33170
Detroit, MI 48232
-5170
