2002 CHEVROLET MONTE CARLO Owners Manual

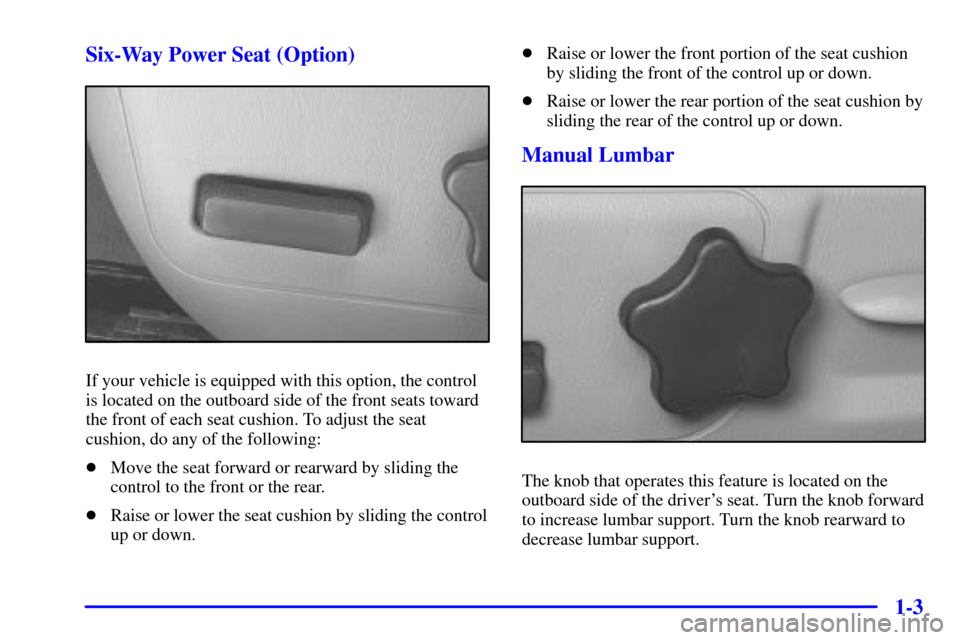

1-3 Six-Way Power Seat (Option)
If your vehicle is equipped with this option, the control
is located on the outboard side of the front seats toward
the front of each seat cushion. To adjust the seat
cushion, do any of the following:

Move the seat forward or rearward by sliding the
control to the front or the rear.

Raise or lower the seat cushion by sliding the control
up or down.
Raise or lower the front portion of the seat cushion
by sliding the front of the control up or down.

Raise or lower the rear portion of the seat cushion by
sliding the rear of the control up or down.
Manual Lumbar
The knob that operates this feature is located on the
outboard side of the driver's seat. Turn the knob forward
to increase lumbar support. Turn the knob rearward to
decrease lumbar support.

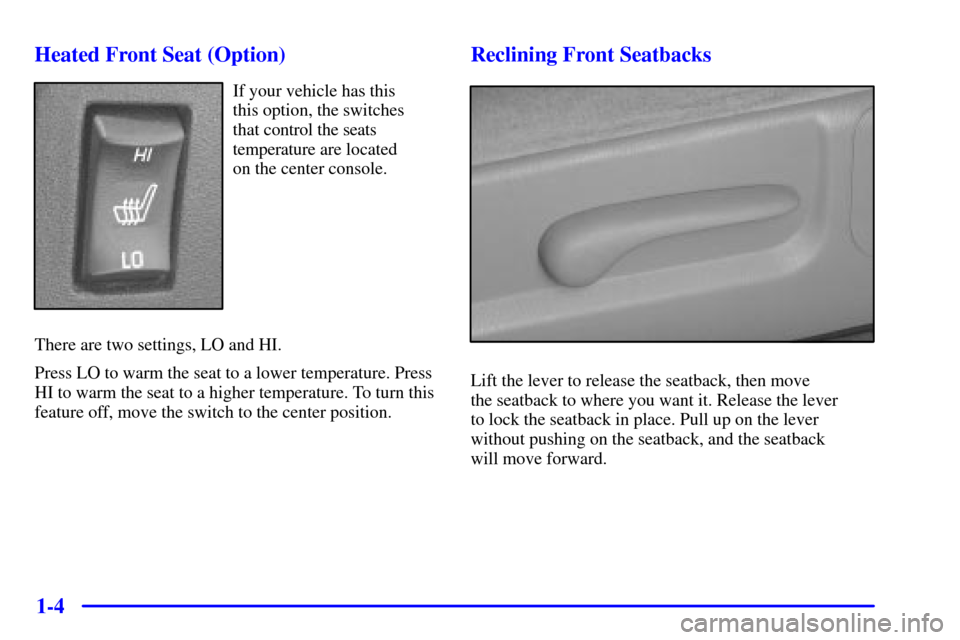

1-4 Heated Front Seat (Option)
If your vehicle has this
this option, the switches
that control the seats
temperature are located
on the center console.
There are two settings, LO and HI.
Press LO to warm the seat to a lower temperature. Press
HI to warm the seat to a higher temperature. To turn this
feature off, move the switch to the center position.
Reclining Front Seatbacks
Lift the lever to release the seatback, then move
the seatback to where you want it. Release the lever
to lock the seatback in place. Pull up on the lever
without pushing on the seatback, and the seatback
will move forward.

1-5

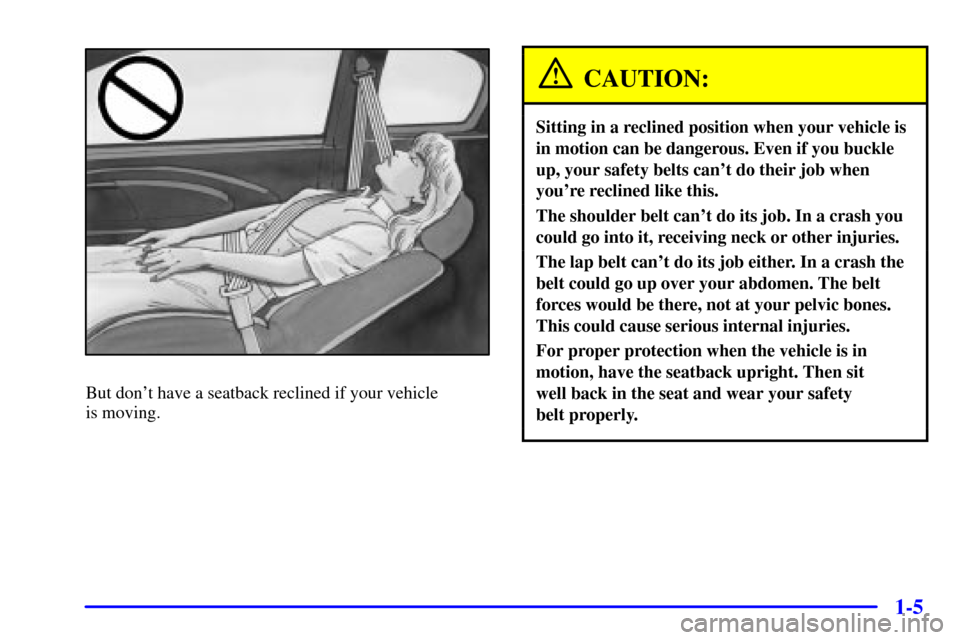

But don't have a seatback reclined if your vehicle
is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

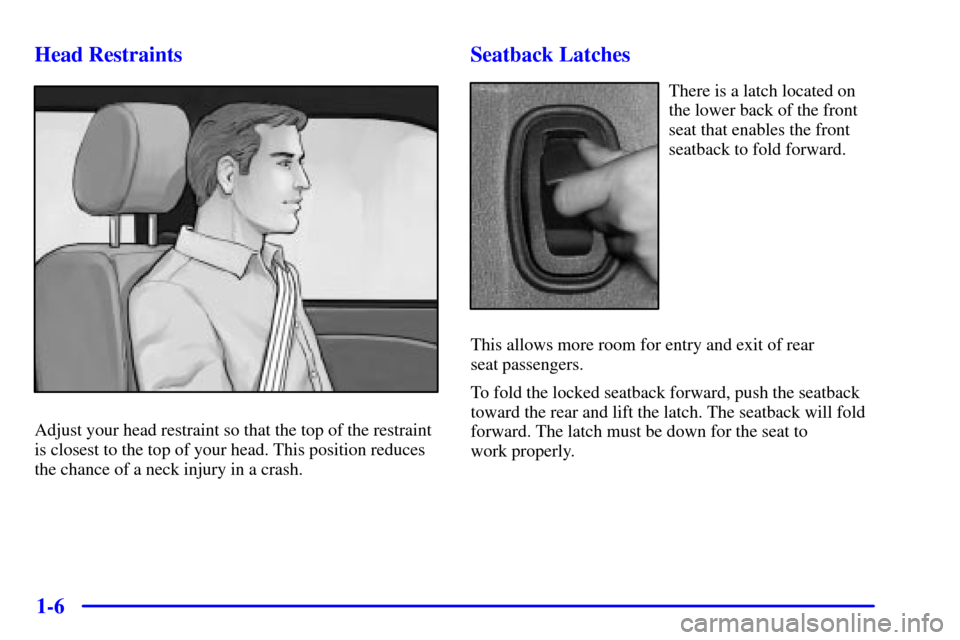

1-6 Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position reduces
the chance of a neck injury in a crash.
Seatback Latches
There is a latch located on
the lower back of the front
seat that enables the front
seatback to fold forward.
This allows more room for entry and exit of rear
seat passengers.
To fold the locked seatback forward, push the seatback
toward the rear and lift the latch. The seatback will fold
forward. The latch must be down for the seat to
work properly.

1-7

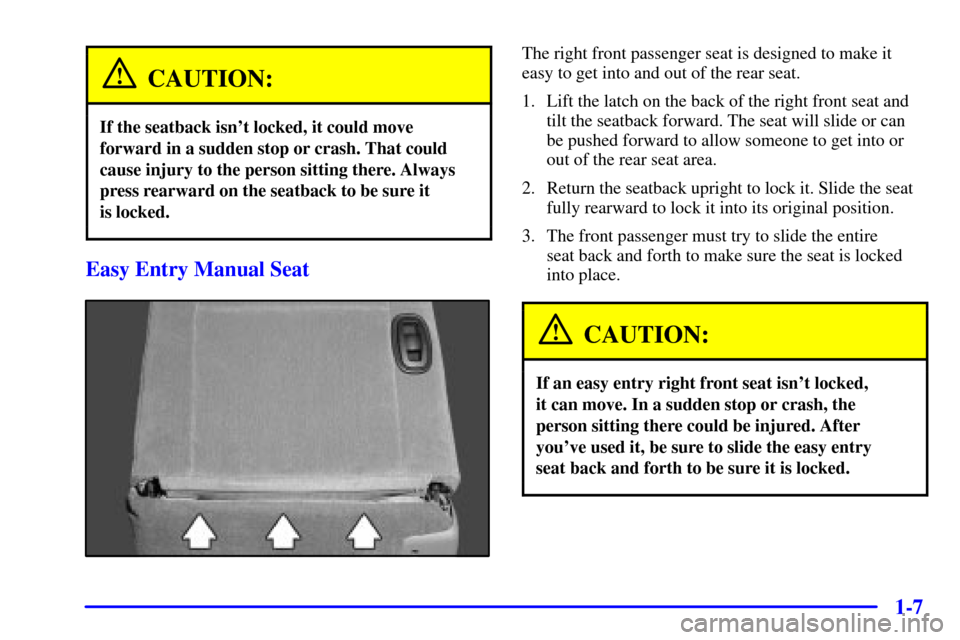

CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Easy Entry Manual Seat
The right front passenger seat is designed to make it
easy to get into and out of the rear seat.
1. Lift the latch on the back of the right front seat and
tilt the seatback forward. The seat will slide or can
be pushed forward to allow someone to get into or
out of the rear seat area.
2. Return the seatback upright to lock it. Slide the seat
fully rearward to lock it into its original position.
3. The front passenger must try to slide the entire
seat back and forth to make sure the seat is locked
into place.
CAUTION:
If an easy entry right front seat isn't locked,
it can move. In a sudden stop or crash, the
person sitting there could be injured. After
you've used it, be sure to slide the easy entry
seat back and forth to be sure it is locked.

1-8 Split Folding Rear Seat
You can fold either side of the seatback (or both sides)
down in your vehicle for more cargo space. Make sure
the front seat isn't reclined. If it is, the rear seatback
may not fold down all the way.
To lower the rear seatback, follow these steps:
1. Remove the rear center
lap
-shoulder belt latch
by using a key to press
the release button.
2. Pull forward on the
seatback tab located on
the outboard side of the
back seat cushion to fold
the seatback down.
This will allow you direct access to the trunk.
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.

1-9
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After raising
the rear seatback, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
To raise the rear seatback, follow these steps:
1. Raise the seatback up and make sure it latches.
Push and pull on the seatback to be sure it is locked
in position.
2. Reconnect the center
safety belt latch plate
to the buckle.
Make sure the safety belt label is pointing to the
release button, and that both are facing the front of
the vehicle. Make sure the belt is not twisted. Push
and pull on the latch plate to be sure it is secure.
When the seat is not in use, it should be kept in the
upright locked position. If you plan to load items
into the trunk through the split folding rear seat,
you must first turn off the trunk release sensor.
See ªTrunk Release Sensorº in the Index for
more information.

1-10

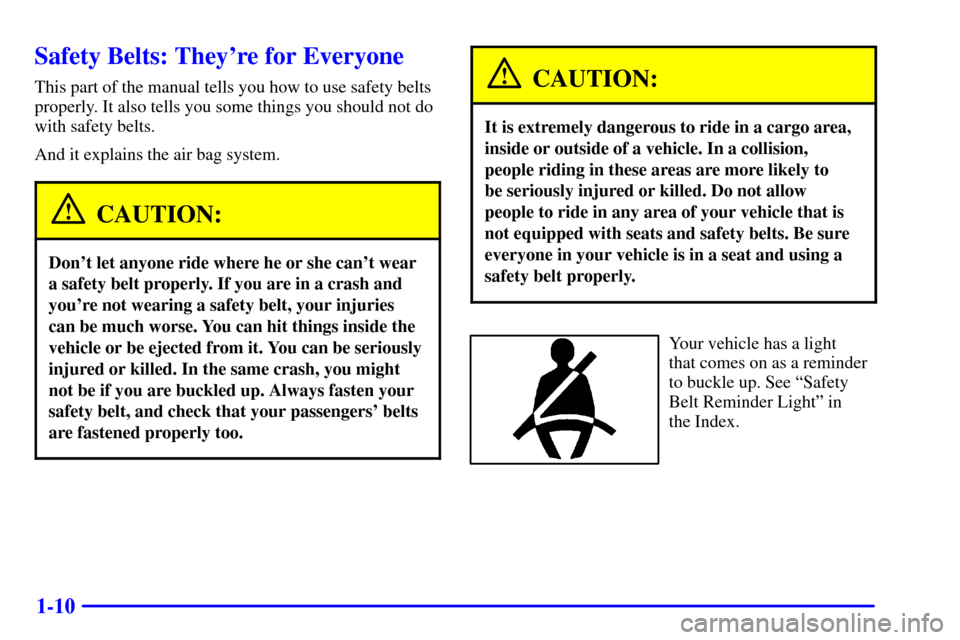

Safety Belts: They're for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the air bag system.
CAUTION:
Don't let anyone ride where he or she can't wear
a safety belt properly. If you are in a crash and
you're not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check that your passengers' belts
are fastened properly too.
CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely to
be seriously injured or killed. Do not allow
people to ride in any area of your vehicle that is
not equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
Your vehicle has a light
that comes on as a reminder
to buckle up. See ªSafety
Belt Reminder Lightº in
the Index.
