2002 BMW MOTORRAD R 1150 RS Rider's Manual (in English)

1
BA_Titel_Blank.fm Seite 93 Montag, 4. November 2002 2:36 14
BMW Motorrad
On-board
documentation
consisting of
Rider's Manual
and Maintenance
Instructions
Rider’s Manual
R 1150 RS

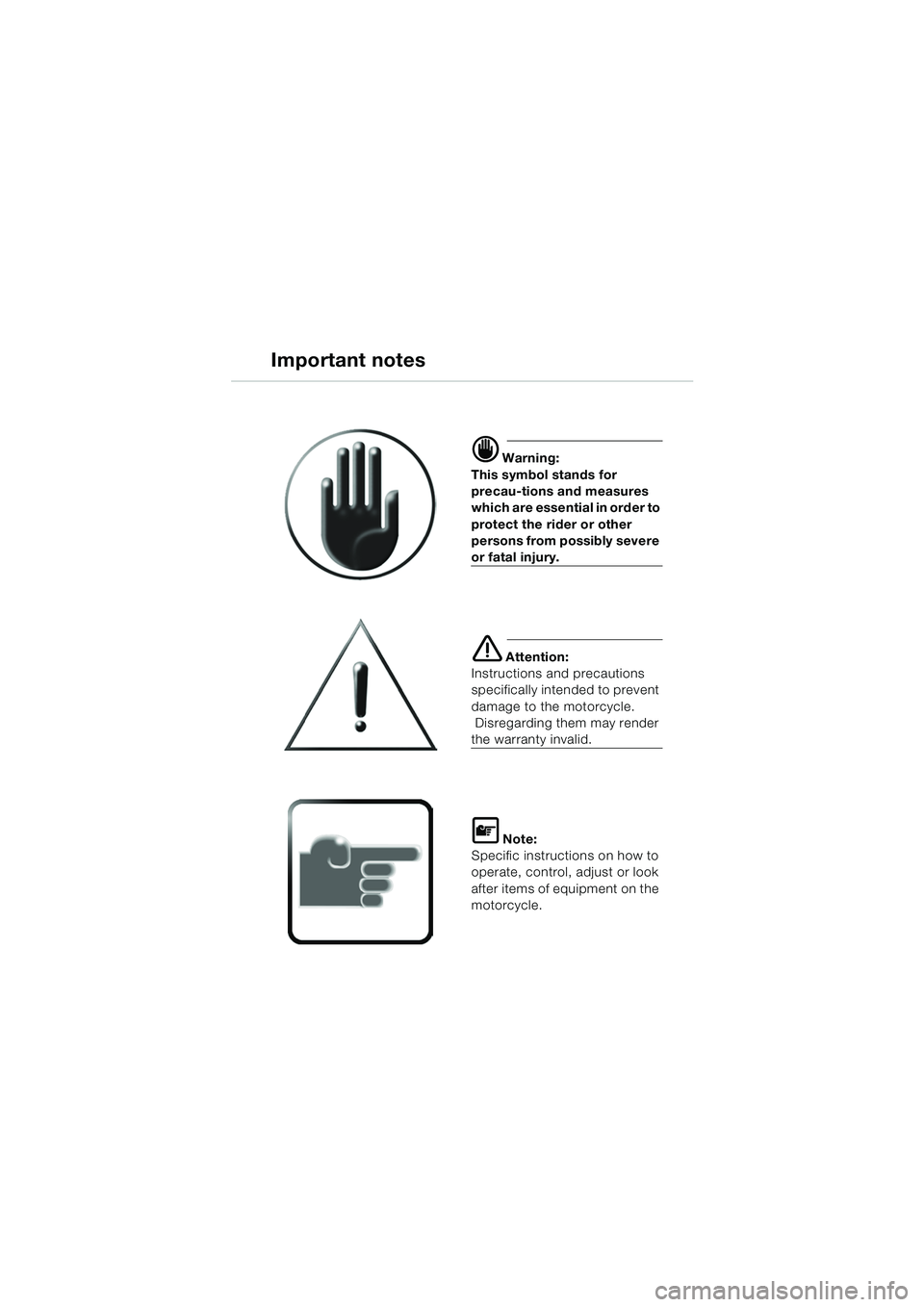

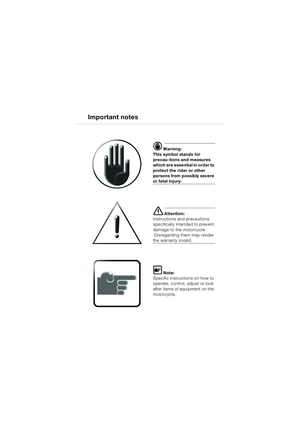

d Warning:
This symbol stands for
precau-tions and measures
which are essential in order to
protect the rider or other
persons from possibly severe
or fatal injury.
e Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle.
Disregarding them may render
the warranty invalid.
L Note:
Specific instructions on how to
operate, control, adjust or look
after items of equipment on the
motorcycle.
Important notes
10rsbkg2.book Seite 87 Dienstag, 19. November 2002 4:56 16

1
Introduction
i

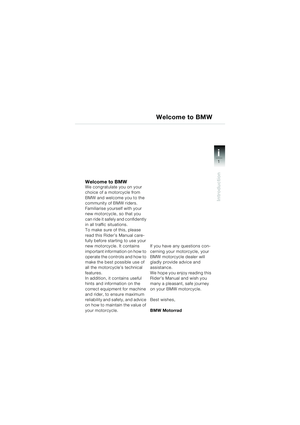

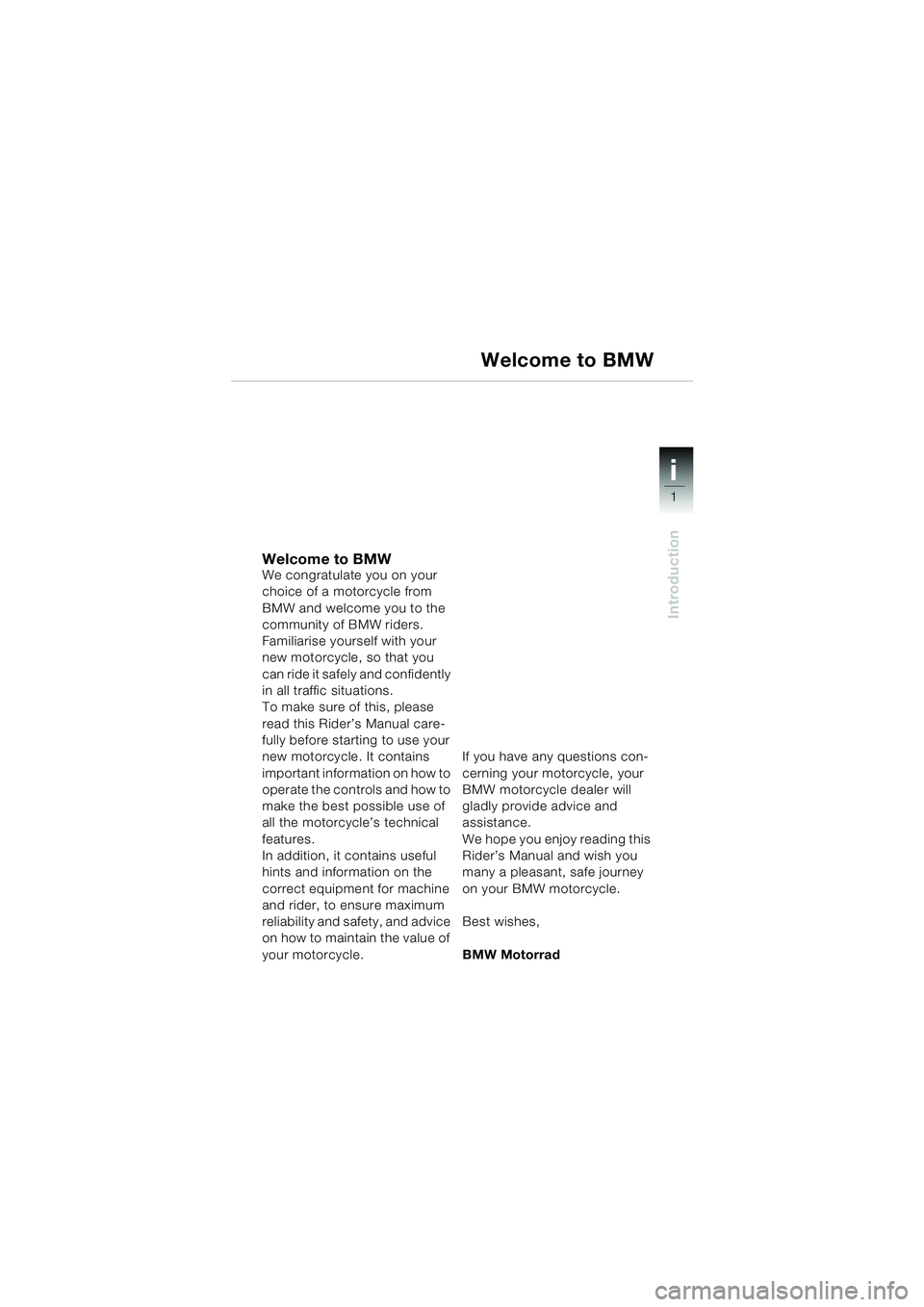

Welcome to BMWWe congratulate you on your
choice of a motorcycle from
BMW and welcome you to the
community of BMW riders.
Familiarise yourself with your
new motorcycle, so that you
can ride it safely and confidently
in all traffic situations.
To make sure of this, please
read this Rider’s Manual care-
fully before starting to use your
new motorcycle. It contains
important information on how to
operate the controls and how to
make the best possible use of
all the motorcycle’s technical
features.
In addition, it contains useful
hints and information on the
correct equipment for machine
and rider, to ensure maximum
reliability and safety, and advice
on how to maintain the value of
your motorcycle.If you have any questions con-
cerning your motorcycle, your
BMW motorcycle dealer will
gladly provide advice and
assistance.
We hope you enjoy reading this
Rider’s Manual and wish you
many a pleasant, safe journey
on your BMW motorcycle.
Best wishes,
BMW Motorrad
Welcome to BMW
10rsbkg2.book Seite 1 Dienstag, 19. November 2002 4:56 16

i

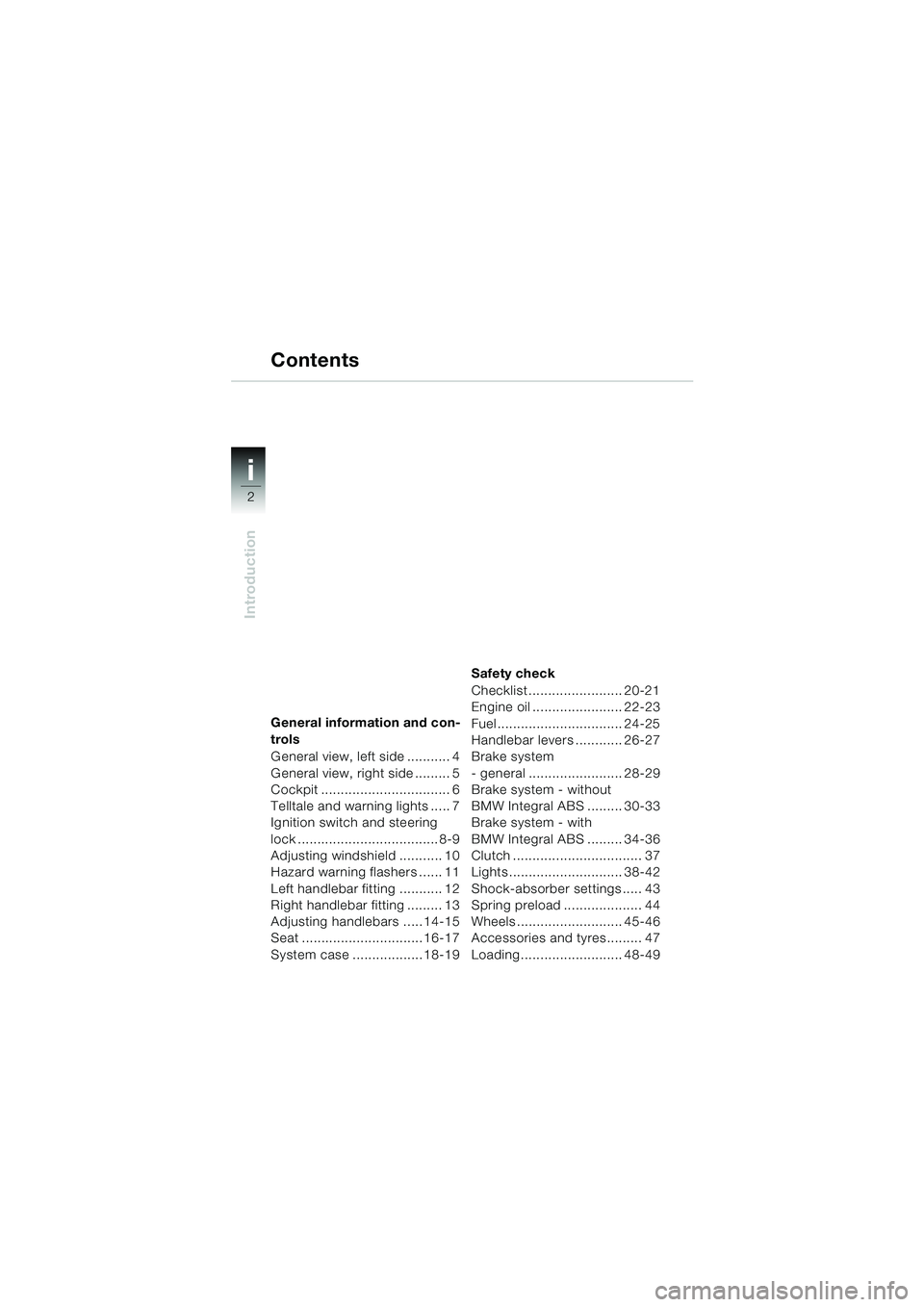

2
Introduction
General information and con-
trols
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning lights ..... 7

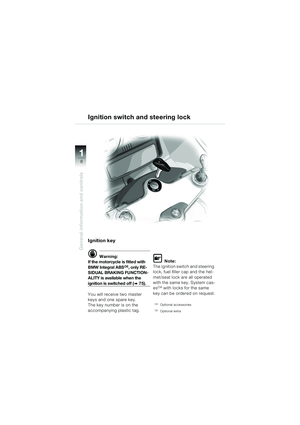

Ignition switch and steering
lock .................................... 8-9

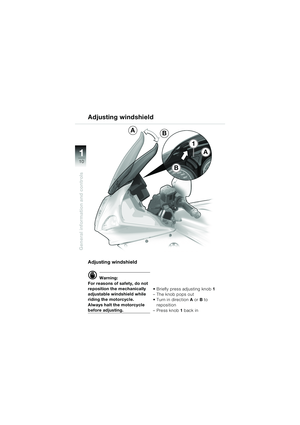

Adjusting windshield ........... 10

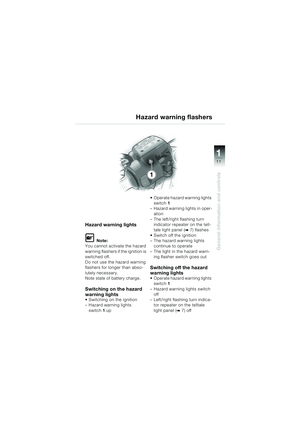

Hazard warning flashers ...... 11

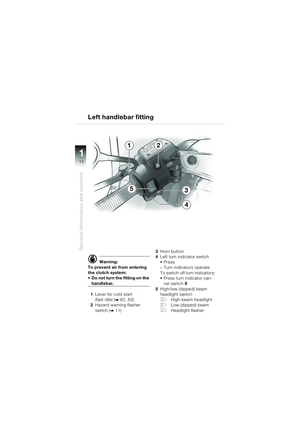

Left handlebar fitting ........... 12

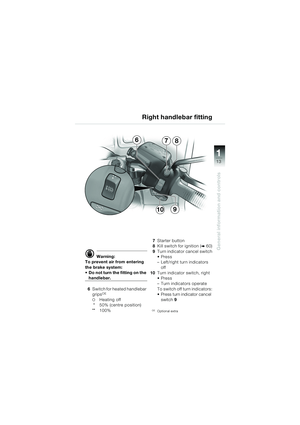

Right handlebar fitting ......... 13

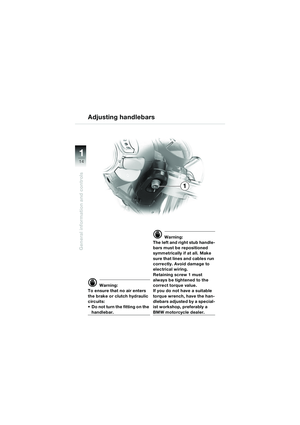

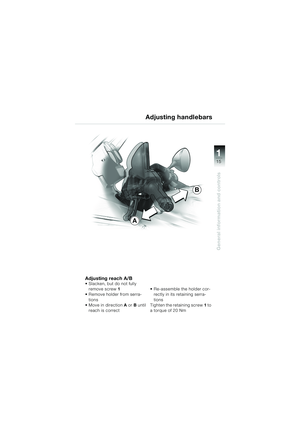

Adjusting handlebars ..... 14-15

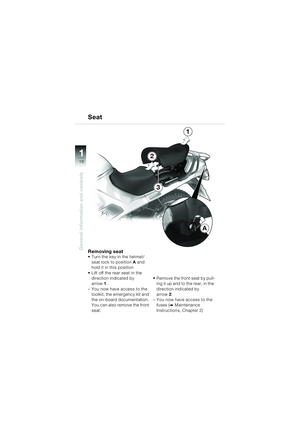

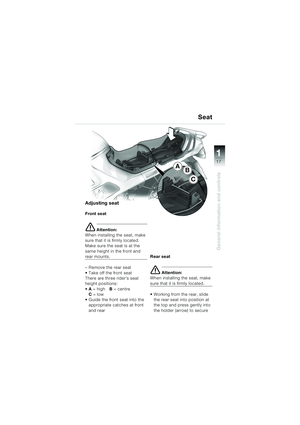

Seat ............................... 16-17

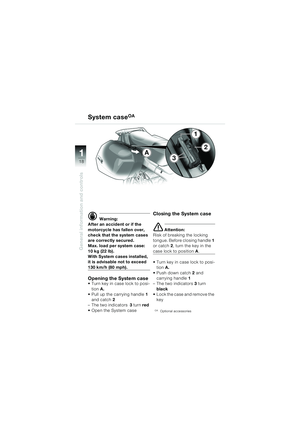

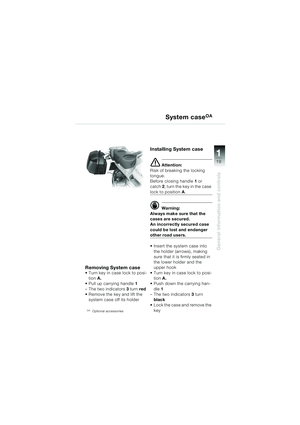

System case .................. 18-19Safety check

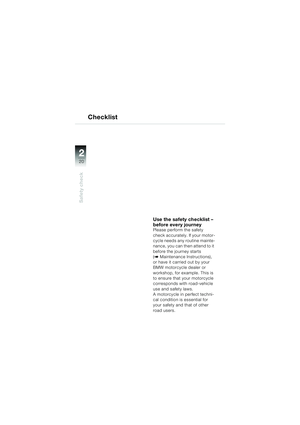

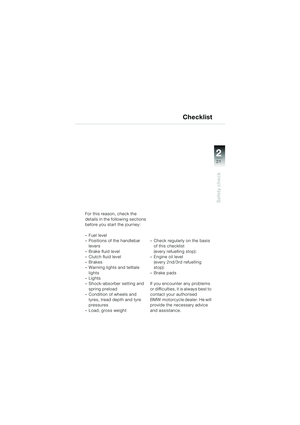

Checklist ........................ 20-21

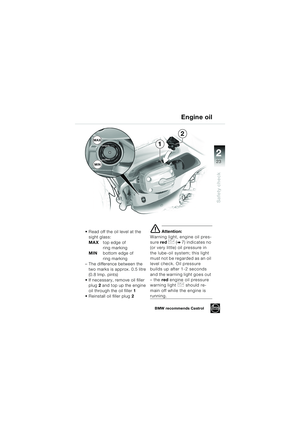

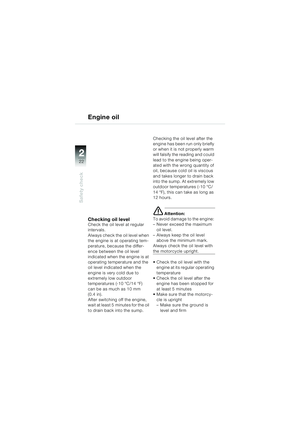

Engine oil ....................... 22-23

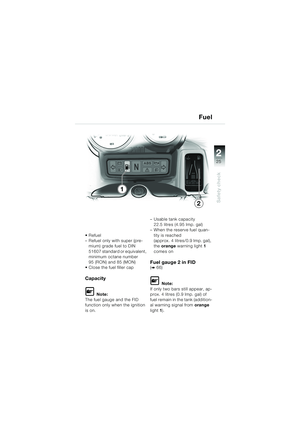

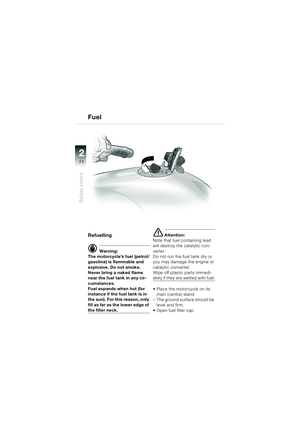

Fuel ................................ 24-25

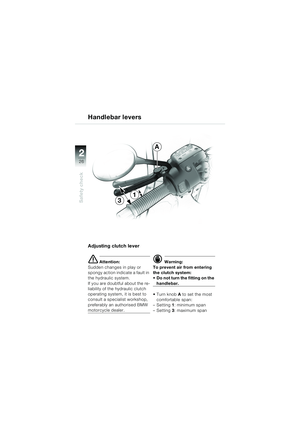

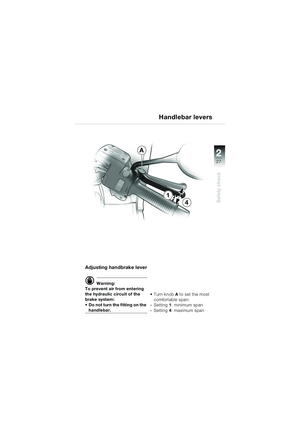

Handlebar levers ............ 26-27

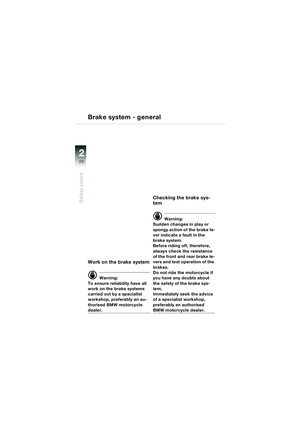

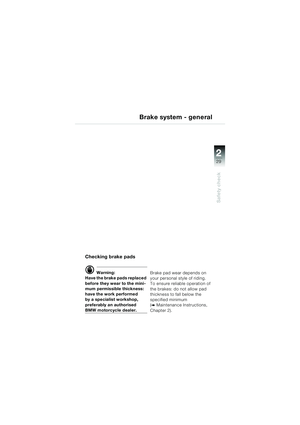

Brake system
- general ........................ 28-29

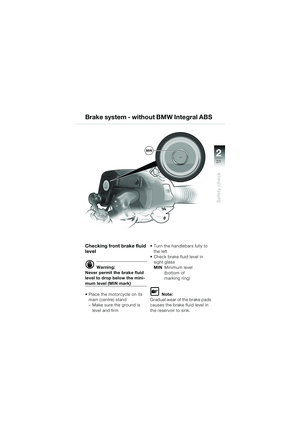

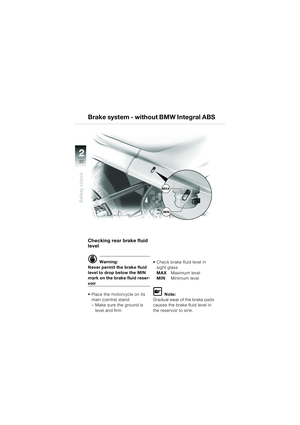

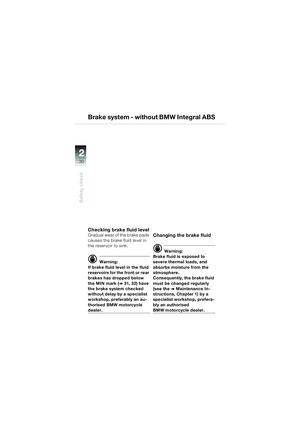

Brake system - without
BMW Integral ABS ......... 30-33

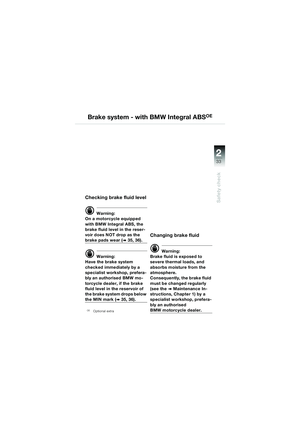

Brake system - with
BMW Integral ABS ......... 34-36

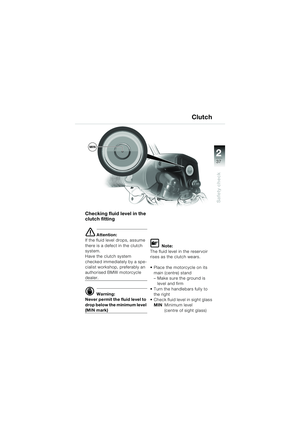

Clutch ................................. 37

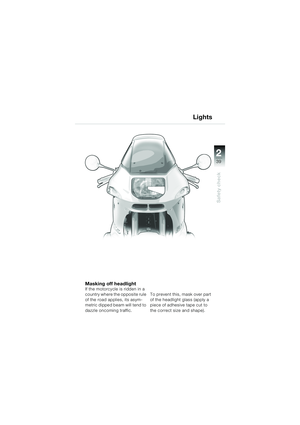

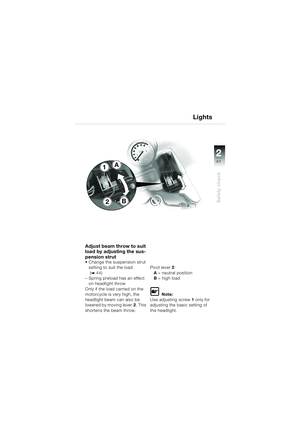

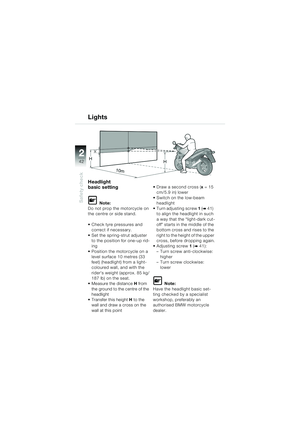

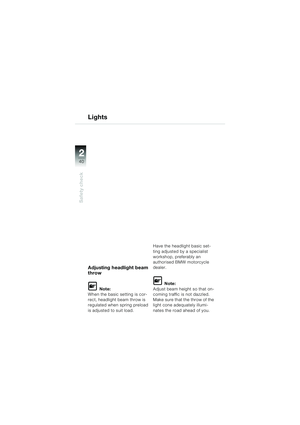

Lights ............................. 38-42

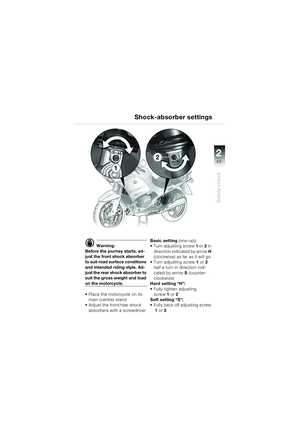

Shock-absorber settings ..... 43
Spring preload .................... 44

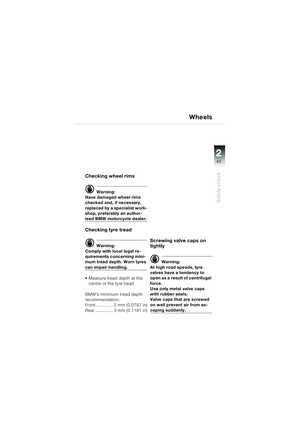

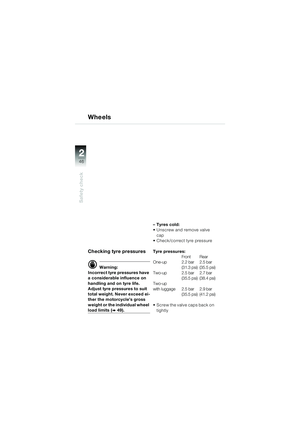

Wheels ........................... 45-46

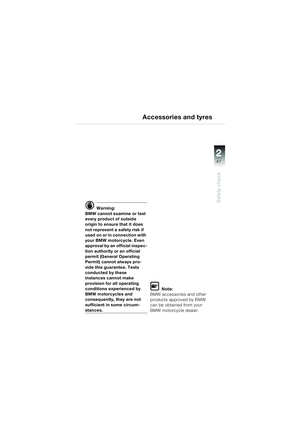

Accessories and tyres......... 47

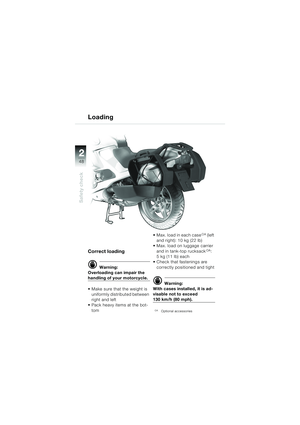

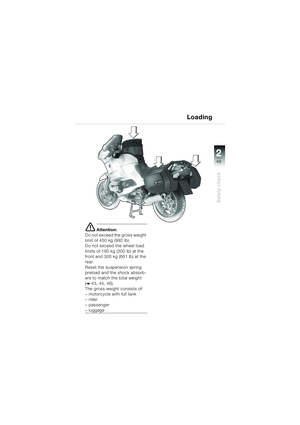

Loading.......................... 48-49
Contents
10rsbkg2.book Seite 2 Dienstag, 19. November 2002 4:56 16

3
i
Introduction

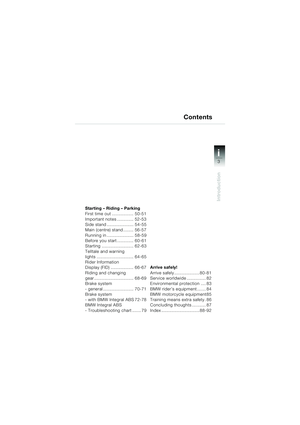

Starting – Riding – Parking

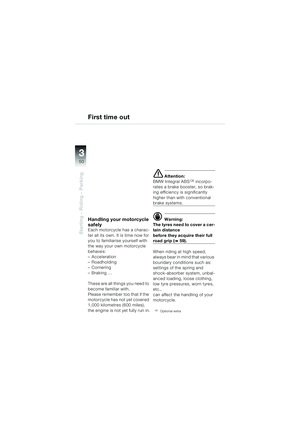

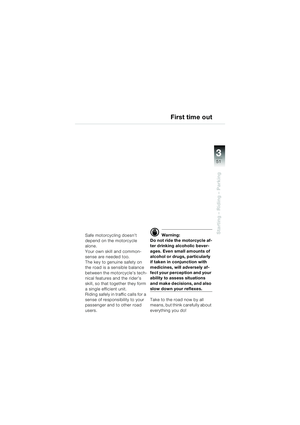

First time out ................. 50-51

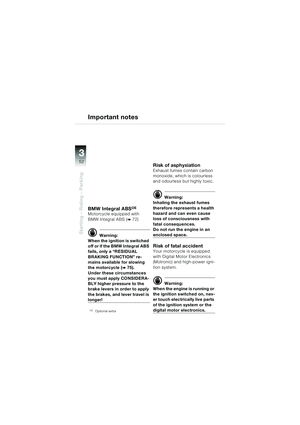

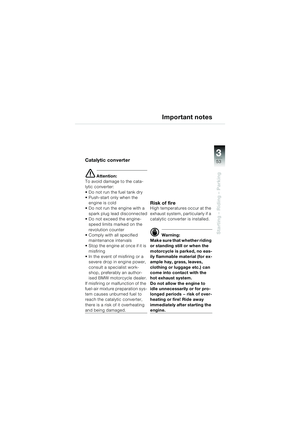

Important notes ............. 52-53

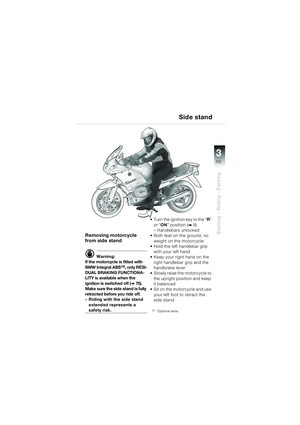

Side stand ..................... 54-55

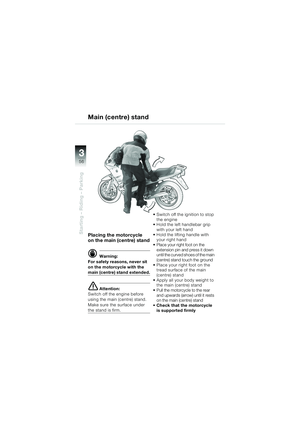

Main (centre) stand ........ 56-57

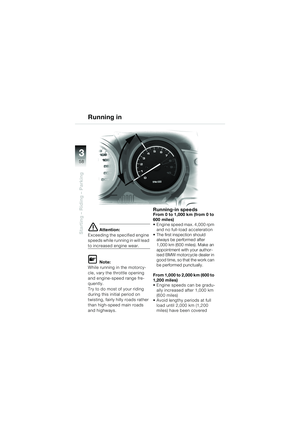

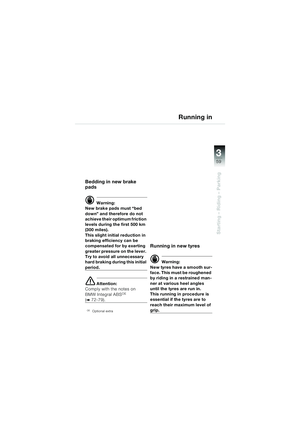

Running in ..................... 58-59

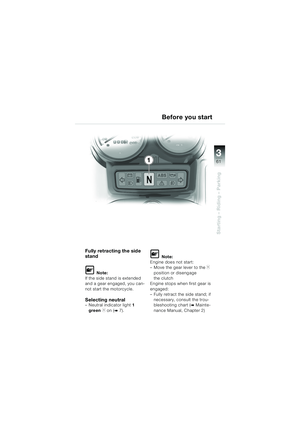

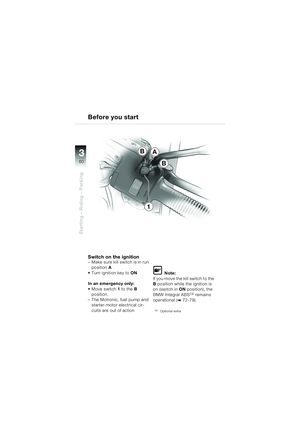

Before you start ............. 60-61

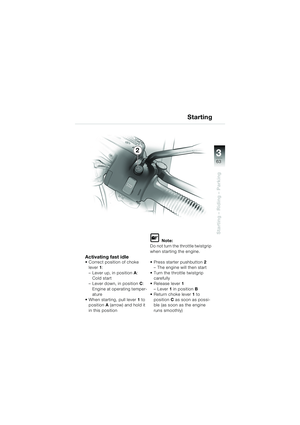

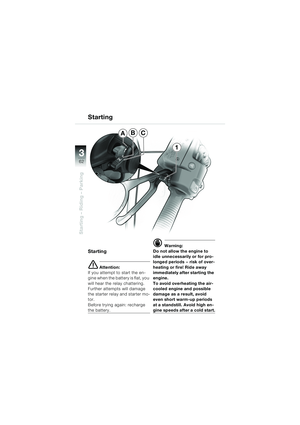

Starting ......................... 62-63

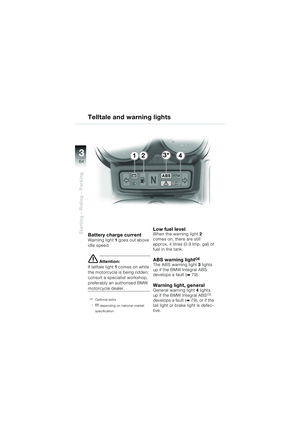

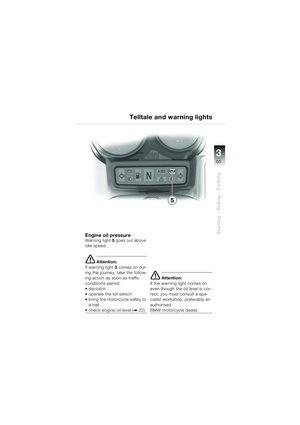

Telltale and warning
lights ............................. 64-65

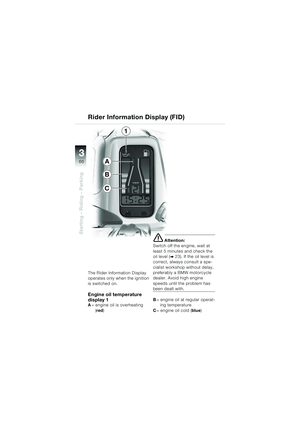

Rider Information

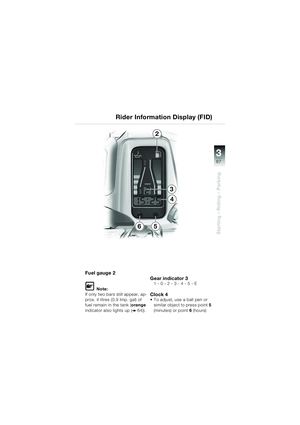

Display (FID) .................. 66-67

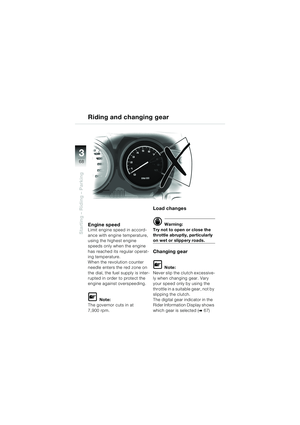

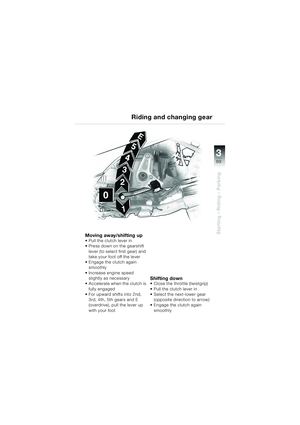

Riding and changing
gear ............................... 68-69
Brake system
- general ........................ 70-71

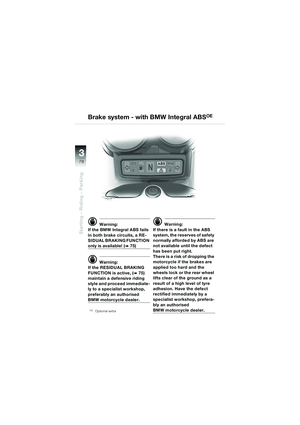

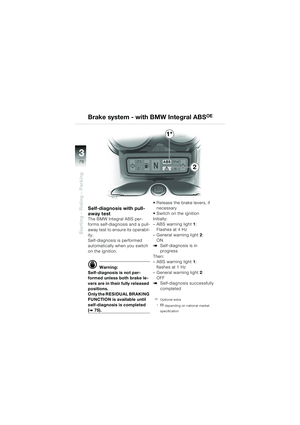

Brake system

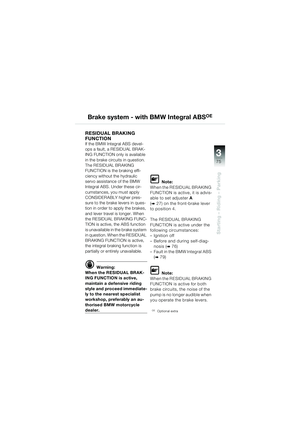

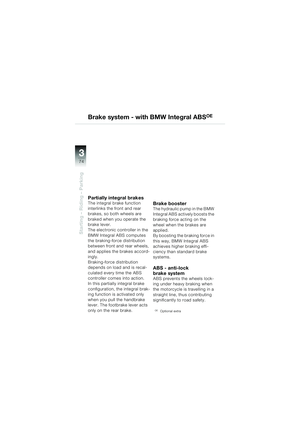

- with BMW Integral ABS 72-78

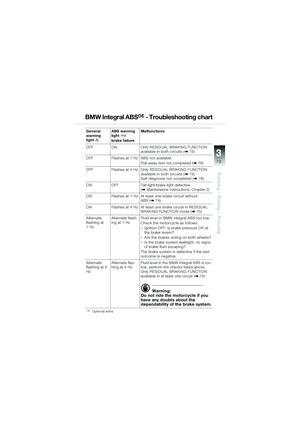

BMW Integral ABS
- Troubleshooting chart ....... 79Arrive safely!

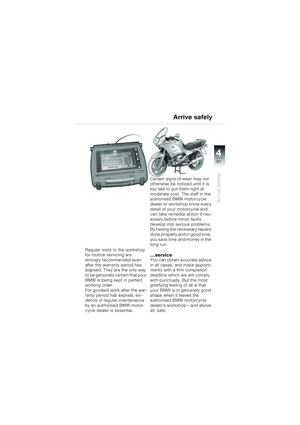

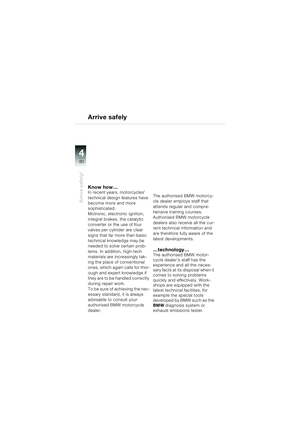

Arrive safely....................80-81

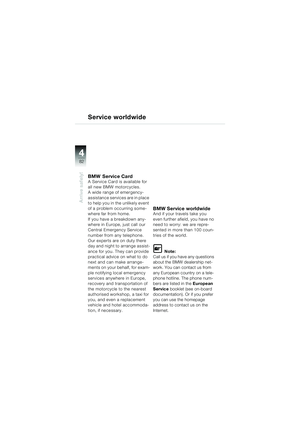

Service worldwide ............... 82

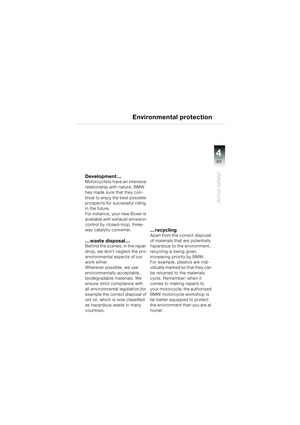

Environmental protection .... 83

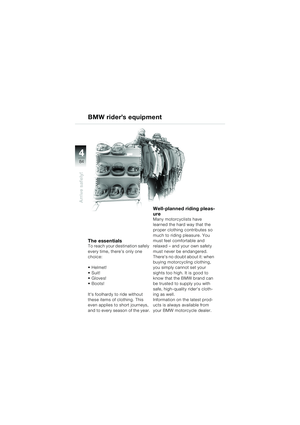

BMW rider’s equipment ....... 84

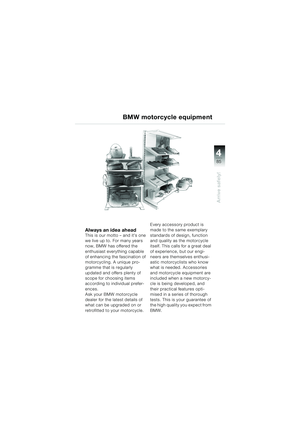

BMW motorcycle equipment85

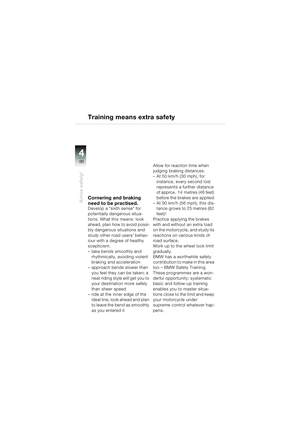

Training means extra safety. 86
Concluding thoughts ........... 87
Index ..............................88-92
Contents
10rsbkg2.book Seite 3 Dienstag, 19. November 2002 4:56 16

1
General information and controls
4
987
124356
101112

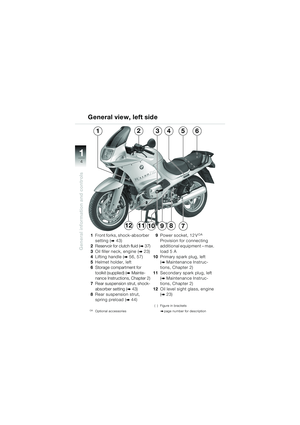

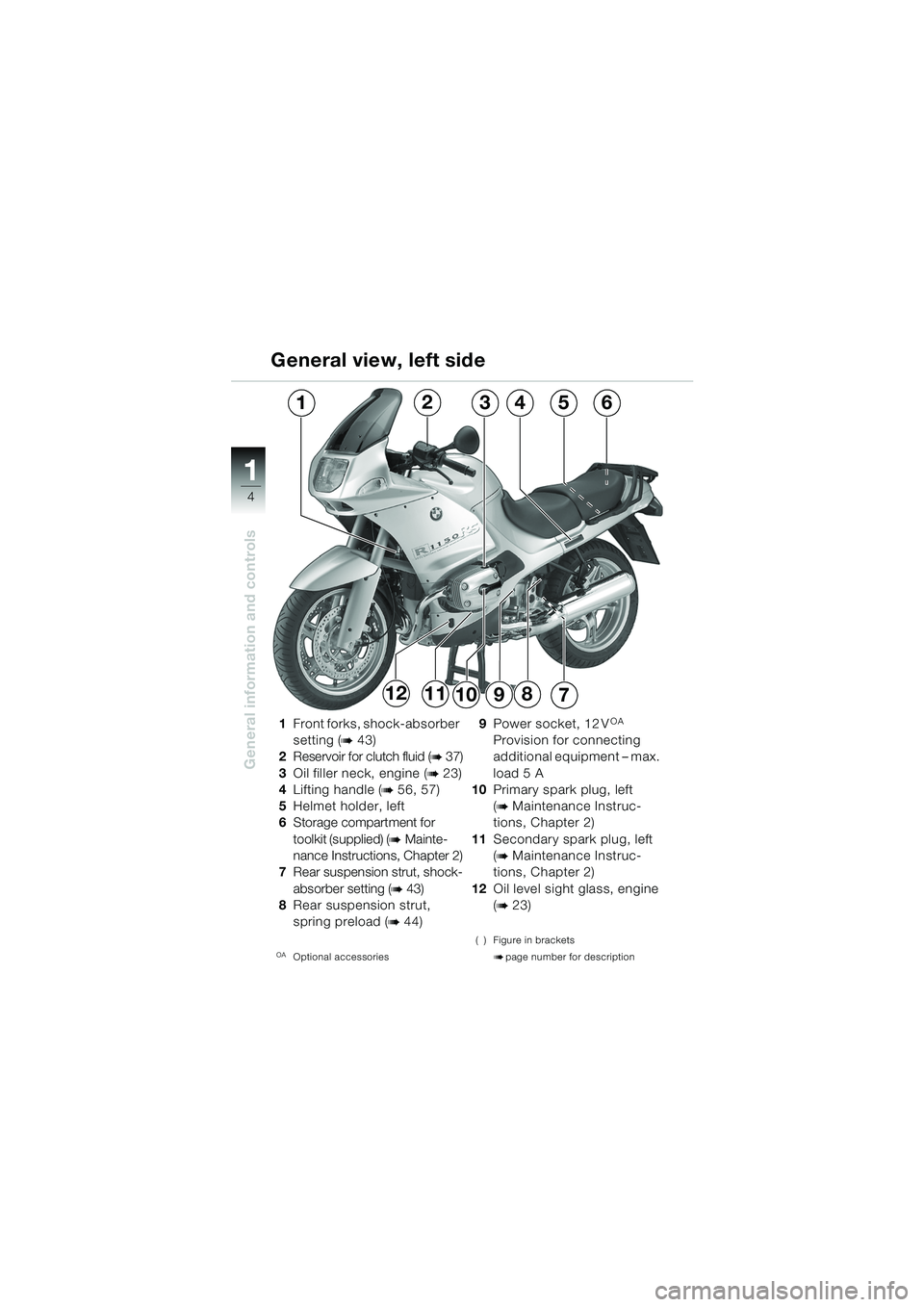

1Front forks, shock-absorber
setting (
b 43)
2 Reservoir for clutch fluid (
b 37)
3 Oil filler neck, engine (
b 23)
4 Lifting handle (
b 56, 57)
5 Helmet holder, left
6 Storage compartment for
toolkit (supplied) (
b Mainte-
nance Instructions, Chapter 2)
7 Rear suspension strut, shock-
absorber setting (
b 43)
8 Rear suspension strut,
spring preload (
b 44)
OAOptional accessories
9Power socket, 12 VOA
Provision for connecting
additional equipment – max.
load 5 A
10 Primary spark plug, left
(
b Maintenance Instruc-
tions, Chapter 2)
11 Secondary spark plug, left
(
b Maintenance Instruc-
tions, Chapter 2)
12 Oil level sight glass, engine
(
b 23)
( ) Figure in brackets
bpage number for description
General view, left side
10rsbkg2.book Seite 4 Dienstag, 19. November 2002 4:56 16

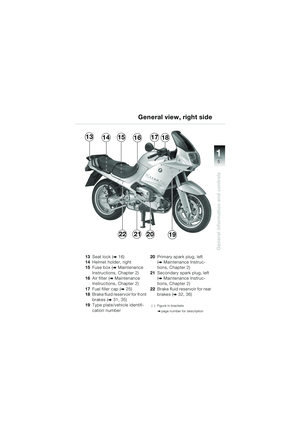

1
General information and controls
5
22192021
131416151718

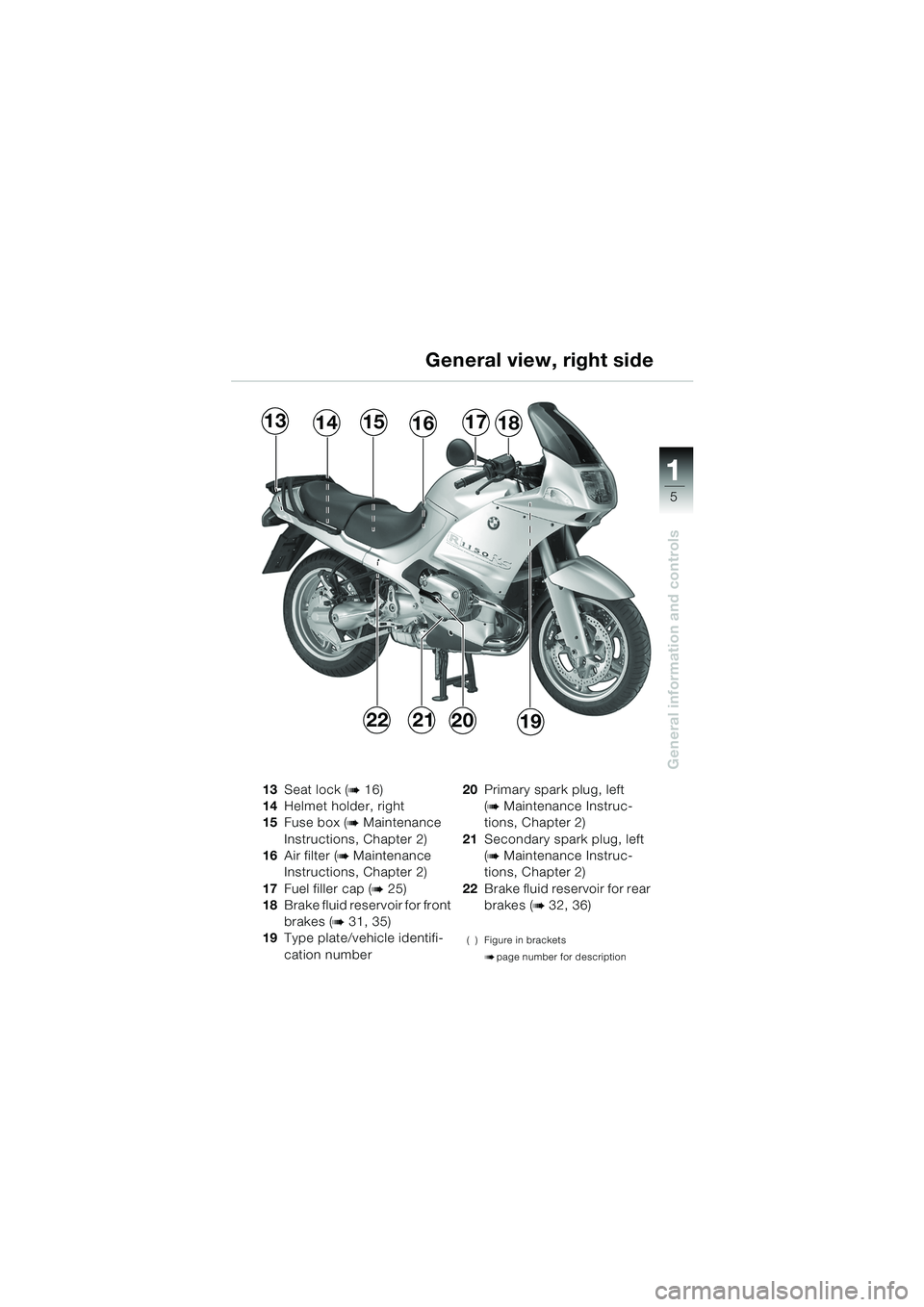

13Seat lock (b 16)
14 Helmet holder, right
15 Fuse box (
b Maintenance
Instructions, Chapter 2)
16 Air filter (
b Maintenance
Instructions, Chapter 2)
17 Fuel filler cap (
b 25)
18 Brake fluid reservoir for front
brakes (
b 31, 35)
19 Type plate/vehicle identifi-
cation number 20
Primary spark plug, left
(
b Maintenance Instruc-
tions, Chapter 2)
21 Secondary spark plug, left
(
b Maintenance Instruc-
tions, Chapter 2)
22 Brake fluid reservoir for rear
brakes (
b 32, 36)
( ) Figure in brackets
bpage number for description
General view, right side
10rsbkg2.book Seite 5 Dienstag, 19. November 2002 4:56 16

1
General information and controls
6
1Reset knob for
trip meter
2 Trip meter
3 Speedometer
4 Odometer
5 Adjusting knob for wind-
shield (
b 10)
6 Revolution counter (
b 58) 7
Rider Information Display
(FID) (
b 66, 67)
8 Telltale and warning lights
(
b 7)
9 Ignition switch and steering
lock (
b 8, 9)
( ) Figure in brackets
bpage number for description
Cockpit
1234567
98
10rsbkg2.book Seite 6 Dienstag, 19. November 2002 4:56 16
