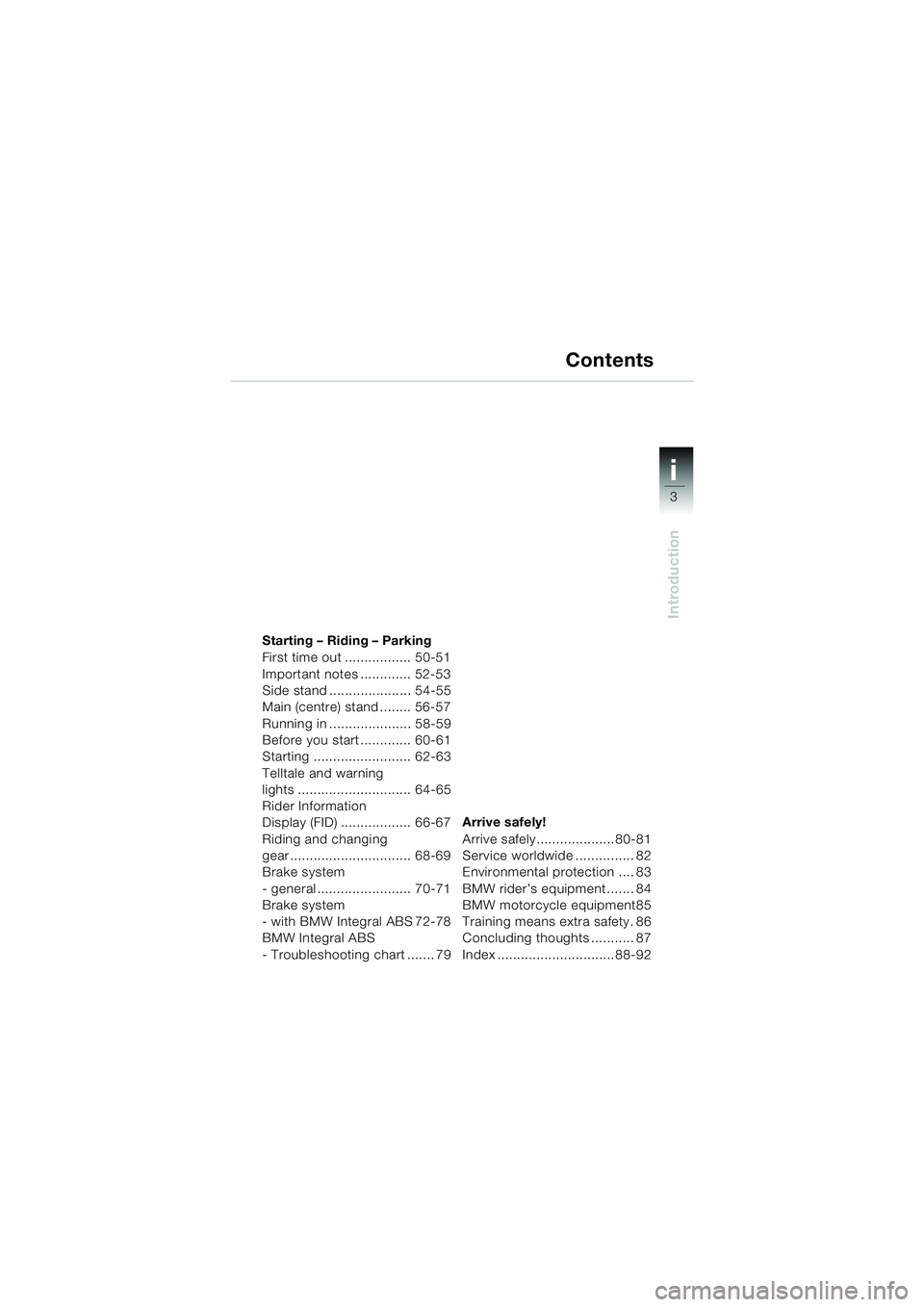

Introduction
Starting – Riding – Parking
First time out ................. 50-51
Important notes ............. 52-53
Side stand ..................... 54-55
Main (centre) stand ........ 56-57
Running in ..................... 58-59
Before you start ............. 60-61
Starting ......................... 62-63
Telltale and warning
lights ............................. 64-65
Rider Information
Display (FID) .................. 66-67
Riding and changing
gear ............................... 68-69
Brake system
- general ........................ 70-71
Brake system
- with BMW Integral ABS 72-78
BMW Integral ABS
- Troubleshooting chart ....... 79Arrive safely!
Arrive safely....................80-81
Service worldwide ............... 82
Environmental protection .... 83
BMW rider’s equipment ....... 84
BMW motorcycle equipment85
Training means extra safety. 86
Concluding thoughts ........... 87
Index ..............................88-92
Contents
10rsbkg2.book Seite 3 Dienstag, 19. November 2002 4:56 16

1
General information and controls
6
1Reset knob for
trip meter
2 Trip meter
3 Speedometer
4 Odometer
5 Adjusting knob for wind-
shield (
b 10)
6 Revolution counter (
b 58) 7
Rider Information Display
(FID) (
b 66, 67)
8 Telltale and warning lights
(
b 7)
9 Ignition switch and steering
lock (
b 8, 9)
( ) Figure in brackets
bpage number for description

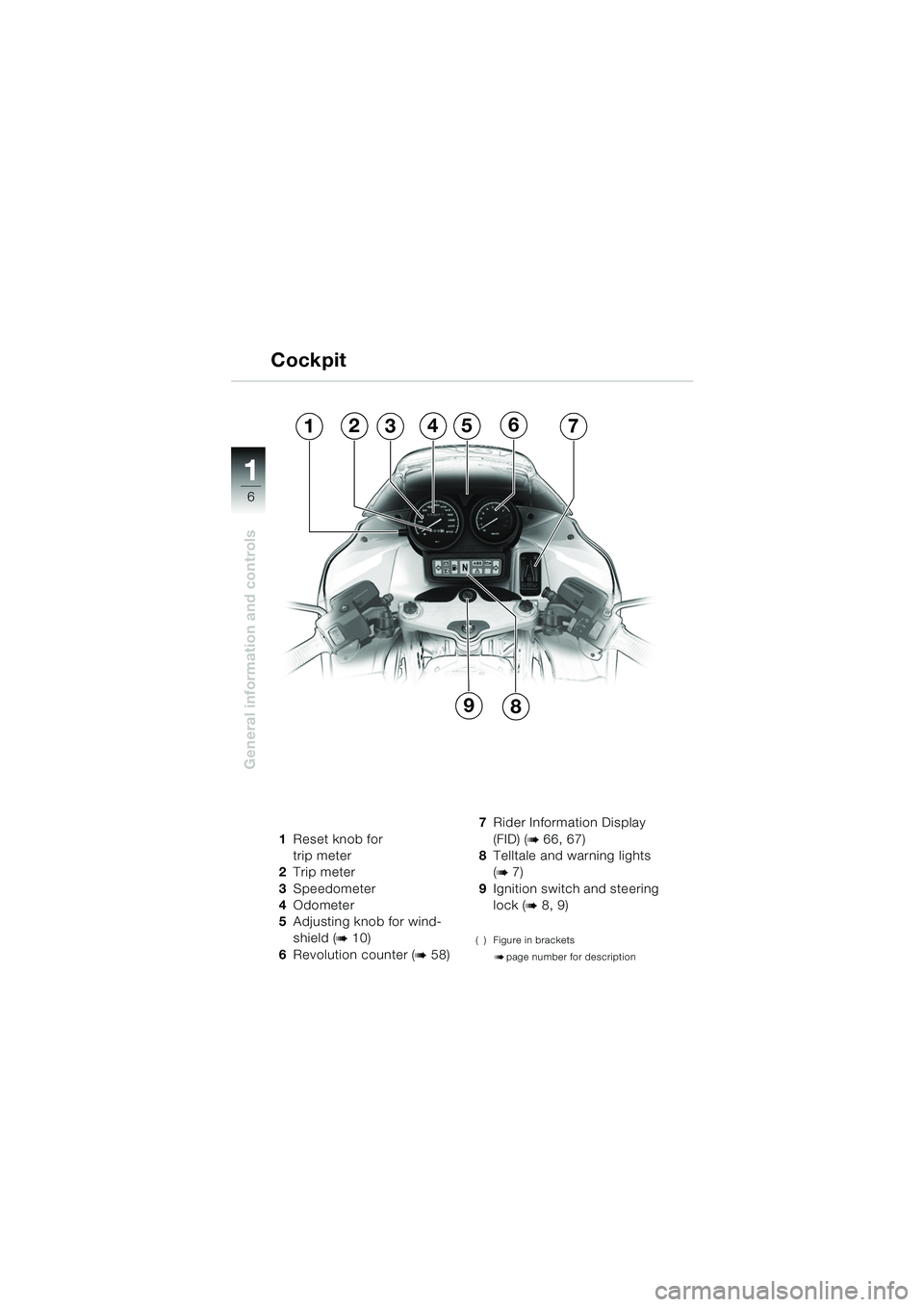

Cockpit
