2002 BMW MOTORRAD K 1200 LT Rider's Manual (in English)

31
General information and controls
1
Opening and closing topcase
Opening the topcaseIf necessary, unlock the top-
case
Turn key in topcase lock to
positionA
Press down locking cylinder
–Latch1 snaps open
Open latch1 (arrow)
Open the topcase
–Topcase light
B On
C OffClosing the topcase
L Note:
The interior light goes out auto-
matically when you close the
topcase.
Close topcase lid
Close latch1
If necessary, lock topcase
and remove key
A
1
C
C
B
10LTbkg4.bk Seite 31 Dienstag, 27. August 2002 8:28 08

32
General information and controls
1
Front seat
Opening the front seatPlace the motorcycle on the
main (centre) or side stand
–Make sure the ground is
level and firm.
Open the left case (
b 30)
Pull out lever1 (arrow)Lift the seat up and forward
(arrow):
–mount for helmet holder
(
b 38),
–handwheel for spring
preload (
b 52),
–battery and fuses (Mainte-
nance Instructions
b Chapter 2)
are accessible
1
10LTbkg4.bk Seite 32 Dienstag, 27. August 2002 8:28 08

33
General information and controls
1B
A
1Front seat
Adjusting the front seat:Open the seat (b 32)
Swivel adjusting bracket 1
into desired position (arrow)
and make sure it engages
with an audible click
–The front seat can be moved
to 2 positions:
–A = highB = low
Locking the front seat
e Caution:
When closing the front seat:
–Fold in handwheel for adjust-
ing spring strut.
–Check that front seat is firmly
secured.
Swing front seat toward rear
until latch engages with an
audible click
Lock left case (
b 30)
10LTbkg4.bk Seite 33 Dienstag, 27. August 2002 8:28 08

34
General information and controls
1
Rear seat
Adjusting backrest:
L Note:
The backrest can be adjusted
by moving the topcase by one
setting.
It is advisable to have this
adjustment performed by your
BMW motorcycle dealer.
Place the motorcycle on its
main (centre) stand
–Make sure the ground is
level and firm.
Open the seat (
b 32)Remove screws1 securing
rear seat
Raise rear seat slightly and
disconnect plug2 for seat
heating
OE
Carefully pull rear seat for-
ward
Remove connectors3 and4
for loudspeakers from their
holders and disconnect by
turning counter-clockwise
Remove connector cables3
and4 from their holders
2(Optional extra
2
1
34
10LTbkg4.bk Seite 34 Dienstag, 27. August 2002 8:28 08

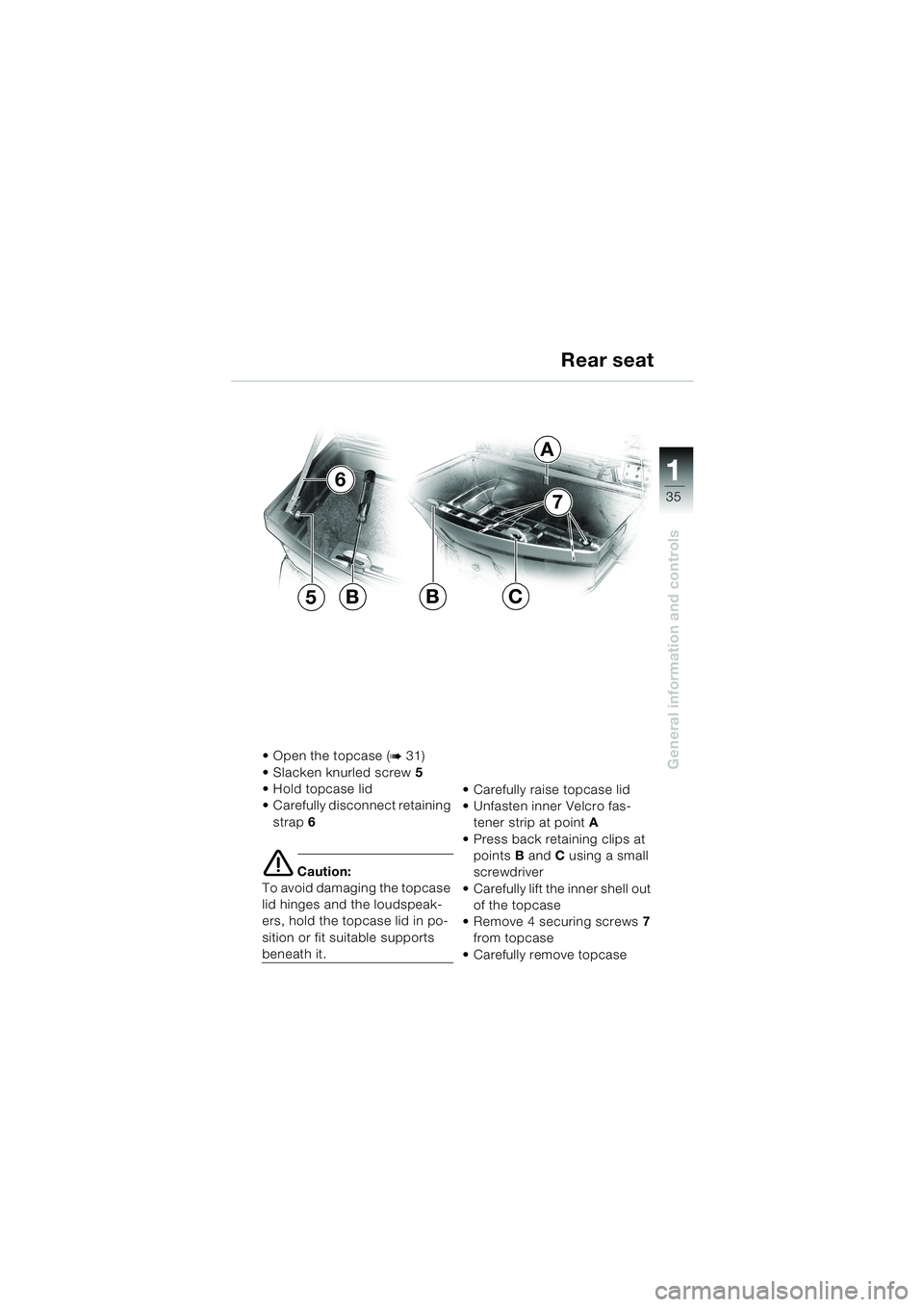

35
General information and controls
1
Rear seat
Open the topcase (b 31)
Slacken knurled screw5
Hold topcase lid
Carefully disconnect retaining
strap6
e Caution:
To avoid damaging the topcase
lid hinges and the loudspeak-
ers, hold the topcase lid in po-
sition or fit suitable supports
beneath it.Carefully raise topcase lid
Unfasten inner Velcro fas-
tener strip at pointA
Press back retaining clips at
pointsB andC using a small
screwdriver
Carefully lift the inner shell out
of the topcase
Remove 4 securing screws7
from topcase
Carefully remove topcase
5B
6
A
BC
7
10LTbkg4.bk Seite 35 Dienstag, 27. August 2002 8:28 08

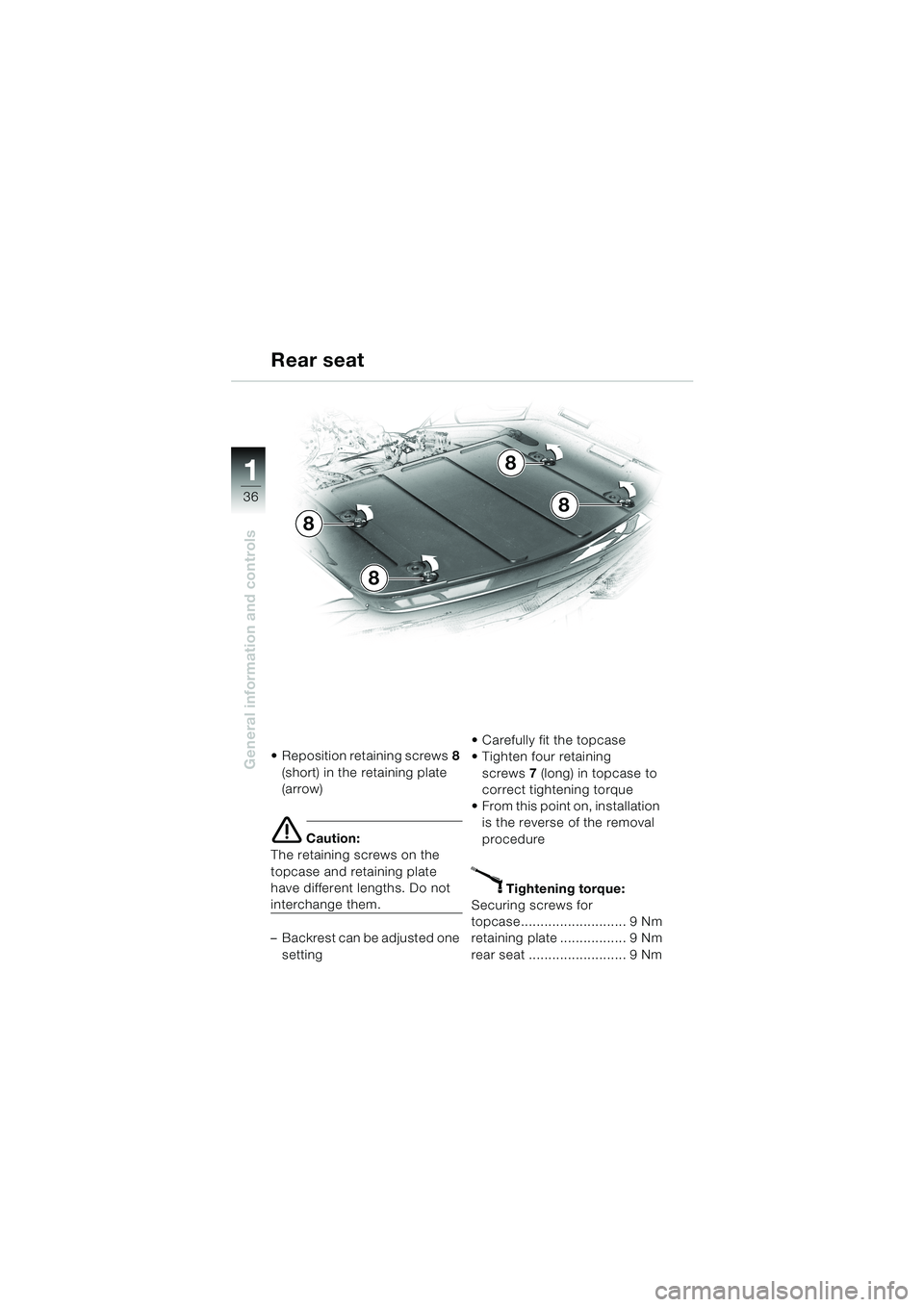

36
General information and controls
1
Rear seat
Reposition retaining screws8
(short) in the retaining plate
(arrow)
e Caution:
The retaining screws on the
topcase and retaining plate
have different lengths. Do not
interchange them.
–Backrest can be adjusted one
settingCarefully fit the topcase
Tighten four retaining
screws7 (long) in topcase to
correct tightening torque
From this point on, installation
is the reverse of the removal
procedure
X Tightening torque:
Securing screws for
topcase........................... 9 Nm
retaining plate ................. 9 Nm
rear seat ......................... 9 Nm
8
8
8
8
10LTbkg4.bk Seite 36 Dienstag, 27. August 2002 8:28 08

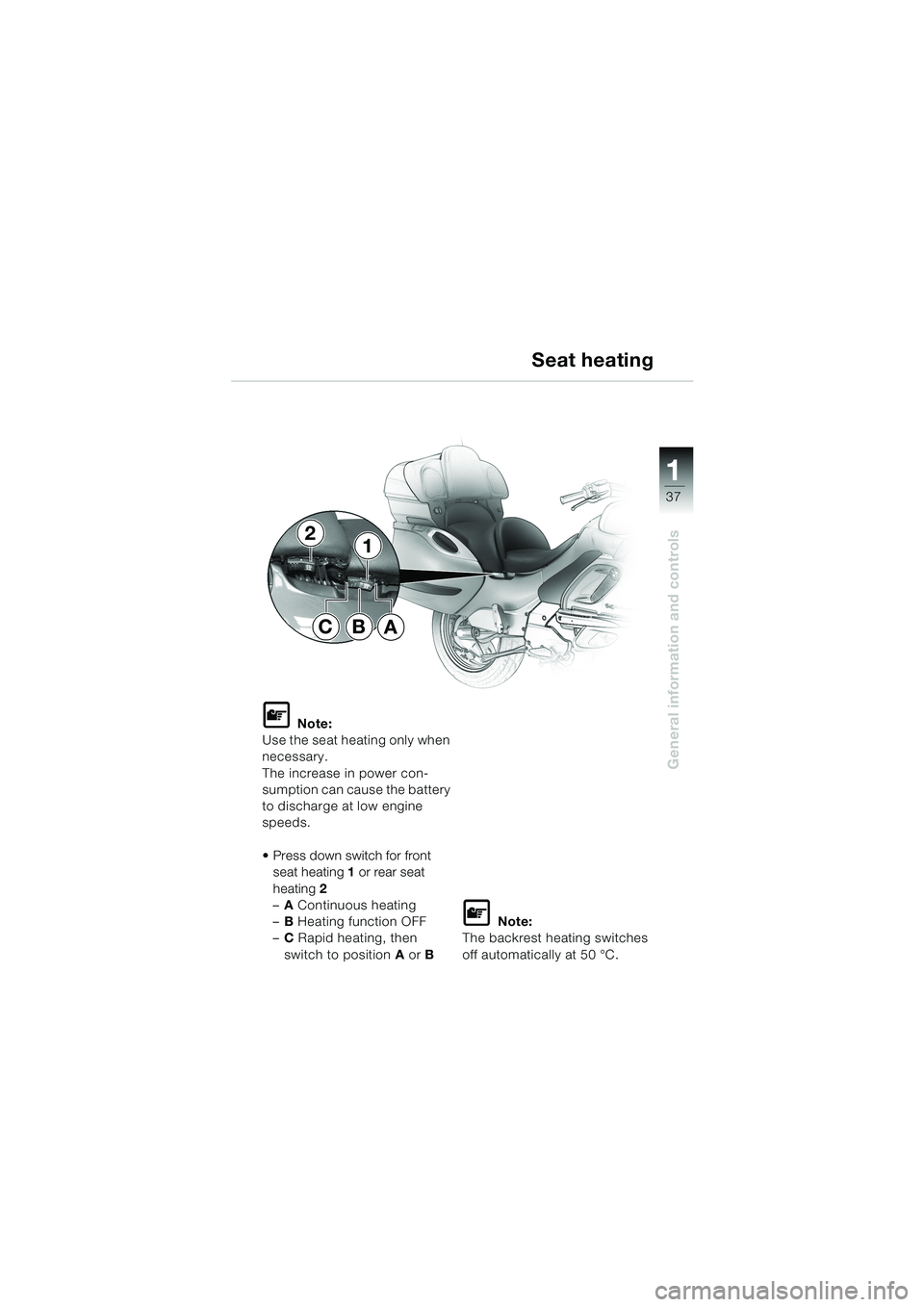

37
General information and controls
1
Seat heating
L Note:
Use the seat heating only when
necessary.
The increase in power con-
sumption can cause the battery
to discharge at low engine
speeds.
Press down switch for front
seat heating 1 or rear seat
heating 2
–AContinuous heating
–BHeating function OFF
–CRapid heating, then
switch to position A or B
L Note:
The backrest heating switches
off automatically at 50°C.
21
ABC
10LTbkg4.bk Seite 37 Dienstag, 27. August 2002 8:28 08

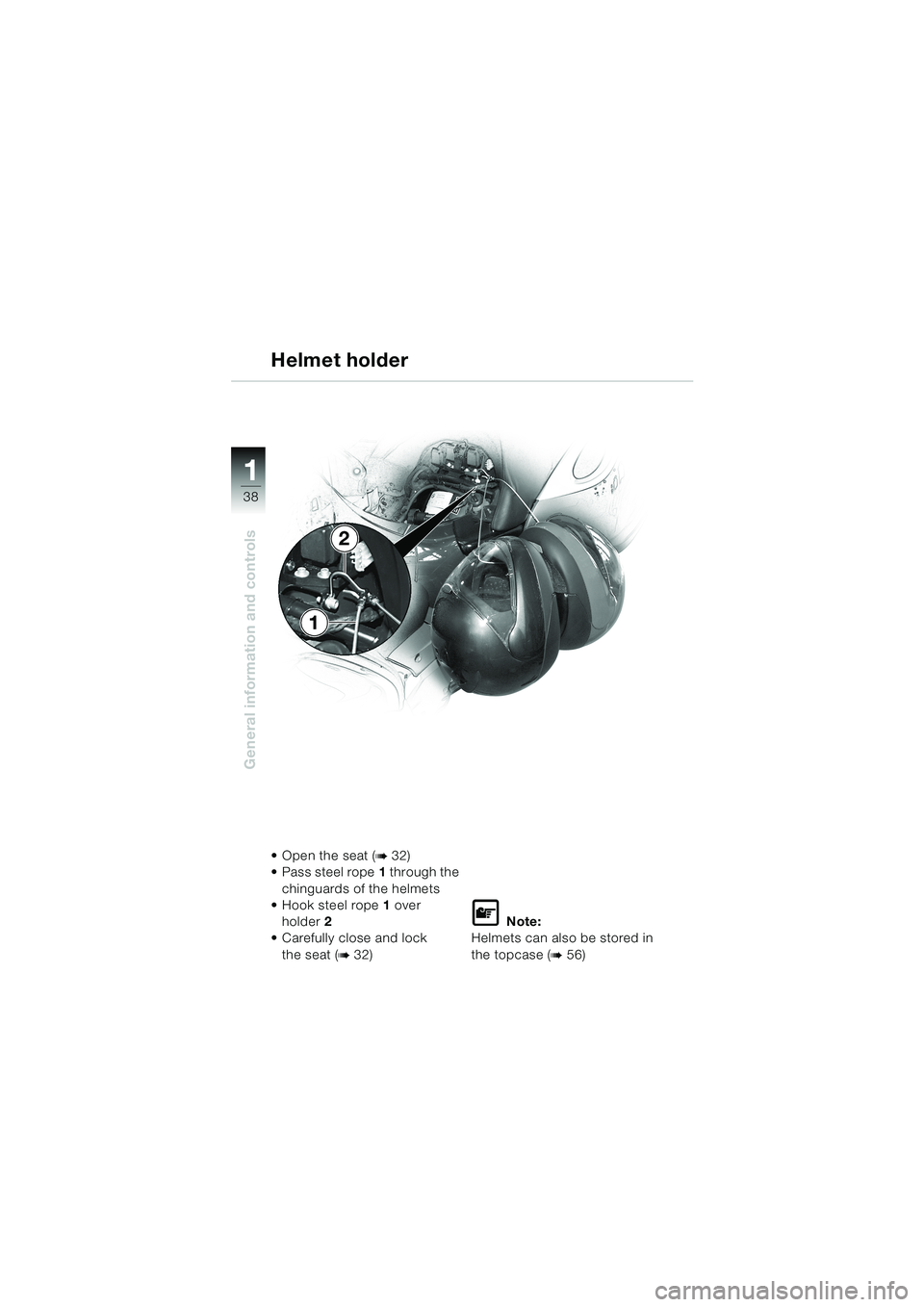

38
General information and controls
1
Helmet holder
Open the seat (b 32)
Pass steel rope1 through the
chinguards of the helmets
Hook steel rope1 over
holder2
Carefully close and lock
the seat (
b 32)
L Note:
Helmets can also be stored in
the topcase (
b 56)
1
2
10LTbkg4.bk Seite 38 Dienstag, 27. August 2002 8:28 08
