2002 BMW MOTORRAD K 1200 LT Rider's Manual (in English)

7
General information and controls
1

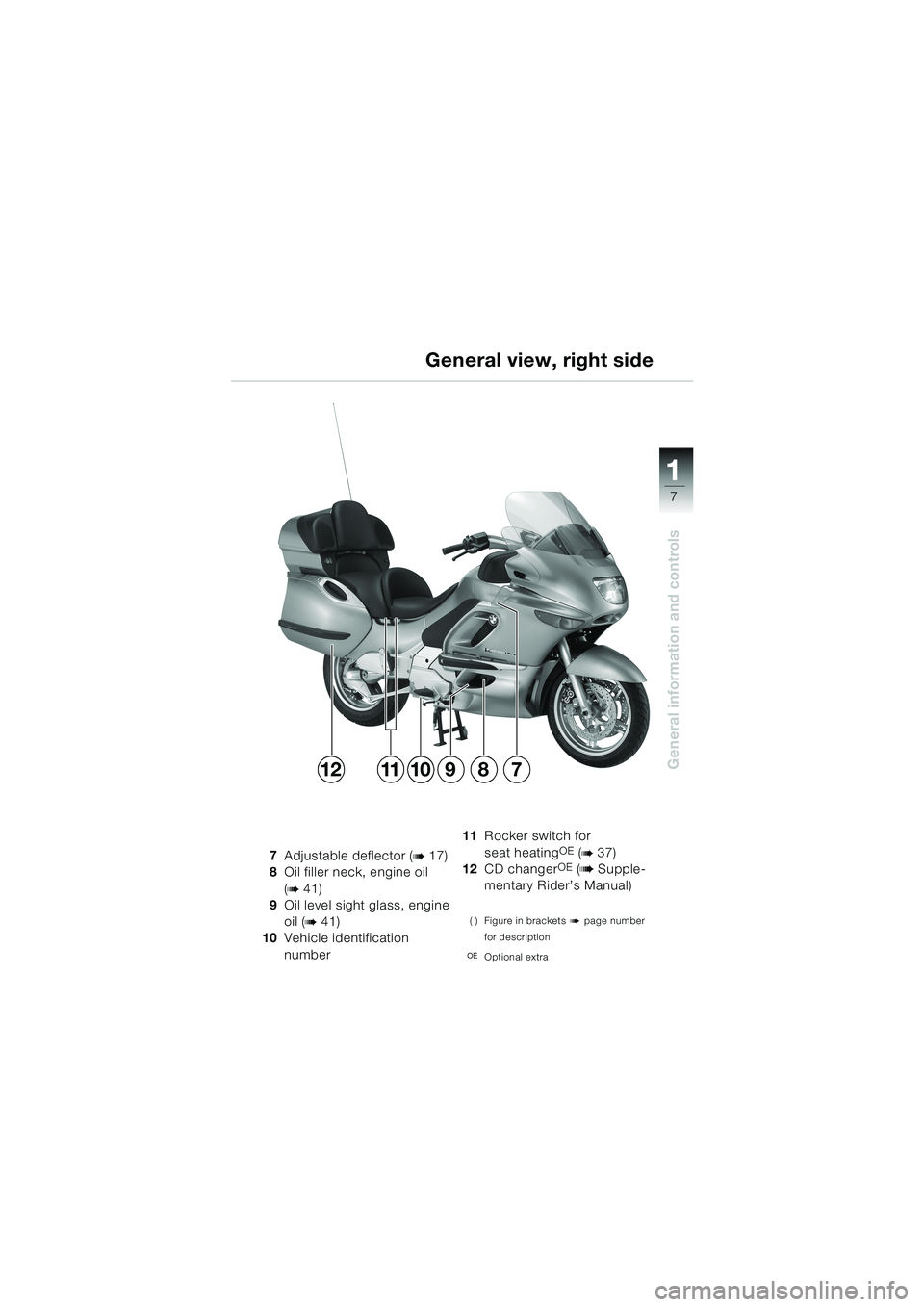

General view, right side
7Adjustable deflector (b 17)
8Oil filler neck, engine oil
(
b 41)
9Oil level sight glass, engine
oil (
b 41)
10Vehicle identification
number11Rocker switch for
seat heating
OE (b 37)
12CD changerOE (b Supple-
mentary Rider’s Manual)
( ) Figure in brackets b page number
for description
2(Optional extra
789121110
10LTbkg4.bk Seite 7 Dienstag, 27. August 2002 8:28 08

8
General information and controls
1
Cockpit
1On-board computerOE
(
b 25)
2Fuel gauge (
b 43)
3Trip meter reset knob
4Trip meter
5Speedometer
6Odometer7Cockpit lighting
–A On
–B Off
8Rev. counter (
b 68)
9Rotary knob for headlight
beam angle (
b 57)
( ) Figure in brackets b page number
for explanation
2(Optional extra
9
B
B
A
8
1234567
10LTbkg4.bk Seite 8 Dienstag, 27. August 2002 8:28 08

9
General information and controls
1
13
14
1011
C
A
B
12Cockpit
10Telltale and warning lights
(
b 10, 11)
11Ignition switch and steering
lock (
b 13)
12Coolant temperature gauge
AEngine cold
BEngine at normal oper-
ating temperature
CEngine overheated
(
b 73)13Radio controls
(
b Supplementary Rider’s
Manual)
14Radio/cassette player with
storage compartment
( ) Figure in brackets b page number
for explanation
10LTbkg4.bk Seite 9 Dienstag, 27. August 2002 8:28 08

10
General information and controls
1
45762*
BA
98
13
1Flashing turn indicator
repeater, left green
s
2Warning light, ABS red
l
(b 72)
3Warning light, general
red
e (b 72)
4Telltale light, neutral green
k (b 70)
5Telltale light, cruise control
yellow (
b 21)
6Telltale light,
reverser yellow7Flashing turn indicator
repeater, right green
t
8Clock
Adjust by pressing with a
ball-point pen or similar
object at pointA(hours) or
pointB (minutes)
9Gear indicator (
b 75)
( ) Figure in brackets b page number
for description
* depending on national-market speci-
fication
Telltale and warning lights
10LTbkg4.bk Seite 10 Dienstag, 27. August 2002 8:28 08

11
General information and controls
1
Telltale and warning lights
10Warning light, coolant
temperature
j red (b 59, 73)
11Warning light, battery charge
current red
r (b 73)
12Telltale light, high-beam
headlight blue
q
13 Warning light, engine oil
pressure red
p (b 40, 72)14Warning light, fuel level/
approx. 4 litres
(0.880 Imp.gal) reserve
yellow
m (b 43, 72)
( ) Figure in brackets b page number
for description
1011121314
10LTbkg4.bk Seite 11 Dienstag, 27. August 2002 8:28 08

12
General information and controls
1

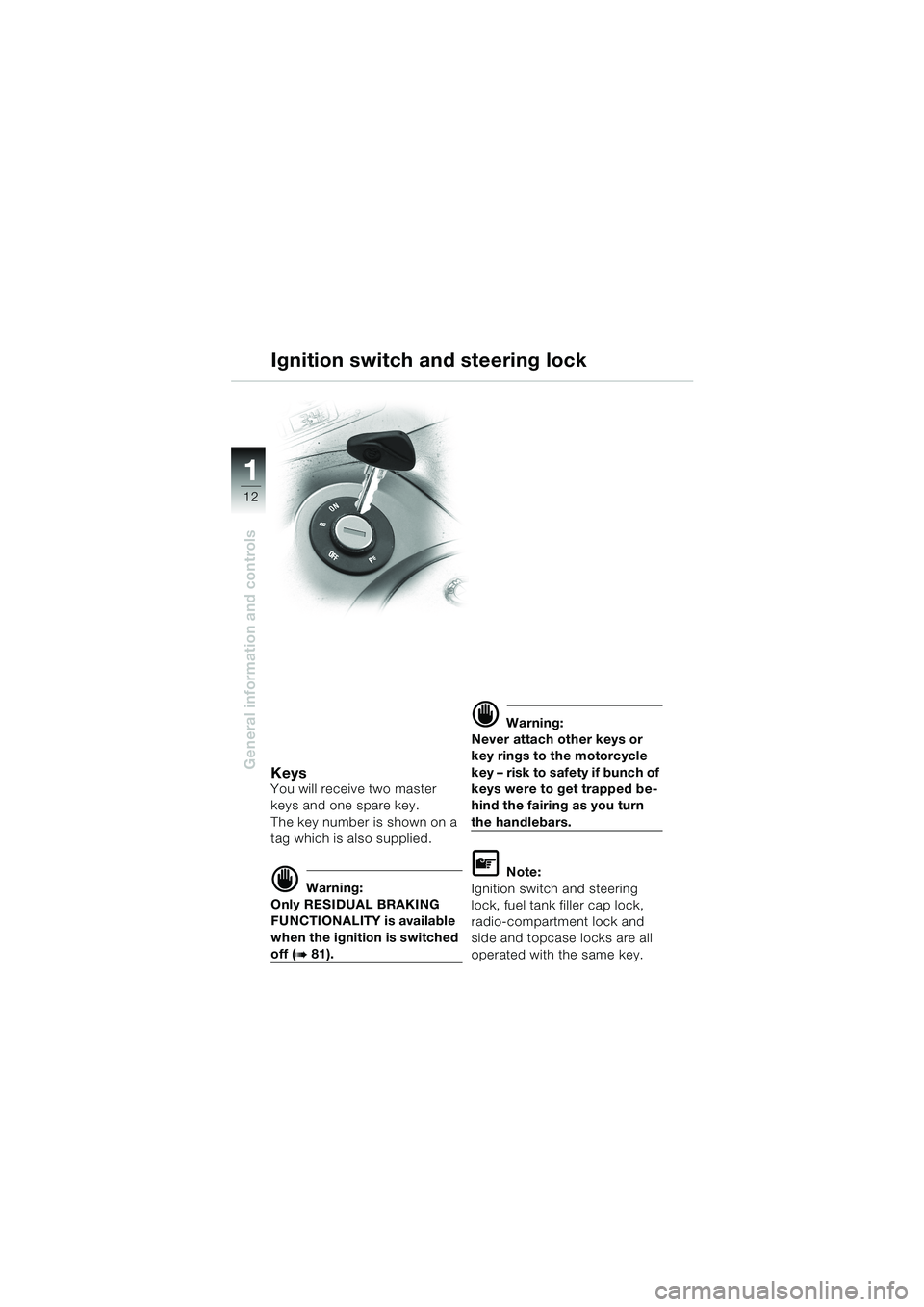

Ignition switch and steering lock
KeysYou will receive two master
keys and one spare key.
The key number is shown on a
tag which is also supplied.
d Warning:
Only RESIDUAL BRAKING
FUNCTIONALITY is available
when the ignition is switched
off (b 81).
d Warning:
Never attach other keys or
key rings to the motorcycle
key – risk to safety if bunch of
keys were to get trapped be-
hind the fairing as you turn
the handlebars.
L Note:
Ignition switch and steering
lock, fuel tank filler cap lock,
radio-compartment lock and
side and topcase locks are all
operated with the same key.
10LTbkg4.bk Seite 12 Dienstag, 27. August 2002 8:28 08

13
General information and controls
1
Ignition switch and steering lock
Key positionsONOperating position,
ignition, lights and all
electrical circuits
switched on
R *Ignition and lights off,
steering lock disengaged
(handlebars can be turned
freely to left or right)
d Warning:
Never turn the key to
OFF or
I while the motorcy-
cle is being ridden.
* The key can be removed in these
positions
Turn the handlebars to full left
lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF*Ignition and lights off,
steering lock engaged
I**Parking light on,
steering lock engaged
L Note:
Switch the parking light on only
for limited periods.
Note state of battery charge.
10LTbkg4.bk Seite 13 Dienstag, 27. August 2002 8:28 08

14
General information and controls
1
Left handlebar fitting
d Warning:
To prevent air from entering
the clutch system:
Do not turn the fitting on the
handlebars.
1Switch for cruise control
(
b 21)
2Hazard warning flasher
switch (
b 16)
3Handlebar controls for
audio system (
b Supple-
mentary Rider’s Manual)4Switch for windscreen
adjustment (
b 17)
5Horn button
6Turn indicator switch, left
Press
–Turn indicators operate
To switch off turn indicators:
Self-cancelling while rid-
ing, or press turn indicator
cancel switch 13 (
b 15)
7High/low (dipped) headlight
switch
FHigh-beam headlight
GLow-beam headlight
FHeadlight flasher
123
5467
10LTbkg4.bk Seite 14 Dienstag, 27. August 2002 8:28 08
