ider's Manual
K

1200 LT
BMW Motorrad On-board
documentation
consisting of
Rider's Manual
and Maintenance
Instructions

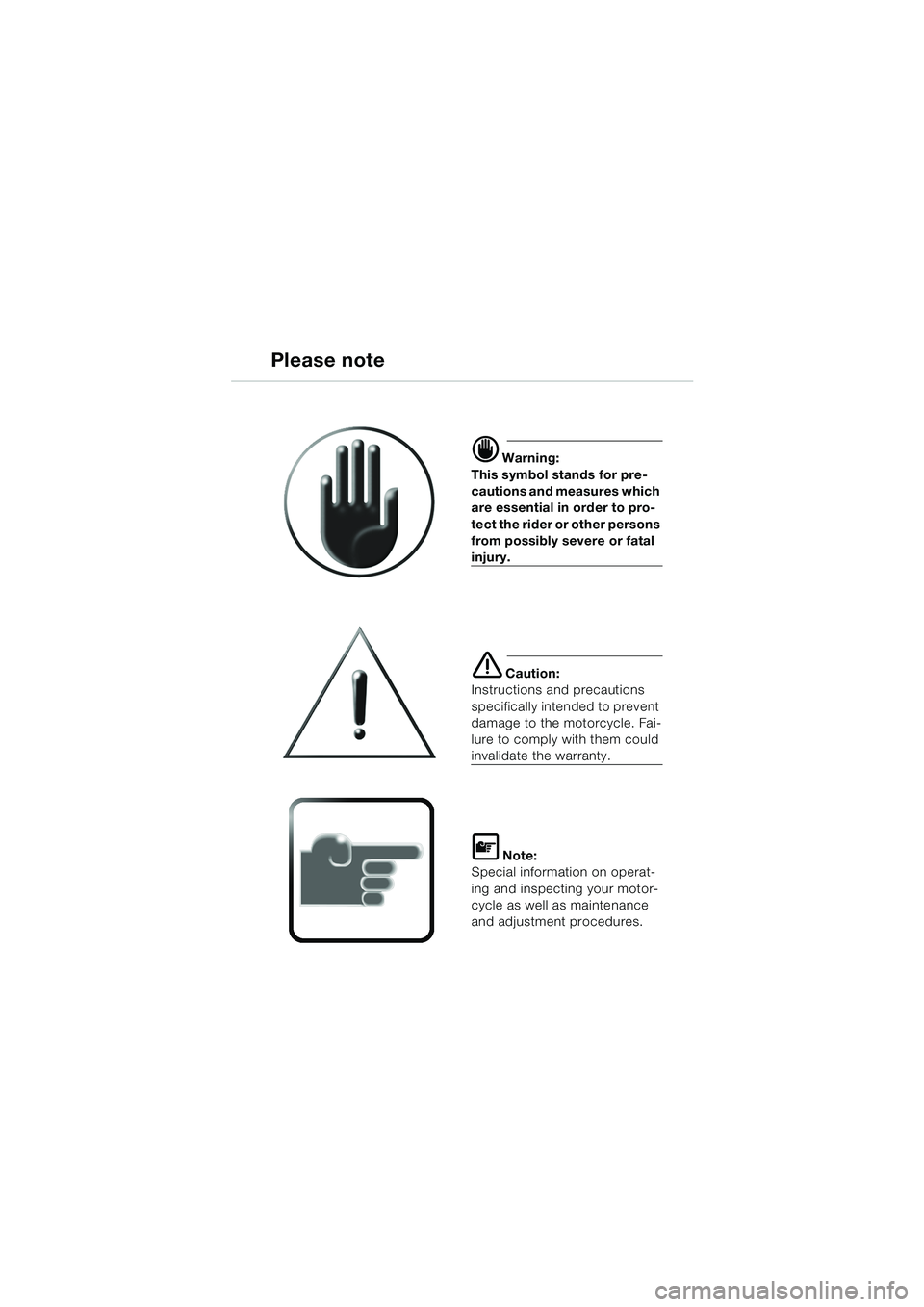

Please note
d Warning:
This symbol stands for pre-
cautions and measures which
are essential in order to pro-
tect the rider or other persons
from possibly severe or fatal
injury.
e Caution:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle. Fai-
lure to comply with them could
invalidate the warranty.
L Note:
Special information on operat-
ing and inspecting your motor-
cycle as well as maintenance
and adjustment procedures.
10LTbkg4.bk Seite 104 Dienstag, 27. August 2002 8:28 08

4
General information and controls
1

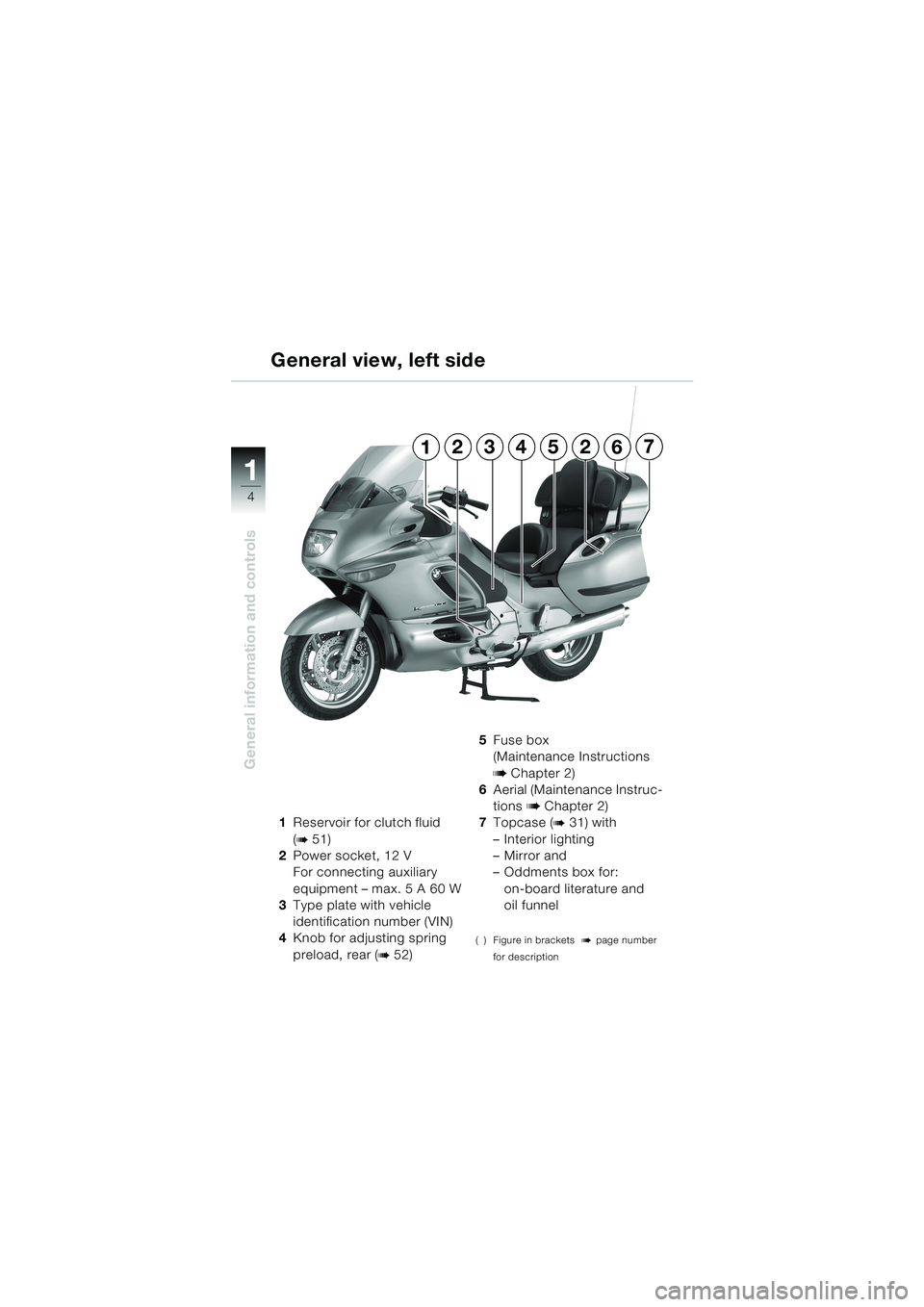

1Reservoir for clutch fluid
(
b 51)
2Power socket, 12 V
For connecting auxiliary
equipment – max. 5 A 60 W
3Type plate with vehicle
identification number (VIN)
4Knob for adjusting spring
preload, rear (
b 52)5Fuse box
(Maintenance Instructions
b Chapter 2)
6Aerial (Maintenance Instruc-
tions
b Chapter 2)
7Topcase (
b 31) with
–Interior lighting
–Mirror and
–Oddments box for:
on-board literature and
oil funnel
( ) Figure in brackets b page number
for description
General view, left side
32452671
10LTbkg4.bk Seite 4 Dienstag, 27. August 2002 8:28 08

5
General information and controls
1
General view, left side

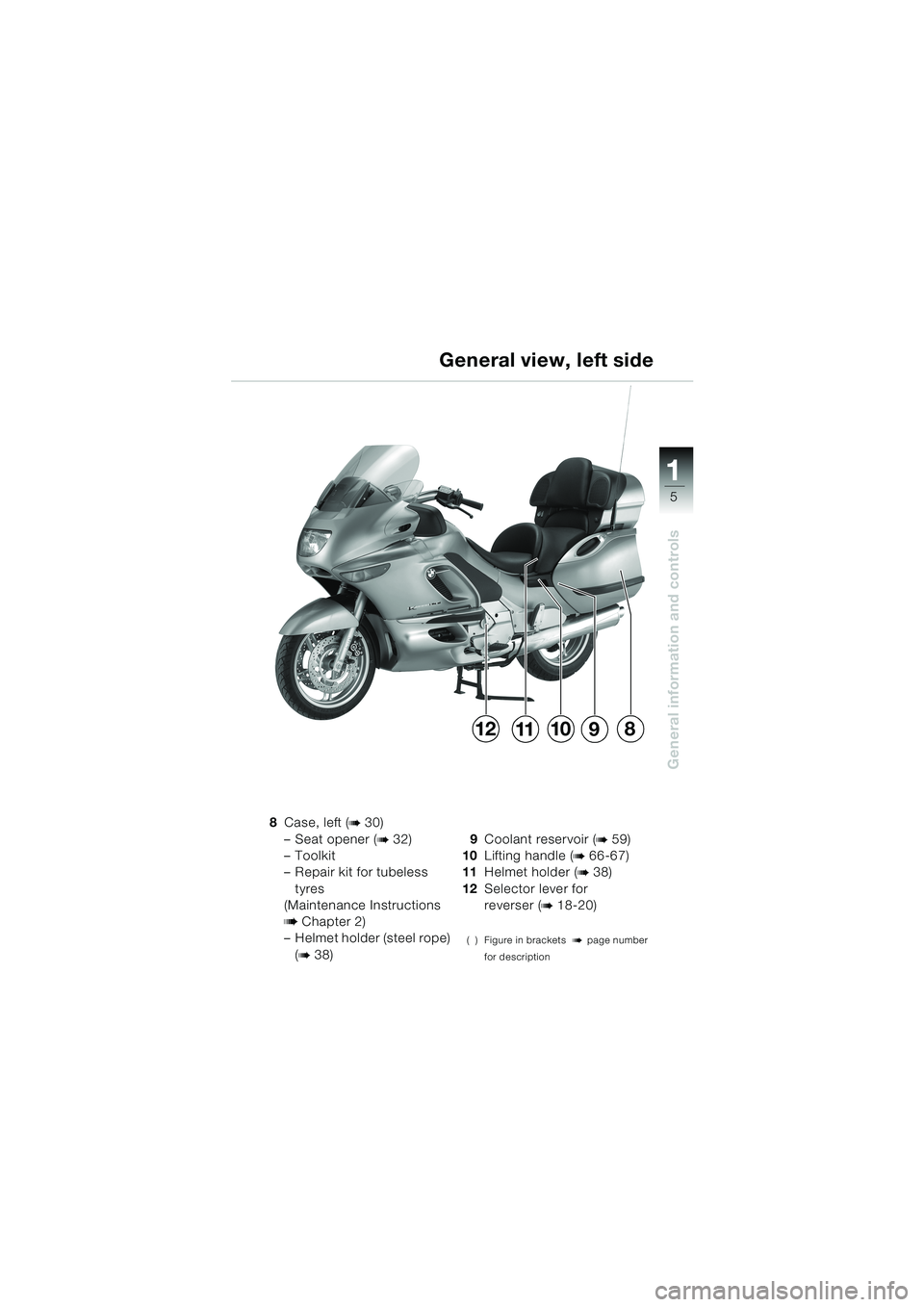

8Case, left (b 30)
–Seat opener (
b 32)
–Toolkit
–Repair kit for tubeless
tyres
(Maintenance Instructions
b Chapter 2)
–Helmet holder (steel rope)
(
b 38)9Coolant reservoir (
b 59)
10Lifting handle (
b 66-67)
11Helmet holder (
b 38)
12Selector lever for
reverser (
b 18-20)
( ) Figure in brackets b page number
for description
91110812
10LTbkg4.bk Seite 5 Dienstag, 27. August 2002 8:28 08

2 2
39
Safety check
Checklist

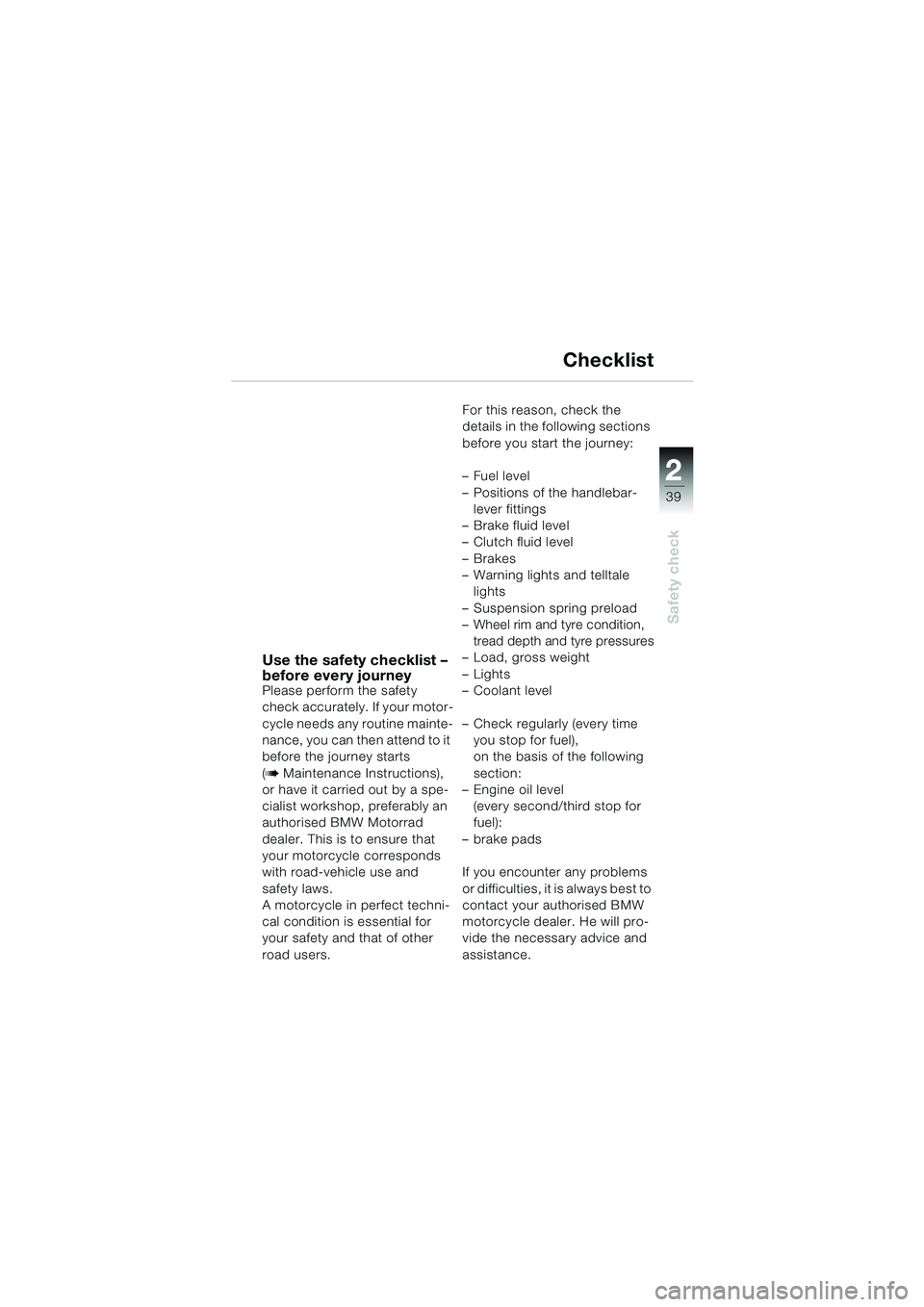

Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can then attend to it
before the journey starts
(
b Maintenance Instructions),
or have it carried out by a spe-
cialist workshop, preferably an
authorised BMW Motorrad
dealer. This is to ensure that
your motorcycle corresponds
with road-vehicle use and
safety laws.
A motorcycle in perfect techni-
cal condition is essential for
your safety and that of other
road users.For this reason, check the
details in the following sections
before you start the journey:
–Fuel level
–Positions of the handlebar-
lever fittings
–Brake fluid level
–Clutch fluid level
–Brakes
–Warning lights and telltale
lights
–Suspension spring preload
–Wheel rim and tyre condition,
tread depth and tyre pressures
–Load, gross weight
–Lights
–Coolant level
–Check regularly (every time
you stop for fuel),
on the basis of the following
section:
–Engine oil level
(every second/third stop for
fuel):
–brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
motorcycle dealer. He will pro-
vide the necessary advice and
assistance.
10LTbkg4.bk Seite 39 Dienstag, 27. August 2002 8:28 08

2 2
47
Safety check

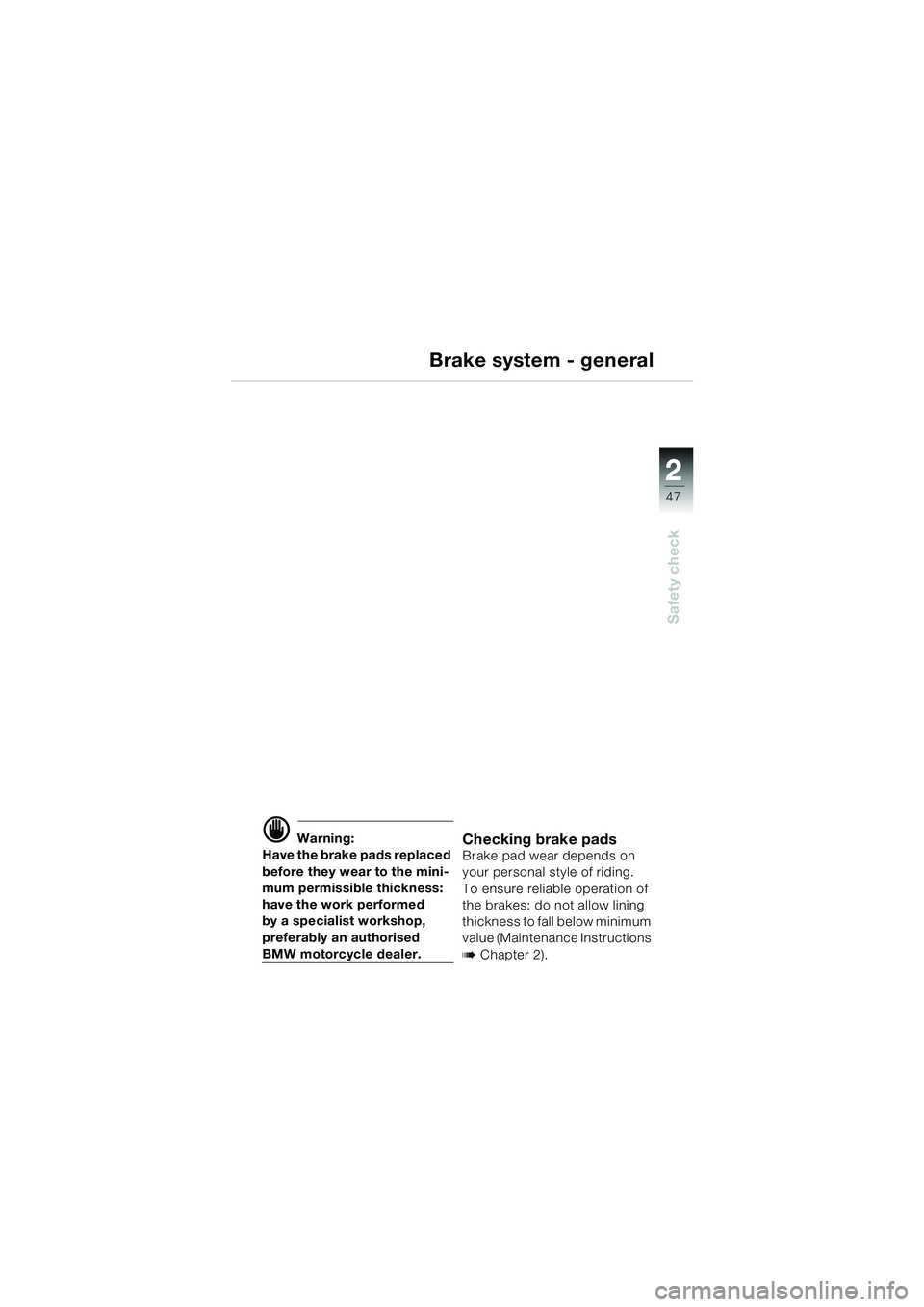

Brake system - general
d Warning:
Have the brake pads replaced
before they wear to the mini-
mum permissible thickness:
have the work performed
by a specialist workshop,
preferably an authorised
BMW motorcycle dealer.
Checking brake pads
Brake pad wear depends on
your personal style of riding.
To ensure reliable operation of
the brakes: do not allow lining
thickness to fall below minimum
value (Maintenance Instructions
b Chapter 2).
10LTbkg4.bk Seite 47 Dienstag, 27. August 2002 8:28 08

48
Safety check
2

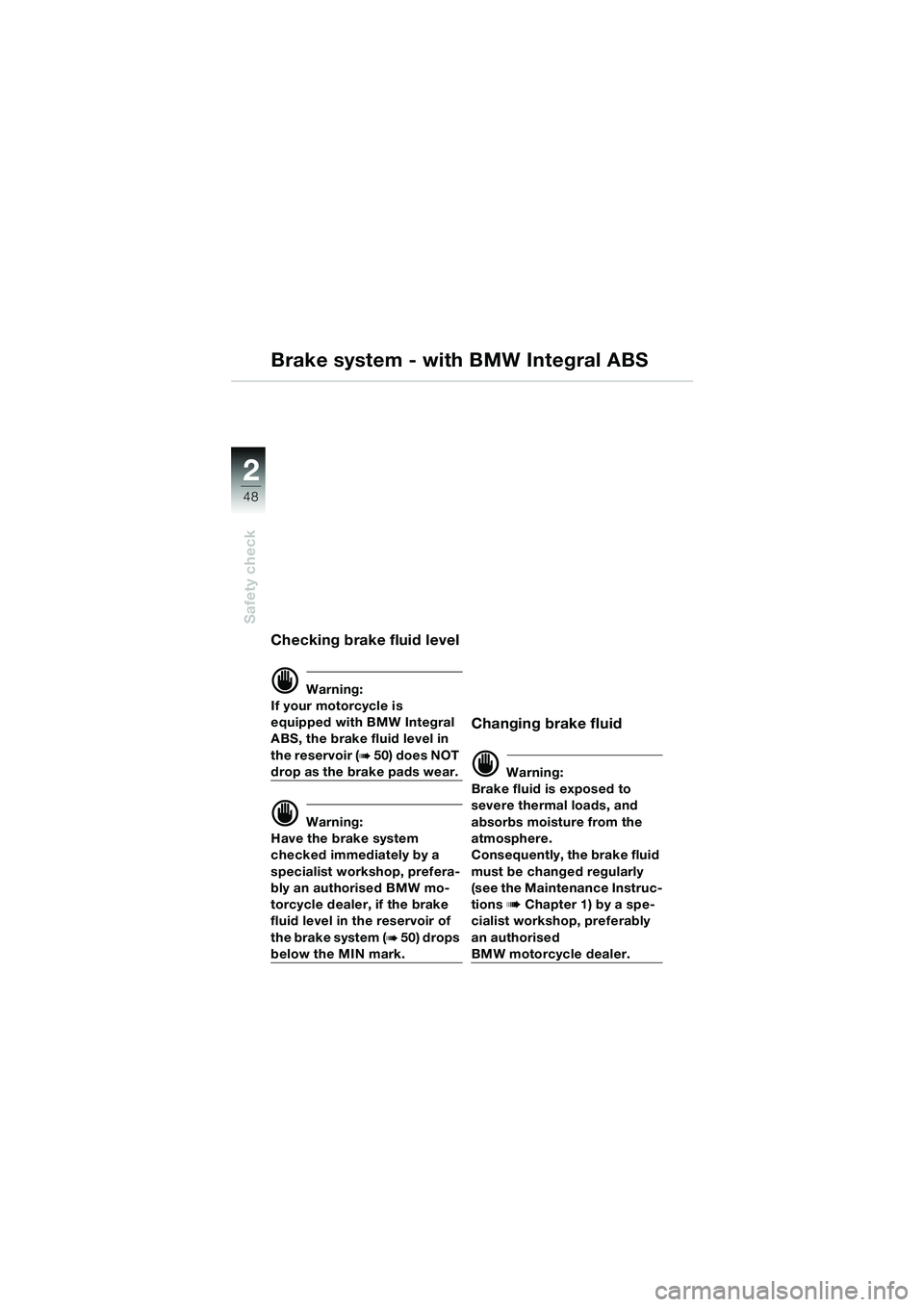

Checking brake fluid level
d Warning:
If your motorcycle is
equipped with BMW Integral
ABS, the brake fluid level in
the reservoir (
b 50) does NOT
drop as the brake pads wear.
d Warning:
Have the brake system
checked immediately by a
specialist workshop, prefera-
bly an authorised BMW mo-
torcycle dealer, if the brake
fluid level in the reservoir of
the brake system (
b 50) drops
below the MIN mark.
Changing brake fluid
d Warning:
Brake fluid is exposed to
severe thermal loads, and
absorbs moisture from the
atmosphere.
Consequently, the brake fluid
must be changed regularly
(see the Maintenance Instruc-
tions
b Chapter 1) by a spe-
cialist workshop, preferably
an authorised
BMW motorcycle dealer.
Brake system - with BMW Integral ABS
10LTbkg4.bk Seite 48 Dienstag, 27. August 2002 8:28 08

2 2
57
Safety check

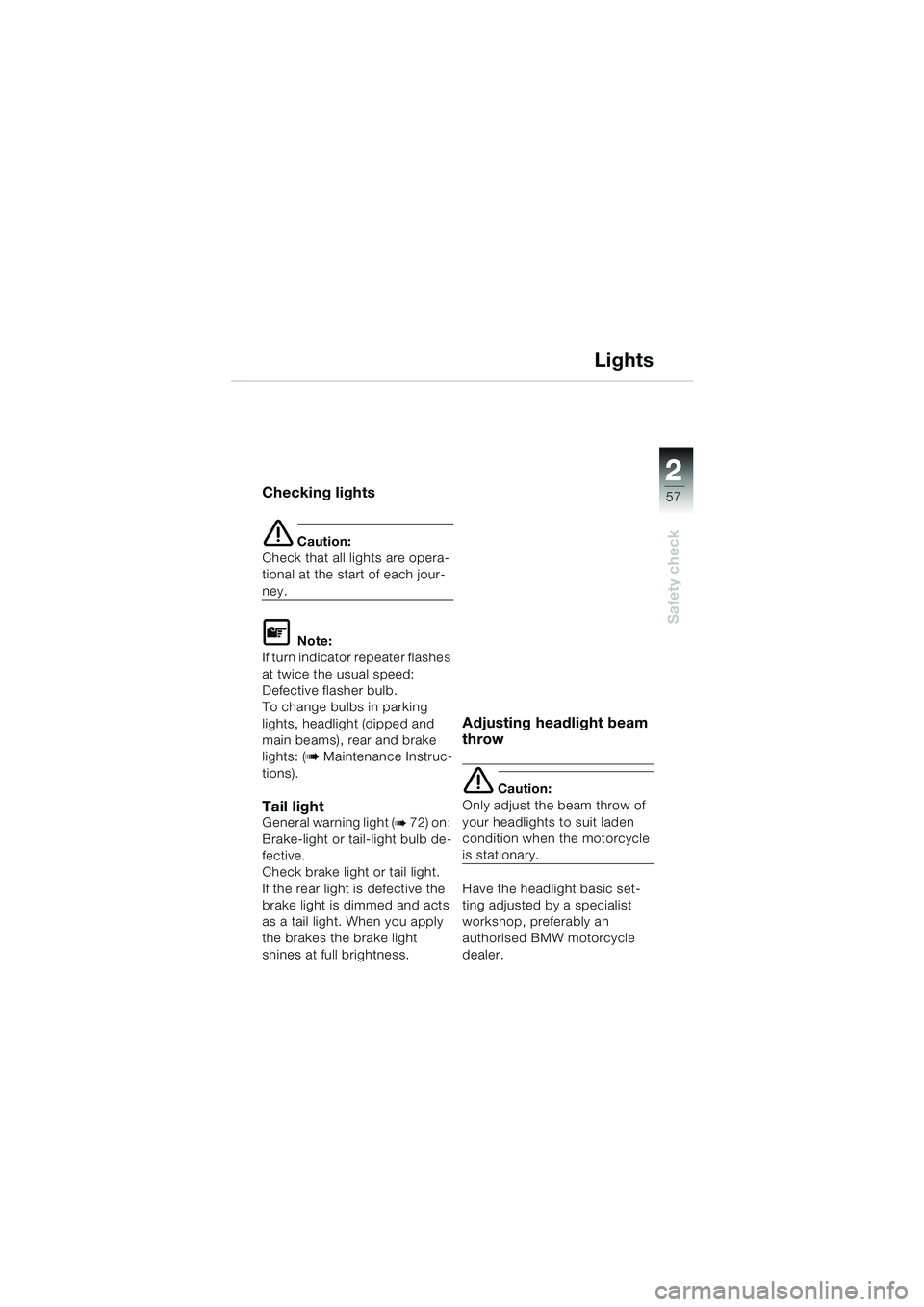

Lights
Checking lights
e Caution:
Check that all lights are opera-
tional at the start of each jour-
ney.
L Note:
If turn indicator repeater flashes
at twice the usual speed:
Defective flasher bulb.
To change bulbs in parking
lights, headlight (dipped and
main beams), rear and brake
lights: (
b Maintenance Instruc-
tions).
Tail lightGeneral warning light (b 72) on:
Brake-light or tail-light bulb de-
fective.
Check brake light or tail light.
If the rear light is defective the
brake light is dimmed and acts
as a tail light. When you apply
the brakes the brake light
shines at full brightness.
Adjusting headlight beam
throw
e Caution:
Only adjust the beam throw of
your headlights to suit laden
condition when the motorcycle
is stationary.
Have the headlight basic set-
ting adjusted by a specialist
workshop, preferably an
authorised BMW motorcycle
dealer.
10LTbkg4.bk Seite 57 Dienstag, 27. August 2002 8:28 08
