2002 BMW MOTORRAD K 1200 LT light

13
General information and controls
1

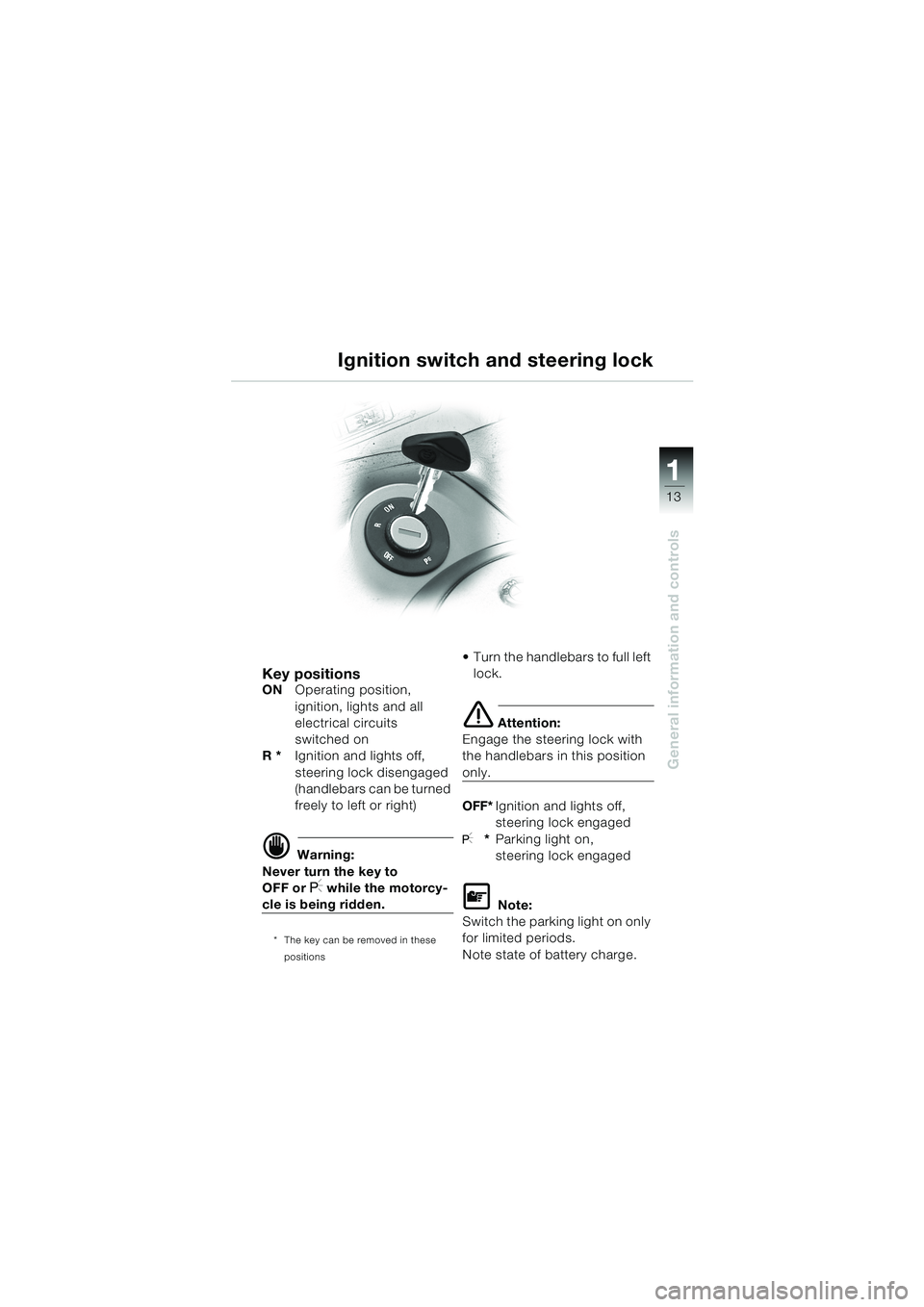

Ignition switch and steering lock
Key positionsONOperating position,
ignition, lights and all
electrical circuits
switched on
R *Ignition and lights off,
steering lock disengaged
(handlebars can be turned
freely to left or right)
d Warning:
Never turn the key to
OFF or
I while the motorcy-
cle is being ridden.
* The key can be removed in these
positions
Turn the handlebars to full left
lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF*Ignition and lights off,
steering lock engaged
I**Parking light on,
steering lock engaged
L Note:
Switch the parking light on only
for limited periods.
Note state of battery charge.
10LTbkg4.bk Seite 13 Dienstag, 27. August 2002 8:28 08

14
General information and controls
1

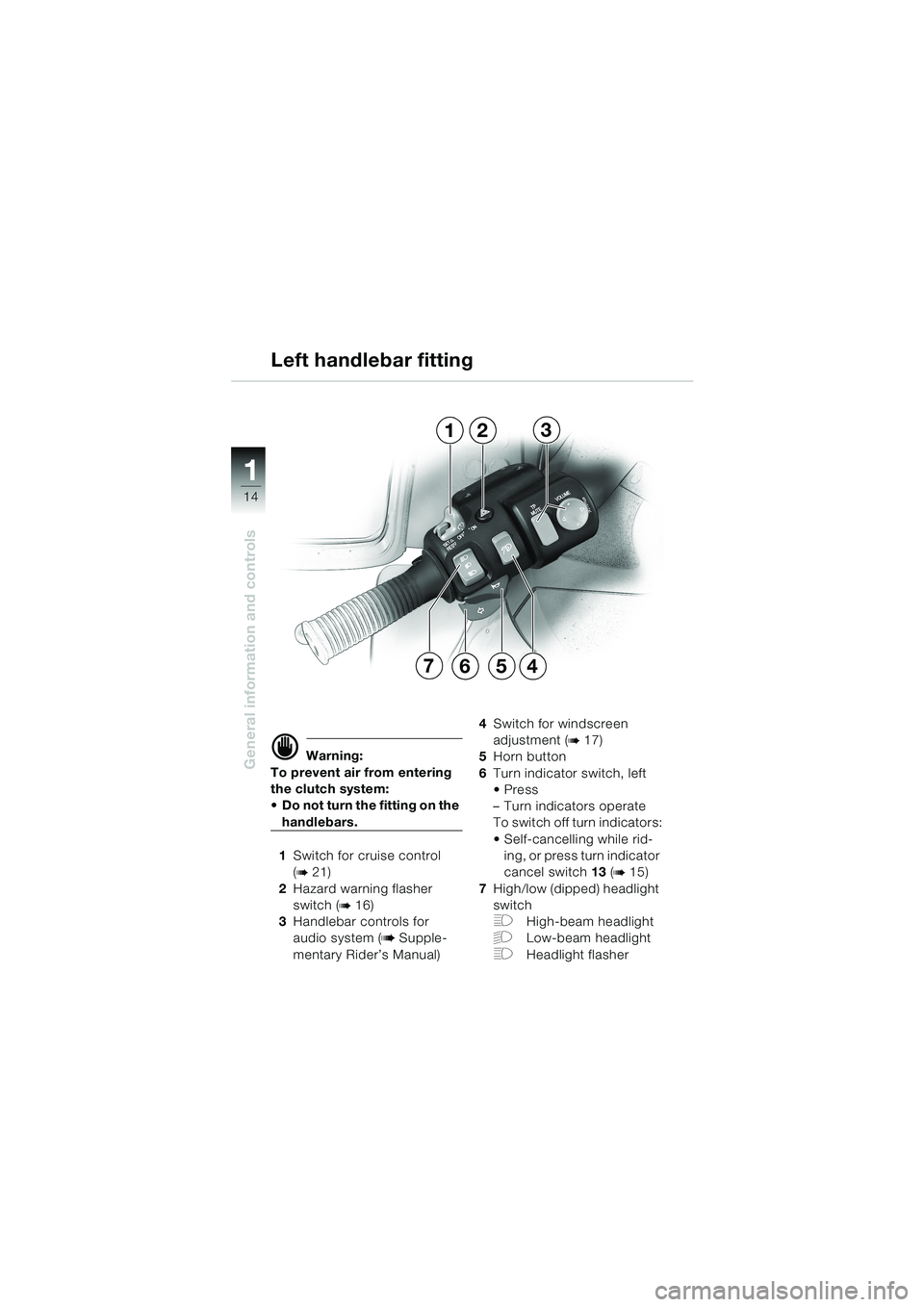

Left handlebar fitting
d Warning:
To prevent air from entering
the clutch system:
Do not turn the fitting on the
handlebars.
1Switch for cruise control
(
b 21)
2Hazard warning flasher
switch (
b 16)
3Handlebar controls for
audio system (
b Supple-
mentary Rider’s Manual)4Switch for windscreen
adjustment (
b 17)
5Horn button
6Turn indicator switch, left
Press
–Turn indicators operate
To switch off turn indicators:
Self-cancelling while rid-
ing, or press turn indicator
cancel switch 13 (
b 15)
7High/low (dipped) headlight
switch
FHigh-beam headlight
GLow-beam headlight
FHeadlight flasher
123
5467
10LTbkg4.bk Seite 14 Dienstag, 27. August 2002 8:28 08

16
General information and controls
1

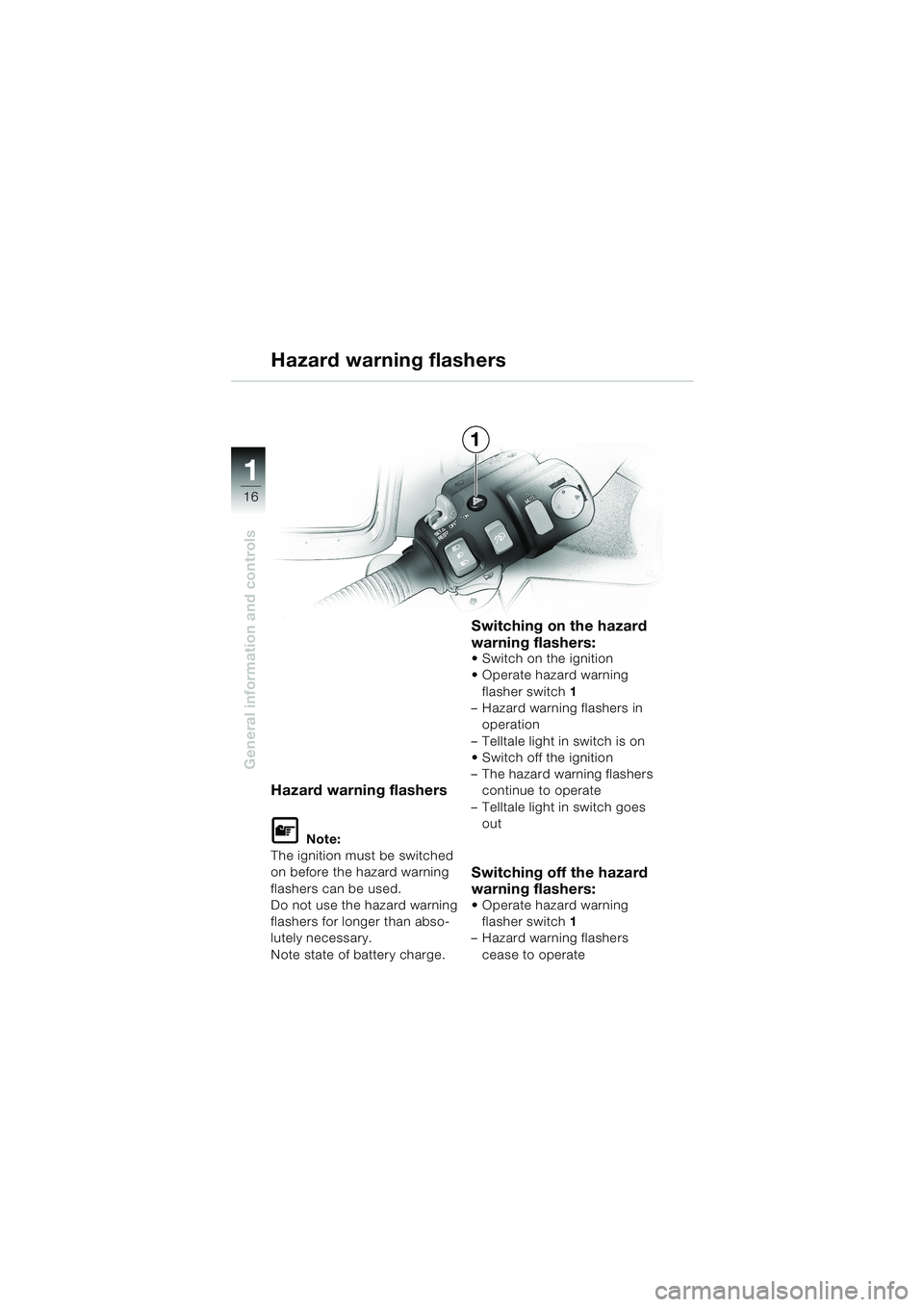

Hazard warning flashers
Hazard warning flashers
L Note:
The ignition must be switched
on before the hazard warning
flashers can be used.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
Switching on the hazard
warning flashers:
Switch on the ignition
Operate hazard warning
flasher switch1
–Hazard warning flashers in
operation
–Telltale light in switch is on
Switch off the ignition
–The hazard warning flashers
continue to operate
–Telltale light in switch goes
out
Switching off the hazard
warning flashers:
Operate hazard warning
flasher switch1
–Hazard warning flashers
cease to operate
1
10LTbkg4.bk Seite 16 Dienstag, 27. August 2002 8:28 08

19
General information and controls
1

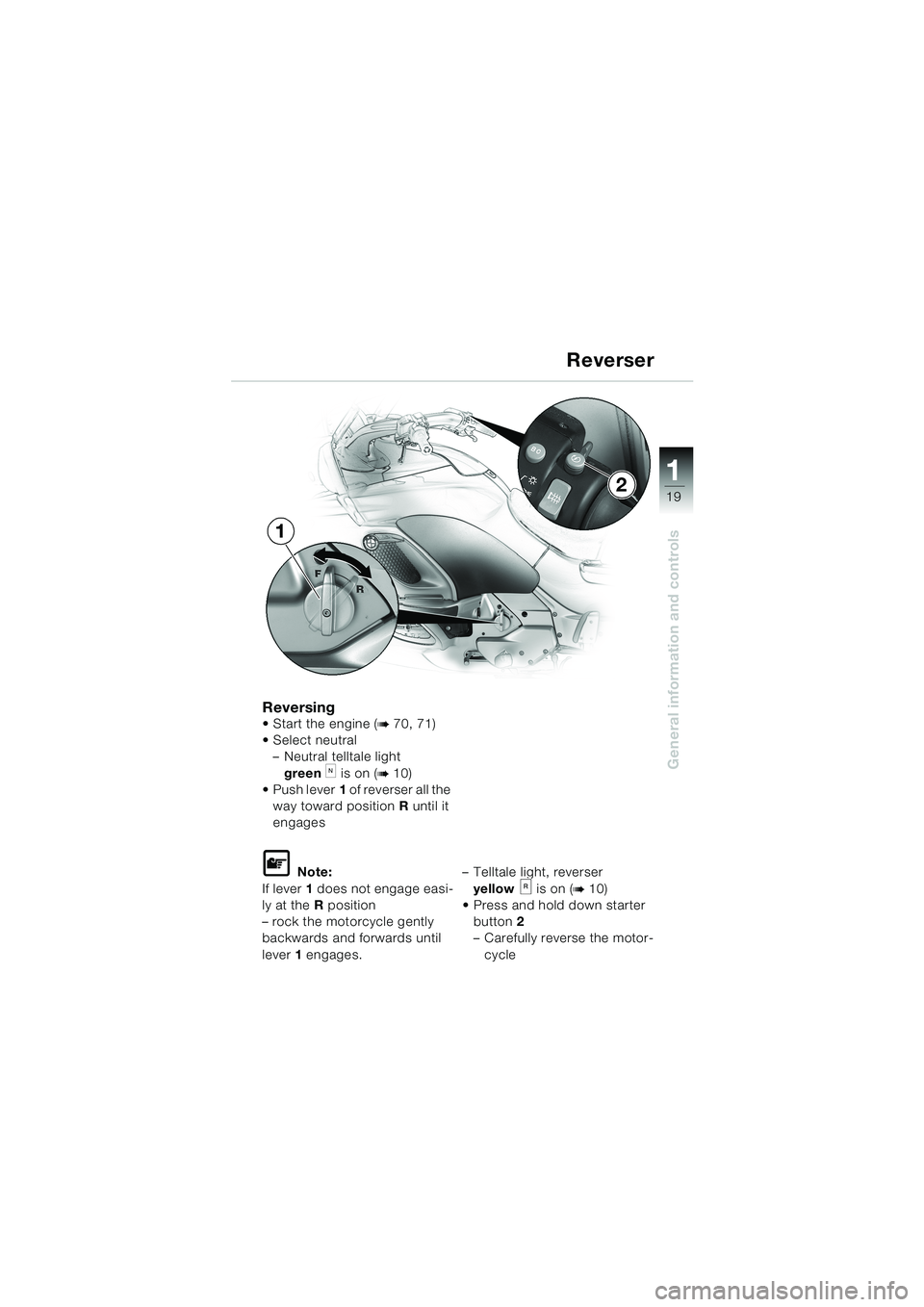

Reverser
ReversingStart the engine (b 70, 71)
Select neutral
–Neutral telltale light
green
k is on (b 10)
Push lever1 of reverser all the
way toward positionR until it
engages
L Note:
If lever1 does not engage easi-
ly at the R position
– rock the motorcycle gently
backwards and forwards until
lever1 engages.–Telltale light, reverser
yellow is on (
b 10)
Press and hold down starter
button2
–Carefully reverse the motor-
cycle
1
2
10LTbkg4.bk Seite 19 Dienstag, 27. August 2002 8:28 08

20
General information and controls
1

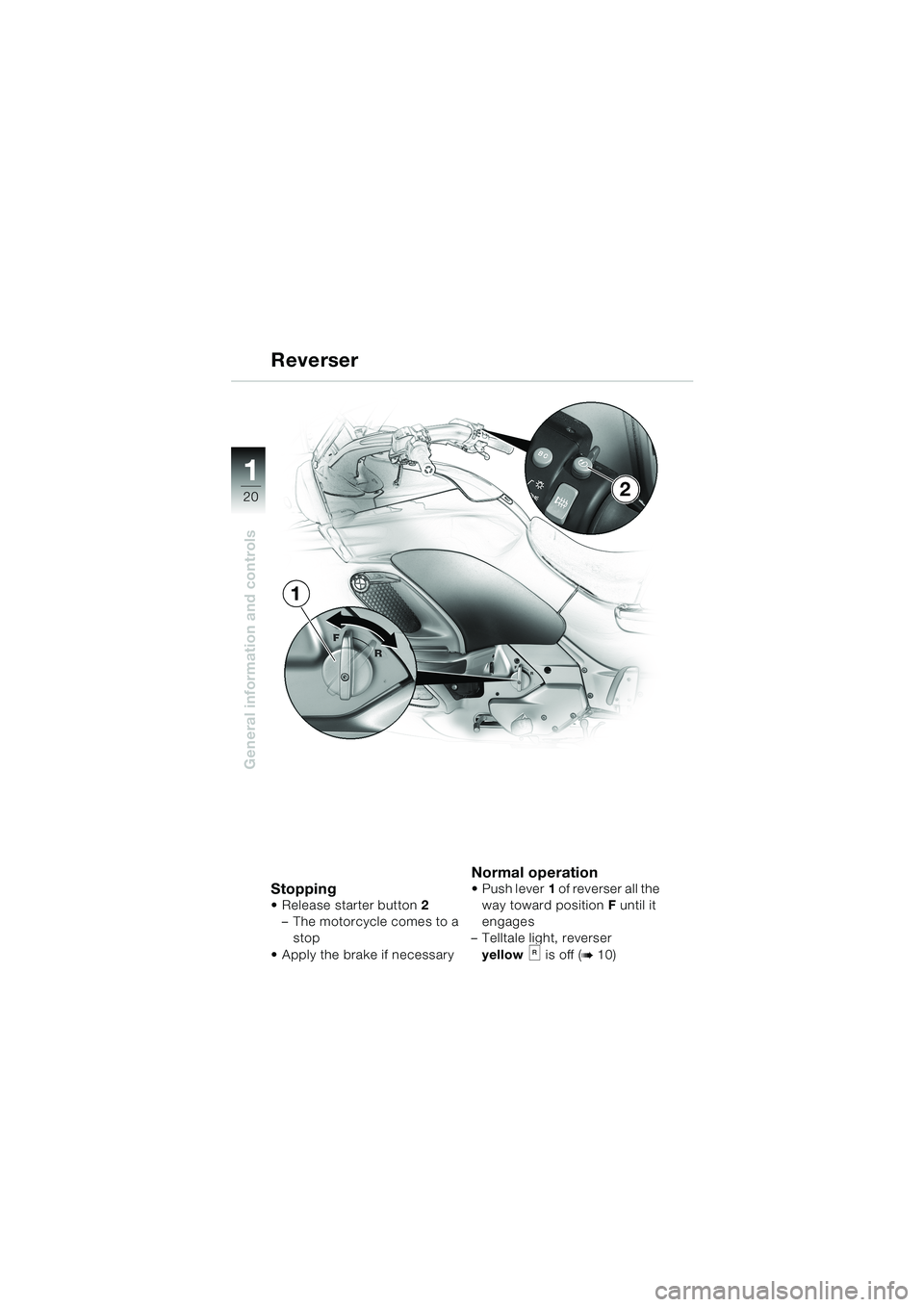

Reverser
StoppingRelease starter button2
–The motorcycle comes to a
stop
Apply the brake if necessary
Normal operationPush lever1 of reverser all the
way toward positionF until it
engages
–Telltale light, reverser
yellow is off (
b 10)
1
2
10LTbkg4.bk Seite 20 Dienstag, 27. August 2002 8:28 08

22
General information and controls
1

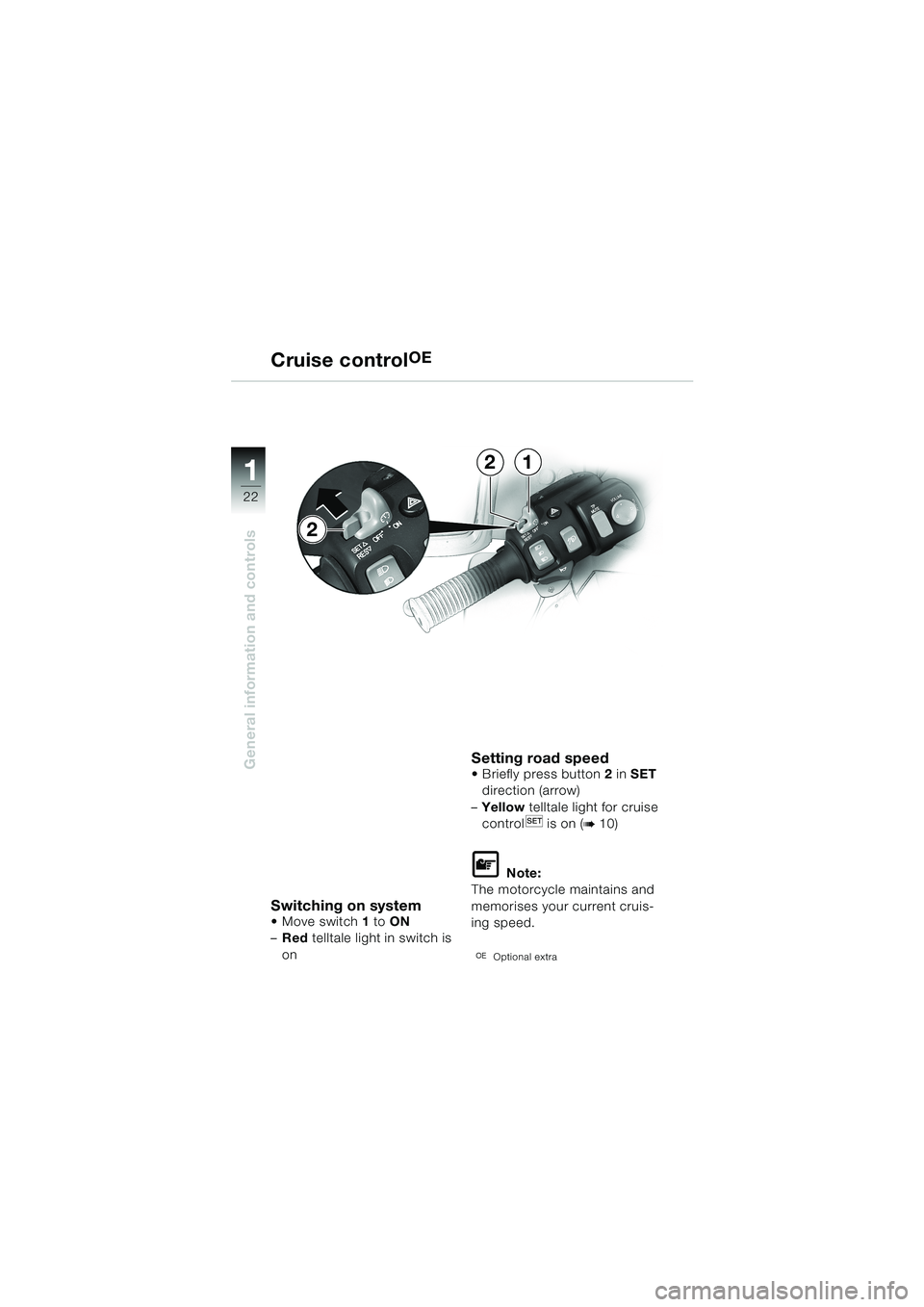

Cruise controlOE
Switching on systemMove switch1 to ON
–Red telltale light in switch is
on
Setting road speed Briefly press button2 in SET
direction (arrow)
–Yellow telltale light for cruise
control is on (
b 10)
L Note:
The motorcycle maintains and
memorises your current cruis-
ing speed.
2(Optional extra
12
2
10LTbkg4.bk Seite 22 Dienstag, 27. August 2002 8:28 08

24
General information and controls
1

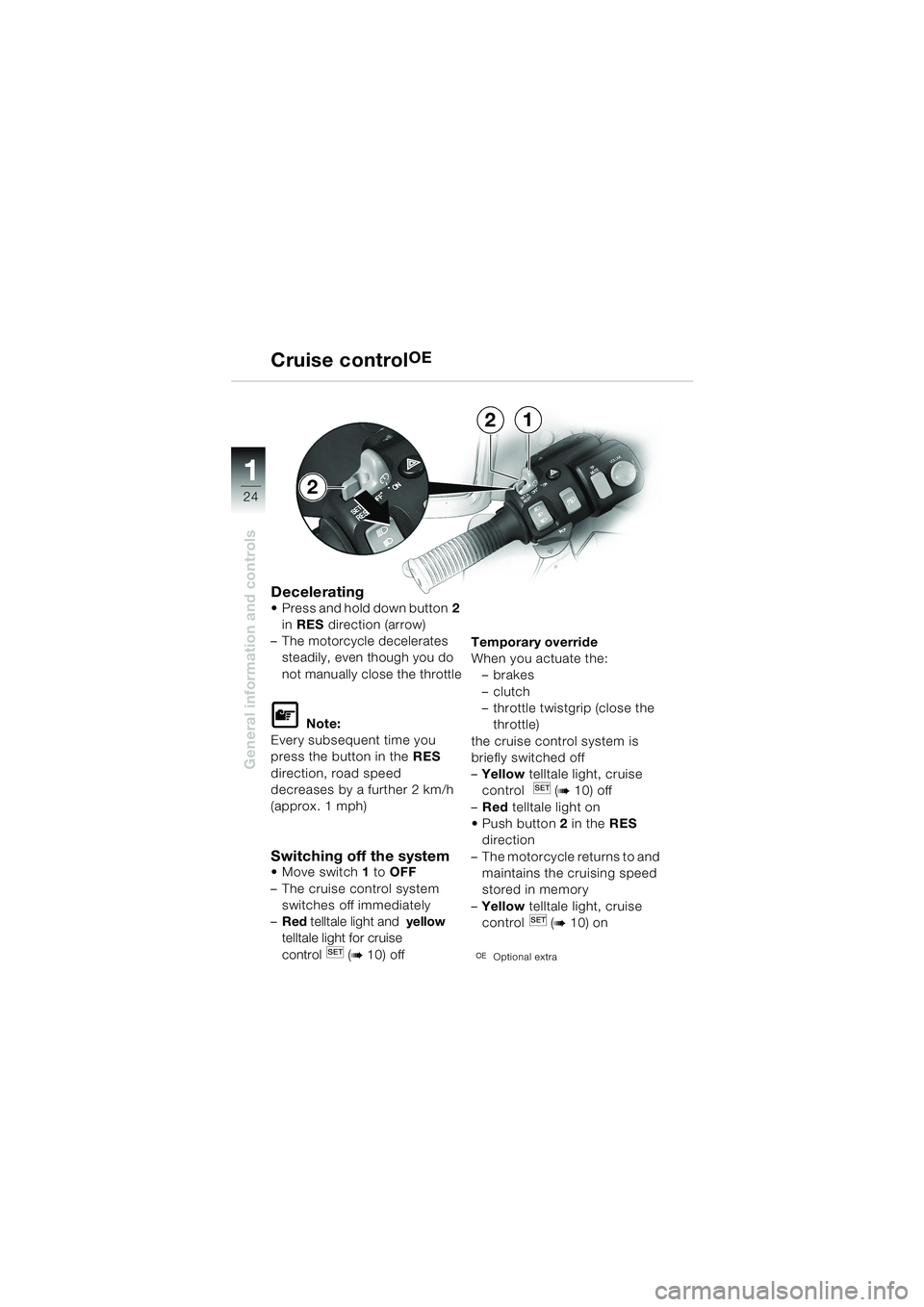

Cruise controlOE
DeceleratingPress and hold down button2
in RES direction (arrow)
–The motorcycle decelerates
steadily, even though you do
not manually close the throttle
L Note:
Every subsequent time you
press the button in the RES
direction, road speed
decreases by a further 2 km/h
(approx. 1 mph)
Switching off the systemMove switch1 to OFF
–The cruise control system
switches off immediately
–Redtelltale light and yellow
telltale light for cruise
control (
b 10) offTemporary override
When you actuate the:
–brakes
–clutch
–throttle twistgrip (close the
throttle)
the cruise control system is
briefly switched off
–Yellowtelltale light, cruise
control (
b 10) off
–Red telltale light on
Push button2 in the RES
direction
–The motorcycle returns to and
maintains the cruising speed
stored in memory
–Yellowtelltale light, cruise
control (
b 10) on
2(Optional extra
12
2
10LTbkg4.bk Seite 24 Dienstag, 27. August 2002 8:28 08

28
General information and controls
1
On-board computerOE
Ambient temperature
L Note:
Reading in °C or °F, depending
on national market.
2(Optional extra
Estimated range
L Note:
Reading in km or miles,
depending on national market.
The range is estimated on the
basis of style of riding and ta-
king the remaining supply of fuel
into account.
Note that the range cannot be
shown accurately if the motor-
cycle was placed on the side
stand. The display is corrected
during the journey.
If three dashes appear on the
display, your range has drop-
ped below 15 km (9.5 miles).
It is high time to refuel!
It is also important to observe
the fuel gauge/warning light for
fuel level (
b 8, 11).
The on-board computer regis-
ters that you have refuelled
when approximately 3 litres
(0.66 Imp. gal) have been
added.
