2002 BMW MOTORRAD K 1200 LT light

31
General information and controls
1

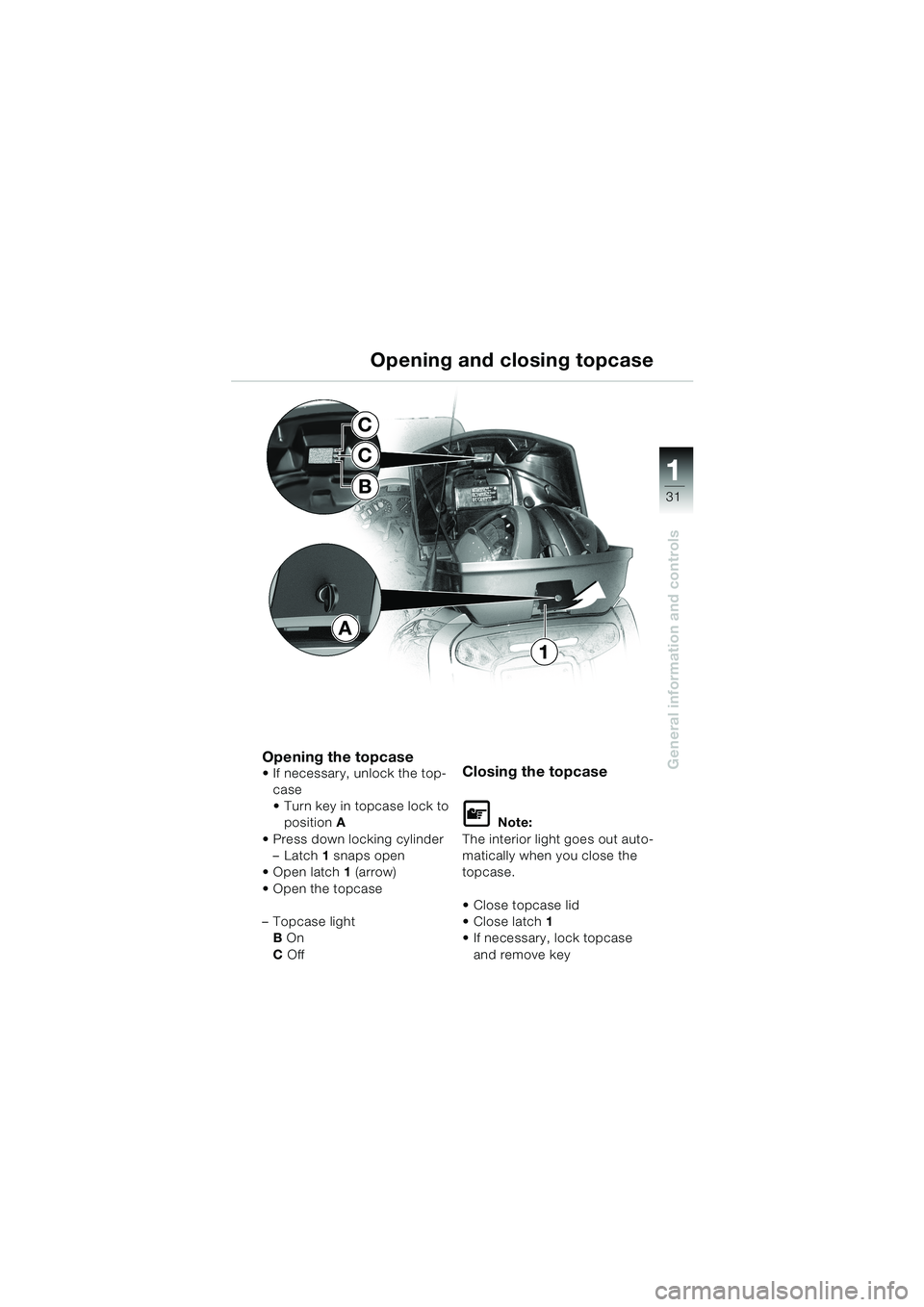

Opening and closing topcase
Opening the topcaseIf necessary, unlock the top-
case
Turn key in topcase lock to
positionA
Press down locking cylinder
–Latch1 snaps open
Open latch1 (arrow)
Open the topcase
–Topcase light
B On
C OffClosing the topcase
L Note:
The interior light goes out auto-
matically when you close the
topcase.
Close topcase lid
Close latch1
If necessary, lock topcase
and remove key
A
1
C
C
B
10LTbkg4.bk Seite 31 Dienstag, 27. August 2002 8:28 08

34
General information and controls
1

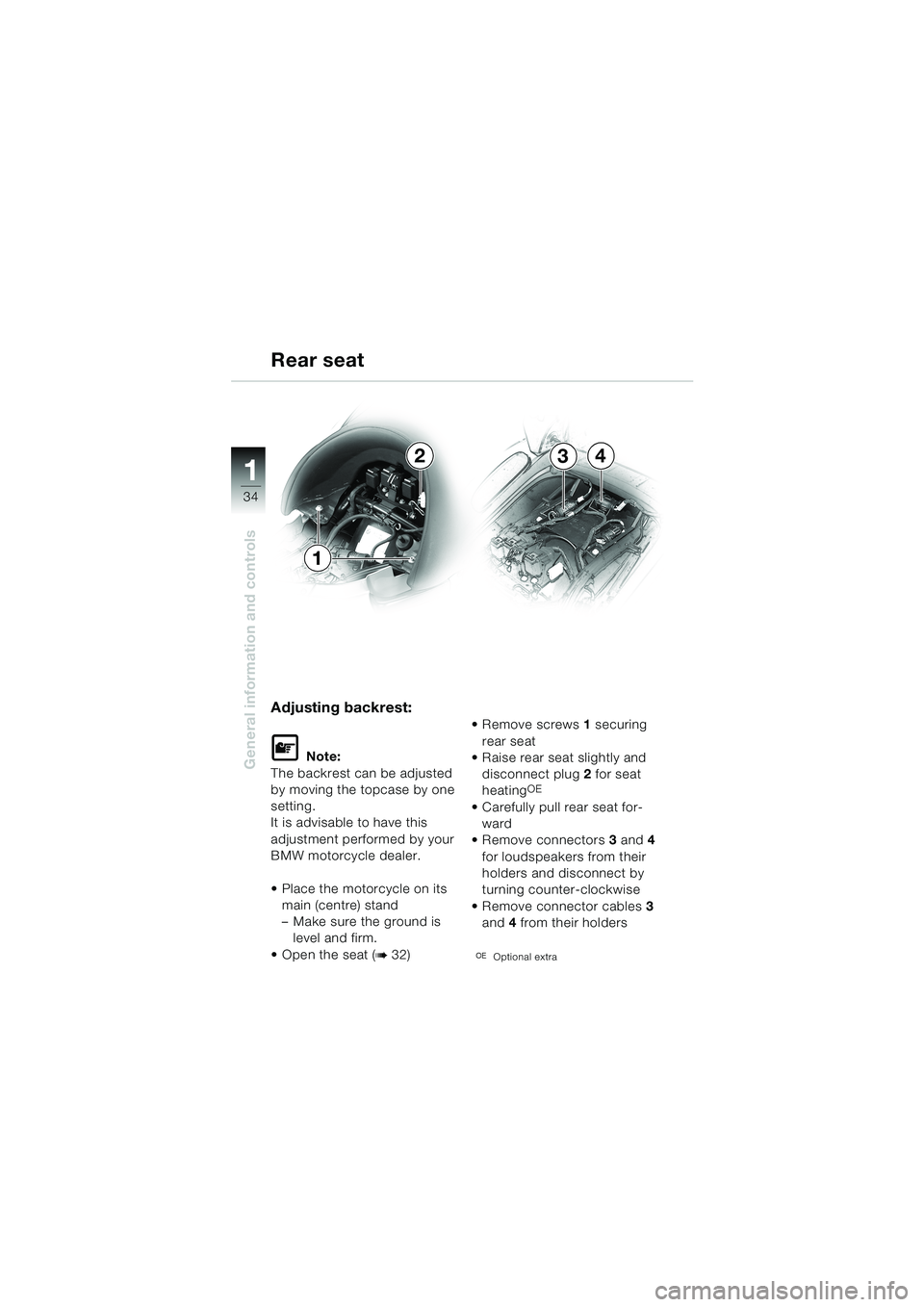

Rear seat
Adjusting backrest:
L Note:
The backrest can be adjusted
by moving the topcase by one
setting.
It is advisable to have this
adjustment performed by your
BMW motorcycle dealer.
Place the motorcycle on its
main (centre) stand
–Make sure the ground is
level and firm.
Open the seat (
b 32)Remove screws1 securing
rear seat
Raise rear seat slightly and
disconnect plug2 for seat
heating
OE
Carefully pull rear seat for-
ward
Remove connectors3 and4
for loudspeakers from their
holders and disconnect by
turning counter-clockwise
Remove connector cables3
and4 from their holders
2(Optional extra
2
1
34
10LTbkg4.bk Seite 34 Dienstag, 27. August 2002 8:28 08

2 2
39
Safety check
Checklist
Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can then attend to it
before the journey starts
(
b Maintenance Instructions),
or have it carried out by a spe-
cialist workshop, preferably an
authorised BMW Motorrad
dealer. This is to ensure that
your motorcycle corresponds
with road-vehicle use and
safety laws.
A motorcycle in perfect techni-
cal condition is essential for
your safety and that of other
road users.For this reason, check the
details in the following sections
before you start the journey:
–Fuel level
–Positions of the handlebar-
lever fittings
–Brake fluid level
–Clutch fluid level
–Brakes
–Warning lights and telltale
lights
–Suspension spring preload
–Wheel rim and tyre condition,
tread depth and tyre pressures
–Load, gross weight
–Lights
–Coolant level
–Check regularly (every time
you stop for fuel),
on the basis of the following
section:
–Engine oil level
(every second/third stop for
fuel):
–brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
motorcycle dealer. He will pro-
vide the necessary advice and
assistance.
10LTbkg4.bk Seite 39 Dienstag, 27. August 2002 8:28 08

2 2
41
Safety check

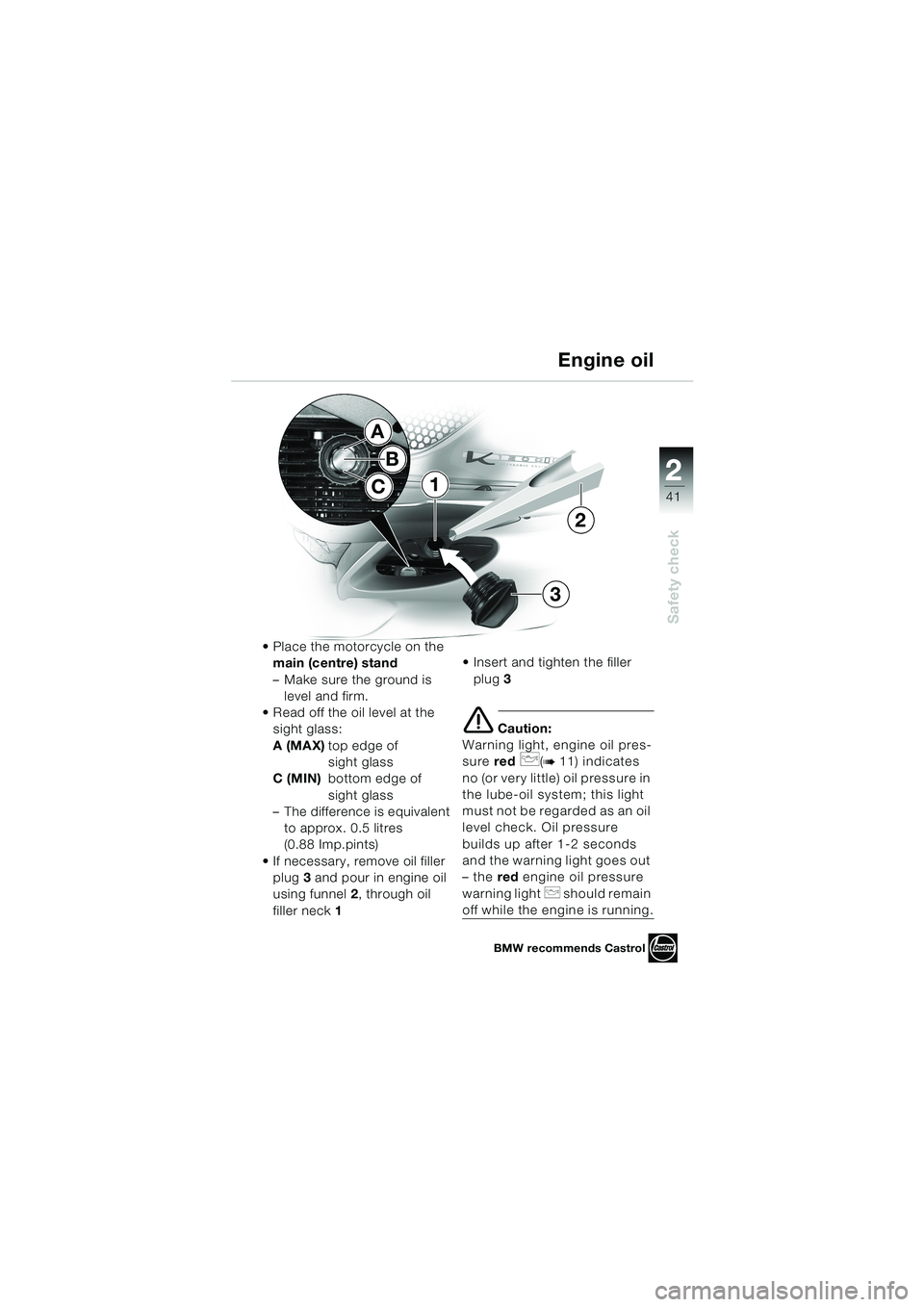

BMW recommends Castrol
Engine oil
Place the motorcycle on the
main (centre) stand
–Make sure the ground is
level and firm.
Read off the oil level at the
sight glass:
A (MAX)top edge of
sight glass
C (MIN)bottom edge of
sight glass
–The difference is equivalent
to approx. 0.5 litres
(0.88 Imp.pints)
If necessary, remove oil filler
plug3 and pour in engine oil
using funnel2, through oil
filler neck1Insert and tighten the filler
plug3
e Caution:
Warning light, engine oil pres-
sure red
p(b 11) indicates
no (or very little) oil pressure in
the lube-oil system; this light
m u s t n o t b e r e g a r d e d a s a n o i l
level check. Oil pressure
builds up after 1-2 seconds
and the warning light goes out
– the redengine oil pressure
warning light
p should remain
off while the engine is running.
1
2
3
C
B
A
10LTbkg4.bk Seite 41 Dienstag, 27. August 2002 8:28 08

2 2
43
Safety check

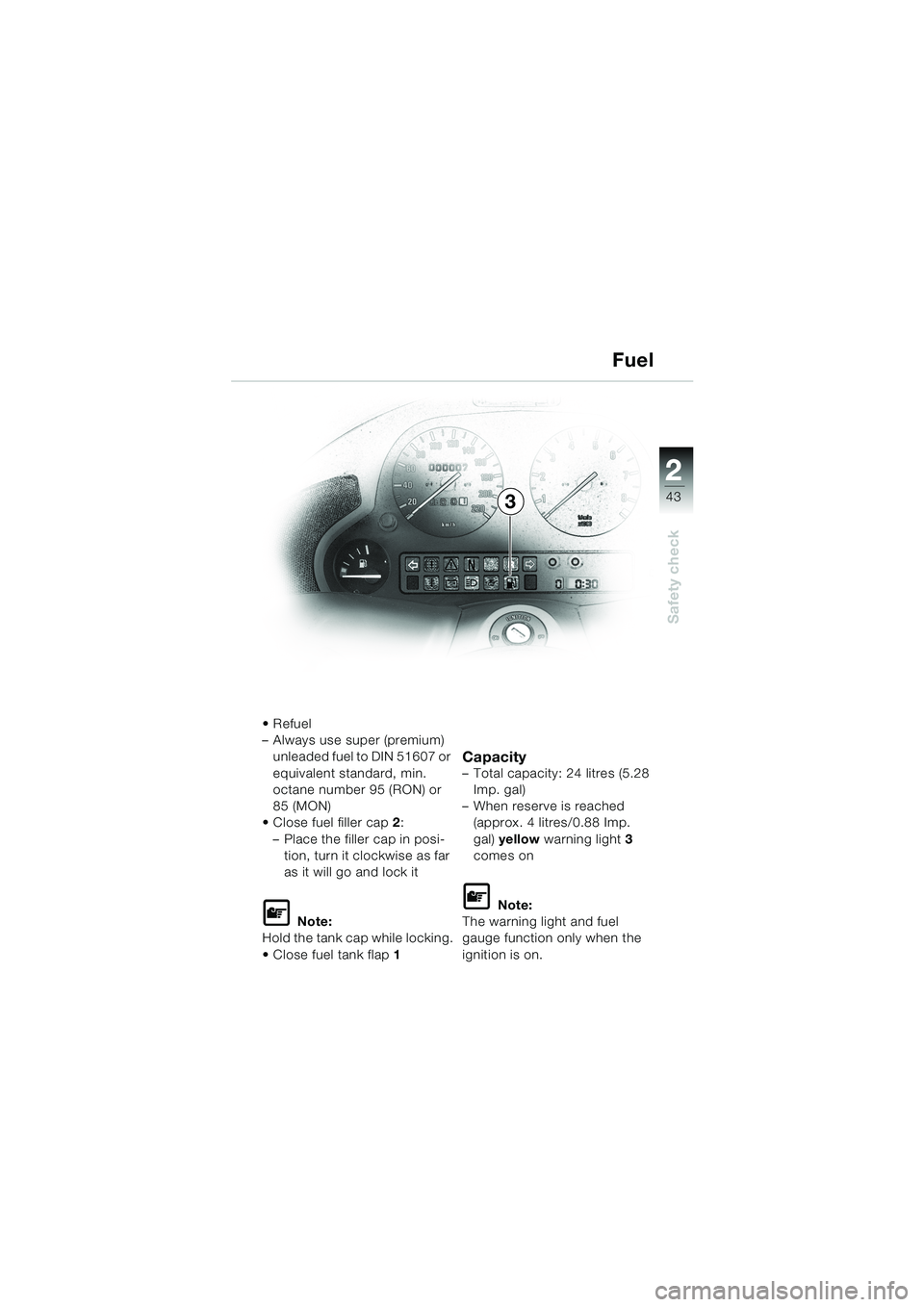

3Fuel
Refuel
–Always use super (premium)
unleaded fuel to DIN 51607 or
equivalent standard, min.
octane number 95 (RON) or
85 (MON)
Close fuel filler cap2:
–Place the filler cap in posi-
tion, turn it clockwise as far
as it will go and lock it
L Note:
Hold the tank cap while locking.
Close fuel tank flap1
Capacity–Total capacity: 24 litres (5.28
Imp. gal)
–When reserve is reached
(approx. 4 litres/0.88 Imp.
gal) yellow warning light3
comes on
L Note:
The warning light and fuel
gauge function only when the
ignition is on.
10LTbkg4.bk Seite 43 Dienstag, 27. August 2002 8:28 08

2 2
57
Safety check
Lights
Checking lights
e Caution:
Check that all lights are opera-
tional at the start of each jour-
ney.
L Note:
If turn indicator repeater flashes
at twice the usual speed:
Defective flasher bulb.
To change bulbs in parking
lights, headlight (dipped and
main beams), rear and brake
lights: (
b Maintenance Instruc-
tions).
Tail lightGeneral warning light (b 72) on:
Brake-light or tail-light bulb de-
fective.
Check brake light or tail light.
If the rear light is defective the
brake light is dimmed and acts
as a tail light. When you apply
the brakes the brake light
shines at full brightness.
Adjusting headlight beam
throw
e Caution:
Only adjust the beam throw of
your headlights to suit laden
condition when the motorcycle
is stationary.
Have the headlight basic set-
ting adjusted by a specialist
workshop, preferably an
authorised BMW motorcycle
dealer.
10LTbkg4.bk Seite 57 Dienstag, 27. August 2002 8:28 08

58
Safety check
2
AB

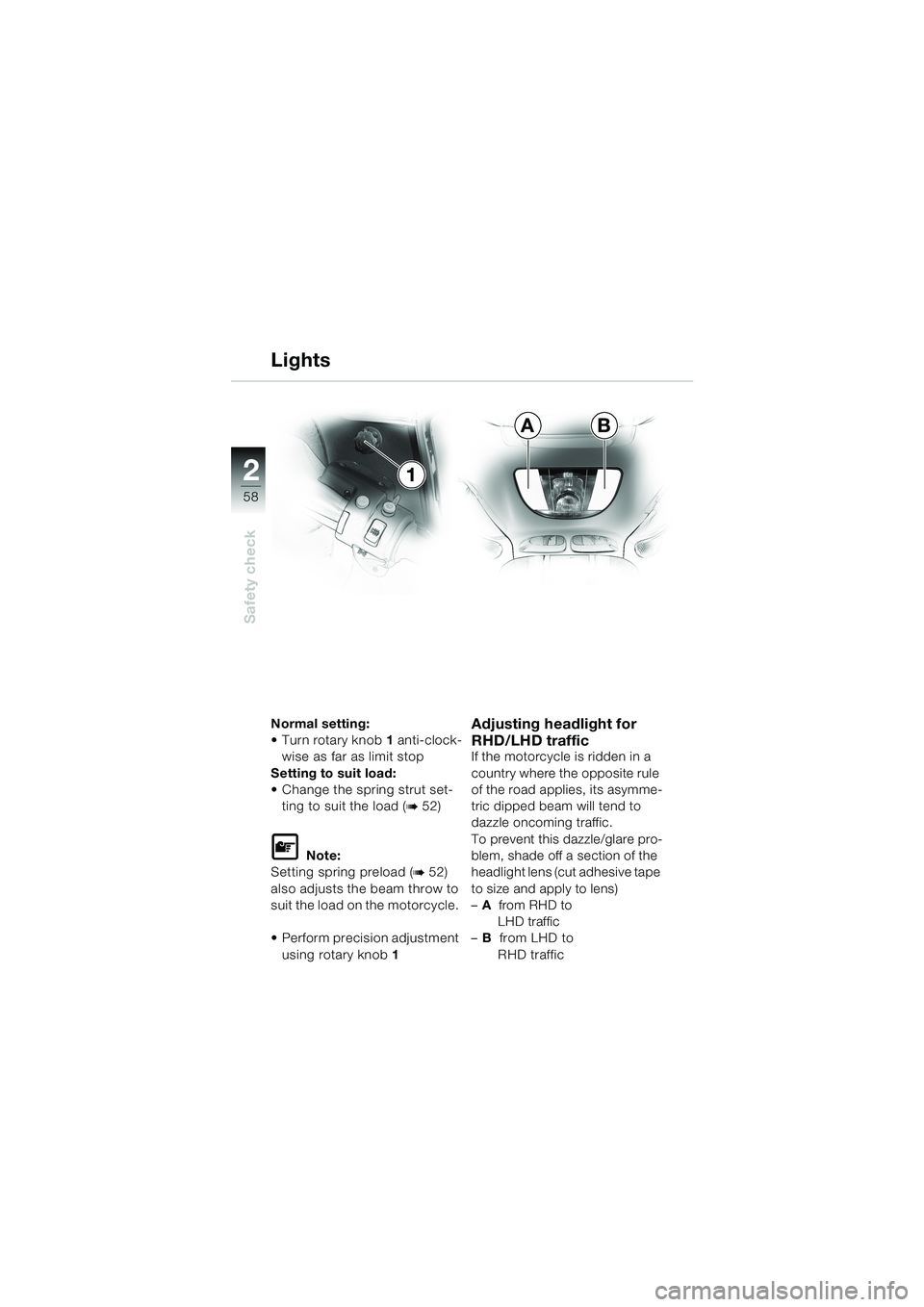

1 Lights
Normal setting:
Turn rotary knob1 anti-clock-
wise as far as limit stop
Setting to suit load:
Change the spring strut set-
ting to suit the load (
b 52)
L Note:
Setting spring preload (
b 52)
also adjusts the beam throw to
suit the load on the motorcycle.
Perform precision adjustment
using rotary knob1
Adjusting headlight for
RHD/LHD traffic
If the motorcycle is ridden in a
country where the opposite rule
of the road applies, its asymme-
tric dipped beam will tend to
dazzle oncoming traffic.
To prevent this dazzle/glare pro-
blem, shade off a section of the
headlight lens (cut adhesive tape
to size and apply to lens)
–Afrom RHD to
LHD traffic
–Bfrom LHD to
RHD traffic
10LTbkg4.bk Seite 58 Dienstag, 27. August 2002 8:28 08

2 2
59
Safety check

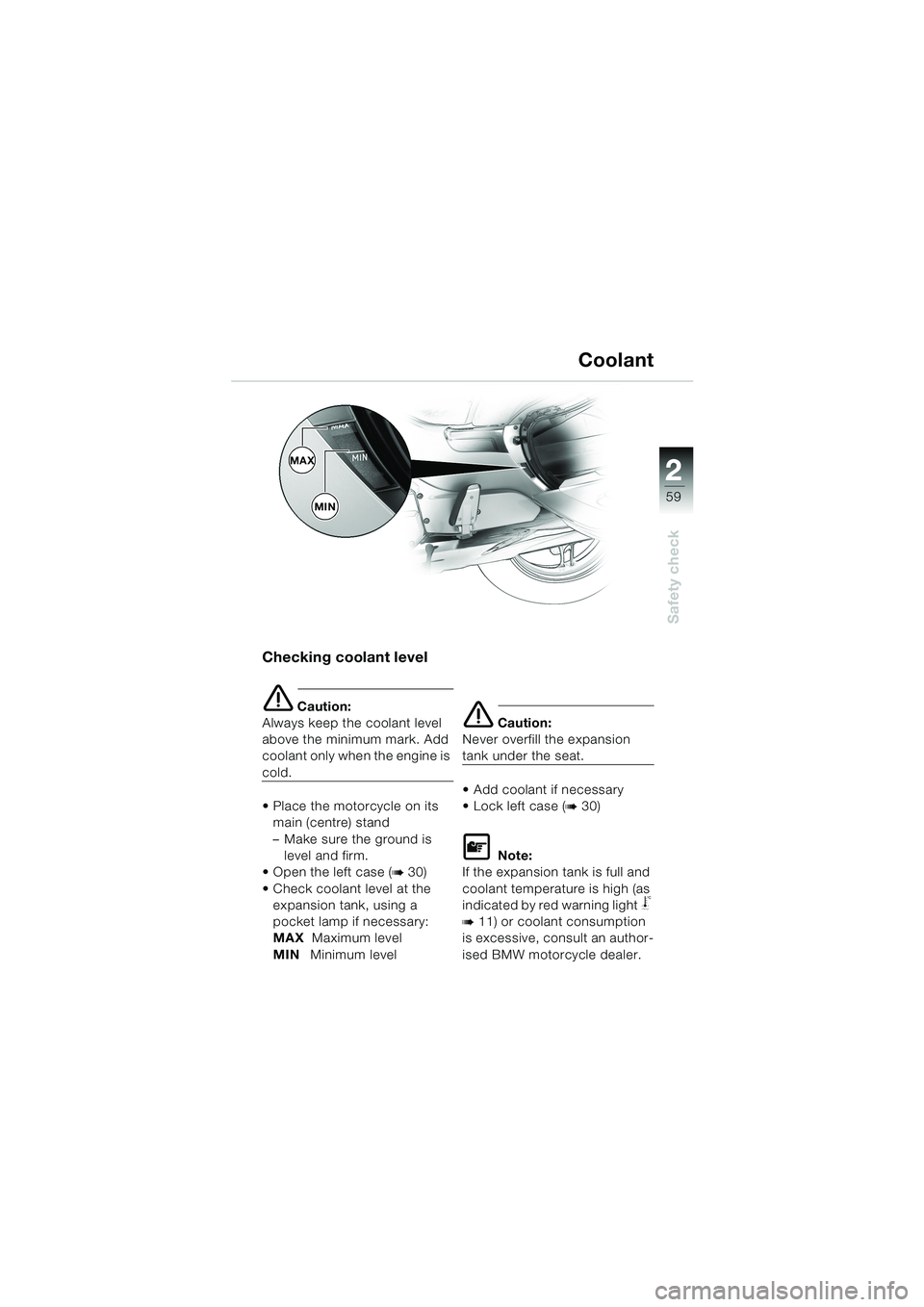

Coolant
Checking coolant level
e Caution:
Always keep the coolant level
above the minimum mark. Add
coolant only when the engine is
cold.
Place the motorcycle on its
main (centre) stand
–Make sure the ground is
level and firm.
Open the left case (
b 30)
Check coolant level at the
expansion tank, using a
pocket lamp if necessary:
MAXMaximum level
MINMinimum level
e Caution:
Never overfill the expansion
tank under the seat.
Add coolant if necessary
Lock left case (
b 30)
L Note:
If the expansion tank is full and
coolant temperature is high (as
indicated by red warning light
j
b 11) or coolant consumption
is excessive, consult an author-
ised BMW motorcycle dealer.
MAX
MIN
