General information and controls
1
1Telltale light, left turn indica-
tor repeater green
s
2 Warning light ABS
red
l (b 66)
3 Warning light, general
red
e (b 66)
4 Telltale light, neutral telltale
light green
k (b 64)
5 Telltale light, cruise control
yellow
OE (b 14-17)
OEOptional extra
*
n depending on national-market
specification
6 Telltale light, right turn indi-
cator repeater green
t
7 Clock
Adjust by pressing with a
ball-point pen or similar
object at point A(hours) or
point B (minutes)
8 Gear indicator
( ) Number in parentheses
b page number for description
Telltale and warning lights
78
6A14B2*35
10k41bkg2.book Seite 7 Donnerstag, 24. Juli 2003 9:17 09

8
General information and controls
1
Telltale and warning lights
1Warning light, coolant tem-
perature
j red (b 40, 67)
2 Warning light, battery
charge current red
r
(b 67)
3 Telltale light, high-beam
headlight blue
q
4 Warning light, engine oil
pressure red
p (b 29, 66) 5
Warning light, fuel level/
when approx. 4 litres
(0.9 gal) left in tank yellow
m
(b 31, 66)
( ) Number in parentheses
bpage number for description
34512
10k41bkg2.book Seite 8 Donnerstag, 24. Juli 2003 9:17 09

9
General information and controls
1
Hazard warning flashers
L Note:
You cannot activate the hazard
warning flashers if the ignition is
switched off.
Do not use the hazard warning
flashers for longer than abso-
lutely necessary.
Note state of battery charge.
To switch on the hazard
warning flashers:
 Switch on the ignition
 Operate hazard warning flasher switch 1
– Hazard warning flashers in operation
– Telltale light in switch is on
 Switch off the ignition
– The hazard warning flashers
continue to operate
– Telltale light in switch goes out
To switch off the hazard
warning flashers:
 Operate hazard warning
flasher switch 1
– Hazard warning flashers
cease to operate
1
Hazard warning flashers
10k41bkg2.book Seite 9 Donnerstag, 24. Juli 2003 9:17 09

10
General information and controls
1

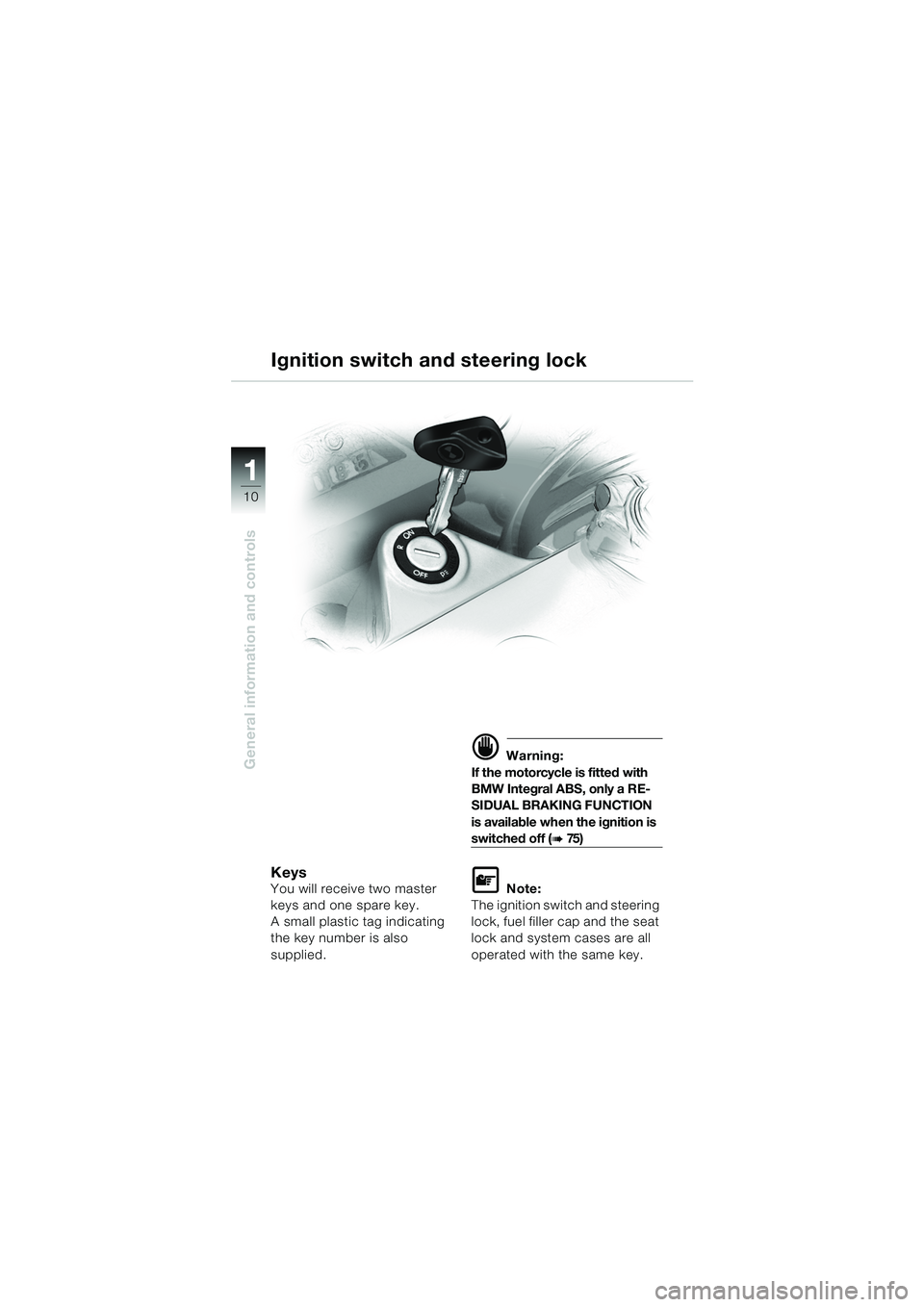

KeysYou will receive two master
keys and one spare key.
A small plastic tag indicating
the key number is also
supplied.
d Warning:
If the motorcycle is fitted with
BMW Integral ABS, only a RE-
SIDUAL BRAKING FUNCTION
is available when the ignition is
switched off (b 75 )
L Note:
The ignition switch and steering
lock, fuel filler cap and the seat
lock and system cases are all
operated with the same key.
Ignition switch and steering lock
10k41bkg2.book Seite 10 Donnerstag, 24. Juli 2003 9:17 09

11
General information and controls
1
Ignition switch and steering lock
Key positionsONOperating position,
ignition, lights and all
electrical circuits
switched on
R * Ignition and lights off,
steering not locked
(handlebars can be turned
freely to left or right)
d Warning:
Never turn the key to OFF or
I while riding the motorcycle!
* The key can be removed in these
positions
 Turn the handlebars to full left lock.
e Attention:
Engage the steering lock with
the handlebars in this position
only.
OFF * Ignition and lights off,
steering locked
I * Parking light on,
steering locked
L Note:
Switch the parking light on only
for limited periods. Note state of
battery charge.
10k41bkg2.book Seite 11 Donnerstag, 24. Juli 2003 9:17 09

12
General information and controls
1
d Warning:
To prevent air from entering
the hydraulic circuit of the
clutch:
 do not turn the fitting on the
handlebar.
1 Switch for cruise control
OE
(b 15)
2 Hazard warning flasher
switch (
b 9)
3 Switch for windscreen
adjustment (
b 22)
4 Horn push 5
Turn indicator switch, left
Press
– Turn indicators operate
To switch off turn indicators:
 Self-cancelling while rid-
ing, or press turn-indica-
tor cancel switch 11
(
b 13)
6 High-beam/low-beam
headlight switch
FHigh-beam headlight
GLow-beam headlight
FHeadlight flasher
OEOptional extra
Left handlebar fitting
123
654
10k41bkg2.book Seite 12 Donnerstag, 24. Juli 2003 9:17 09

13
General information and controls
1

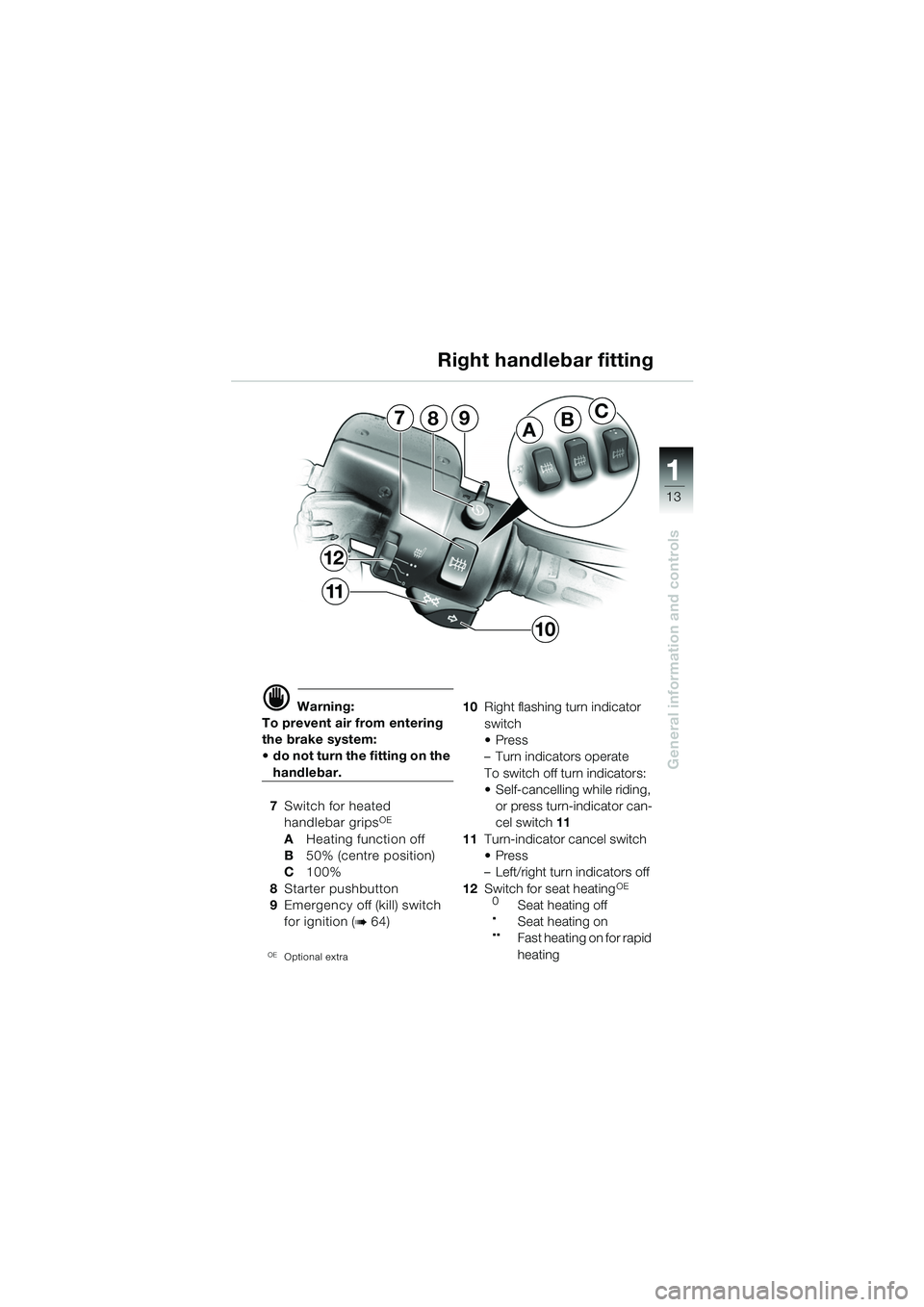

d Warning:
To prevent air from entering
the brake system:
 do not turn the fitting on the
handlebar.
7 Switch for heated
handlebar grips
OE
A Heating function off
B 50% (centre position)
C 100%
8 Starter pushbutton
9 Emergency off (kill) switch
for ignition (
b 64)
OEOptional extra
10 Right flashing turn indicator
switch
Press
– Turn indicators operate
To switch off turn indicators:
 Self-cancelling while riding,
or press turn-indicator can-
cel switch 11
11 Turn-indicator cancel switch
Press
– Left/right turn indicators off
12 Switch for seat heating
OE
0Seat heating off
.Seat heating on
..Fast heating on for rapid
heating
Right handlebar fitting
ABC7
12
11
89
10
10k41bkg2.book Seite 13 Donnerstag, 24. Juli 2003 9:17 09

14
General information and controls
1

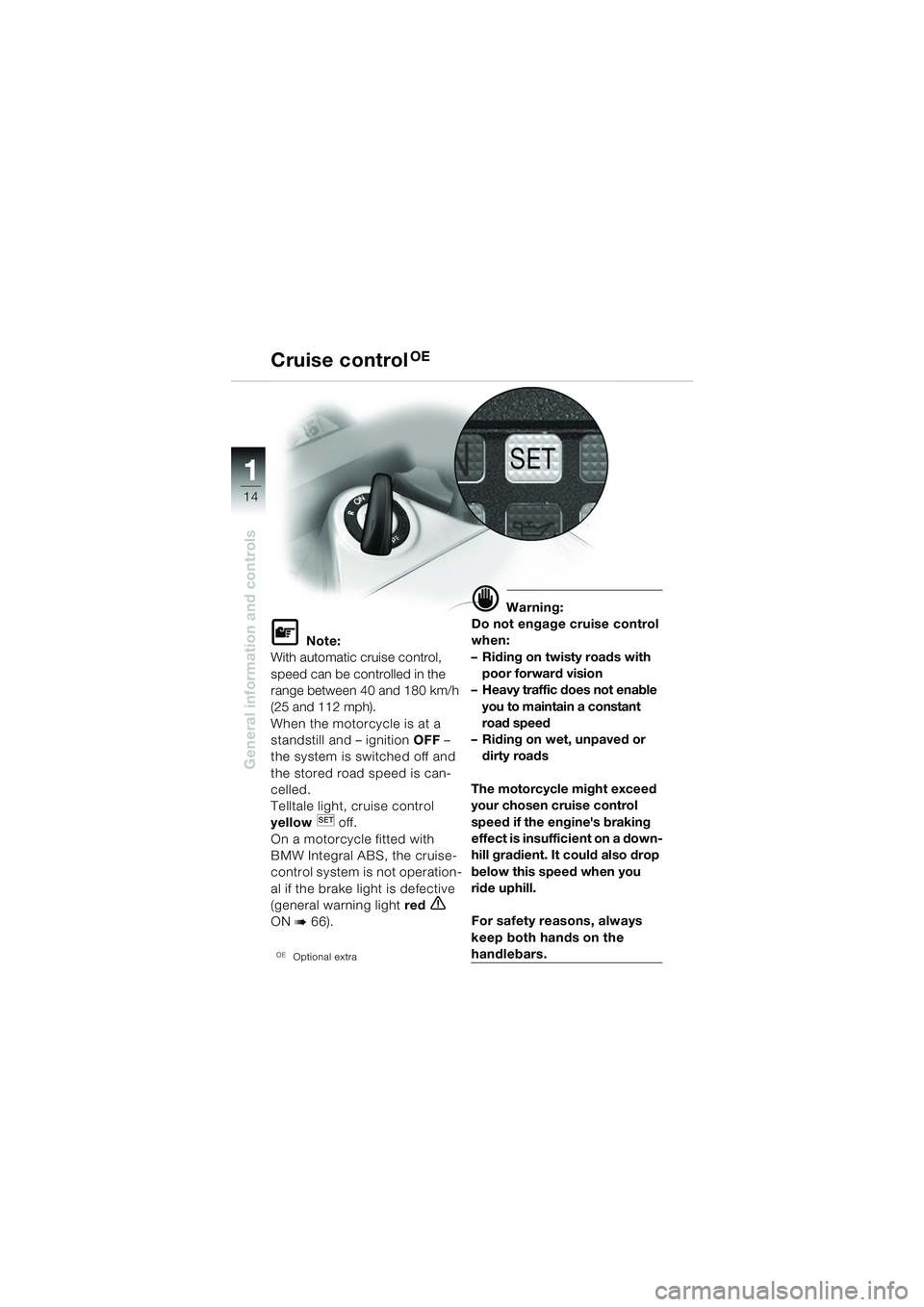

Cruise controlOE
L Note:
With automatic cruise control,
speed can be controlled in the
range between 40 and 180 km/h
(25 and 112 mph).
When the motorcycle is at a
standstill and – ignition OFF –
the system is switched off and
the stored road speed is can-
celled.
Telltale light, cruise control
yellow off.
On a motorcycle fitted with
BMW Integral ABS, the cruise-
control system is not operation-
al if the brake light is defective
(general warning light red
e
ON b 66).
OEOptional extra
d Warning:
Do not engage cruise control
when:
– Riding on twisty roads with poor forward vision
– Heavy traffic does not enable
you to maintain a constant
road speed
– Riding on wet, unpaved or dirty roads
The motorcycle might exceed
your chosen cruise control
speed if the engine's braking
effect is insufficient on a down-
hill gradient. It could also drop
below this speed when you
ride uphill.
For safety reasons, always
keep both hands on the
handlebars.
10k4101g2.fm Seite 14 Montag, 4. August 2003 2:31 14
