2002 BMW 325Ci CONVERTIBLE Owner's Manual

145n
OverviewControlsMaintenanceRepairsDataIndex

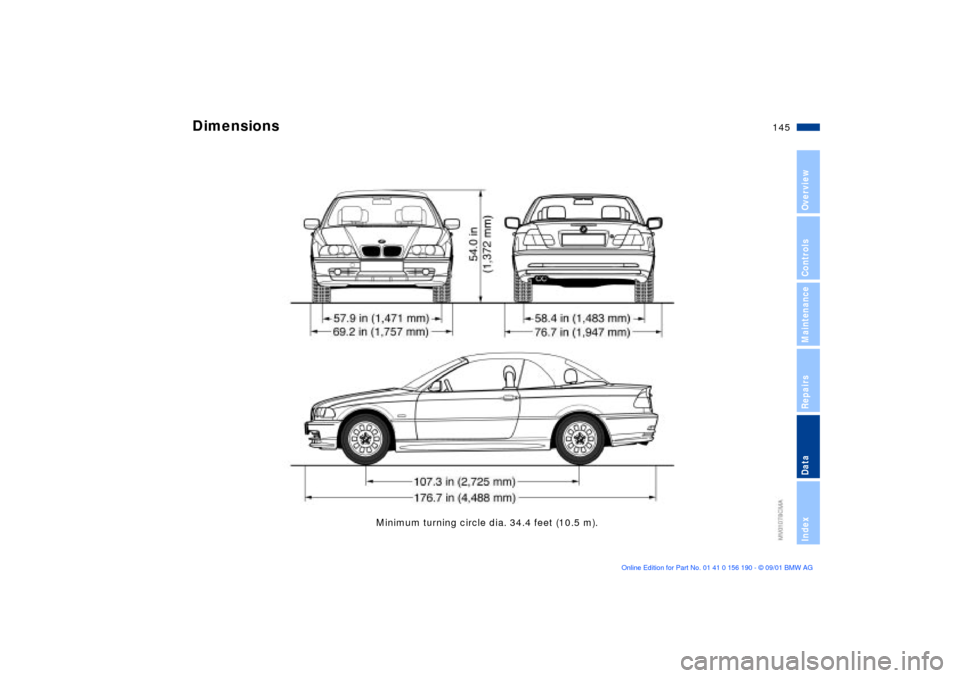

Minimum turning circle dia. 34.4 feet (10.5 m).
Dimensions

146n
Weights
BMW 325Ci BMW 330Ci
Curb weight (with one person, ready for operation, full tank of fuel, options not included)
with manual transmission
with automatic transmissionlbs. (kg)
lbs (kg)3,560 (1,615)
3,627 (1,645)3,616 (1,640)
3,704 (1,675)
Approved gross vehicle weight
with manual transmission
with automatic transmissionlbs (kg)
lbs (kg)4,442 (2,015)
4,509 (2,045)4,497 (2,040)
4,575 (2,075)
Approved front axle loads lbs (kg) 2,083 (945) 2,094 (950)
Approved rear axle loads lbs (kg) 2,546 (1,155) 2,579 (1,170)
Approved maximum roof weight for the hardtop lbs (kg) 165 (75) 165 (75)
Luggage compartment capacity
with the convertible top compartment raisedcu ft (l)
cu ft (l)9.2 (260)
10.6 (300)9.2 (260)
10.6 (300)
Never exceed either the approved axle loads or the approved gross vehicle weight.

147n
OverviewControlsMaintenanceRepairsDataIndex
Capacities
Notes
Fuel tank
Reserve gal. (liters)
gal. (liters)approx. 16.6 (approx. 63)
approx. 2.1 (approx. 8)Fuel specification, refer to
page 23
Windshield/headlamp washer reservoir quarts (liters) approx. 5.6 (approx. 5.3) Specifications, refer to page 120
Cooling system including heating circuit quarts (liters) approx. 8.9 (approx. 8.4) Specifications, refer to page 123
Engine oil and filter change quarts (liters) approx. 6.9 (approx. 6.5) BMW High Performance
Synthetic Oil
Specifications, refer to page 121
Manual and automatic transmission
and differentialÐ Lifetime lubricant, no oil change
required

148n

149n
OverviewControlsMaintenanceRepairsDataIndex
Overview
Controls and features
Operation, maintenance
Owner service procedures
Index Technical data
Index

Everything from A to ZA
ABS (Antilock Brake
System)19, 109
Access to the rear51
Accessories10
Activated-charcoal filter96
Adaptive Transmission
Control (ATC)68
ADB (Automatic Differential
Brake)81
Adding
brake fluid124
coolant123
engine oil121
washer fluids120
Adjusting
electric power seats49
head restraints50
lumbar support50
mirrors55
steering wheel54
Air conditioning90
temperature setting91
Air distribution91, 94
Air nozzles90
Air outlets
ventilation90, 93 Air supply91, 94
Airbags18, 56
sitting correctly48
Alarm system28, 36
Antifreeze and anti-
corrosion agents123
disposal123
Antilock Brake System
(ABS)19, 109
Anti-theft system28, 29, 32
Aquaplaning109
Armrest99
ASC+T (Automatic Stability
Control plus Traction)80
Ashtray
front100
rear101
ATC (Adaptive Transmission
Control)68
Attach vehicle vacuum
cleaner101
AUC (Automatic recircu-
lated-air control)95
Automatic climate
control93, 94
Automatic cruise control72 Automatic Differential Brake
(ADB)81
Automatic dimming feature,
mirrors56
Automatic headlight
control87
Automatic recirculated-air
control (AUC)95
Automatic Stability Control
plus Traction (ASC+T)80
Automatic transmission67
Automatic transmission with
Steptronic18, 67
Average fuel
consumption78
Average speed78
Axle loads146
B
Backup lamps66
bulb replacement133
Battery139
care139
charging139
disposal139
Battery charge current
indicator17 Belts, safety52
Beverage holder100
Blower91, 94
BMW High Performance
Synthetic Oil122
BMW Maintenance
System125
BMW sports seat,
adjustment49
BMW Universal
Transmitter97
Bore144
Bottle holder, refer to
beverage holder100
Brake fluid124
disposal124
warning lamp17, 124
Brake fluid level109
Brake hydraulic system,
warning lamp17
Brake lamps
bulb replacement133
Brake pads19

A-Z

Everything from A to Z
151n
OverviewControlsMaintenanceRepairsDataIndex
Brake system108, 109
brake pads110
brake rotors,
corrosion110
defect in hydraulic
circuits109
disc brakes110
Break-in procedure108
Bulbs and lamps,
replacement131 C
California Proposition
65 Warning126
Canned beverage
holder100
Capacities147
Car care, refer to the "Caring
for your vehicle" manual
Car phone100
Car wash systems, refer to
the "Caring for your
vehicle" manual
Care of upholstery materials,
refer to the "Caring for your
vehicle" manual Cargo loading103
CBC (Cornering Brake
Control)18, 81
Cellular phone
refer also to the
"Telephone Owner's
Manual"
Center (high-mount) brake
lamp134
Center armrest99
Central locking system28
inside control button32
Changing a wheel135
Charging the battery139
Check Control76
Check engine oil level121
Checking coolant level123
Checking tire pressures24
Child-restraint systems59
Cigarette lighter101
Cleaning headlamps71
Cleaning windshield71 Clock76
refer also to the
"Telephone Owner's
Manual"
Clutch108
Cockpit14
Coin box100
Compartments99
Compression ratio144
Computer76
refer also to the "Owner's
Manual for Onboard
Computer"
Configuring individual
settings via Vehicle and
Key Memory63
Consumption78
display75
Convenience operation via
driver's door lock
fully-automatic convertible
top31
power windows31
Convertible top
compartment panel35
Convertible top, fully
automatic operation42 Coolant123
capacity147
Coolant temperature
gauge75
Cooling system,
capacity147
Copyright4
Cornering Brake Control
(CBC)18, 81
Correct sitting posture48
Cruise control72
Cruising range78
Cup holder, refer to
beverage holder100
Curb weight146
D
Data
dimensions145
engine144
weights146
Daytime driving lamps87
DBC (Dynamic Brake
Control)82
Defrost windows92, 94
Digital clock76
Dimensions145
Dipstick, engine oil121
Displacement144

Everything from A to ZDisplay lighting88
Displays15
Disposal
antifreeze and anti-
corrosion agents123
battery139
brake fluid124
engine oil122
Distance warning79
Door keys28
Doors
electrical malfunction31
locking and unlocking29
manual operation31
DOT Quality Grades,
tires114
Draft-free ventilation92, 95
Drive belts17
Driving notes109
DSC (Dynamic Stability
Control)81
DSC Dynamic Stability
Control19, 81
Dynamic Brake Control
(DBC)82
Dynamic Stability Control
(DSC)19, 81
E
Easy access to the rear51
Electric power seats,
adjustment49
Electric power windows38
Electrical malfunction
doors31
fuel filler door22
luggage compartment
lid33
Electrical malfunction,
closing only
fully-automatic convertible
top44
Elements of operation14
Emergency release of
luggage compartment lid
from luggage
compartment's interior34
Energy Control74
Engine and differential108
Engine compartment
essentials119
Engine coolant, refer to
coolant123 Engine data144
Engine oil
consumption121
disposal122
fluid capacity147
quality122
specifications122
viscosity122
Engine oil level121
check121
indicator19
Engine oil pressure
indicator17
Engine speed144
Engine, starting64
Engine, switching off65
Enlarging luggage
compartment35
Entering the rear51
Exterior mirrors55
F
Failure messages76
Filling capacities147
Fittings, tow starting and
towing141
Flashlight96 Flat Tire
Monitor85, 115, 138
Flat tires113, 135, 138
Floor panel, luggage
compartment35
Fog lamps88
Follow me home lamps87
Front fog lamps88
Front reading lamps89
Fuel consumption78
Fuel consumption
display75
Fuel filler door22
electrical malfunction22
manual operation22
Fuel gauge75
Fuel reserve indicator75
Fuel specifications23
Fuel tank capacity147
Fuel tank gauge75
Fuel-injection system144
Fully-automatic convertible
top42
electrical malfunction,
closing only44
manual closing44
Fuses139
