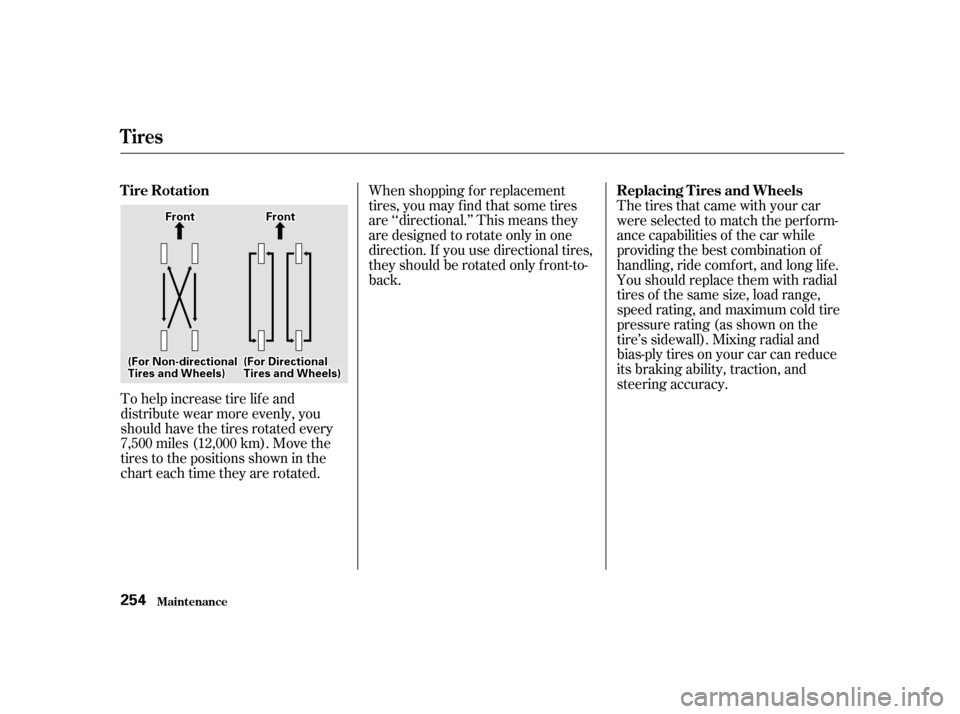

To help increase tire lif e and
distribute wear more evenly, you
should have the tires rotated every
7,500 miles (12,000 km). Move the
tires to the positions shown in the
chart each time they are rotated.When shopping f or replacement
tires, you may find that some tires
are ‘‘directional.’’ This means they
are designed to rotate only in one
direction. If you use directional tires,
they should be rotated only front-to-
back.
The tires that came with your car
were selected to match the perform-
ance capabilities of the car while
providing the best combination of
handling, ride comf ort, and long lif e.
Youshouldreplacethemwithradial
tires of the same size, load range,
speed rating, and maximum cold tire
pressure rating (as shown on the
tire’s sidewall). Mixing radial and
bias-ply tires on your car can reduce
its braking ability, traction, and
steering accuracy.
T ire Rotation Replacing T ires and Wheels
Tires
Maint enance254
( (
F
Fo o r
r N
No on
n-
-d
d i
irre ec cttiioo n
na
all
T
T i
irre es s a
ann d
d W
Wh he
eeellss) ) (
(
F
Fo o r
r D
D i
irre ec cttiioo n
na
all
T
T i
irre es s a
ann d
d W
Wh he
eeellss) )
F
Fr
roo n
nt
t
F
Fr roo n
nt
t
00/12/25 14:35:23 31S0K630_257

Wheel:
It is best to replace all f our tires at
thesametime.If thatisnotpossible
or necessary, then replace the two
f ront tires or the two rear tires as a
pair. Replacing just one tire can
seriously af f ect your car’s handling. If you ever need to replace a wheel,
make sure you use an identical style
aluminum alloy wheel that originally
came on your Acura. Replacement
wheels are available at your Acura
dealer. The ABS and VSA system work by
comparing the speed of the wheels.
When replacing tires, use the same
size originally supplied with the car.
Tire size and construction can affect
wheel speed and may cause the
system to work inconsistently.
Tire:
See page f or inf ormation about
DOT Tire Quality Grading.310
Type S
Premium model
Type S
Premium model
Wheels and T ires
Tires
Maint enance255
16x61/2JJ
P205/60R16 91V
P215/50R17 93V 17x61/2JJ
Installing improper tires on your
car can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
00/12/25 14:35:34 31S0K630_258

´
Tires that are marked ‘‘M S’’ or
‘‘All Season’’ on the sidewall have an
all-weather tread design. They
should be suitable f or most winter
driving conditions. Tires without
these markings are designed f or
optimum traction in dry conditions.
They may not provide adequate
perf ormance in winter driving.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
Acura, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tiresonallfourwheelstobalance
your car’s handling in all weather
conditions. Keep in mind the traction
provided by snow tires on dry roads
may not be as high as your car’s original equipment tires. You should
drive cautiously even when the roads
areclear.Checkwiththetiredealer
f or maximum speed recommen-
dations.
Because your Acura has limited tire
clearance, mount only SAE Class ‘‘S’’
cable-type traction devices on the
front tires. Use traction devices only
when required by driving conditions
or local laws. Make sure they are the
correct size f or your tires.
Metal link-type ‘‘chains’’ should not
be used. No matter how tight they
seem to be installed, they can come
into contact with the body and
suspension, causing serious damage.
When installing cables, f ollow the
manuf acturer’s instructions and
mount them as tightly as you can.
Drive slowly with them installed. Ifyouhearthemcomingincontact
with the body or chassis, stop and
investigate. Make sure the cables are
installed tightly, and that they are
not contacting the brake lines or
suspension.
Remove them as soon as you begin
driving on cleared roads.
Do not install any types of chains
or cable-type traction devices on
your vehicle.
Type S
Premium model only
Winter Driving
Snow T ires
T ract ion Devices
Tires
Maint enance256
Traction devices that are the wrong
size or improperly installed can
damage your car’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the car.
00/12/25 14:35:47 31S0K630_259

Check the operation of your car’s
exterior lights at least once a month.
A burned out bulb can create an
unsaf e condition by reducing your
car’s visibility and the ability to
signal your intentions to other
drivers.
CONT INUED
Lights
Maint enance257
TURN SIGNAL/SIDE MARKER LIGHT/
PARKING LIGHT
FOG LIGHT
HIGH BEAM HEADLIGHT
LOW BEAM HEADLIGHT
00/12/25 14:35:53 31S0K630_260

Check the f ollowing:Headlights (low and high beam)
Fog lights
Parking lights
Taillights
Brake lights
Turn signals
Back-up lights
Hazard light f unction
License plate light
Side marker lights
High-mount brake light
Daytime running lights (Canadian
models)
If youfindanybulbsareburnedout,
replace them as soon as possible.
Refer to the chart on page to
determinewhattypeof replacement
bulb is needed. 309
Lights
Maint enance258
H H
I
IGGH H-
-M
M O
OUUNNTT B
BRRAA K
KEE L
LI
IGGH HT
T
T
T U
UR RNN S
SIIGGN NAAL
L
L
L I
IGGH HT
T
B
BA
A C
CKK--U
UP P L
LIIGGH HT
T
L
L I
ICCE EN
NS SEE P
PL
LA
A T
TE
E L
LI
IGGH HT
T
S
STTO
OP P/
/T
T A
A I
ILL L
LI
IGGH HT
TS
S
00/12/25 14:36:01 31S0K630_261

The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
circuit even with the light switch of f
and the key removed. Because of
this, you should not attempt to
examine or change a low beam
headlight bulb yourself . If a low
beam headlight bulb fails, take the
cartoyourdealertohaveitreplaced.
Halogen bulbs are used f or the high
beam headlight bulbs. When
replacing a high beam headlight bulb,
handle it by its base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Theheadlightswereproperlyaimed
when your car was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustment of the
headlights should be perf ormed by
an Acura technician or other
qualif ied mechanic.
CONT INUED
Replacing a Headlight Bulb
Headlight A iming
Lights
Maint enance259
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
00/12/25 14:36:10 31S0K630_262

Insert the new bulb into the hole
and turn it one-quarter turn clock-
wise to lock it in place.
Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Turn on the headlights to test the
new bulb. Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Open the hood. Reinstall the radiator reserve tank.
If you need to change a bulb on
the driver’s side, remove the
radiator reserve tank.
Remove the electrical connector
f rom the bulb by squeezing the
connector to unlock the tab, then
slide the connector of f the bulb. The f ront side marker/turn signal
light bulb and parking light bulb use
the same bulb.
If you are changing the bulb on
the driver’s side, start the engine,
turn the steering wheel all the way
to the right, and turn off the
engine. If you are changing the
bulb on the passenger’s side, turn
the steering wheel to the left.
1.
3.
4.
7. 6. 5.
1.
2. Replacing Front Turn Signal and
Side Marker L ight Bulbs
Lights
Maint enance260
B BU
UL LBB
T
T A
A B
B
00/12/25 14:36:24 31S0K630_263

Remove the burned out bulb f rom
thesocketbypushingitinand
turning counterclockwise until it
unlocks.
Install the new bulb in the socket.
Turn it clockwise to lock it in place.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Testthelightstomakesurethe
new bulb is working.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the inner f ender cover away
f rom the f ender and bumper. Put the inner f ender cover in place.
Install the three holding clips.
Lock each clip in place by pushing
on the center.
Use a f lat-tipped screwdriver to
remove the three holding clips
f rom the inner f ender.
4. 5.
6.
7.
8.
9.
2.
3.
Lights
Maint enance261
H H
O
OL LDD I
INNG G C
CLLIIPP
