QGIVE SAFETY THE RIGHT OF WAY
1
2
3
4
5
6
7
8
9Scooters are fascinating vehicles, which can give you an unsurpassed feeling of power and freedom.
However, they also impose certain limits, which you must accept; even the best scooter does not
ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your
scooter. Moreover, what is true for the scooter is also true for the rider: good performance depends on
being in good shape. Riding under the influence of medication, drugs and alcohol is, of course, out of
the question. Scooter riders—more than car drivers—must always be at their mental and physical
best. Under the influence of even small amounts of alcohol, there is a tendency to take dangerous
risks.
Protective clothing is as essential for the scooter rider as seat belts are for car drivers and passen-
gers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant synthetic
materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet. Optimum pro-
tective wear, however, should not encourage carelessness. Although full-coverage helmets and suits,
in particular, create an illusion of total safety and protection, motorcyclists will always be vulnerable.
Riders who lack critical self-control run the risk of going too fast and are apt to take chances. This is
even more dangerous in wet weather. The good motorcyclist rides safely, predictably and defensive-
ly—avoiding all dangers, including those caused by others.
Enjoy your ride!5GJ-9-EV 5/26/01 11:03 AM Page 8

1-2
QGIVE SAFETY THE RIGHT OF WAY
1
2
3
4
5
6
7
8
9
EAU03099
Further safe-riding points8Be sure to signal clearly when making turns.
8Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could
slide. Apply the brakes slowly when stopping on a wet surface.
8Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
8Be careful when passing parked cars. A driver might not see you and open a door in your path.
8Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers
become extremely slippery when wet. Slow down and cross them with caution. Keep the scooter
upright, otherwise it could slide out from under you.
8The brake pads could get wet when you wash the scooter. After washing the scooter, check the
brakes before riding.
8Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap),
and a bright colored jacket.
8Do not carry too much luggage on the scooter. An overloaded scooter is unstable.
5GJ-9-EV 5/26/01 11:03 AM Page 9

1
2
3
4
5
6
7
8
95GJ-9-EV 5/26/01 11:03 AM Page 10

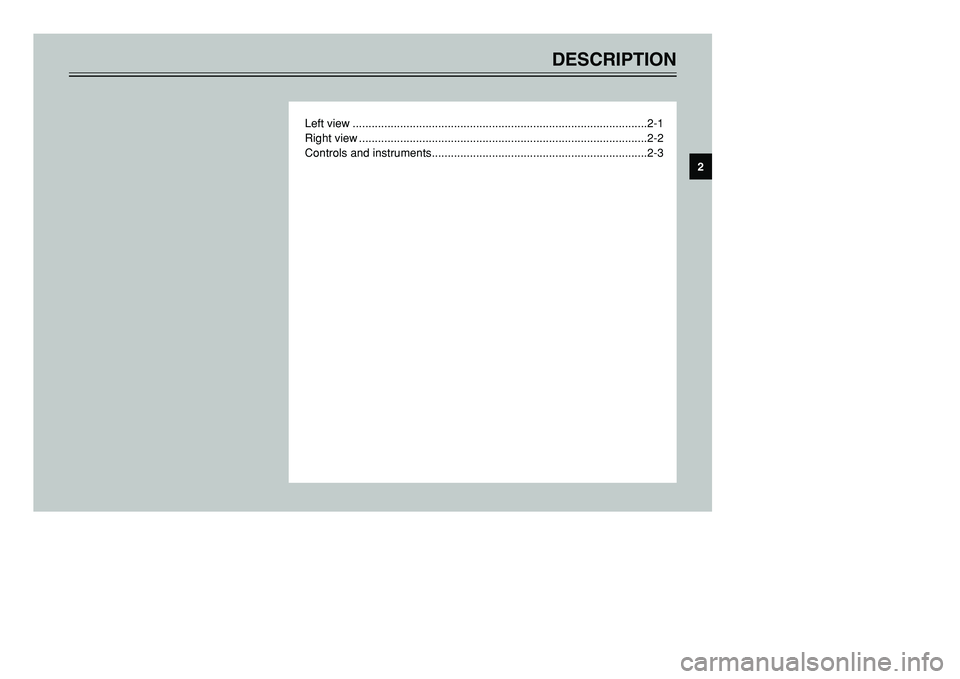

DESCRIPTION
Left view .............................................................................................2-1
Right view ...........................................................................................2-2
Controls and instruments....................................................................2-3
2
5GJ-9-EV 5/26/01 11:03 AM Page 11

EAU00026
DESCRIPTION
12
3
4
5
6
7
8
9
2-1
1. Fuel tank cap (page 3-8)
2. Rear storage compartment (page 3-12)
3. Helmet holder (page 3-11)
4. Grab bar (page 5-2)
5. Chain drive oil filler cap (page 6-16)6. Engine oil filler cap (page 6-13)
7. V-Belt air filter element (left)
8. Engine oil drain bolt (page 6-12)
9. Engine oil level check window (page 6-12)
10. Oil filter cartridge (page 6-13)
1
2
3
4
9
8
7
6
5
10
Left view
5GJ-9-EV 5/26/01 11:03 AM Page 12

DESCRIPTION
12
3
4
5
6
7
8
9
2-2
11. Battery (Fuses) (page 6-32, 6-34)
12. Owner’s tool kit (page 6-1)
13. Front storage compartment (page 3-12)
14. Windshield
15. Air filter element (page 6-19)16. Radiator
17. Coolant level check window (page 6-17)
18. V-Belt air filter element (right)
19. Centerstand (page 6-30)
20. Passenger footrest
11
12
13
14
15
18
17
16
19
20
Right view
5GJ-9-EV 5/26/01 11:03 AM Page 13

12
3
4
5
6
7
8
9
2-3
1. Rear brake lever (page 3-8)
2. Left handlebar switches (page 3-6)
3. Clock (page 3-5)
4. Speedometer unit (page 3-3)
5. Coolant temperature gauge (page 3-4)6. Fuel gauge (page 3-4)
7. Right handlebar switches (page 3-7)
8. Front brake lever (page 3-7)
9. Throttle grip (page 6-22, 6-29)
10. Main switch/steering lock (page 3-1)
4
3
2
5
6
7
8
1
109
Controls and instrumentsDESCRIPTION
5GJ-9-EV 5/26/01 11:03 AM Page 14

INSTRUMENT AND CONTROL FUNCTIONSMain switch/steering lock....................................................................3-1
Indicator lights ....................................................................................3-2
Speedometer unit ...............................................................................3-3
Fuel gauge..........................................................................................3-4
Coolant temperature gauge ................................................................3-4
Clock...................................................................................................3-5
Anti-theft alarm (optional) ...................................................................3-5
Self-diagnosis device..........................................................................3-6
Handlebar switches ............................................................................3-6
Front brake lever ................................................................................3-7
Rear brake lever .................................................................................3-8
Fuel tank cap ......................................................................................3-8
Fuel.....................................................................................................3-9
Seat ....................................................................................................3-9
Adjusting the rider backrest ..............................................................3-10
Helmet holder ...................................................................................3-11
Storage compartments .....................................................................3-12
Sidestand..........................................................................................3-12
Ignition circuit cut-off system ............................................................3-13
