Page 65 of 88
Side direction indicators-5W W 2.1x9.5 d2
Tail lights 675W/4cp BA 15 s4
Brake lights 115621W/32cp BA 15 s2
Backup lights 115621W/32cp BA 15 s2
Rear fog light 115621W/32cp BA 15 s1
Front fog lights H155 W P14.5s2
License plate light -5 W W 2.1x9.5d2
Door open warning light -3 W W 2.1x9.5d4
Door step courtesy lights -5W W 2.1x9.5d2
Trunk light -10 W SV 8.51
Glove compartment light -2 W BA 9s1
Vanity mirror lights -1.2 W -2
Instrument lighting -3 W W 2.1x9.5d3
Illumination, control panel -1.2 W W 2x4.6 d
gear selector (auto matic trans.) -1.2 W W 2x4.6d1
rear ashtray -1.2 W W 2x4.6d1
Instrument warning/indicator lights -1.2 W W 2x4.6d-
Front courtesy lights -5 W BA 9s2
Rear reading lights -5 W BA 9s2
All specifications are subject to change without notice.
pg. 125 Specifications
Dimensions and weights - Volvo C 70
Length 185.8 in. (472 cm)
Width 71.7 in. (182 cm)
Height 55.1 in. (140 cm)
Wheelbase 104.7 in. (266 cm)
Track, front 59.8 in. (151.8 cm)
Track, rear 59.7 in. (151.6 cm)
Turning circle (between curbs) 39 ft. (11.9 m)
Cargo capacity 13.1 cu. ft. (0.37m
3)
WARNING!
When adding accessories, equipment, luggage and other cargo to your vehicle, the total loaded weight capacity of
the vehicle must not be exceeded.
ProCarManuals.com
Page 66 of 88
USACanada
Gross vehicle weight (GVW)
(aut.) 4190 lbs (1900 kg)1900 kg
(man.) 4140 lbs (1878 kg)1880 kg
Capacity weight * 785 lbs (356 kg) 355 kg
Curb weight 3305-3405 lbs (1499-1544 kg)1500-1545 kg
Permissible axle weight, front
(aut.) 2360 lbs (1070 kg)1070 kg
(man.) 2310 lbs (1048 kg)1050 kg
Permissible axle weight, rear 1940 lbs (880 kg)880 kg
Max roof load 220 lbs (100 kg)100 kg
Max trailer weight (w/o brakes) 1100 lbs (500 kg)500 kg
Max trailer weight (with brakes)
2" ball 3300 lbs (1500 kg) 1500 kg
1 7/8" ball 2000 lbs (908 kg)900 kg
Max tongue weight **165 lbs (75 kg) 75 kg
* The max permissible axle loads or the gross vehicle weight must not be exceeded.
** See also section "Trailer towing"
All specifications are subject to change without notice.
pg. 126 Road Assistance
Volvo supports Voluntary Mechanic Certification by the A.S.E. Certified mechanics have demonstrated a high degree
of competence in specific areas. Besides passing exams each mechanic must also have worked in the field for two or
more years before a certificate is issued. These professional mechanics are fully able to analyze vehicle problems and
perform the necessary service procedures to keep your Volvo at peak operating condition.
NOTE: The above pertains to the USA only.
ProCarManuals.com

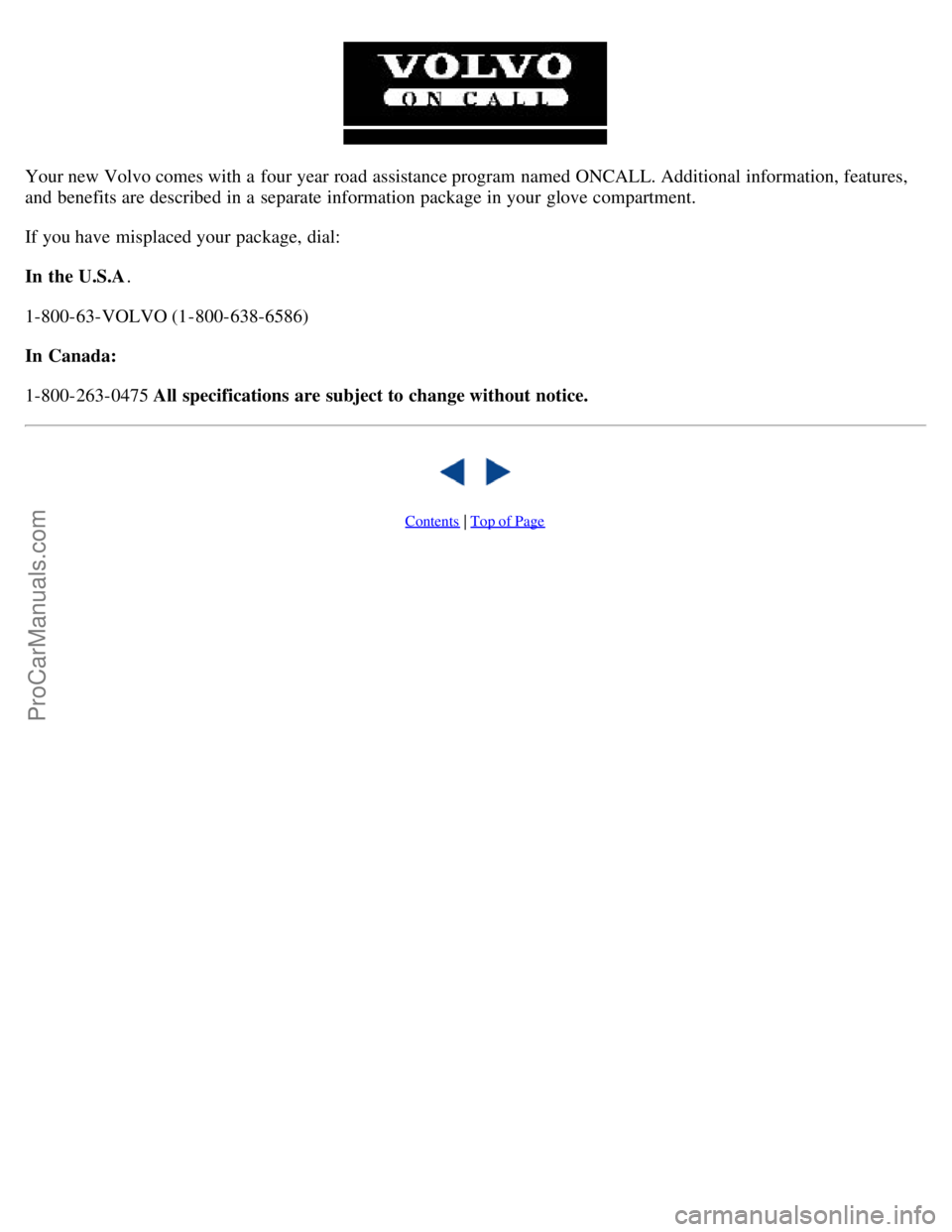

Page 67 of 88
Your new Volvo comes with a four year road assistance program named ONCALL. Additional information, features,
and benefits are described in a separate information package in your glove compartment.
If you have misplaced your package, dial:
In the U.S.A.
1-800-63-VOLVO (1-800-638-6586)
In Canada:
1-800-263-0475 All specifications are subject to change without notice.
Contents | Top of Page
ProCarManuals.com

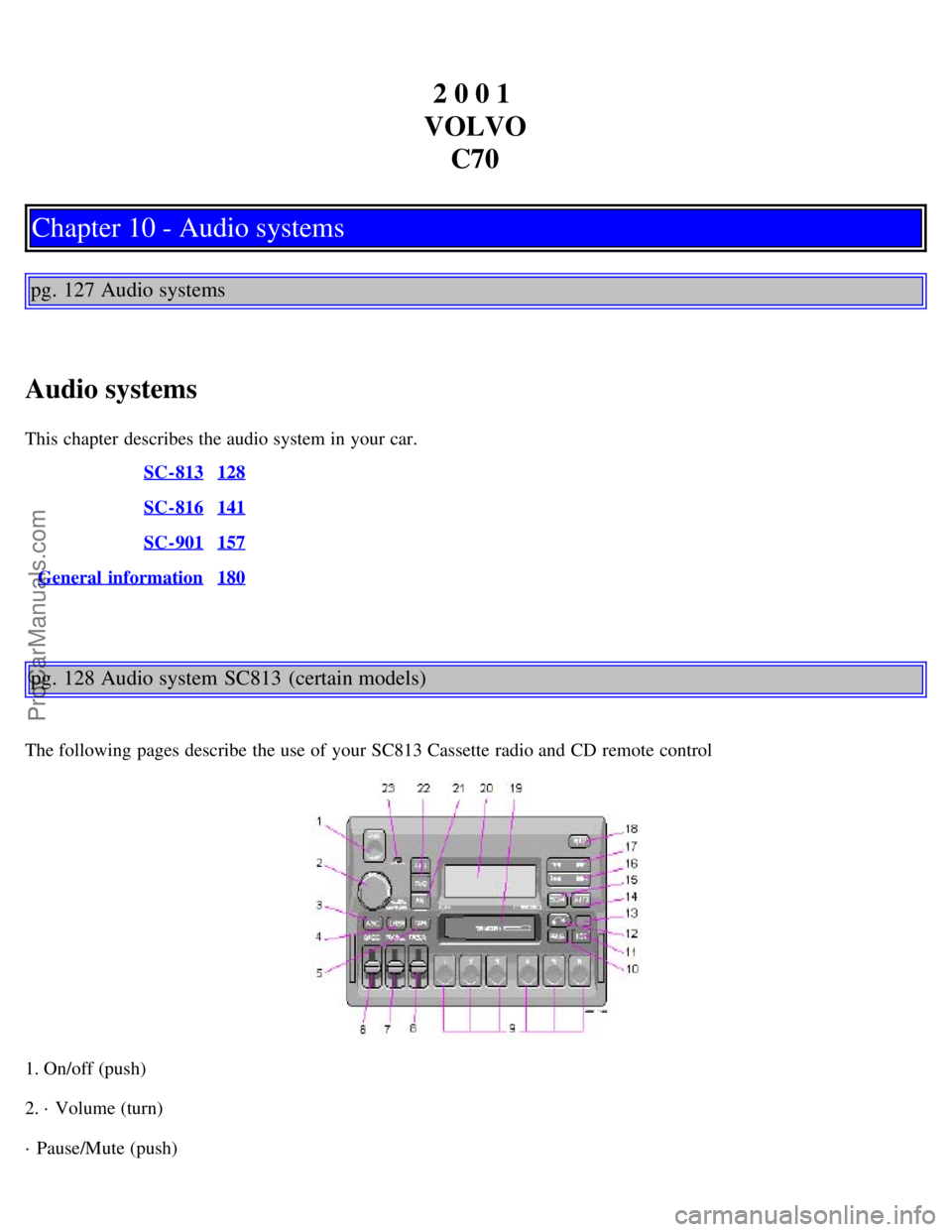

Page 68 of 88
2 0 0 1
VOLVO C70
Chapter 10 - Audio systems
pg. 127 Audio systems
Audio systems
This chapter describes the audio system in your car. SC-813
128
SC-816141
SC-901157
General information180
pg. 128 Audio system SC813 (certain models)
The following pages describe the use of your SC813 Cassette radio and CD remote control
1. On/off (push)
2. · Volume (turn)
· Pause/Mute (push)
ProCarManuals.com
Page 69 of 88
· Balance (pull)
3. Active Sound Control
4. CD changer selector
5. · Tape mode selector
· Tape direction selector PROG
6. Bass control
7. Treble control
8. Fader control
9. · Preset buttons
· CD-Disc No. selector
10. PROG - Reversing the tape
11. Dolby B NR button
12. Cassette eject
13. Not in use
14. Scan
15. Auto seek memory
16. · Seek tuning up/down
· TP-Next/Previous song
· CD -Next UP/Previous DOWN track
17. · Manual tuning
· TP -fast forward/Rewind
· CD -Music searchUP/DOWN
18. RND button
19. Cassette slot
20. Display
21. Waveband selector (AM)
22. Waveband selectors (FM)
23. Anti-theft LED
TP = Applicable only in Tape Mode
ProCarManuals.com
Page 70 of 88
CD = Applicable only when in CD mode and connected to a CD changer.
pg. 129 Anti -theft code
Anti-theft code
The radio features anti-theft circuitry. If the set is removed from the vehicle or if the battery power is disconnected, a
special code must be entered to enable operation of the set.
Refer to the radio code card supplied with your vehicle or ask your retailer for the correct code.
When the car is parked with the ignition key removed, the anti-theft LED will flash.
To enter the code
After installation or when the set has been disconnected from power, the set displays "COdE" when it is switched on.
Enter the 4-digit code using the preset buttons.
If the correct code is entered, "on" is displayed and the set is ready to use.
If you enter an incorrect code you must enter the correct code again from the beginning.
ProCarManuals.com
Page 71 of 88
Incorrect code
If an incorrect code has been entered "rPt" is displayed. Enter the correct code.
After three unsuccessful coding attempts the set will lock and remain locked for two hours. "OFF" is displayed.
During this waiting period:
· the battery must be connected
· the ignition key must be turned to position I
· the unit must be turned on
Make sure the headlights are turned off to help prevent battery drain (please refer to page 24 for information on turning
the headlights off).
Enter the code again once this time has elapsed.
pg. 130 Radio SC -813
A - On/off switch
Push the button to switch on the radio. Press the button slightly longer to turn the radio off.
B - Volume control
Turn the button clockwise to increase the volume. The volume control is electronic and has no end stop.
C - Waveband selector
The desired waveband is set by pressing one of the waveband selector buttons. The frequency and waveband is shown
on the display.
NOTE: There are two FM wavebands and one AM waveband. This makes it possible to store 2 x 6 FM stations and 6
AM stations in memory.
ProCarManuals.com
Page 72 of 88
D - Setting frequency selection
The radio can be used in most parts of the world by changing the frequency selection intervals as follows:
Depress and hold preset button 5 and turn the radio ON. "USA" will flash on the display.
Each time button 5 is pressed, the frequency selection will change from "USA" to "AUS", etc. When the correct
country name is displayed, wait 5 seconds and the radio will be ready for use.
E - Manual tuning
Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The tuned
frequency is displayed.
ST will be displayed to indicate stereo FM reception.
pg. 131 Radio SC -813
A - Seek tuning up/down
Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The radio
seeks the next audible station and stops there. If you wish to continue the seek tuning, press the tune button again.
B - Preset programming
1. Tune to the desired frequency.
2. Depress and hold a preset button. The audio will cut out. Keep the button depressed until the audio comes on again
(approx. 2 seconds).
3. The frequency is now stored on this preset button.
C - Preset buttons
To select a pre-programed radio frequency, depress the preset button. The set frequency will be displayed.
