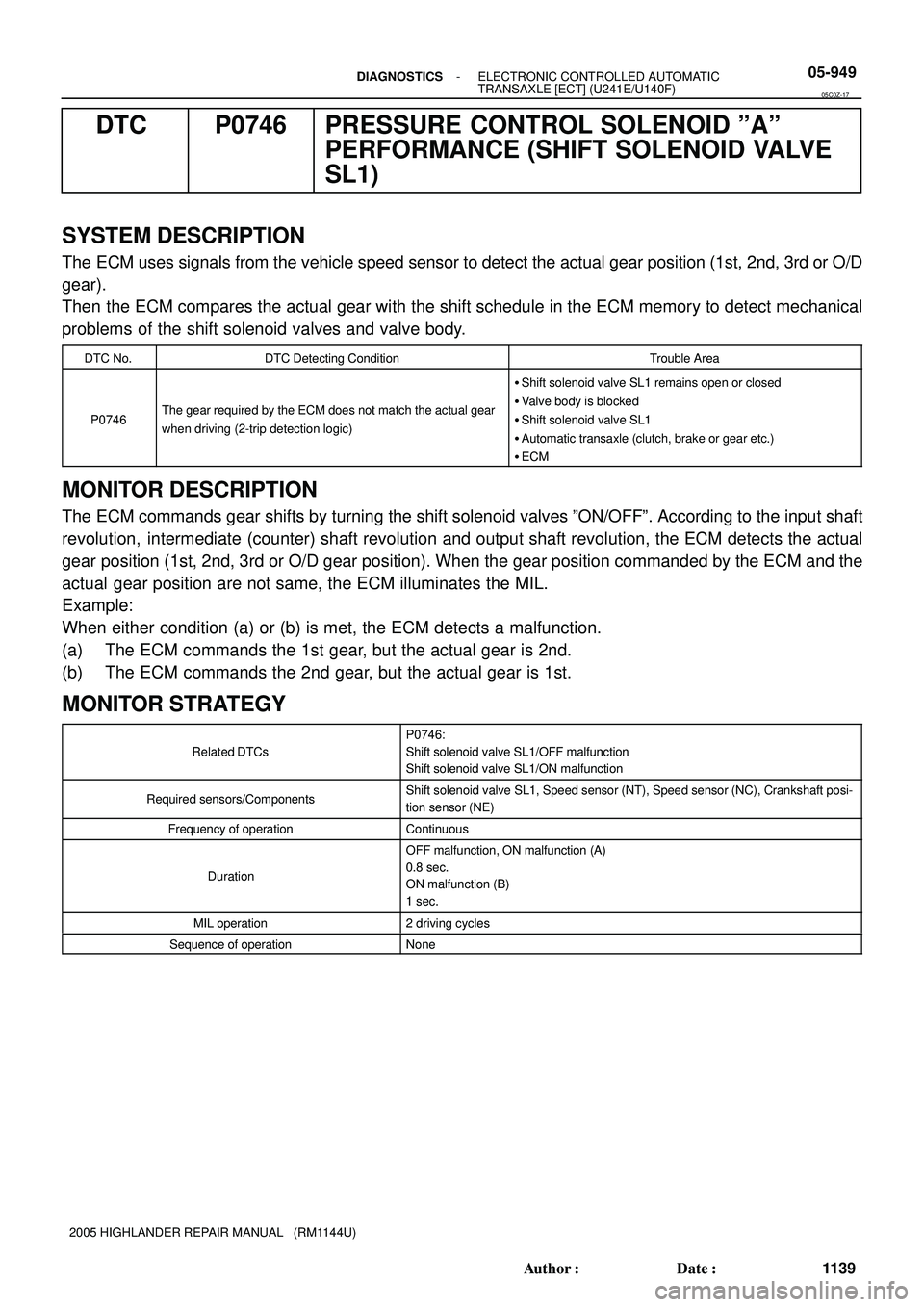

- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-949
1139 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0746 PRESSURE CONTROL SOLENOID ºAº
PERFORMANCE (SHIFT SOLENOID VALVE
SL1)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd or O/D
gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical
problems of the shift solenoid valves and valve body.
DTC No.DTC Detecting ConditionTrouble Area
P0746The gear required by the ECM does not match the actual gear
when driving (2-trip detection logic)
Shift solenoid valve SL1 remains open or closed
Valve body is blocked
Shift solenoid valve SL1
Automatic transaxle (clutch, brake or gear etc.)
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. According to the input shaft
revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual
gear position (1st, 2nd, 3rd or O/D gear position). When the gear position commanded by the ECM and the
actual gear position are not same, the ECM illuminates the MIL.
Example:
When either condition (a) or (b) is met, the ECM detects a malfunction.
(a) The ECM commands the 1st gear, but the actual gear is 2nd.
(b) The ECM commands the 2nd gear, but the actual gear is 1st.
MONITOR STRATEGY
Related DTCs
P0746:
Shift solenoid valve SL1/OFF malfunction
Shift solenoid valve SL1/ON malfunction
Required sensors/ComponentsShift solenoid valve SL1, Speed sensor (NT), Speed sensor (NC), Crankshaft posi-
tion sensor (NE)
Frequency of operationContinuous
Duration
OFF malfunction, ON malfunction (A)
0.8 sec.
ON malfunction (B)
1 sec.
MIL operation2 driving cycles
Sequence of operationNone
05C0Z-17
05-950- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1140 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
TYPICAL ENABLING CONDITIONS
ALL:
Transmission rangeºDº
ECT (Engine coolant temperature)60°C (140°F) or more
TFT (Transmission fluid temperature)-20C (-4F) or more
TFT sensor circuitNot circuit malfunction
ECT sensor circuitNot circuit malfunction
Turbine speed sensor circuitNot circuit malfunction
Intermediate shaft speed sensor circuitNot circuit malfunction
Output speed sensor circuitNot circuit malfunction
Shift solenoid valve SL1 circuitNot circuit malfunction
Shift solenoid valve SL2 circuitNot circuit malfunction
Shift solenoid valve S4 circuitNot circuit malfunction
Electronic throttle systemNot circuit malfunction
OFF malfunction
ECM selected gear1st
Vehicle speed10 to 40 km/h (6.2 to 24.9 mph)
Throttle valve opening angle4.5% or more at engine speed 1,900 rpm
(Varies with engine speed)
ON malfunction (A)
ECM selected gear2nd
Vehicle speed10 km/h (6.2 mph) or more
Throttle valve opening angle4.5% or more at engine speed 1,900 rpm
(Varies with engine speed)
ON malfunction (B)
ECM lock-up commandOFF
ECM selected gear3rd or 4th
TYPICAL MALFUNCTION THRESHOLDS
Either of the following conditions is met: OFF malfunction, or ON malfunction (A) and (B)
2 detections are necessary per driving cycle:
1st detection; temporary flag ON
2nd detection; pending fault code ON
OFF malfunction
Input (turbine) speed/Intermediate shaft speed1.49 to 1.63
ON malfunction (A)
Input (turbine) speed/Intermediate shaft speed2.72 to 2.86
ON malfunction (B)
Engine speed - Input (tubine) speed250 rpm or more

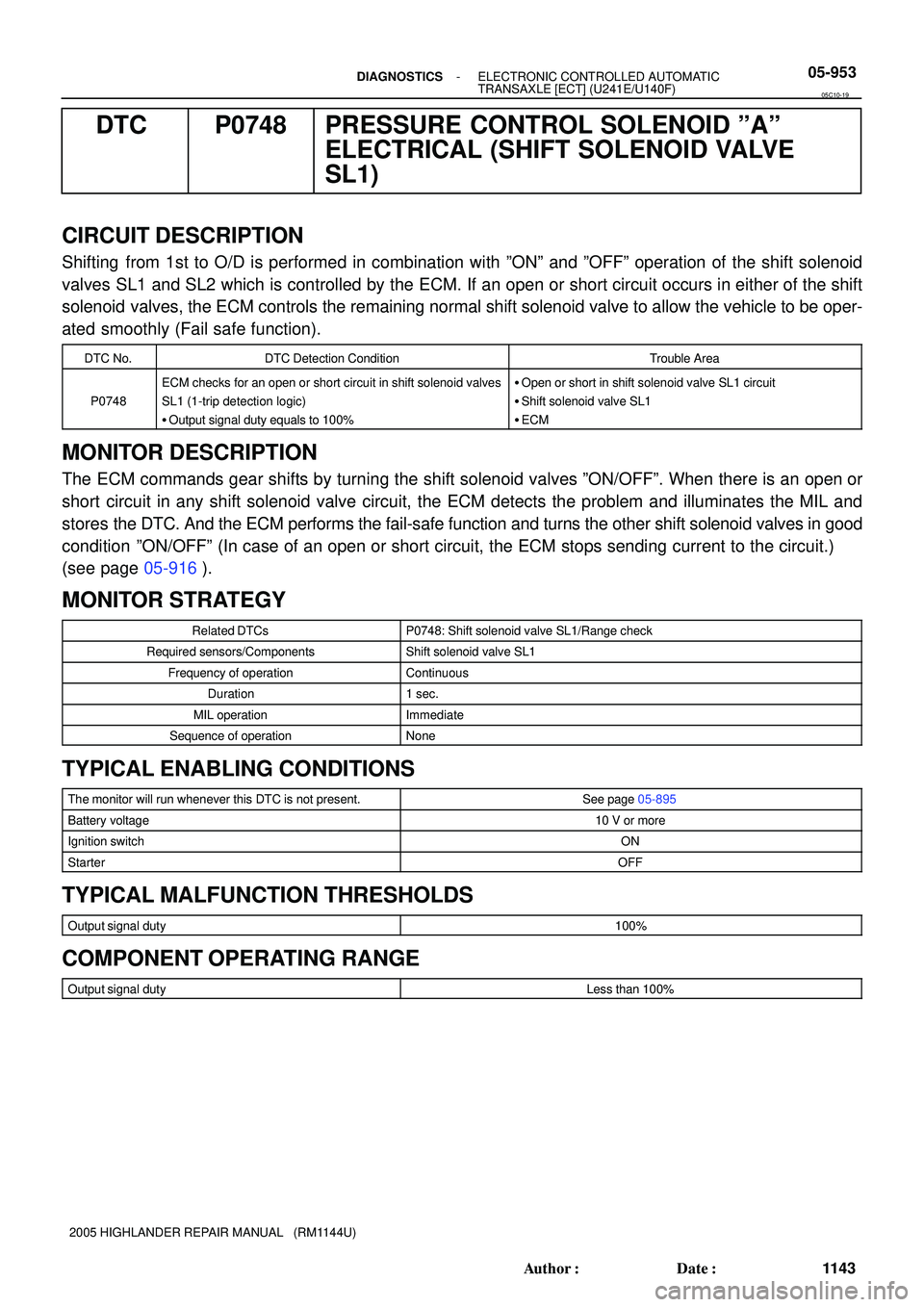

- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)05-953
1143 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0748 PRESSURE CONTROL SOLENOID ºAº
ELECTRICAL (SHIFT SOLENOID VALVE
SL1)
CIRCUIT DESCRIPTION
Shifting from 1st to O/D is performed in combination with ºONº and ºOFFº operation of the shift solenoid
valves SL1 and SL2 which is controlled by the ECM. If an open or short circuit occurs in either of the shift
solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the vehicle to be oper-
ated smoothly (Fail safe function).
DTC No.DTC Detection ConditionTrouble Area
P0748
ECM checks for an open or short circuit in shift solenoid valves
SL1 (1-trip detection logic)
Output signal duty equals to 100%Open or short in shift solenoid valve SL1 circuit
Shift solenoid valve SL1
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. When there is an open or
short circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and
stores the DTC. And the ECM performs the fail-safe function and turns the other shift solenoid valves in good
condition ºON/OFFº (In case of an open or short circuit, the ECM stops sending current to the circuit.)
(see page 05-916).
MONITOR STRATEGY
Related DTCsP0748: Shift solenoid valve SL1/Range check
Required sensors/ComponentsShift solenoid valve SL1
Frequency of operationContinuous
Duration1 sec.
MIL operationImmediate
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
The monitor will run whenever this DTC is not present.See page 05-895
Battery voltage10 V or more
Ignition switchON
StarterOFF
TYPICAL MALFUNCTION THRESHOLDS
Output signal duty100%
COMPONENT OPERATING RANGE
Output signal dutyLess than 100%
05C10-19

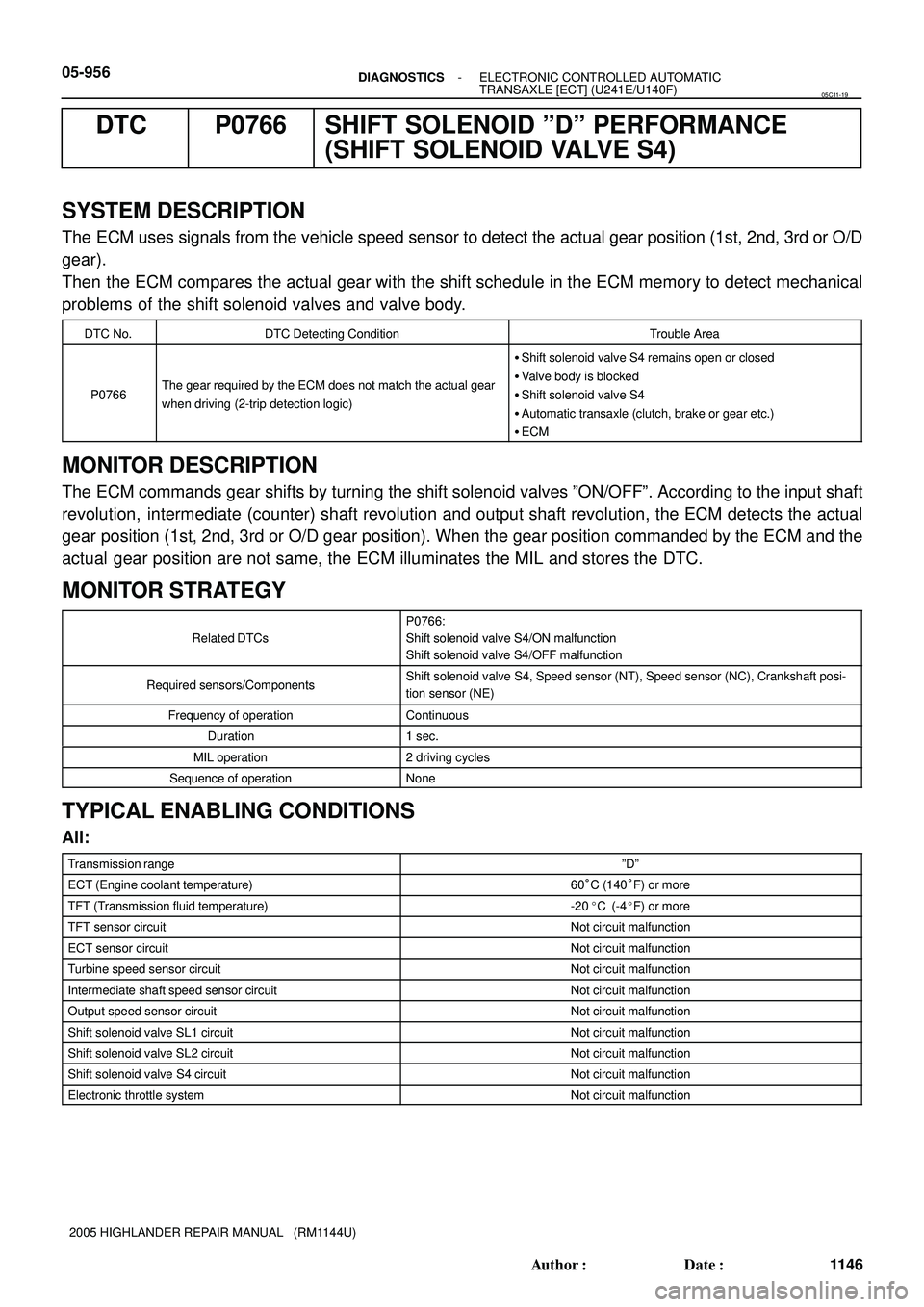

05-956- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1146 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0766 SHIFT SOLENOID ºDº PERFORMANCE
(SHIFT SOLENOID VALVE S4)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd or O/D
gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical
problems of the shift solenoid valves and valve body.
DTC No.DTC Detecting ConditionTrouble Area
P0766The gear required by the ECM does not match the actual gear
when driving (2-trip detection logic)
Shift solenoid valve S4 remains open or closed
Valve body is blocked
Shift solenoid valve S4
Automatic transaxle (clutch, brake or gear etc.)
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. According to the input shaft
revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual
gear position (1st, 2nd, 3rd or O/D gear position). When the gear position commanded by the ECM and the
actual gear position are not same, the ECM illuminates the MIL and stores the DTC.
MONITOR STRATEGY
Related DTCs
P0766:
Shift solenoid valve S4/ON malfunction
Shift solenoid valve S4/OFF malfunction
Required sensors/ComponentsShift solenoid valve S4, Speed sensor (NT), Speed sensor (NC), Crankshaft posi-
tion sensor (NE)
Frequency of operationContinuous
Duration1 sec.
MIL operation2 driving cycles
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
All:
Transmission rangeºDº
ECT (Engine coolant temperature)60°C (140°F) or more
TFT (Transmission fluid temperature)-20C (-4F) or more
TFT sensor circuitNot circuit malfunction
ECT sensor circuitNot circuit malfunction
Turbine speed sensor circuitNot circuit malfunction
Intermediate shaft speed sensor circuitNot circuit malfunction
Output speed sensor circuitNot circuit malfunction
Shift solenoid valve SL1 circuitNot circuit malfunction
Shift solenoid valve SL2 circuitNot circuit malfunction
Shift solenoid valve S4 circuitNot circuit malfunction
Electronic throttle systemNot circuit malfunction
05C11-19

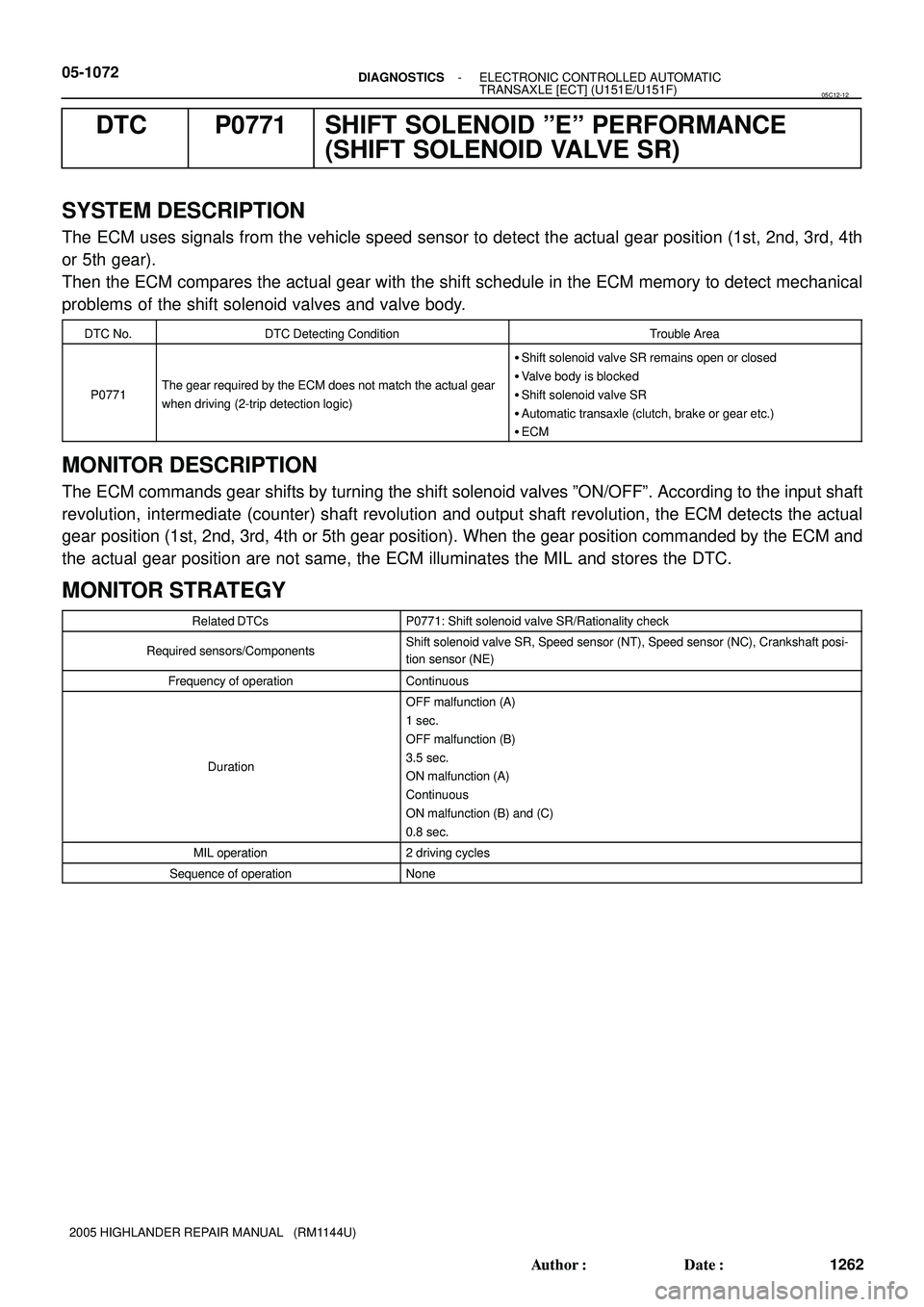

05-1072- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)
1262 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0771 SHIFT SOLENOID ºEº PERFORMANCE
(SHIFT SOLENOID VALVE SR)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd, 4th
or 5th gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical
problems of the shift solenoid valves and valve body.
DTC No.DTC Detecting ConditionTrouble Area
P0771The gear required by the ECM does not match the actual gear
when driving (2-trip detection logic)
Shift solenoid valve SR remains open or closed
Valve body is blocked
Shift solenoid valve SR
Automatic transaxle (clutch, brake or gear etc.)
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. According to the input shaft
revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual
gear position (1st, 2nd, 3rd, 4th or 5th gear position). When the gear position commanded by the ECM and
the actual gear position are not same, the ECM illuminates the MIL and stores the DTC.
MONITOR STRATEGY
Related DTCsP0771: Shift solenoid valve SR/Rationality check
Required sensors/ComponentsShift solenoid valve SR, Speed sensor (NT), Speed sensor (NC), Crankshaft posi-
tion sensor (NE)
Frequency of operationContinuous
Duration
OFF malfunction (A)
1 sec.
OFF malfunction (B)
3.5 sec.
ON malfunction (A)
Continuous
ON malfunction (B) and (C)
0.8 sec.
MIL operation2 driving cycles
Sequence of operationNone
05C12-12

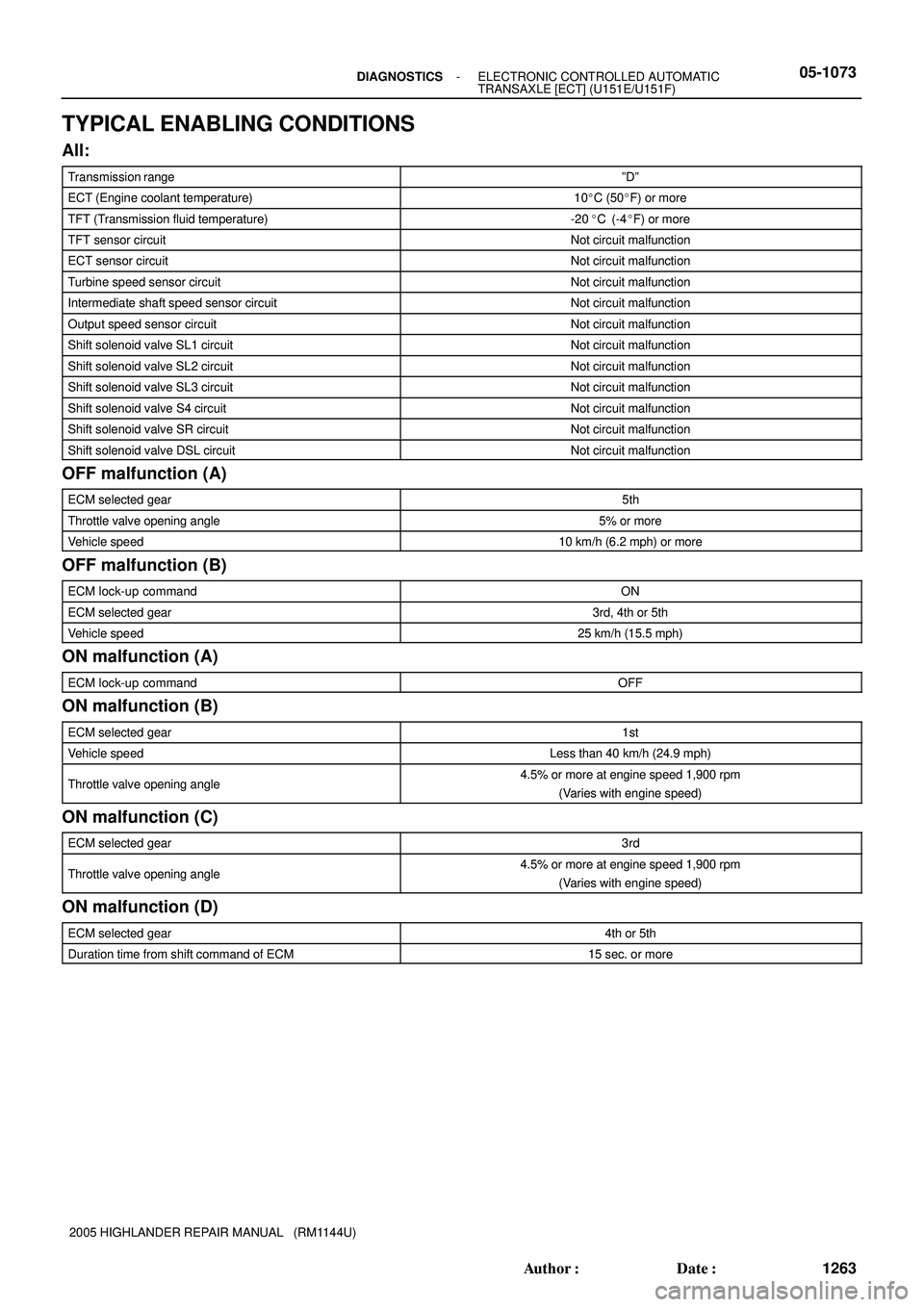

- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U151E/U151F)05-1073
1263 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
TYPICAL ENABLING CONDITIONS
All:
Transmission rangeºDº
ECT (Engine coolant temperature)10C (50F) or more
TFT (Transmission fluid temperature)-20C (-4F) or more
TFT sensor circuitNot circuit malfunction
ECT sensor circuitNot circuit malfunction
Turbine speed sensor circuitNot circuit malfunction
Intermediate shaft speed sensor circuitNot circuit malfunction
Output speed sensor circuitNot circuit malfunction
Shift solenoid valve SL1 circuitNot circuit malfunction
Shift solenoid valve SL2 circuitNot circuit malfunction
Shift solenoid valve SL3 circuitNot circuit malfunction
Shift solenoid valve S4 circuitNot circuit malfunction
Shift solenoid valve SR circuitNot circuit malfunction
Shift solenoid valve DSL circuitNot circuit malfunction
OFF malfunction (A)
ECM selected gear5th
Throttle valve opening angle5% or more
Vehicle speed10 km/h (6.2 mph) or more
OFF malfunction (B)
ECM lock-up commandON
ECM selected gear3rd, 4th or 5th
Vehicle speed25 km/h (15.5 mph)
ON malfunction (A)
ECM lock-up commandOFF
ON malfunction (B)
ECM selected gear1st
Vehicle speedLess than 40 km/h (24.9 mph)
Throttle valve opening angle4.5% or more at engine speed 1,900 rpm
(Varies with engine speed)
ON malfunction (C)
ECM selected gear3rd
Throttle valve opening angle4.5% or more at engine speed 1,900 rpm
(Varies with engine speed)
ON malfunction (D)
ECM selected gear4th or 5th
Duration time from shift command of ECM15 sec. or more

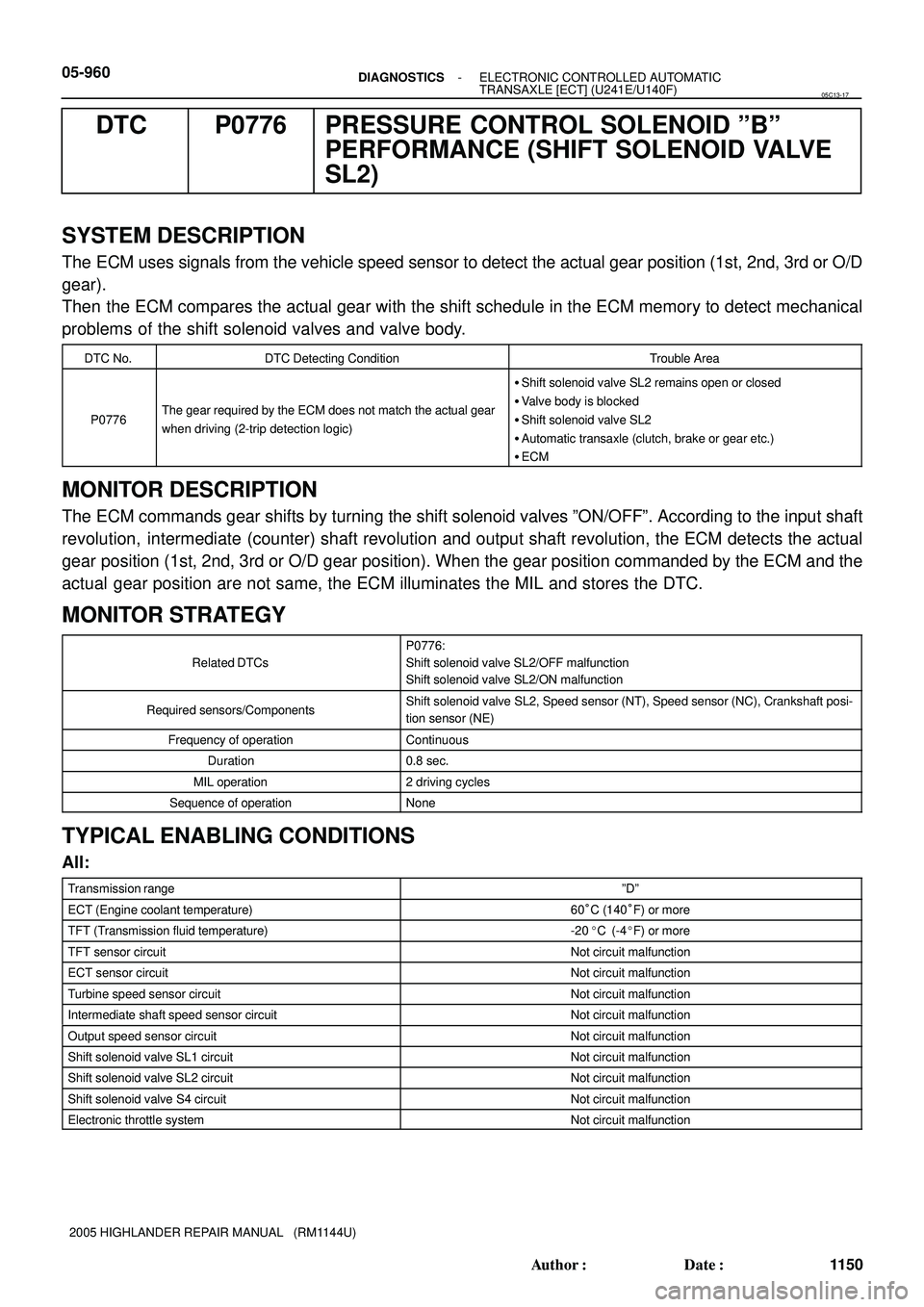

05-960- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1150 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DTC P0776 PRESSURE CONTROL SOLENOID ºBº
PERFORMANCE (SHIFT SOLENOID VALVE
SL2)
SYSTEM DESCRIPTION
The ECM uses signals from the vehicle speed sensor to detect the actual gear position (1st, 2nd, 3rd or O/D
gear).
Then the ECM compares the actual gear with the shift schedule in the ECM memory to detect mechanical
problems of the shift solenoid valves and valve body.
DTC No.DTC Detecting ConditionTrouble Area
P0776The gear required by the ECM does not match the actual gear
when driving (2-trip detection logic)
Shift solenoid valve SL2 remains open or closed
Valve body is blocked
Shift solenoid valve SL2
Automatic transaxle (clutch, brake or gear etc.)
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. According to the input shaft
revolution, intermediate (counter) shaft revolution and output shaft revolution, the ECM detects the actual
gear position (1st, 2nd, 3rd or O/D gear position). When the gear position commanded by the ECM and the
actual gear position are not same, the ECM illuminates the MIL and stores the DTC.
MONITOR STRATEGY
Related DTCs
P0776:
Shift solenoid valve SL2/OFF malfunction
Shift solenoid valve SL2/ON malfunction
Required sensors/ComponentsShift solenoid valve SL2, Speed sensor (NT), Speed sensor (NC), Crankshaft posi-
tion sensor (NE)
Frequency of operationContinuous
Duration0.8 sec.
MIL operation2 driving cycles
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
All:
Transmission rangeºDº
ECT (Engine coolant temperature)60°C (140°F) or more
TFT (Transmission fluid temperature)-20C (-4F) or more
TFT sensor circuitNot circuit malfunction
ECT sensor circuitNot circuit malfunction
Turbine speed sensor circuitNot circuit malfunction
Intermediate shaft speed sensor circuitNot circuit malfunction
Output speed sensor circuitNot circuit malfunction
Shift solenoid valve SL1 circuitNot circuit malfunction
Shift solenoid valve SL2 circuitNot circuit malfunction
Shift solenoid valve S4 circuitNot circuit malfunction
Electronic throttle systemNot circuit malfunction
05C13-17
05-964- DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E/U140F)
1154 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

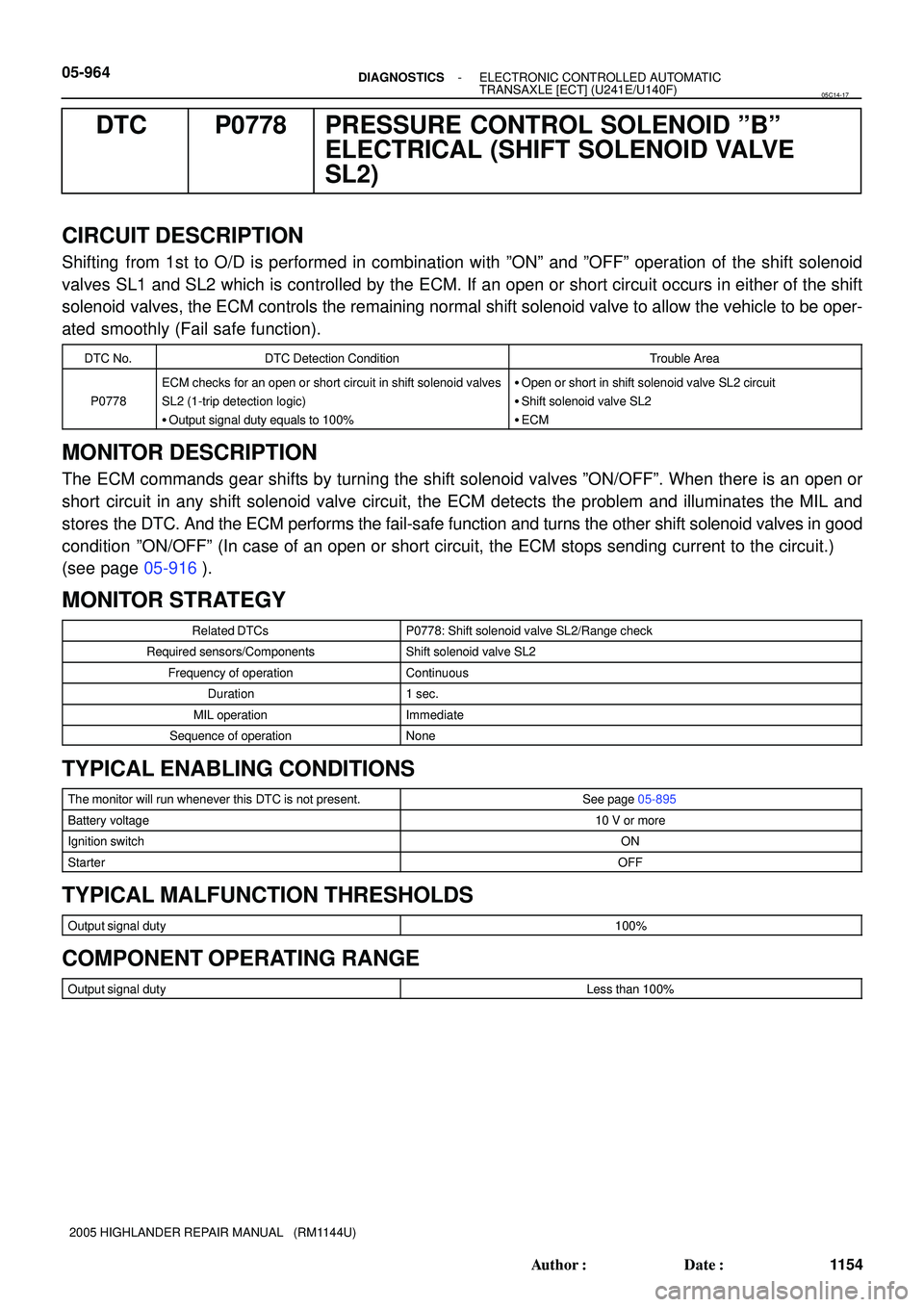

DTC P0778 PRESSURE CONTROL SOLENOID ºBº
ELECTRICAL (SHIFT SOLENOID VALVE
SL2)
CIRCUIT DESCRIPTION
Shifting from 1st to O/D is performed in combination with ºONº and ºOFFº operation of the shift solenoid
valves SL1 and SL2 which is controlled by the ECM. If an open or short circuit occurs in either of the shift
solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the vehicle to be oper-
ated smoothly (Fail safe function).
DTC No.DTC Detection ConditionTrouble Area
P0778
ECM checks for an open or short circuit in shift solenoid valves
SL2 (1-trip detection logic)
Output signal duty equals to 100%Open or short in shift solenoid valve SL2 circuit
Shift solenoid valve SL2
ECM
MONITOR DESCRIPTION
The ECM commands gear shifts by turning the shift solenoid valves ºON/OFFº. When there is an open or
short circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and
stores the DTC. And the ECM performs the fail-safe function and turns the other shift solenoid valves in good
condition ºON/OFFº (In case of an open or short circuit, the ECM stops sending current to the circuit.)
(see page 05-916).
MONITOR STRATEGY
Related DTCsP0778: Shift solenoid valve SL2/Range check
Required sensors/ComponentsShift solenoid valve SL2
Frequency of operationContinuous
Duration1 sec.
MIL operationImmediate
Sequence of operationNone
TYPICAL ENABLING CONDITIONS
The monitor will run whenever this DTC is not present.See page 05-895
Battery voltage10 V or more
Ignition switchON
StarterOFF
TYPICAL MALFUNCTION THRESHOLDS
Output signal duty100%
COMPONENT OPERATING RANGE
Output signal dutyLess than 100%
05C14-17
