Page 27 of 123
INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator, Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whe- ther the message is correct; a surplus of oil cancause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum.
Check the level with the dipstick and top it up. The figu- re shown is only correct if the vehicle has been onstable, level ground, with the engine stopped, for 10minutes. Oil level gauge fault The 6 segments flash; they indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indicates the oil temperature:
- When the needle is in zone
C, the
temperature is correct,
- When the needle is in zone D, the
temperature is too high. To lower the oil temperature, reduce yourspeed.
Page 28 of 123
INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator, Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whe- ther the message is correct; a surplus of oil cancause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum.
Check the level with the dipstick and top it up. The figu- re shown is only correct if the vehicle has been onstable, level ground, with the engine stopped, for 10minutes. Oil level gauge fault The 6 segments flash; they indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indicates the oil temperature:
- When the needle is in zone
C, the
temperature is correct,
- When the needle is in zone D, the
temperature is too high. To lower the oil temperature, reduce yourspeed.
Page 29 of 123
INSTRUMENTS AND CONTROLS31
Hazard warning lights
Press the button, the direction indica- tors flash.
They can operate with the ignition off.
Total distance recorder Briefly pressing button 1alternates
between the total distance and trip dis- tance displays.
To reset the trip recorder to zero, when it is displayed press and hold the resetbutton for just over 3 seconds.Lighting rheostat With the lights on, press the button to vary the intensity of the lighting on theinstrument panel and the multifunction
display. When the lighting reaches theminimum (or maximum) setting, releasethe button then press it again to increa-se (or reduce) the brightness. As soon as the lighting is of the required brightness, release the button.
Page 30 of 123
YOUR 206 CC IN DETAIL
32
Setting the parameters Press button 1for two seconds to access the settings. The information flashes
to show it is ready to be modified.Then, individual presses on button 1allow you to scroll through the various data
in the following sequence:- language in which the information is displayed,- unit of distance (kms or miles),- unit of temperature (degrees Celsius or Fahrenheit),- time format (12 then 24 hour mode)
- hour,- minutes,
- year,- month,
- day,Pressing button 2allows you to change the information selected. Maintain the
pressure for rapid scrolling. After ten seconds without operation, the screen returns to the main display and the modified data is recorded.
Display B This enables the following information to be displayed:
- the time,
- the date,
- the outside temperature (this flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you, by means of a graphic, whether a door is open.
- the warning messages (e.g. ''bat-
tery charge low'') or informationmessages (e.g. "fuel tank low''),
displayed temporarily, can becleared by pressing button 1or 2,
- the trip computer
Page 31 of 123
YOUR 206 CC IN DETAIL33
Display C This enables the following informa- tion to be displayed:
- the time,
- the date,
- the outside temperature (this
flashes when there is a risk of ice),
- the radio displays,
- the status of the doors. The dis- play shows you by means of a graphic whether a door is open, - the warning messages are displayed temporarily (e.g. "low fuel level'') and can be
cleared using the remote control,
- the trip computer (see following page),
- the satellite navigation system* (see corresponding section). Setting the parameters
The remote control allows you to access the settings. Accessing the different menus is described in the section "Satellite Navigation System".
* According to specification.
Page 35 of 123
YOUR 206 CC IN DETAIL37

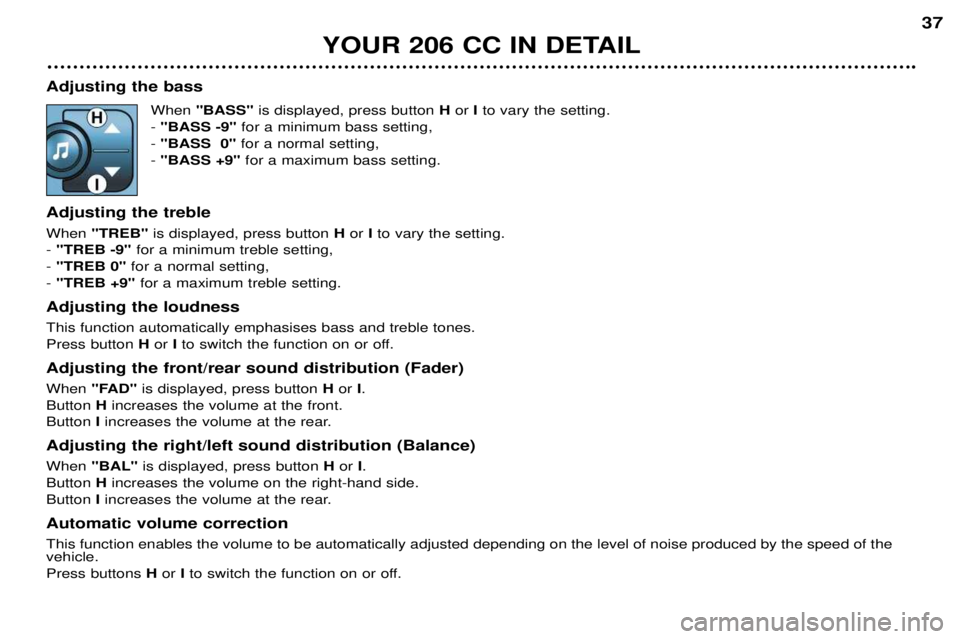

Adjusting the bass When "BASS" is displayed, press button Hor Ito vary the setting.
- "BASS -9" for a minimum bass setting,
- "BASS 0" for a normal setting,
- "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Hor Ito vary the setting.
- "TREB -9" for a minimum treble setting,
- "TREB 0" for a normal setting,
- "TREB +9" for a maximum treble setting.
Adjusting the loudnessThis function automatically emphasises bass and treble tones. Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader) When "FAD" is displayed, press button Hor I.
Button Hincreases the volume at the front.
Button Iincreases the volume at the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor I.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume at the rear.
Automatic volume correctionThis function enables the volume to be automatically adjusted depending on the level of noise produced by the speed of the vehicle. Press buttons Hor Ito switch the function on or off.
Page 37 of 123
YOUR 206 CC IN DETAIL39
Manual station search Press the "MAN " button.
Briefly press button Lor Nto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press one of the buttons "1"to "6" for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory.

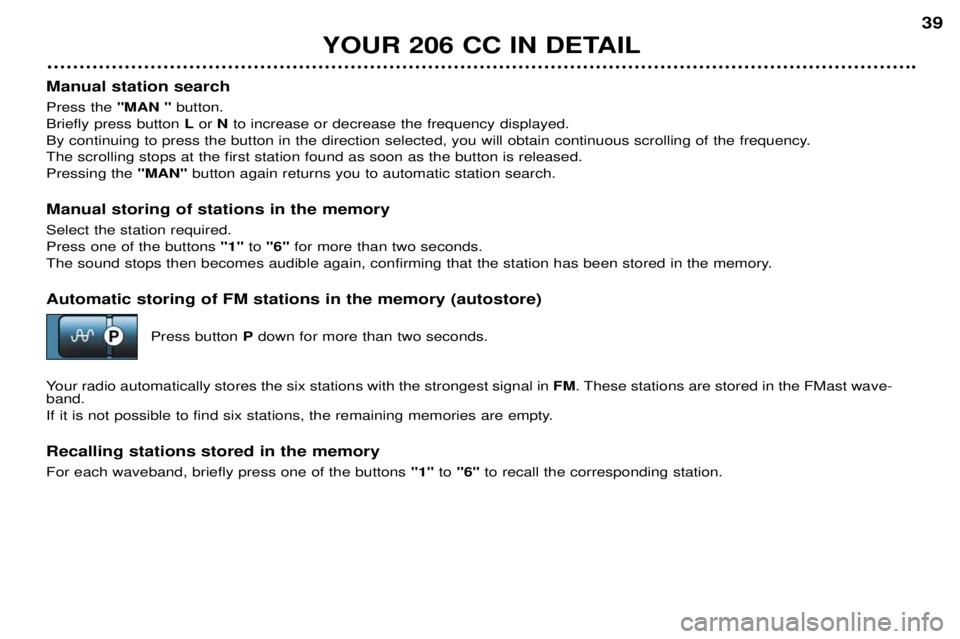

Automatic storing of FM stations in the memory (autostore)
Press button Pdown for more than two seconds.
Your radio automatically stores the six stations with the strongest signal in FM. These stations are stored in the FMast wave-
band.
If it is not possible to find six stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press one of the buttons "1"to "6" to recall the corresponding station.
Page 38 of 123
YOUR 206 CC IN DETAIL
40

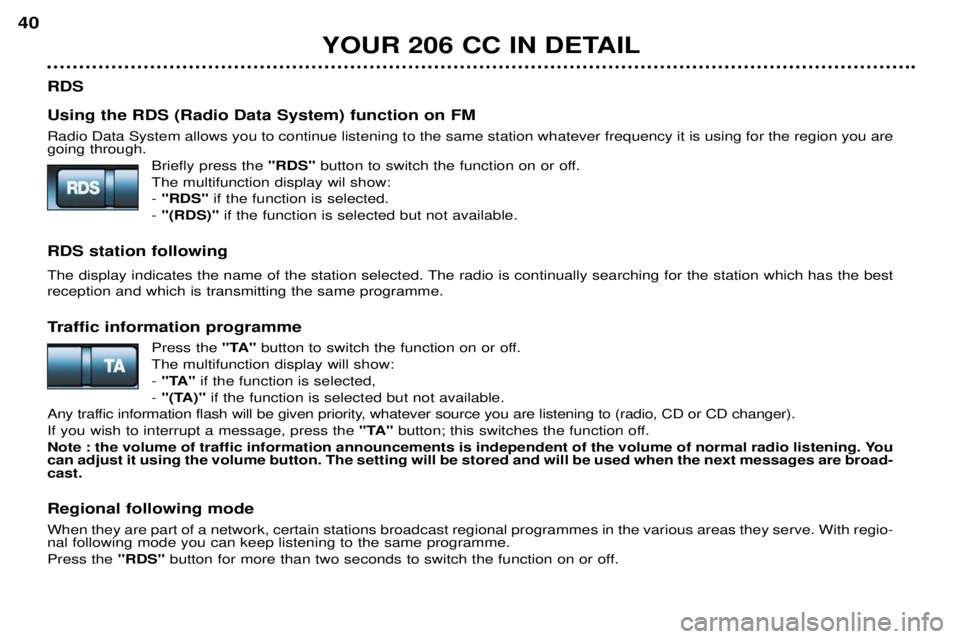

RDS Using the RDS (Radio Data System) function on FM Radio Data System allows you to continue listening to the same station whatever frequency it is using for the region you are going through. Briefly press the "RDS"button to switch the function on or off.
The multifunction display wil show: - "RDS" if the function is selected.
- "(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.
Traffic information programme Press the "TA"button to switch the function on or off.
The multifunction display will show: - "TA" if the function is selected,
- "(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, CD or CD changer).If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note : the volume of traffic information announcements is independent of the volume of normal radio listening. You can adjust it using the volume button. The setting will be stored and will be used when the next messages are broad-cast.
Regional following mode When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regio- nal following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
