2001 PEUGEOT 206 CC DAG display

YOUR 206 CC IN DETAIL51

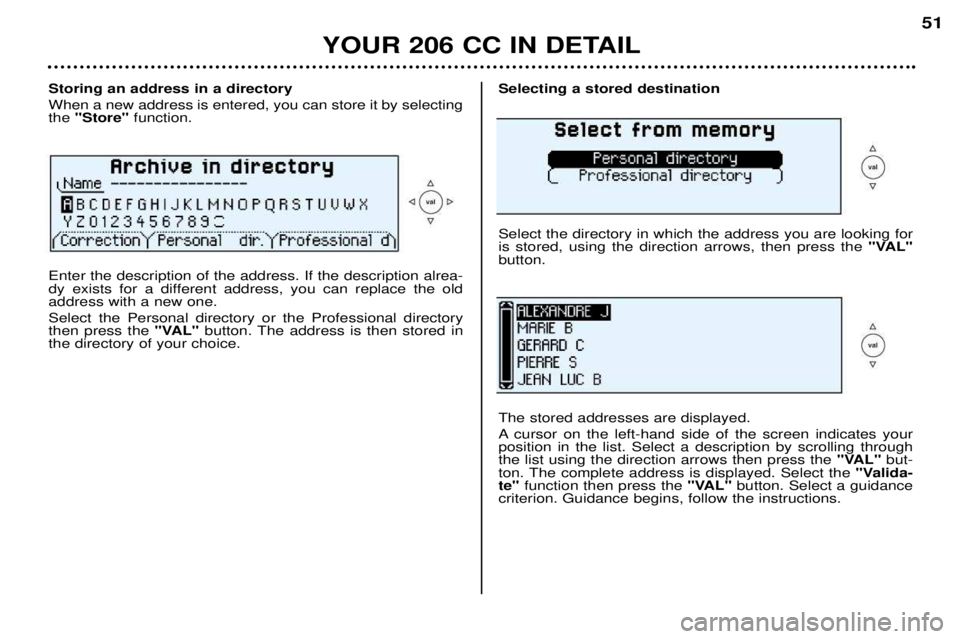

Storing an address in a directory When a new address is entered, you can store it by selecting the
"Store" function.
Enter the description of the address. If the description alrea-
dy exists for a different address, you can replace the oldaddress with a new one. Select the Personal directory or the Professional directory then press the "VAL"button. The address is then stored in
the directory of your choice.Selecting a stored destination Select the directory in which the address you are looking for is stored, using the direction arrows, then press the "VAL"
button. The stored addresses are displayed.
A cursor on the left-hand side of the screen indicates your position in the list. Select a description by scrolling throughthe list using the direction arrows then press the "VAL"but-
ton. The complete address is displayed. Select the "Valida-
te" function then press the "VAL" button. Select a guidance
criterion. Guidance begins, follow the instructions.

YOUR 206 CC IN DETAIL
52

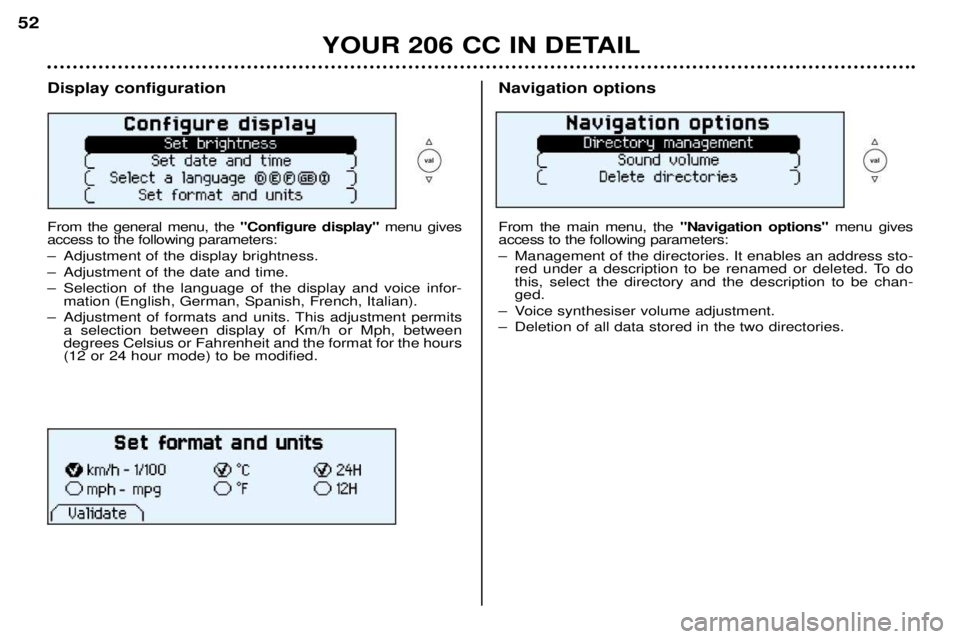

Display configuration From the general menu, the
"Configure display"menu gives
access to the following parameters:
Ð Adjustment of the display brightness.
Ð Adjustment of the date and time.
Ð Selection of the language of the display and voice infor- mation (English, German, Spanish, French, Italian).
Ð Adjustment of formats and units. This adjustment permits a selection between display of Km/h or Mph, between degrees Celsius or Fahrenheit and the format for the hours(12 or 24 hour mode) to be modified.Navigation options From the main menu, the "Navigation options"menu gives
access to the following parameters:
Ð Management of the directories. It enables an address sto- red under a description to be renamed or deleted. To do this, select the directory and the description to be chan-ged.
Ð Voice synthesiser volume adjustment.
Ð Deletion of all data stored in the two directories.

YOUR 206 CC IN DETAIL53

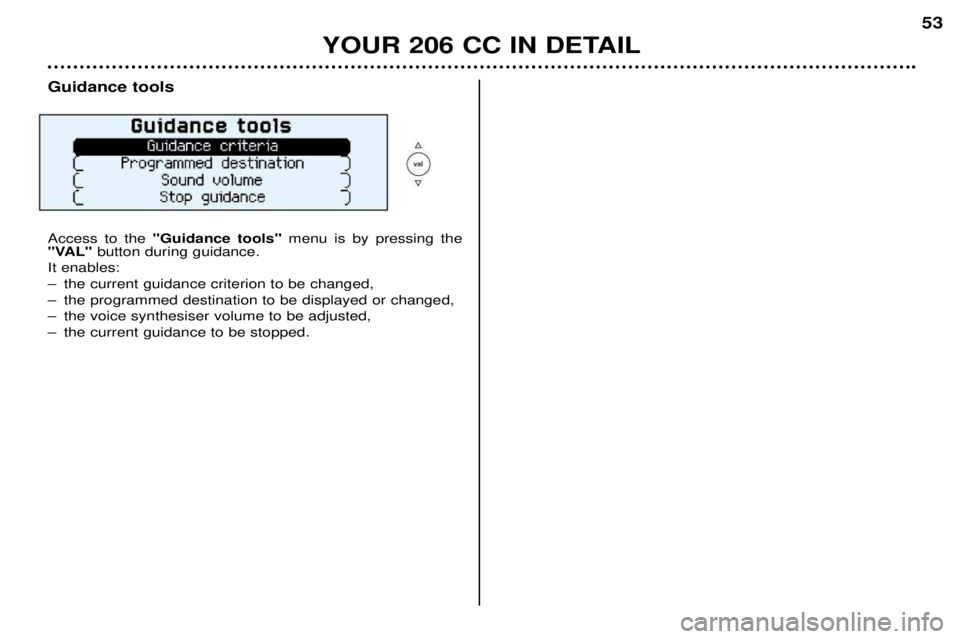

Guidance tools Access to the
"Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
Ð the current guidance criterion to be changed,
Ð the programmed destination to be displayed or changed,
Ð the voice synthesiser volume to be adjusted,
Ð the current guidance to be stopped.

YOUR 206 CC IN DETAIL
60

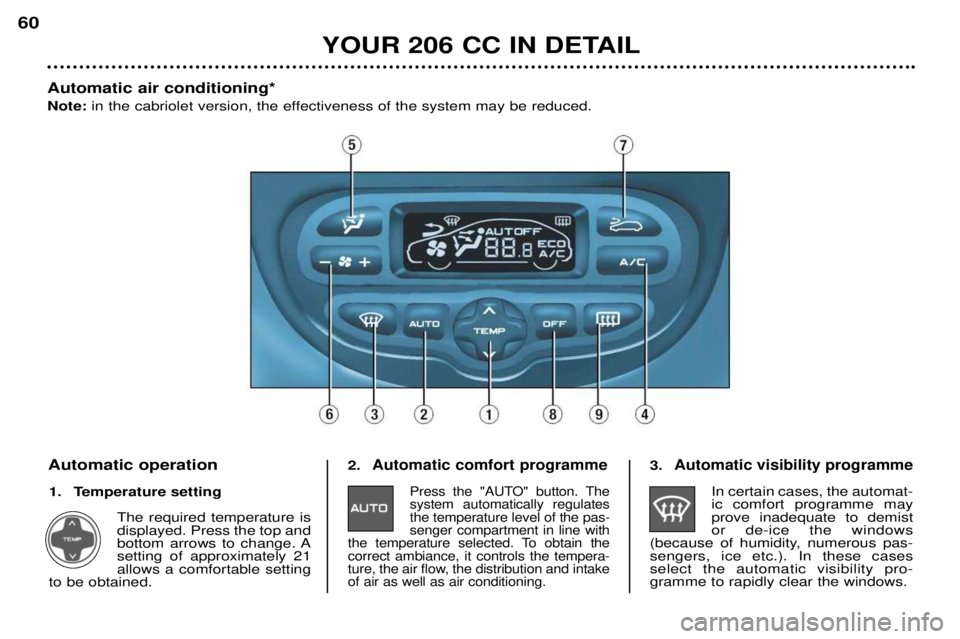

Automatic air conditioning* Note: in the cabriolet version, the effectiveness of the system may be reduced.
2.
Automatic comfort programmePress the "AUTO" button. The system automatically regulatesthe temperature level of the pas-senger compartment in line with
the temperature selected. To obtain thecorrect ambiance, it controls the tempera-
ture, the air flow, the distribution and intakeof air as well as air conditioning.3.Automatic visibility programme
In certain cases, the automat- ic comfort programme mayprove inadequate to demistor de-ice the windows
(because of humidity, numerous pas-sengers, ice etc.). In these casesselect the automatic visibility pro-gramme to rapidly clear the windows.
Automatic operation
1. Temperature setting The required temperature is displayed. Press the top and
bottom arrows to change. Asetting of approximately 21allows a comfortable setting
to be obtained.

YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen,
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes. from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. De-icing the rear window Press this button to de-ice therear screen and the mirrors*.The de-icing system switches
off automatically after a peri-
od which varies depending on the out-side temperature. It is possible to stop
the de-icing before it switches off auto-matically by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed auto-
matically. Press the "AUTO" button toreturn to completely automatic opera-tion.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or - respectively.
* According to specification.
Note
The condensation created by the air con- ditioning causes a normal flow of waterunder the vehicle when it stops.

YOUR 206 CC IN DETAIL
68
Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompanied bythe message
"Remote control batte-
ry low" on the multifunction display.
To replace the battery, remove thescrew then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independently
operate the locks on the doors, the tailgate (opening), the fuel filler cap,the steering lock, the glove box andthe passenger air bag disarming con-trol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors
Unlocking the boot is possible only
by using the boot key. If one of the doors is open, the central locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the doors and
the tailgate by remote control.This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors.This is shown by the rapid flashing ofthe direction indicators. Note: do not repeatedly press the but-
ton of your remote control out of range
of your vehicle. You risk causing it notto work and the remote control wouldhave to be reprogrammed .Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy lights
come on and the direction indica- tors flash for a few seconds.Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
* According to specification .
Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button A.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.

YOUR 206 CC IN DETAIL69
Make a careful note of the
number on each key. The keynumber is coded on the label
attached to the key.
If the keys are lost, your PEUGEOT dea-ler can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that it may unlockyour vehicle, without you being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off, exceptfor reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have to bereprogrammed. When purchasing a second-hand vehicle: - ensure that you are given the confiden- tial card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.

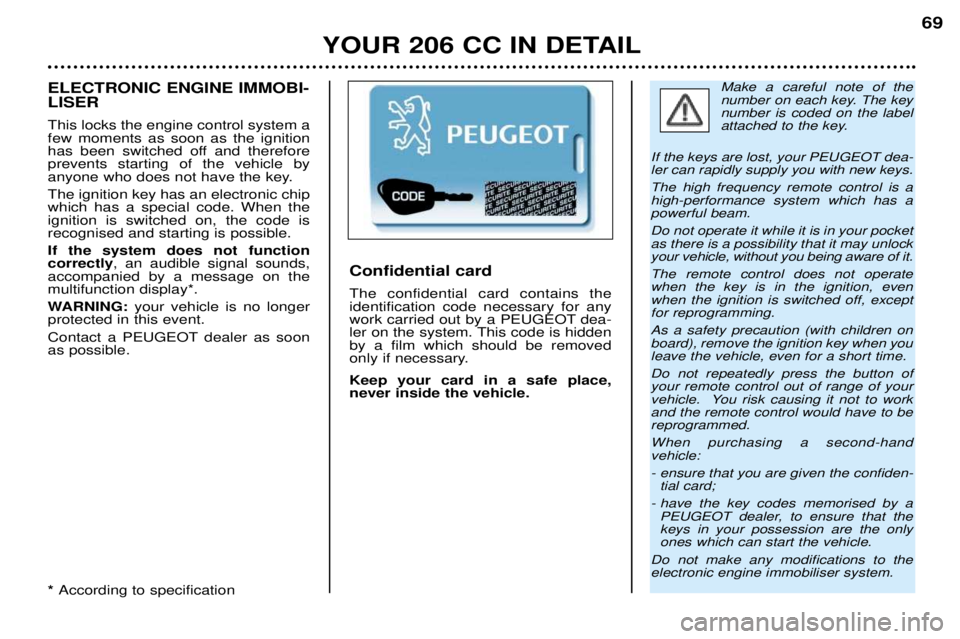

Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dea-
ler on the system. This code is hiddenby a film which should be removed
only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBI- LISER This locks the engine control system a few moments as soon as the ignition
has been switched off and thereforeprevents starting of the vehicle by
anyone who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function correctly , an audible signal sounds,
accompanied by a message on themultifunction display*.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. * According to specification

YOUR 206 CC IN DETAIL69
Make a careful note of the
number on each key. The keynumber is coded on the label
attached to the key.
If the keys are lost, your PEUGEOT dea-ler can rapidly supply you with new keys. The high frequency remote control is a high-performance system which has apowerful beam. Do not operate it while it is in your pocket as there is a possibility that it may unlockyour vehicle, without you being aware of it. The remote control does not operate when the key is in the ignition, evenwhen the ignition is switched off, exceptfor reprogramming. As a safety precaution (with children on board), remove the ignition key when youleave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of your
vehicle. You risk causing it not to workand the remote control would have to bereprogrammed. When purchasing a second-hand vehicle: - ensure that you are given the confiden- tial card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the onlyones which can start the vehicle.
Do not make any modifications to theelectronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for any
work carried out by a PEUGEOT dea-
ler on the system. This code is hiddenby a film which should be removed
only if necessary. Keep your card in a safe place, never inside the vehicle.
ELECTRONIC ENGINE IMMOBI- LISER This locks the engine control system a few moments as soon as the ignition
has been switched off and thereforeprevents starting of the vehicle by
anyone who does not have the key. The ignition key has an electronic chip which has a special code. When theignition is switched on, the code isrecognised and starting is possible. If the system does not function correctly , an audible signal sounds,
accompanied by a message on themultifunction display*.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible. * According to specification
