PRACTICAL ASPECTS OF YOUR VEHICLE
110
Towing a trailer, caravan, boat etc.
Only use original PEUGEOT tow bars that have been tested and approvedfrom the design stage of your vehicle.The tow bar must be fitted by a
PEUGEOT dealer.
Your vehicle is mainly designed for transporting people and luggage but it
may also be used for towing a trailer. Driving with a trailer subjects the tow- ing vehicle to more significant stressand its driver must be particularlycareful. Air density decreases with altitude, thus reducing engine performance.The maximum towing load must bereduced by 10% for every1000 metres of altitude. Driving advice Distribution of loadsDistribute the load in the trailer so that the heaviest items are as close aspossible to the axle and the noseweight approaches the maximum per-mitted without exceeding it. Cooling
Towing a trailer on a slope increases the temperature of the coolant. As the fan is electrically controlled, its cooling capacity is not dependent onthe engine speed.
On the contrary, use a high gear to lower the engine speed, and reduceyour speed. The maximum towing load on a long slope depends on the gradient and theoutside temperature. Always pay attention to the coolant temperature. If the warning light comes on, stop the
vehicle and switch off the engine assoon as possible.
Tyres Check the tyre pressures of the towing
vehicle and of the trailer, observing therecommended pressures.
Braking
Towing increases the braking dis- tance. Lights Adjust your headlamps so that they do not dazzle other road users.Check the electrical signalling on the
trailer. Side wind
Take into acount the increased sensi- tivity to side wind.
TECHNICAL DATA117

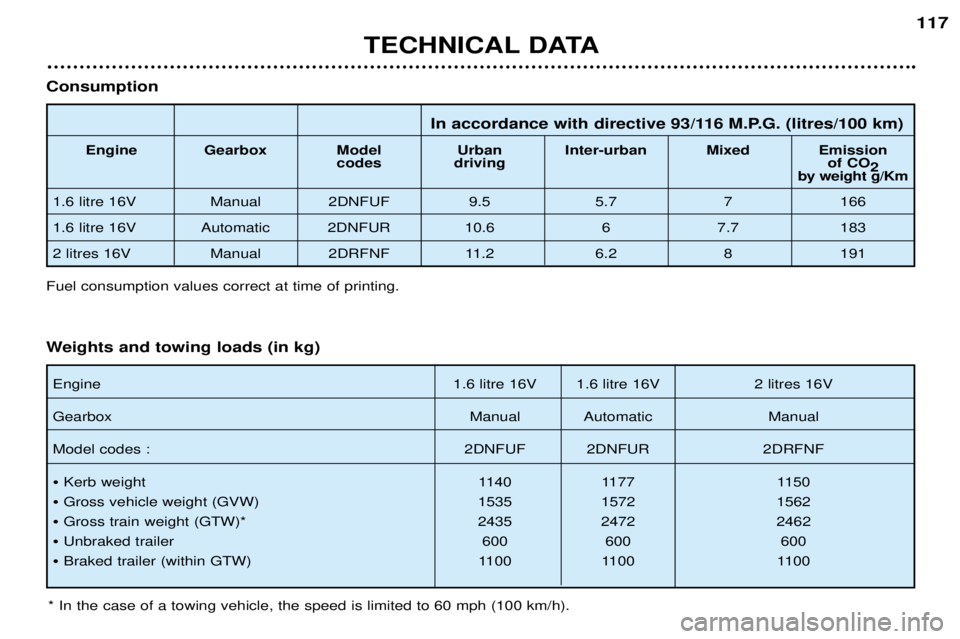

In accordance with directive 93/116 M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving of CO
2
by weight g/Km
1.6 litre 16V Manual 2DNFUF 9.5 5.7 7 166
1.6 litre 16V Automatic 2DNFUR 10.6 6 7.7 183
2 litres 16V Manual 2DRFNF 11.2 6.2 8 191
Consumption
Fuel consumption values correct at time of printing.
Engine 1.6 litre 16V 1.6 litre 16V 2 litres 16V
Gearbox Manual Automatic Manual
Model codes : 2DNFUF 2DNFUR 2DRFNF
¥ Kerb weight
1140 1177 1150
¥ Gross vehicle weight (GVW) 1535 1572 1562
¥ Gross train weight (GTW)* 2435 2472 2462
¥ Unbraked trailer
600 600 600
¥ Braked trailer (within GTW) 1100 1100 1100
Weights and towing loads (in kg)
* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
