2001 PEUGEOT 206 CC DAG light

1Bonnet opening control
2 Fuse box
3 Storage
4 Steering wheel height adjust- ment control
5 Headlamp height adjustment
6 Lights and fog lamps stalk
7 Adjustable side vent
8 Heated seats switch*
9 Side windows demisting vents
10 Passenger air bag disarmingswitch*
11 Driver's air bag / horn
12 Instrument panel lighting rheostat
13 Windscreen wash/wipe stalk 14
Radio steering column stalk
15 Steering lock
16 Central adjustable vents
17 Hazard warning lights switch
18 Multifunction display
19 Audio equipment
20 Windscreen demisting vents
21 Passenger air bag
22 Glove box
23 Controls for heating, ventila-tion, air conditioning and rearscreen and mirrors demisting
24 Front ashtray
25 Gear lever
26 Lighter
27 Electric mirrors switch 28
Electric windows switch
29 Handbrake
30 Retractable roof switch
* According to specification.
3YOUR AT A GLANCE

7YOUR AT A GLANCE
STARTING The four positions of the key in the ignition:
STOP position:the ignition is
off.
1st notch, Accessories posi- tion: the ignition is off but the
accessories can be used. 2nd notch, Running position: the ignition is on. Starting position : operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently tur-ning the steering wheel at the
same time as you turn the key. It is advisable to press the clutch pedal while operating the starter
to make starting easier. Starting a petrol engin
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns.
THE KEYS The keys operate
independently
the locks for the boot (opening), the fuel filler flap, the steeringlock, the glove box and the pas-senger air bag disarming switch. Central locking
From the driverÕs door, the keys allow you to:
Ð simultaneously lock the doors and the boot,
Ð simultaneously unlock just the doors.
You can only unlock the boot by using the lock. The remote control Pressing button A
allows you to lock the doors and boot. This is displayed by the continuous light-ing of the directionindicators forapproximately twoseconds. Pressing button Ballows you to
unlock the doors only.This is indicated by the quick flashing of the direc-tion indicators for approxi-mately two seconds. * According to country.
68
Never race a cold engine.
Never run the engine in anenclosed space. Do not make any modications to the steering lock.

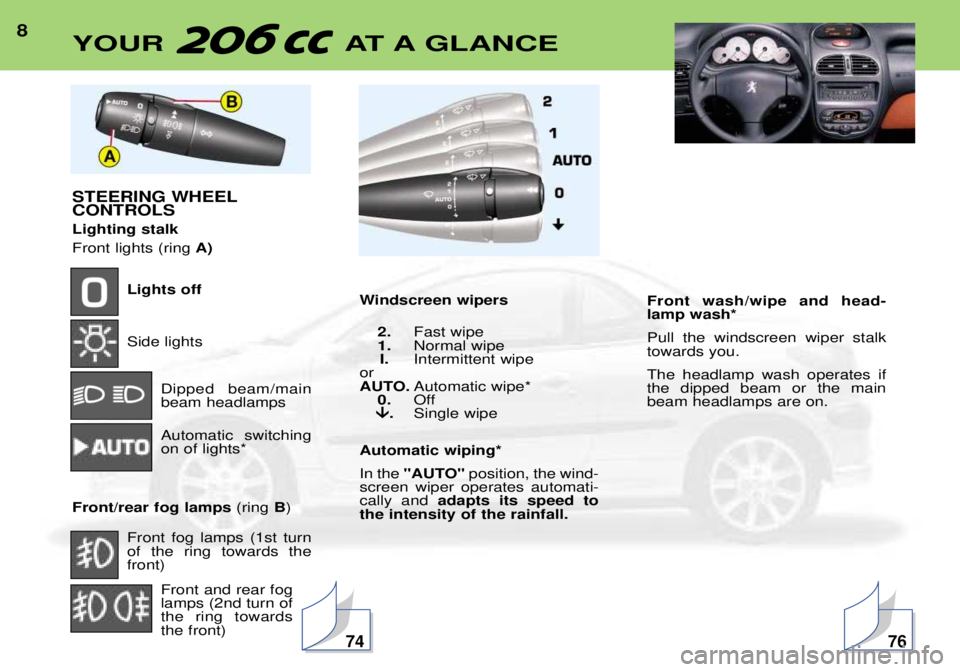

8YOUR AT A GLANCE
STEERING WHEEL CONTROLS Lighting stalkFront lights (ring A)
Lights off Side lights
Dipped beam/main beam headlamps Automatic switching on of lights*
Front/rear fog lamps (ring B)
Front fog lamps (1st turnof the ring towards thefront) Front and rear foglamps (2nd turn ofthe ring towardsthe front) Windscreen wipers
2. Fast wipe
1. Normal wipe
I. Intermittent wipe
or
AUTO. Automatic wipe*
0. Off


. Single wipe
Automatic wiping* In the "AUTO" position, the wind-
screen wiper operates automati- cally and adapts its speed to
the intensity of the rainfall. Front wash/wipe and head-lamp wash* Pull the windscreen wiper stalk towards you. The headlamp wash operates if the dipped beam or the mainbeam headlamps are on.
7476

11YOUR AT A GLANCE
FRONT AIR BAGS Disarming the passenger air bag Insert the ignition key into switch 1 and turn it to:
Ð the passenger air bag ONposi-
tion,
Ð the passenger air bag OFF
position.
Operating check
With the ignition on (2nd notch onthe key), switching on of thiswarning light, accompanied by anaudible signal and the message*''Passenger air bag disarmed''on the multifunction screen, indi-cates that the passenger air bag
is switched off ( ''OFF''position
on the switch). The warning light remains switched on throughout the dura-tion of the disarming process. Precautions concerning the passenger air bag
Vehicle fitted with a passenger air bag disarming switch:
Ð disarm the air
bag if you install a rearwards-fac-ing child seat
Ð arm the air bag when you trans-port an adult.
Vehicle not fitted with a passen-ger air bag disarming switch:
Ð do not install a rear-facing child seat on the frontpassenger seat.
Never place your feet or anyobject on the instrument panel. "ISOFIX" MOUNTINGS
Available on the front passenger seat, Isofix mountings allow fit-ting of a
special child seat , sold
by PEUGEOT dealers. The locks incorporated in the child seat fit onto the "Isofix"mountings, ensuring reliable,
safe and fast assembly. The childseat must be fitted in the rear-facing position for children weigh-ing less than 29 lbs or 13 kg (to
do this it is essential to disarmthe passenger air bag) .
Follow the instructions for fittingthe child seat in the manufactur-er's installation brochure.
8864

PEUGEOT SERVICING23
- Engine oil
Level
Operations Operation descriptions 1st
service
AC
Intermediate visit
- Oil filter- Fuel filter- Air filter element- Spark plugs
- Engine oil (check + top-up)- Manual gearbox oil (check + top-up)- Battery (check + top-up) if removable cap- Coolant level (check + top-up)- Front windscreen wash (check + top-up)- Brake fluid (check + top-up)- Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators- Condition of glass, headlamp and light lenses and mirrors- Horn- Condition of wiper blades- Windscreen jets- Condition and tension of the ancillary drive belts- Handbrake- Condition of hydraulic circuits (hoses and covers) and check for leaks- Condition of rubber boots and gaiters- Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings- Shock absorbers: check for leaks- Rear drum brake lining wear- Condition and pressure of tyres (including spare tyre)- Emission control check according to current legislation- Pollen filter (according to specification)o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle

All driving conditions. oIf there are specific conditions.
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT

INSTRUMENTS AND CONTROLS
26
1.Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat
24. Fuel gauge
25. Low fuel level warning light
* According to specification
Instrument panel

INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened* warning light
2. Passenger air bag disarming* indi- cator light
3. Front and side air bags* warning light
4. Front fog lamps indicator light
5. ABS*: Anti-lock Braking Systemwarning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, service indi-cator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure warning light
16. Temperature and coolant low levelwarning light
17. Programmes de fonctionnement
18. Indicateur de position de vitesse 19.
Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat
25. Fuel gauge
26. Fuel low warning light
* According to specification.
Instrument panel: Automatic gearbox

INSTRUMENTS AND CONTROLS
28
Handbrake and low brake fluid level or fault inElectronic Brake ForceDistribution system
warning light
Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
- a fault in the Electronic Brake Force Distribution system if lit simultane-
ously with the ABS warning light.
Stop immediately.
Contact a PEUGEOT dealer.
Instruments and controls
A permantly lit warning light or one that flashes with the engine run-ning, indicates an operating fault inthe relevant unit. Some warninglights may be accompanied by anaudible signal and a message onthe multifunction screen. Do notignore this warning: contact a PEUGEOT dealer as soon as possi-
ble. If the Central STOP warninglight comes on when you are dri-ving, stop immediately where it issafe to do so.
Anti-lock brake system (ABS) warning light*
When this is lit continuously, it
indicates a malfunction of the ABS system.
However, the vehicle retains con- ventional servo-assisted braking.
Contact a PEUGEOT dealer.
* According to specification
Engine oil pressure warning light
Linked with the central STOP
warning light.
Stop immediately.This warning light indicates either:
- insufficient oil pressure,
- lack of oil in the lubrication circuit. Top up the oil level.
- oil temperature which is too high. Switching on of the warning light is accompanied by an audible signal.
To lower the oil temperature, reduceyour speed.
Contact a PEUGEOT dealer as soonas possible.
Temperature and coolant low level warning light
Linked with the the central STOP warning light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to pre-
vent the risk of scalding , turn the
cap twice to allow the pressure to drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warning
light for the "engine oil pressure", the "coolant temperature and low levelgauge", the "handbrake", the "brakefluid low level" and ''electronic brakingsystem fault'' as well as the "dooropen" warning indicated by a symbol
on the multifunction display. Stop immediately if the light is flashing with the engine running.
Contact a PEUGEOT dealer.
