Page 25 of 123
INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light
With the engine running, the warninglight comes on when the driver has notfastened his seat belt.
Engine autodiagnostics warning light This comes on each time the
ignition is switched on. If it comes on when the engine is run- ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light is accompanied by an audible signal andthe message "Passenger air bag disarmed" on
the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the
following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals, - a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 26 of 123
INSTRUMENTS AND CONTROLS29
Air bag warning light The warning light comes on for a few seconds when the
ignition is switched on. Switching on of this warning light, with the engine running, is accompanied byan audible signal and a message onthe multifunction display indicating afault in the air bags.
Contact a PEUGEOT dealer. Seat belt not fastened* warning light
With the engine running, the warninglight comes on when the driver has notfastened his seat belt.
Engine autodiagnostics warning light This comes on each time the
ignition is switched on. If it comes on when the engine is run- ning, it indicates a malfunction in theinjection, ignition or emission control
system. There is a risk of damage to
your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light When the warning light
first comes on, you have enough fuel to drive at least 35 miles (50 km) (thetank capacity is approximately 47 litres(10.3 gallons).
Coolant temperature indicator light
- When the needle is in zone A, the
temperature is correct.
- When the needle is in zone B, the
temperature is too high. The central
STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to specification.
Passenger air bag disarming indicatorlight*
Switching on of this indicator light is accompanied by an audible signal andthe message "Passenger air bag disarmed" on
the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light
flashes, contact a PEUGEOT dealer.
Battery charge warning light This can indicate any of the
following situations:
- faulty operation of the charging cir- cuit,
- loose battery or starter terminals, - a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 27 of 123
INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator, Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whe- ther the message is correct; a surplus of oil cancause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum.
Check the level with the dipstick and top it up. The figu- re shown is only correct if the vehicle has been onstable, level ground, with the engine stopped, for 10minutes. Oil level gauge fault The 6 segments flash; they indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indicates the oil temperature:
- When the needle is in zone
C, the
temperature is correct,
- When the needle is in zone D, the
temperature is too high. To lower the oil temperature, reduce yourspeed.
Page 28 of 123
INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:
Ð service indicator (see corresponding section),
Ð engine oil level indicator, Ð total distance recorder/total and trip distances.Note:
the total and trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum Check the level using the dipstick to confirm whe- ther the message is correct; a surplus of oil cancause damage to the engine.
Contact a PEUGEOT dealer without delay. Minimum.
Check the level with the dipstick and top it up. The figu- re shown is only correct if the vehicle has been onstable, level ground, with the engine stopped, for 10minutes. Oil level gauge fault The 6 segments flash; they indicate a fault in the oil level gauge. There is a risk the engine will be damaged.
Contact a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indicates the oil temperature:
- When the needle is in zone
C, the
temperature is correct,
- When the needle is in zone D, the
temperature is too high. To lower the oil temperature, reduce yourspeed.
Page 29 of 123
INSTRUMENTS AND CONTROLS31
Hazard warning lights
Press the button, the direction indica- tors flash.
They can operate with the ignition off.
Total distance recorder Briefly pressing button 1alternates
between the total distance and trip dis- tance displays.
To reset the trip recorder to zero, when it is displayed press and hold the resetbutton for just over 3 seconds.Lighting rheostat With the lights on, press the button to vary the intensity of the lighting on theinstrument panel and the multifunction
display. When the lighting reaches theminimum (or maximum) setting, releasethe button then press it again to increa-se (or reduce) the brightness. As soon as the lighting is of the required brightness, release the button.
Page 44 of 123
YOUR 206 CC IN DETAIL
46

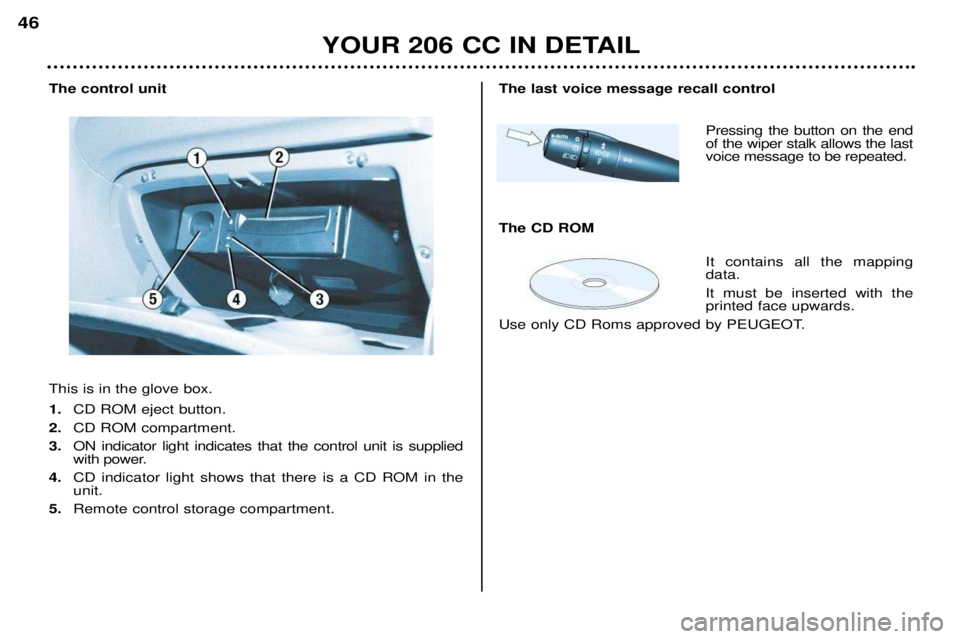

The control unit This is in the glove box. 1.
CD ROM eject button.
2. CD ROM compartment.
3. ON indicator light indicates that the control unit is supplied
with power.
4. CD indicator light shows that there is a CD ROM in theunit.
5. Remote control storage compartment.The last voice message recall control
Pressing the button on the end of the wiper stalk allows the lastvoice message to be repeated.
The CD ROM It contains all the mappingdata. It must be inserted with the printed face upwards.
Use only CD Roms approved by PEUGEOT.
Page 57 of 123
YOUR 206 CC IN DETAIL
58

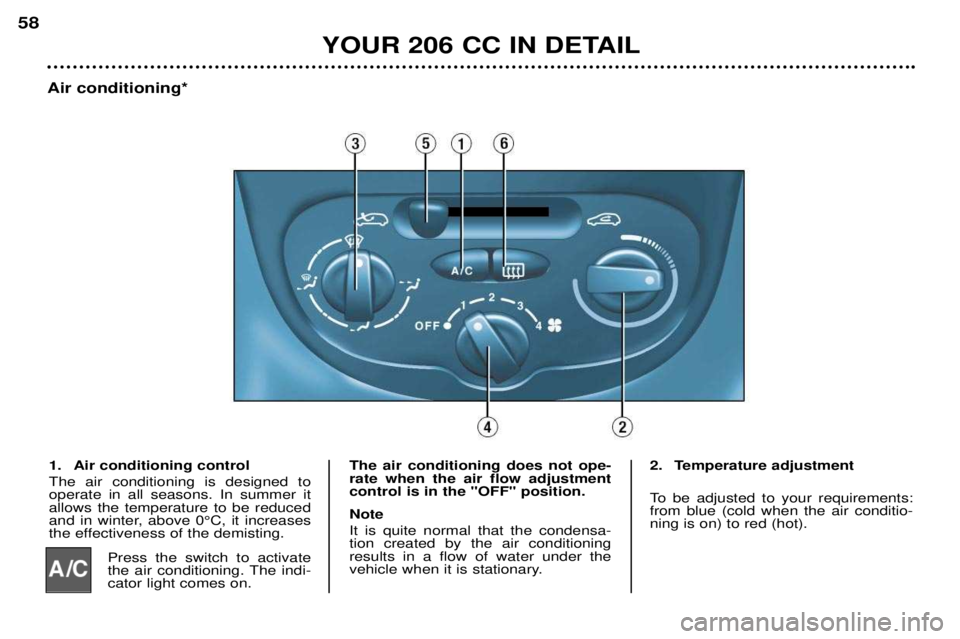

Air conditioning*
1. Air conditioning control The air conditioning is designed to operate in all seasons. In summer itallows the temperature to be reduced
and in winter, above 0¡C, it increases
the effectiveness of the demisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not ope-rate when the air flow adjustmentcontrol is in the "OFF" position. Note It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements: from blue (cold when the air conditio-ning is on) to red (hot).
Page 60 of 123
YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen,
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes. from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. De-icing the rear window Press this button to de-ice therear screen and the mirrors*.The de-icing system switches
off automatically after a peri-
od which varies depending on the out-side temperature. It is possible to stop
the de-icing before it switches off auto-matically by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed auto-
matically. Press the "AUTO" button toreturn to completely automatic opera-tion.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or - respectively.
* According to specification.
Note
The condensation created by the air con- ditioning causes a normal flow of waterunder the vehicle when it stops.
