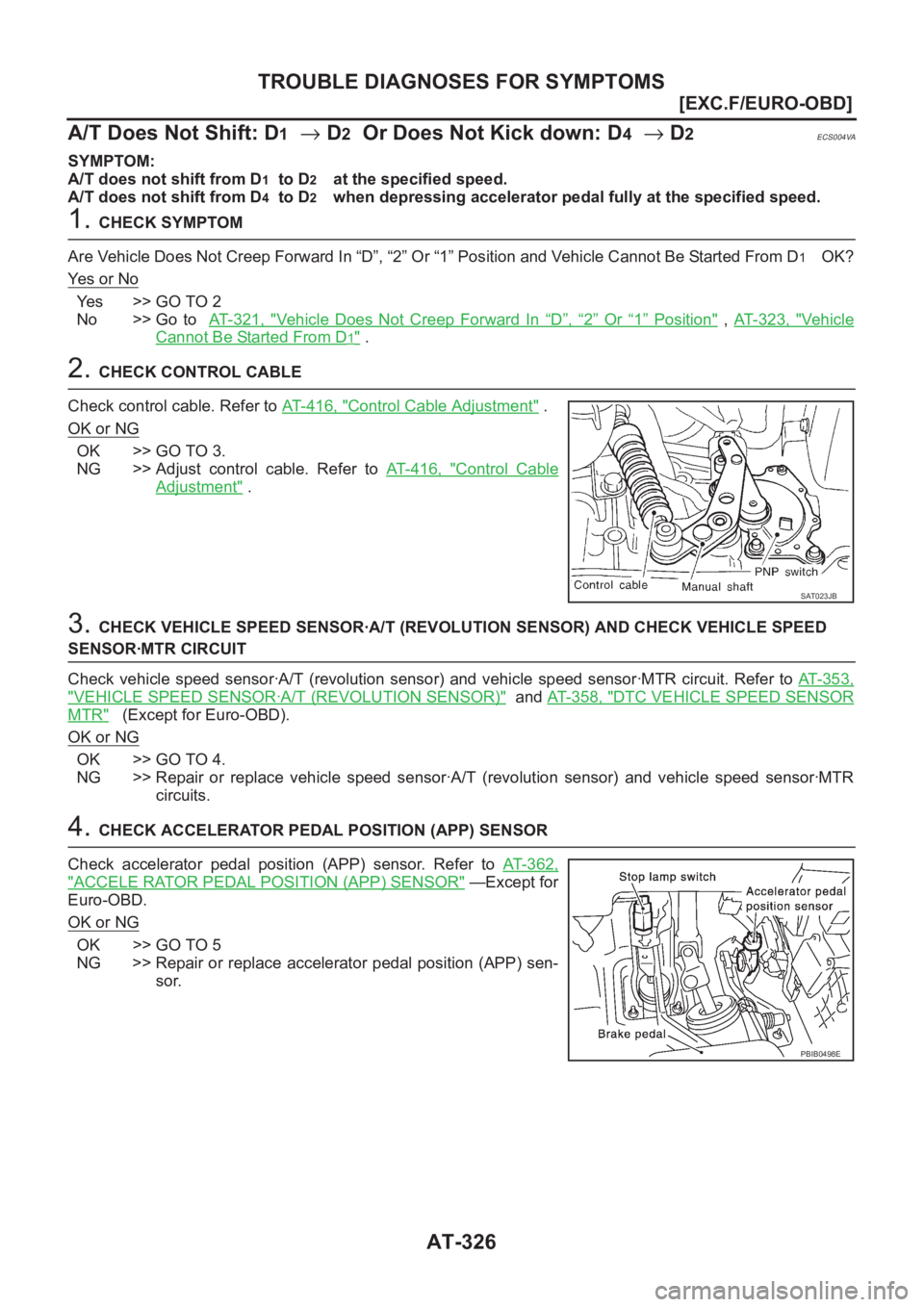

2001 NISSAN X-TRAIL App sensor

AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
1→ D2 Or Does Not Kick down: D4→ D2ECS004VA
SYMPTOM:
A/T does not shift from D
1 to D2 at the specified speed.
A/T does not shift from D
4 to D2 when depressing accelerator pedal fully at the specified speed.
1. CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Yes >> GO TO 2
No >> Go to AT- 3 2 1 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 3 2 3 , "Veh ic le
Cannot Be Started From D1" .
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD.
OK or NG
OK >> GO TO 5
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

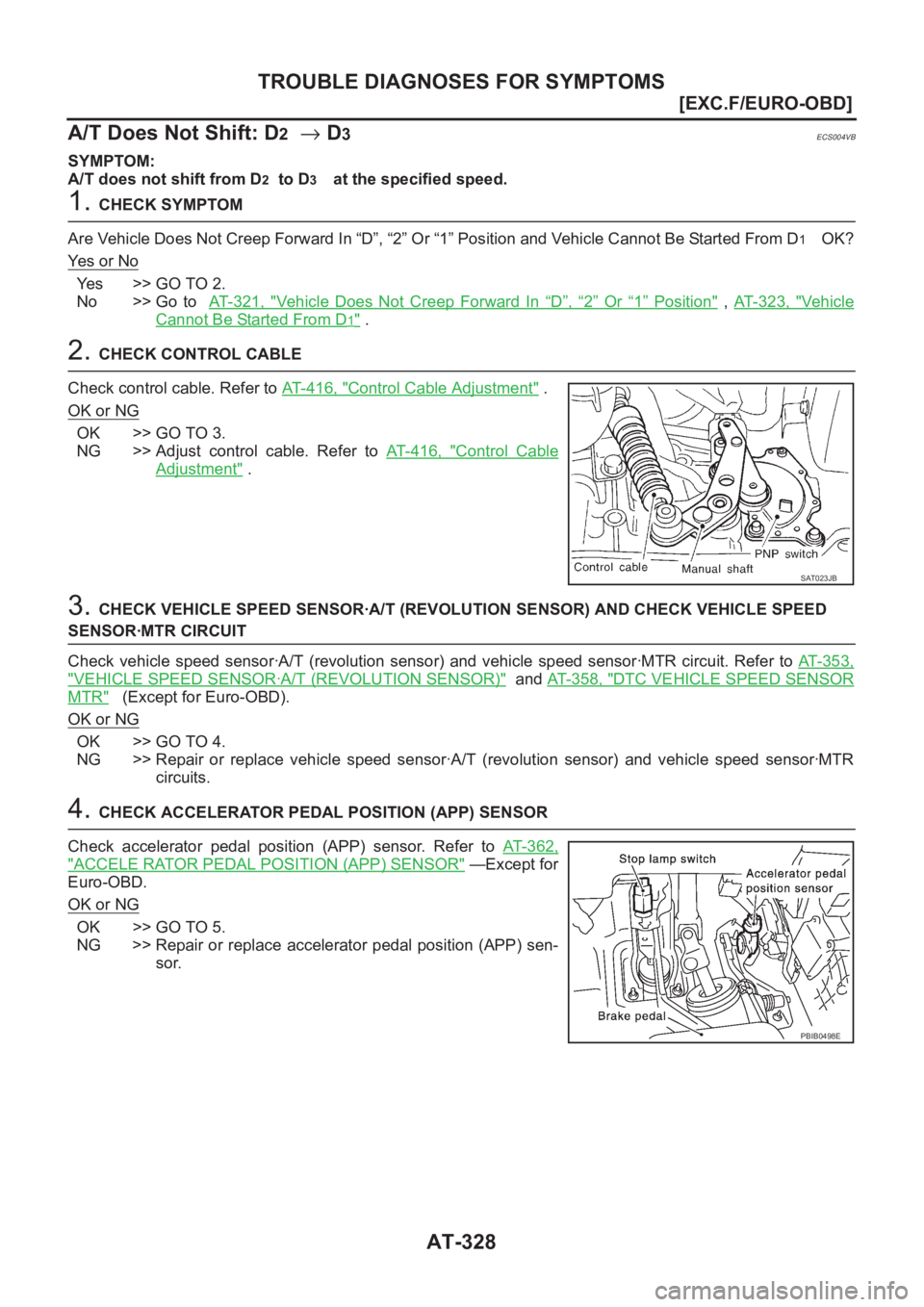

AT-328
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
2→ D3ECS004VB
SYMPTOM:
A/T does not shift from D
2 to D3 at the specified speed.
1. CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Yes >> GO TO 2.
No >> Go to AT- 3 2 1 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" , AT- 3 2 3 , "Veh ic le
Cannot Be Started From D1" .
2. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
3. CHECK VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR) AND CHECK VEHICLE SPEED
SENSOR·MTR CIRCUIT
Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to AT- 3 5 3 ,
"VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" and AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR
MTR" (Except for Euro-OBD).
OK or NG
OK >> GO TO 4.
NG >> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR
circuits.
4. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SAT023JB
PBIB0498E

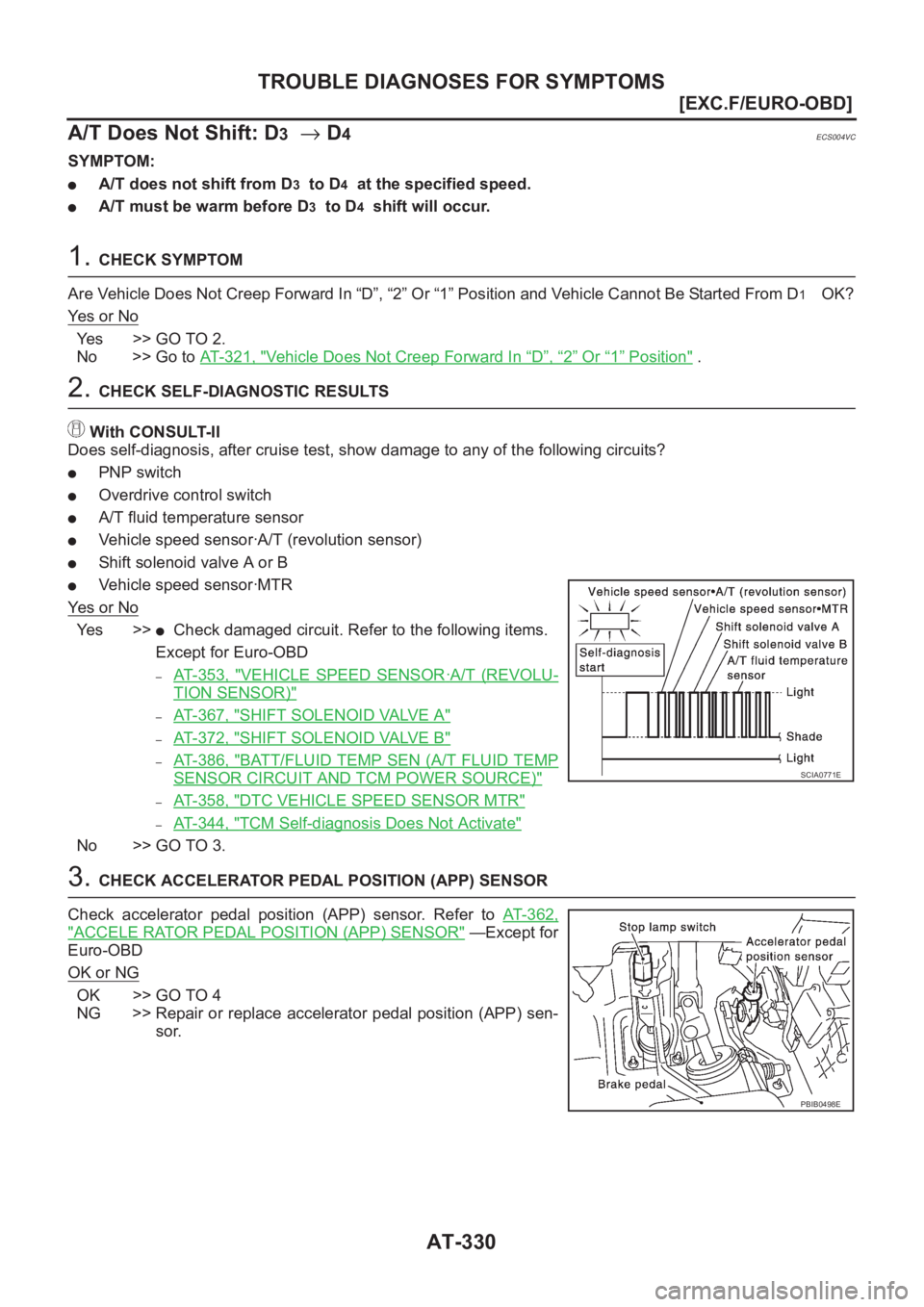

AT-330
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Shift: D
3→ D4ECS004VC
SYMPTOM:
●A/T does not shift from D3 to D4 at the specified speed.
●A/T must be warm before D3 to D4 shift will occur.
1. CHECK SYMPTOM
Are Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position and Vehicle Cannot Be Started From D
1 OK?
Ye s o r N o
Yes >> GO TO 2.
No >> Go to AT- 3 2 1 , "
Vehicle Does Not Creep Forward In “D”,“2” Or “1” Position" .
2. CHECK SELF-DIAGNOSTIC RESULTS
With CONSULT-II
Does self-diagnosis, after cruise test, show damage to any of the following circuits?
●PNP switch
●Overdrive control switch
●A/T fluid temperature sensor
●Vehicle speed sensor·A/T (revolution sensor)
●Shift solenoid valve A or B
●Vehicle speed sensor·MTR
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Except for Euro-OBD
–AT- 3 5 3 , "VEHICLE SPEED SENSOR·A/T (REVOLU-
TION SENSOR)"
–AT- 3 6 7 , "SHIFT SOLENOID VALVE A"
–AT- 3 7 2 , "SHIFT SOLENOID VALVE B"
–AT- 3 8 6 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE)"
–AT- 3 5 8 , "DTC VEHICLE SPEED SENSOR MTR"
–AT- 3 4 4 , "TCM Self-diagnosis Does Not Activate"
No >> GO TO 3.
3. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD
OK or NG
OK >> GO TO 4
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
SCIA0771E
PBIB0498E

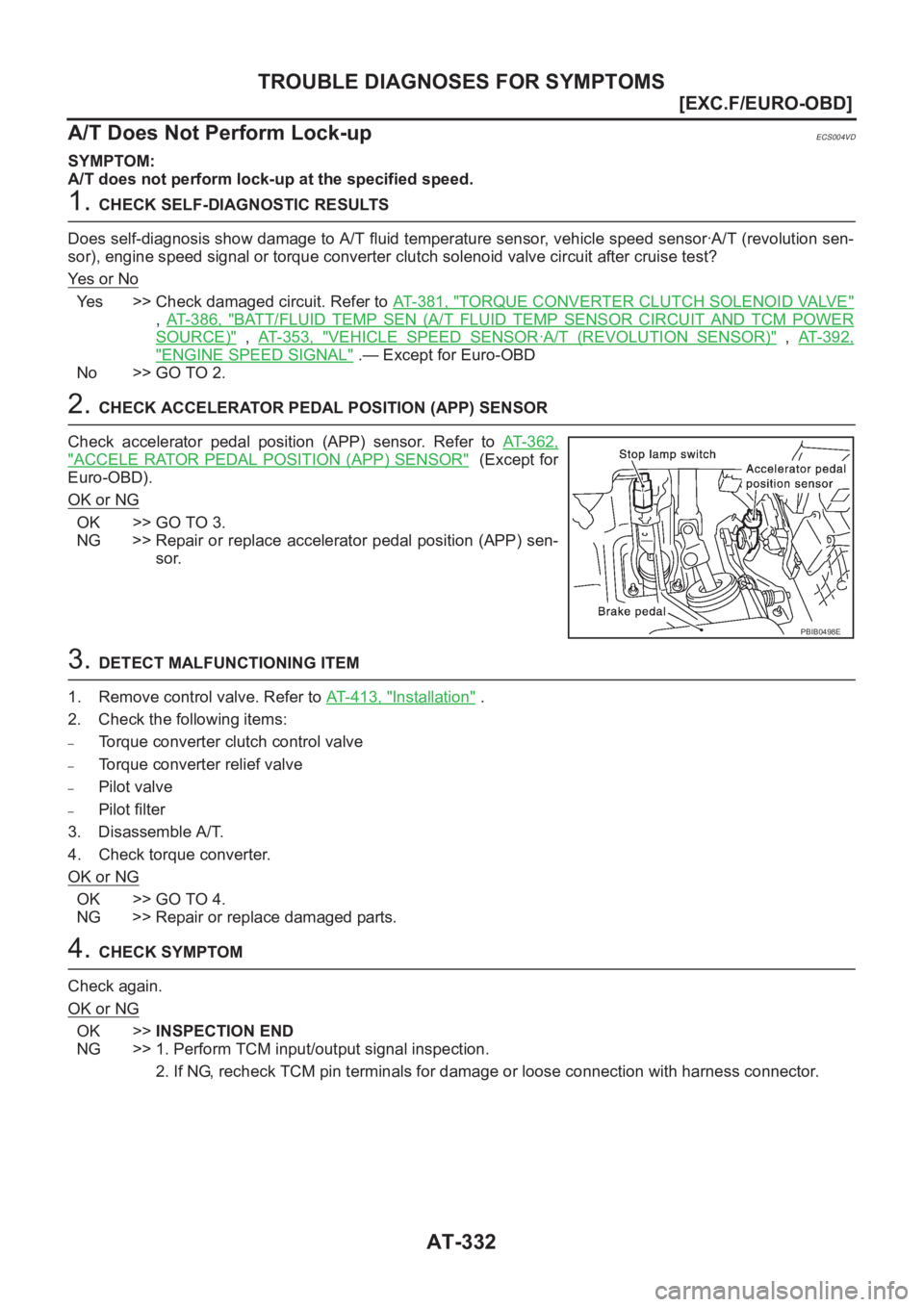

AT-332
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
A/T Does Not Perform Lock-up
ECS004VD
SYMPTOM:
A/T does not perform lock-up at the specified speed.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, vehicle speed sensor·A/T (revolution sen-
sor), engine speed signal or torque converter clutch solenoid valve circuit after cruise test?
Ye s o r N o
Yes >> Check damaged circuit. Refer to AT- 3 8 1 , "TORQUE CONVERTER CLUTCH SOLENOID VALVE"
,AT- 3 8 6 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE)" , AT- 3 5 3 , "VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)" , AT- 3 9 2 ,
"ENGINE SPEED SIGNAL" .— Except for Euro-OBD
No >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" (Except for
Euro-OBD).
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. DETECT MALFUNCTIONING ITEM
1. Remove control valve. Refer to AT- 4 1 3 , "
Installation" .
2. Check the following items:
–Torque converter clutch control valve
–Torque converter relief valve
–Pilot valve
–Pilot filter
3. Disassemble A/T.
4. Check torque converter.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
PBIB0498E

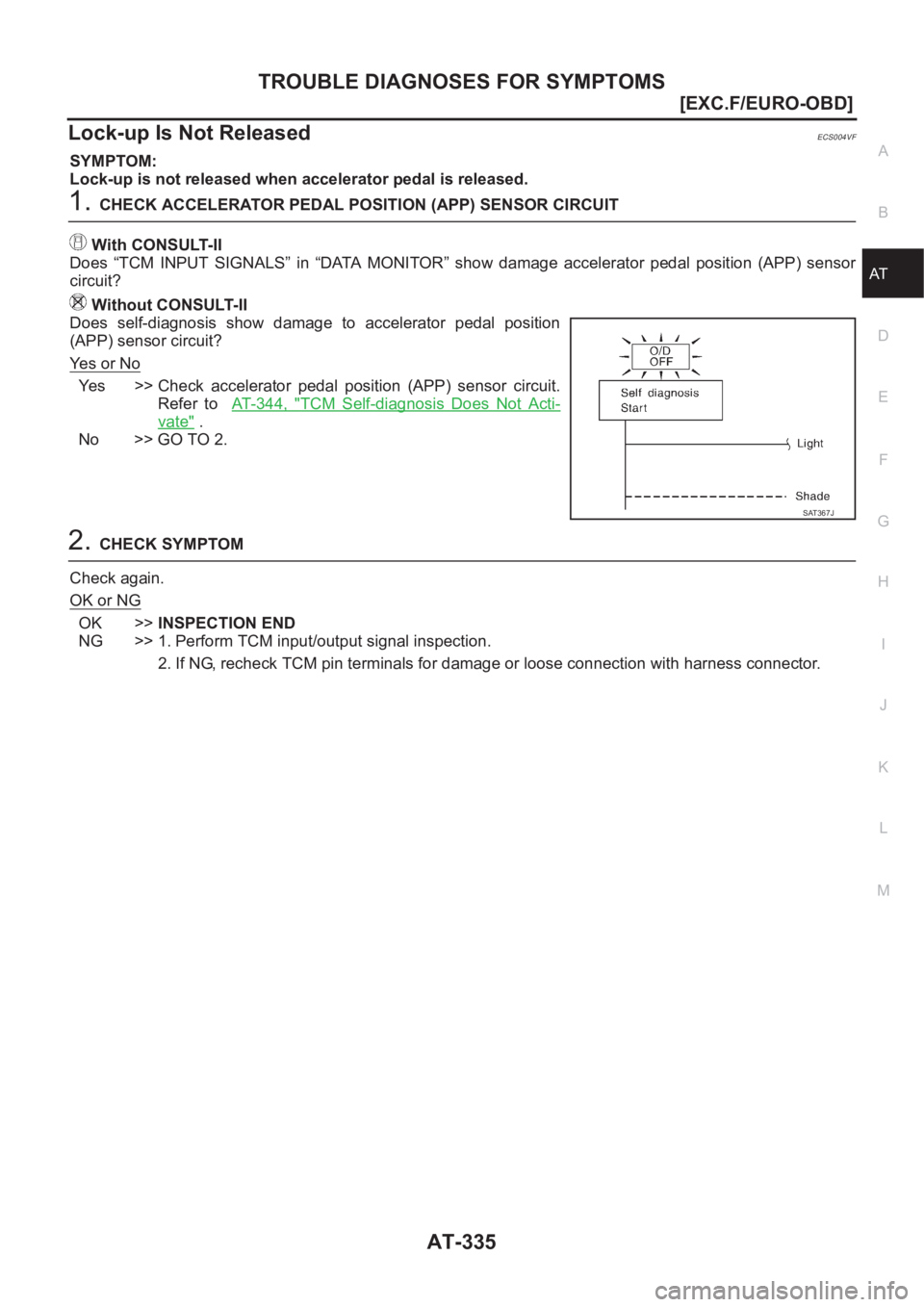

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-335
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Lock-up Is Not ReleasedECS004VF
SYMPTOM:
Lock-up is not released when accelerator pedal is released.
1.CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage accelerator pedal position (APP) sensor
circuit?
Without CONSULT-II
Does self-diagnosis show damage to accelerator pedal position
(APP) sensor circuit?
Ye s o r N o
Yes >> Check accelerator pedal position (APP) sensor circuit.
Refer to AT- 3 4 4 , "
TCM Self-diagnosis Does Not Acti-
vate" .
No >> GO TO 2.
2.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT367J

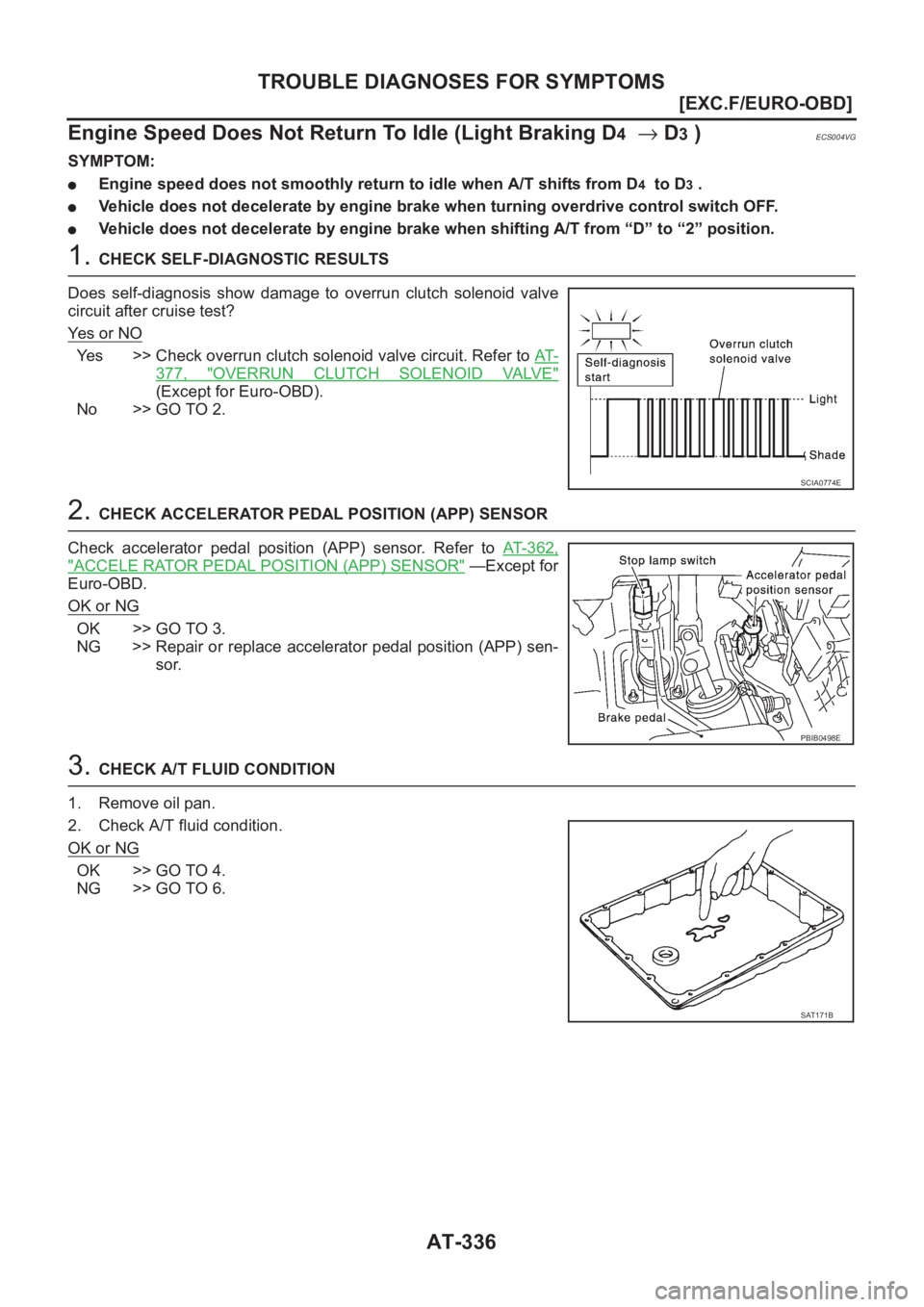

AT-336
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
Engine Speed Does Not Return To Idle (Light Braking D
4→ D3 )ECS004VG
SYMPTOM:
●Engine speed does not smoothly return to idle when A/T shifts from D4 to D3 .
●Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
●Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position.
1. CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to overrun clutch solenoid valve
circuit after cruise test?
Ye s o r N O
Yes >> Check overrun clutch solenoid valve circuit. Refer to AT-
377, "OVERRUN CLUTCH SOLENOID VALVE"
(Except for Euro-OBD).
No >> GO TO 2.
2. CHECK ACCELERATOR PEDAL POSITION (APP) SENSOR
Check accelerator pedal position (APP) sensor. Refer to AT- 3 6 2 ,
"ACCELE RATOR PEDAL POSITION (APP) SENSOR" —Except for
Euro-OBD.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace accelerator pedal position (APP) sen-
sor.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SCIA0774E
PBIB0498E
SAT171B

AT-348
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for A/T with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 7.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.
●Accelerator pedal position sensor — Refer to AT- 3 6 2 , "ACCELE RATOR PEDAL POSITION
(APP) SENSOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
6. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:
●Accelerator pedal position sensor — Refer to AT- 3 6 2 , "ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
●Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK DTC
Perform “SELF-DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-II)”. Refer to AT- 2 5 3 , "
SELF-DIAGNOS-
TIC PROCEDURE (WITHOUT CONSULT-II)" .
OK or NG
OK >>INSPECTION END
NG >>
●Perform TCM input/output signal inspection.
●If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J

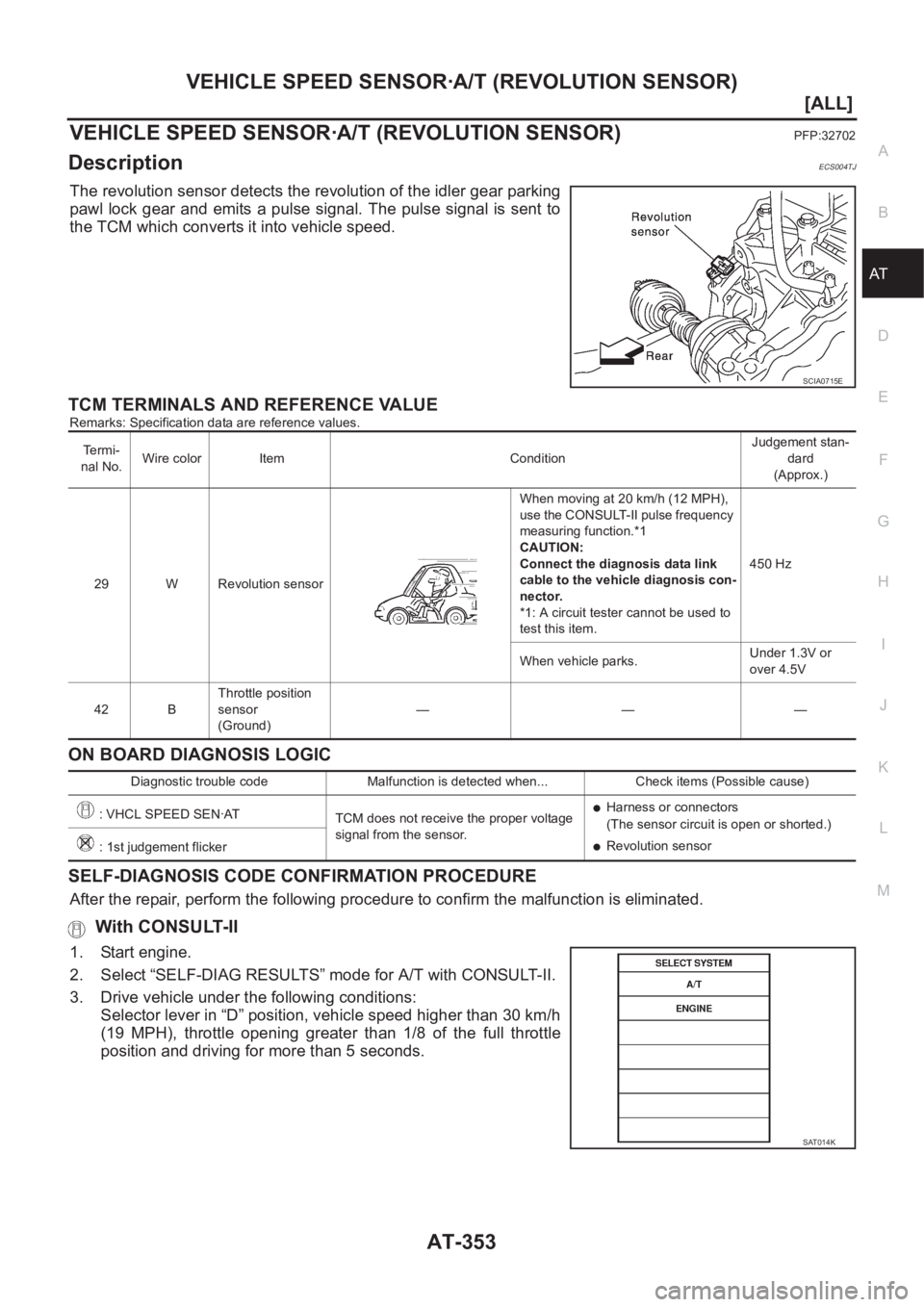

VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)
AT-353
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
VEHICLE SPEED SENSOR·A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS004TJ
The revolution sensor detects the revolution of the idler gear parking
pawl lock gear and emits a pulse signal. The pulse signal is sent to
the TCM which converts it into vehicle speed.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, vehicle speed higher than 30 km/h
(19 MPH), throttle opening greater than 1/8 of the full throttle
position and driving for more than 5 seconds.
SCIA0715E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis con-
nector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
42 BThrottle position
sensor
(Ground)———
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: VHCL SPEED SEN·AT
TCM does not receive the proper voltage
signal from the sensor.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Revolution sensor
: 1st judgement flicker
SAT014K
