2001 NISSAN X-TRAIL check engine

ELECTRICAL LOAD SIGNAL
EC-741
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
5.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 52 and ground under the
following conditions.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 53 and ground under the
following conditions.
OK or NG
OK >> GO TO 7.
NG >> GO TO 12.
7.CHECK HEATER FAN CONTROL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 55 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
8.CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn “ON” the rear window defogger switch.
3. Check the rear windshield. Is the rear windshield heated up?
Ye s o r N o
Ye s > > G O T O 9 .
No >> Refer to GW-10, "
REAR WINDOW DEFOGGER" .
Condition Voltage
Rear window defogger switch “ON” BATTERY VOLTAGE
Rear window defogger switch “OFF” 0V
PBIB0660E
Condition Voltage
Lighting switch “ON” at 2nd position BATTERY VOLTAGE
Lighting switch “OFF” 0V
PBIB0070E
Condition Voltage
Heater fan control switch “ON” 0V
heater fan control switch “OFF” Approximately 5V
PBIB0661E

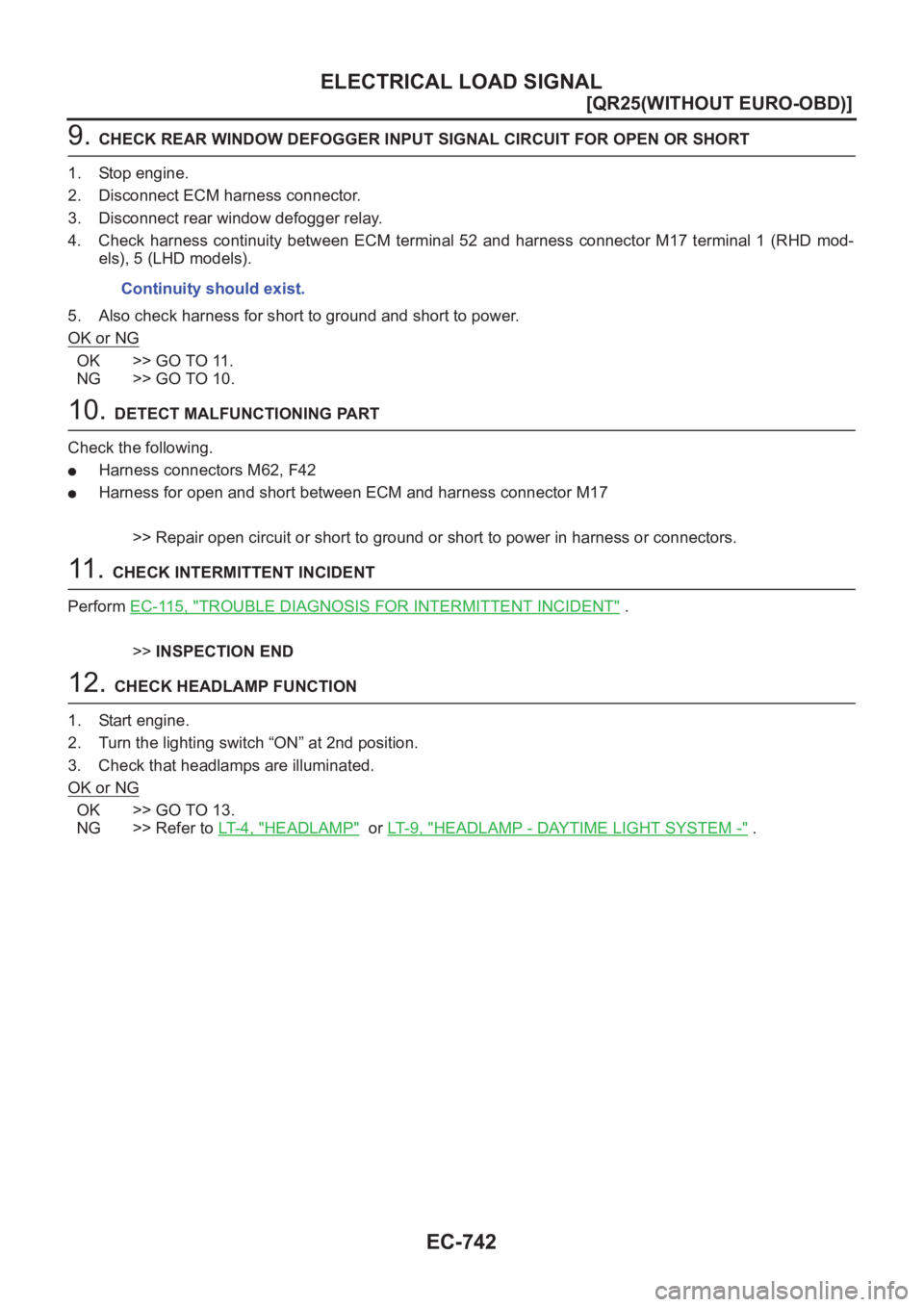

EC-742
[QR25(WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
9. CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between ECM terminal 52 and harness connector M17 terminal 1 (RHD mod-
els), 5 (LHD models).
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M62, F42
●Harness for open and short between ECM and harness connector M17
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
12. CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch “ON” at 2nd position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 13.
NG >> Refer to LT-4, "
HEADLAMP" or LT- 9 , "HEADLAMP - DAYTIME LIGHT SYSTEM -" . Continuity should exist.

ELECTRICAL LOAD SIGNAL
EC-743
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
13.CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between ECM terminal 53 and lighting switch terminal 9, 10 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Diode E123, E124
●Harness for open and short between ECM and lighting switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
15.CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
16.CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn “ON” the fan control switch.
3. Check the blower fan motor. Does the blower fan motor activate?
Ye s o r N o
Ye s > > G O T O 1 7 .
No >> Refer to AT C - 3 3 , "
TROUBLE DIAGNOSIS" .
Condition Continuity
1 Should exist
2 Should not exist
PBIB0662E

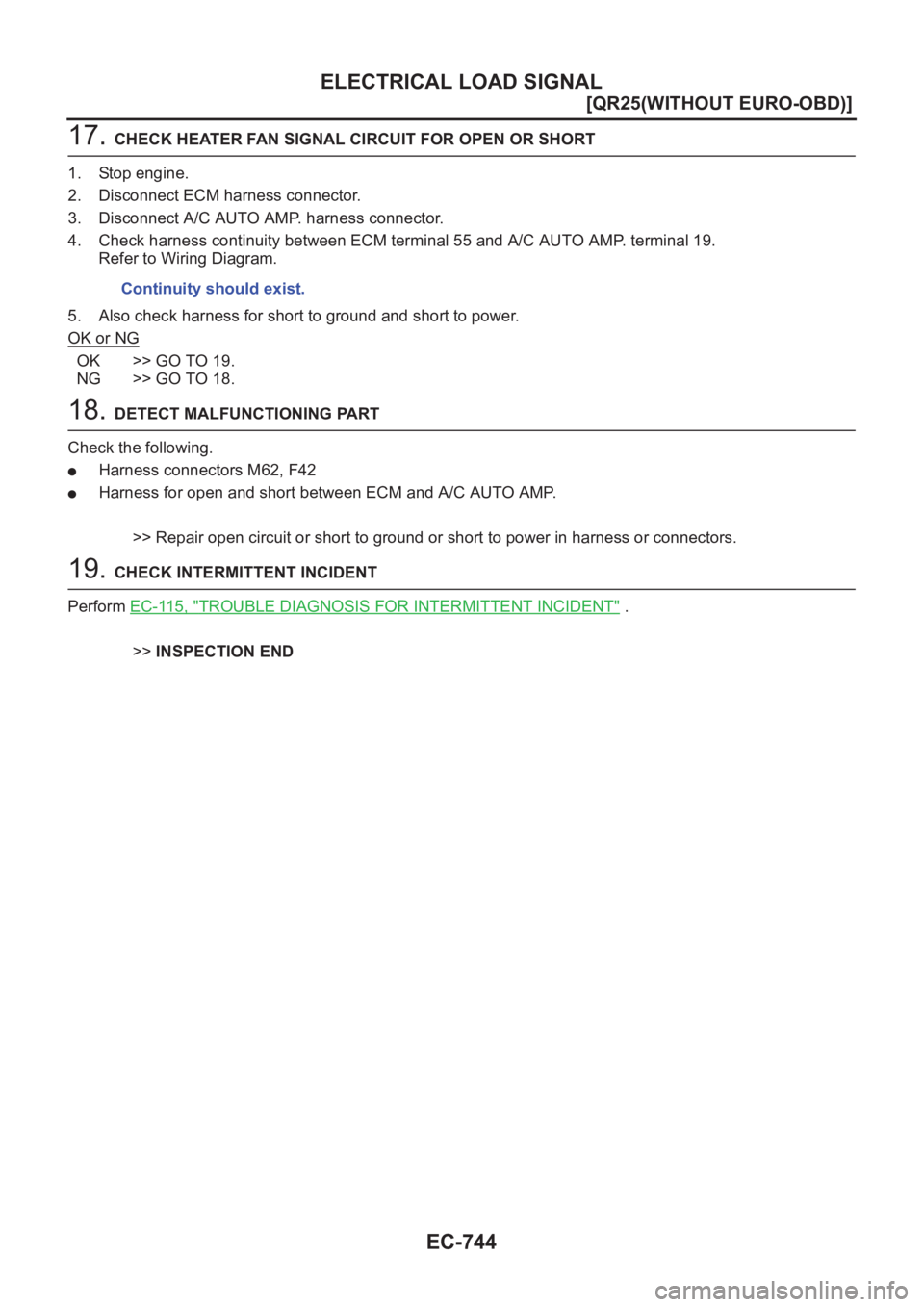

EC-744
[QR25(WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
17. CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between ECM terminal 55 and A/C AUTO AMP. terminal 19.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 19.
NG >> GO TO 18.
18. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M62, F42
●Harness for open and short between ECM and A/C AUTO AMP.
>> Repair open circuit or short to ground or short to power in harness or connectors.
19. CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.

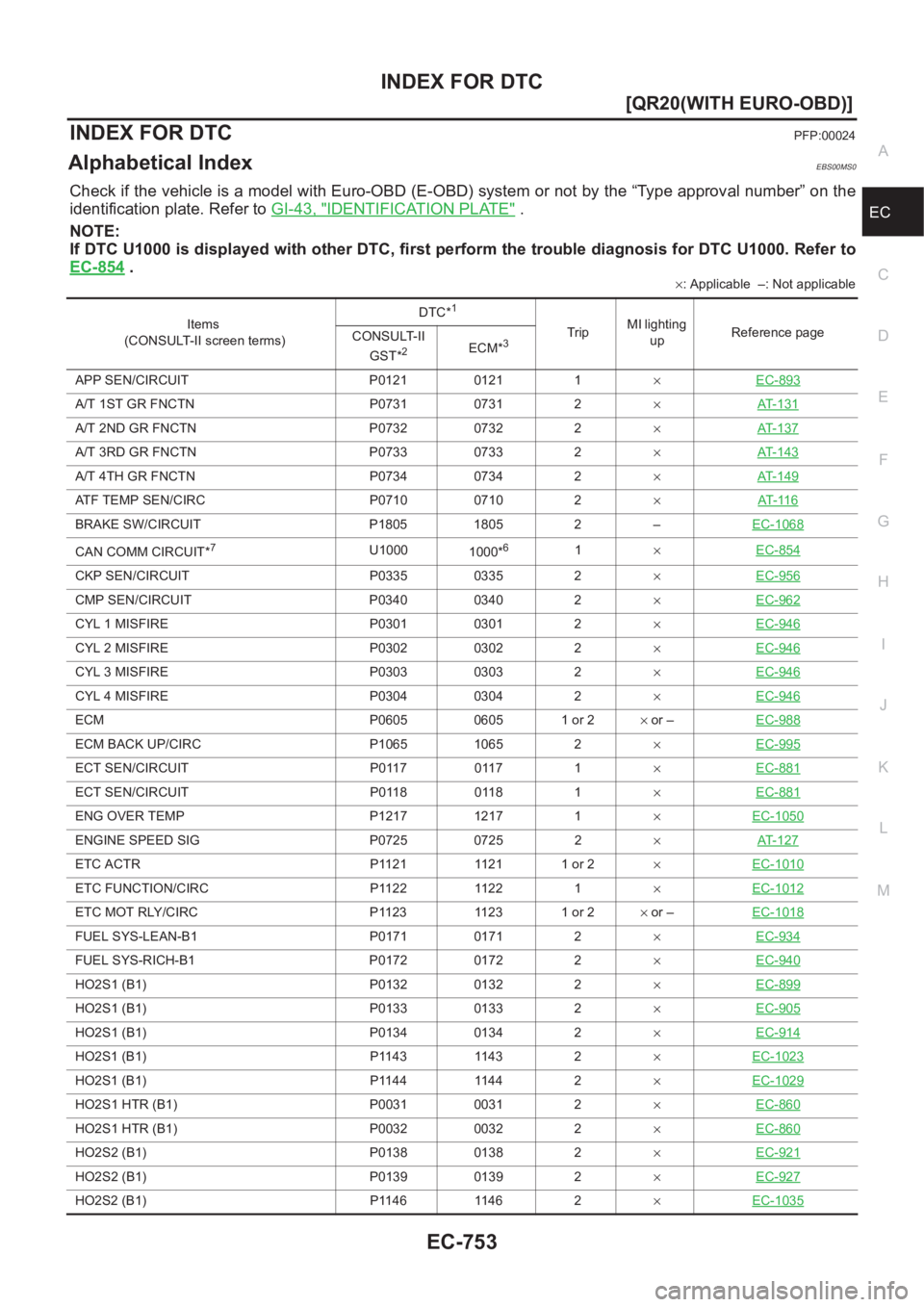

INDEX FOR DTC
EC-753
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
[QR20(WITH EURO-OBD)]INDEX FOR DTCPFP:00024
Alphabetical IndexEBS00MS0
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-854
.
×: Applicable –: Not applicable
Items
(CONSULT-II screen terms)DTC*
1
TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
APP SEN/CIRCUIT P0121 0121 1×EC-893
A/T 1ST GR FNCTN P0731 0731 2×AT-131
A/T 2ND GR FNCTN P0732 0732 2×AT-137
A/T 3RD GR FNCTN P0733 0733 2×AT-143
A/T 4TH GR FNCTN P0734 0734 2×AT-149
ATF TEMP SEN/CIRC P0710 0710 2×AT- 11 6
BRAKE SW/CIRCUIT P1805 1805 2 –EC-1068
CAN COMM CIRCUIT*7U1000
1000*61×EC-854
CKP SEN/CIRCUIT P0335 0335 2×EC-956
CMP SEN/CIRCUIT P0340 0340 2×EC-962
CYL 1 MISFIRE P0301 0301 2×EC-946
CYL 2 MISFIRE P0302 0302 2×EC-946
CYL 3 MISFIRE P0303 0303 2×EC-946
CYL 4 MISFIRE P0304 0304 2×EC-946
ECM P0605 0605 1 or 2× or –EC-988
ECM BACK UP/CIRC P1065 1065 2×EC-995
ECT SEN/CIRCUIT P0117 0117 1×EC-881
ECT SEN/CIRCUIT P0118 0118 1×EC-881
ENG OVER TEMP P1217 1217 1×EC-1050
ENGINE SPEED SIG P0725 0725 2×AT-127
ETC ACTR P1121 1121 1 or 2×EC-1010
ETC FUNCTION/CIRC P1122 1122 1×EC-1012
ETC MOT RLY/CIRC P1123 1123 1 or 2× or –EC-1018
FUEL SYS-LEAN-B1 P0171 0171 2×EC-934
FUEL SYS-RICH-B1 P0172 0172 2×EC-940
HO2S1 (B1) P0132 0132 2×EC-899
HO2S1 (B1) P0133 0133 2×EC-905
HO2S1 (B1) P0134 0134 2×EC-914
HO2S1 (B1) P1143 1143 2×EC-1023
HO2S1 (B1) P1144 1144 2×EC-1029
HO2S1 HTR (B1) P0031 0031 2×EC-860
HO2S1 HTR (B1) P0032 0032 2×EC-860
HO2S2 (B1) P0138 0138 2×EC-921
HO2S2 (B1) P0139 0139 2×EC-927
HO2S2 (B1) P1146 1146 2×EC-1035

PREPARATION
EC-761
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PREPARATIONPFP:00002
Special Service ToolsEBS00MS6
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEBS00MS7
Tool number
Tool nameDescription
KV10117100
Heated oxygen
sensor wrenchLoosening or tightening heated oxygen sensors
with 22 mm (0.87 in) hexagon nut
KV10114400
Heated oxygen
sensor wrenchLoosening or tightening heated oxygen sensors
a: 22 mm (0.87 in)
S-NT379
S-NT636
Tool name Description
Quick connector
releaseRemoving fuel tube quick connectors in engine
room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)
Fuel filler cap adapter Checking fuel tank vacuum relief valve opening
pressure
Socket wrench Removing and installing engine coolant
temperature sensor
PBIC0198E
S-NT653
S-NT705

EC-772
[QR20(WITH EURO-OBD)]
BASIC SERVICE PROCEDURE
–Check ignition timing.
Accelerator Pedal Released Position LearningEBS00MSI
DESCRIPTION
“Accelerator Pedal Released Position Learning” is an operation to learn the fully released position of the accel-
erator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each time
harness connector of accelerator pedal position sensor or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch “ON” and wait at least 2 seconds.
3. Turn ignition switch “OFF” wait at least 10 seconds.
4. Turn ignition switch “ON” and wait at least 2 seconds.
5. Turn ignition switch “OFF” wait at least 10 seconds.
Throttle Valve Closed Position LearningEBS00MSH
DESCRIPTION
“Throttle Valve Closed Position Learning” is an operation to learn the fully closed position of the throttle valve
by monitoring the throttle position sensor output signal. It must be performed each time harness connector of
electric throttle control actuator or ECM is disconnected.
OPERATION PROCEDURE
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch “ON” wait at least 10seconds.
3. Turn ignition switch “OFF” wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
Idle Air Volume LearningEBS00MSJ
DESCRIPTION
“Idle Air Volume Learning” is an operation to learn the idle air volume that keeps each engine within the spe-
cific range. It must be performed under any of the following conditions:
●Each time electric throttle control actuator or ECM is replaced.
●Idle speed or ignition timing is out of specification.
PREPARATION
Before performing “Idle Air Volume Learning”, make sure that all of the following conditions are satisfied.
SEF166Y
PBIB0514E

BASIC SERVICE PROCEDURE
EC-773
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Learning will be cancelled if any of the following conditions are missed for even a moment.
●Battery voltage: More than 12.9V (At idle)
●Engine coolant temperature: 70 - 100°C (158 - 212°F)
●PNP switch: ON
●Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light
only small lamps.
●Steering wheel: Neutral (Straight-ahead position)
●Vehicle speed: Stopped
●Transmission: Warmed-up
For A/T models with CONSULT-II, drive vehicle until “FLUID TEMP SE” in “DATA MONITOR” mode of “A/
T” system indicates less than 0.9V.
For A/T models without CONSULT-II and M/T models, drive vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-772, "Accelerator Pedal Released Position Learning" .
2. Perform EC-772, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic “PREPARATION” (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-II screen. If
“CMPLT” is not displayed, “Idle Air Volume Learning” will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the “DIAGNOSTIC PROCEDURE” below.
8. Rev up the engine two or three times and make sure that idle
speed and ignition timing are within the specifications.
SEF452Y
SEF454Y
ITEM SPECIFICATION
MBIB0238E
