2001 NISSAN X-TRAIL App sensor

EC-20
[QR25(WITH EURO-OBD)]
INDEX FOR DTC
[QR25(WITH EURO-OBD)]INDEX FOR DTCPFP:00024
Alphabetical IndexEBS00M01
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-122
.
×: Applicable –: Not applicable
Items
(CONSULT-II screen terms)DTC*
1
TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
APP SENSOR P2138 2138 1×EC-373
APP SEN 1/CIRC P2122 2122 1×EC-355
APP SEN 1/CIRC P2123 2123 1×EC-355
APP SEN 2/CIRC P2127 2127 1×EC-361
APP SEN 2/CIRC P2128 2128 1×EC-361
A/T 1ST GR FNCTN P0731 0731 2×AT- 1 3 1
A/T 2ND GR FNCTN P0732 0732 2×AT- 1 3 7
A/T 3RD GR FNCTN P0733 0733 2×AT- 1 4 3
A/T 4TH GR FNCTN P0734 0734 2×AT- 1 4 9
ATF TEMP SEN/CIRC P0710 0710 2×AT- 11 6
BRAKE SW/CIRCUIT P1805 1805 2 –EC-349
CAN COMM CIRCUIT*6U1000
1000*51×EC-122
CKP SEN/CIRCUIT P0335 0335 2×EC-227
CMP SEN/CIRCUIT P0340 0340 2×EC-233
CTP LEARNING P1225 1225 2 –EC-337
CTP LEARNING P1226 1226 2 –EC-339
CYL 1 MISFIRE P0301 0301 2×EC-217
CYL 2 MISFIRE P0302 0302 2×EC-217
CYL 3 MISFIRE P0303 0303 2×EC-217
CYL 4 MISFIRE P0304 0304 2×EC-217
ECM P0605 0605 1 or 2× or –EC-260
ECM BACK UP/CIRC P1065 1065 2×EC-267
ECT SEN/CIRCUIT P0117 0117 1×EC-149
ECT SEN/CIRCUIT P0118 0118 1×EC-149
ENG OVER TEMP P1217 1217 1×EC-323
ENGINE SPEED SIG P0725 0725 2×AT- 1 2 7
ETC ACTR P1121 1121 1 or 2×EC-276
ETC FUNCTION/CIRC P1122 1122 1×EC-278
ETC MOT P1128 1128 1×EC-290
ETC MOT PWR P1124 1124 1×EC-285
ETC MOT PWR P1126 1126 1×EC-285
FUEL SYS-LEAN-B1 P0171 0171 2×EC-200
FUEL SYS-RICH-B1 P0172 0172 2×EC-206
HO2S1 (B1) P0132 0132 2×EC-163
HO2S1 (B1) P0133 0133 2×EC-169

EC-22
[QR25(WITH EURO-OBD)]
INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: For A/T models.
*7: When the fail-safe operations for both self-diagnoses occur at the same time, the MI illuminates.
DTC No. IndexEBS00M02
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-122
.
×: Applicable –: Not applicable TP SEN 1/CIRC P0222 0222 1×EC-212
TP SEN 1/CIRC P0223 0223 1×EC-212
TW CATALYST SYS-B1 P0420 0420 2×EC-239
VEH SPD SEN/CIR AT*7P0720 0720 2×AT- 1 2 2
VEH SPEED SEN/CIRC*7P0500 0500 2×EC-250
Items
(CONSULT-II screen terms)DTC*
1
TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
DTC*1
Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3
No DTC
Flashing*4NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.–
Flashing*4EC-59
U1000
1000*5CAN COMM CIRCUIT*61×EC-122
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.–– –
P0011 0011 INT/V TIM CONT-B1 2×EC-125
P0031 0031 HO2S1 HTR (B1) 2×EC-128
P0032 0032 HO2S1 HTR (B1) 2×EC-128
P0037 0037 HO2S2 HTR (B1) 2×EC-133
P0038 0038 HO2S2 HTR (B1) 2×EC-133
P0102 0102 MAF SEN/CIRCUIT 1×EC-138
P0103 0103 MAF SEN/CIRCUIT 1×EC-138
P0112 0112 IAT SEN/CIRCUIT 2×EC-144
P0113 0113 IAT SEN/CIRCUIT 2×EC-144
P0117 0117 ECT SEN/CIRCUIT 1×EC-149
P0118 0118 ECT SEN/CIRCUIT 1×EC-149
P0122 0122 TP SEN 2/CIRC 1×EC-154
P0123 0123 TP SEN 2/CIRC 1×EC-154
P0127 0127 IAT SENSOR 2×EC-160
P0132 0132 HO2S1 (B1) 2×EC-163
P0133 0133 HO2S1 (B1) 2×EC-169
P0134 0134 HO2S1 (B1) 2×EC-178

EC-24
[QR25(WITH EURO-OBD)]
INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The trouble shooting for this DTC needs CONSULT-II.
*6: For A/T models.
*7: When the fail-safe operations for both self-diagnoses occur at the same time, the MI illuminates. P1144 1144 HO2S1 (B1) 2×EC-301
P1146 1146 HO2S2 (B1) 2×EC-307
P1147 1147 HO2S2 (B1) 2×EC-315
P1217 1217 ENG OVER TEMP 1×EC-323
P1225 1225 CTP LEARNING 2 –EC-337
P1226 1226 CTP LEARNING 2 –EC-339
P1229 1229 SENSOR POWER/CIRC 1×EC-341
P1610 - P1615 1610 - 1615 NATS MALFUNCTION 2 –EC-58
P1705 1705 TP SEN/CIRC A/T 1×AT-180
P1706 1706 P-N POS SW/CIRCUIT 2×EC-345
P1760 1760 O/R CLTCH SOL/CIRC 2×AT-185
P1805 1805 BRAKE SW/CIRCUIT 2 –EC-349
P2122 2122 APP SEN 1/CIRC 1×EC-355
P2123 2123 APP SEN 1/CIRC 1×EC-355
P2127 2127 APP SEN 2/CIRC 1×EC-361
P2128 2128 APP SEN 2/CIRC 1×EC-361
P2135 2135 TP SENSOR 1×EC-367
P2138 2138 APP SENSOR 1×EC-373
DTC*1
Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
GST*
2ECM*3

PRECAUTIONS
EC-25
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS00NBQ
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
●To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
●Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
●Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harness connec-
tors.
On Board Diagnostic (OBD) System of Engine and A/TEBS00M04
The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.
CAUTION:
●Be sure to turn the ignition switch OFF and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves,
etc. will cause the MI to light up.
●Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
●Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-68, "
HAR-
NESS CONNECTOR" .
●Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MI to light up due to the short circuit.
●Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel injection system, etc.
●Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionEBS00M05
●Always use a 12 volt battery as power source.
●Do not attempt to disconnect battery cables while engine is
running.
●Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative
battery terminal. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.
●Before removing parts, turn ignition switch OFF and then
disconnect battery ground cable.
SEF289H

ENGINE CONTROL SYSTEM
EC-37
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

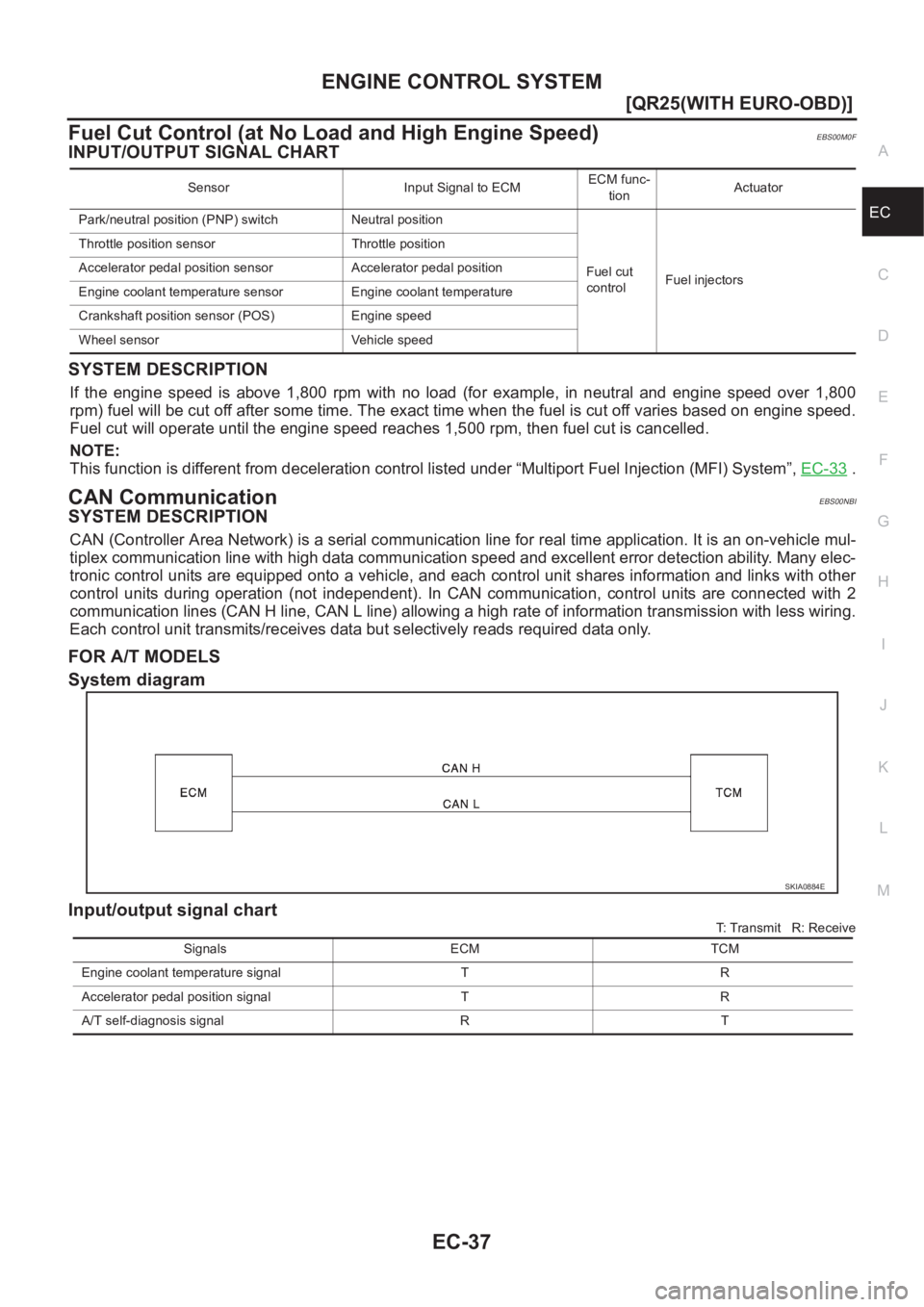

Fuel Cut Control (at No Load and High Engine Speed)EBS00M0F
INPUT/OUTPUT SIGNAL CHART
SYSTEM DESCRIPTION
If the engine speed is above 1,800 rpm with no load (for example, in neutral and engine speed over 1,800
rpm) fuel will be cut off after some time. The exact time when the fuel is cut off varies based on engine speed.
Fuel cut will operate until the engine speed reaches 1,500 rpm, then fuel cut is cancelled.
NOTE:
This function is different from deceleration control listed under “Multiport Fuel Injection (MFI) System”, EC-33
.
CAN CommunicationEBS00NBI
SYSTEM DESCRIPTION
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
FOR A/T MODELS
System diagram
Input/output signal chart
T: Transmit R: Receive Sensor Input Signal to ECMECM func-
tionActuator
Park/neutral position (PNP) switch Neutral position
Fuel cut
controlFuel injectors Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Engine coolant temperature sensor Engine coolant temperature
Crankshaft position sensor (POS) Engine speed
Wheel sensor Vehicle speed
SKIA0884E
Signals ECM TCM
Engine coolant temperature signal T R
Accelerator pedal position signal T R
A/T self-diagnosis signal R T

BASIC SERVICE PROCEDURE
EC-41
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

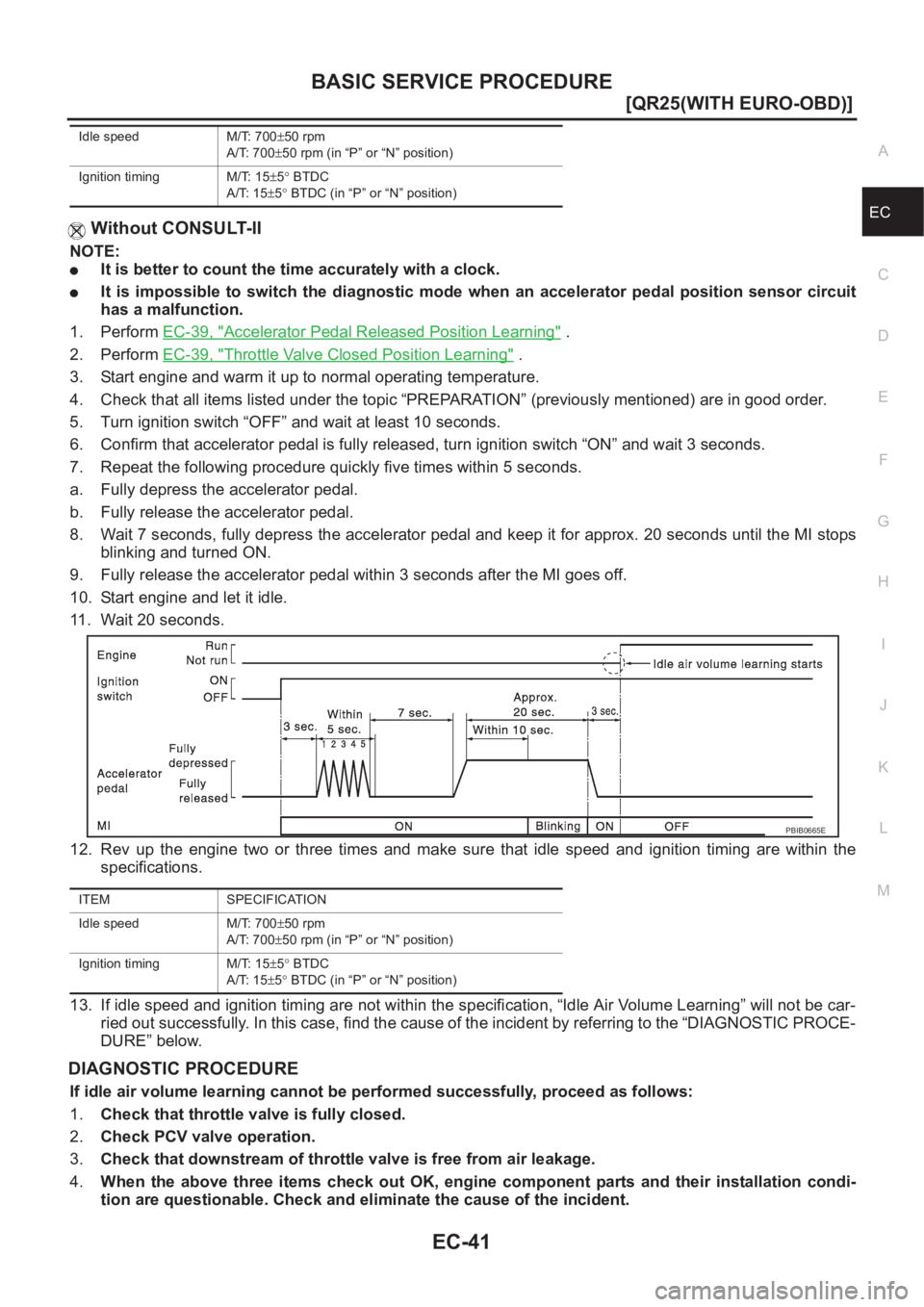

Without CONSULT-II
NOTE:
●It is better to count the time accurately with a clock.
●It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.
1. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
2. Perform EC-39, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic “PREPARATION” (previously mentioned) are in good order.
5. Turn ignition switch “OFF” and wait at least 10 seconds.
6. Confirm that accelerator pedal is fully released, turn ignition switch “ON” and wait 3 seconds.
7. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
8. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MI stops
blinking and turned ON.
9. Fully release the accelerator pedal within 3 seconds after the MI goes off.
10. Start engine and let it idle.
11. Wait 20 seconds.
12. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the
specifications.
13. If idle speed and ignition timing are not within the specification, “Idle Air Volume Learning” will not be car-
ried out successfully. In this case, find the cause of the incident by referring to the “DIAGNOSTIC PROCE-
DURE” below.
DIAGNOSTIC PROCEDURE
If idle air volume learning cannot be performed successfully, proceed as follows:
1.Check that throttle valve is fully closed.
2.Check PCV valve operation.
3.Check that downstream of throttle valve is free from air leakage.
4.When the above three items check out OK, engine component parts and their installation condi-
tion are questionable. Check and eliminate the cause of the incident.
Idle speed M/T: 700±50 rpm
A/T: 700±50 rpm (in “P” or “N” position)
Ignition timing M/T: 15±5° BTDC
A/T: 15±5° BTDC (in “P” or “N” position)
ITEM SPECIFICATION
Idle speed M/T: 700±50 rpm
A/T: 700±50 rpm (in “P” or “N” position)
Ignition timing M/T: 15±5° BTDC
A/T: 15±5° BTDC (in “P” or “N” position)
PBIB0665E

EC-44
[QR25(WITH EURO-OBD)]

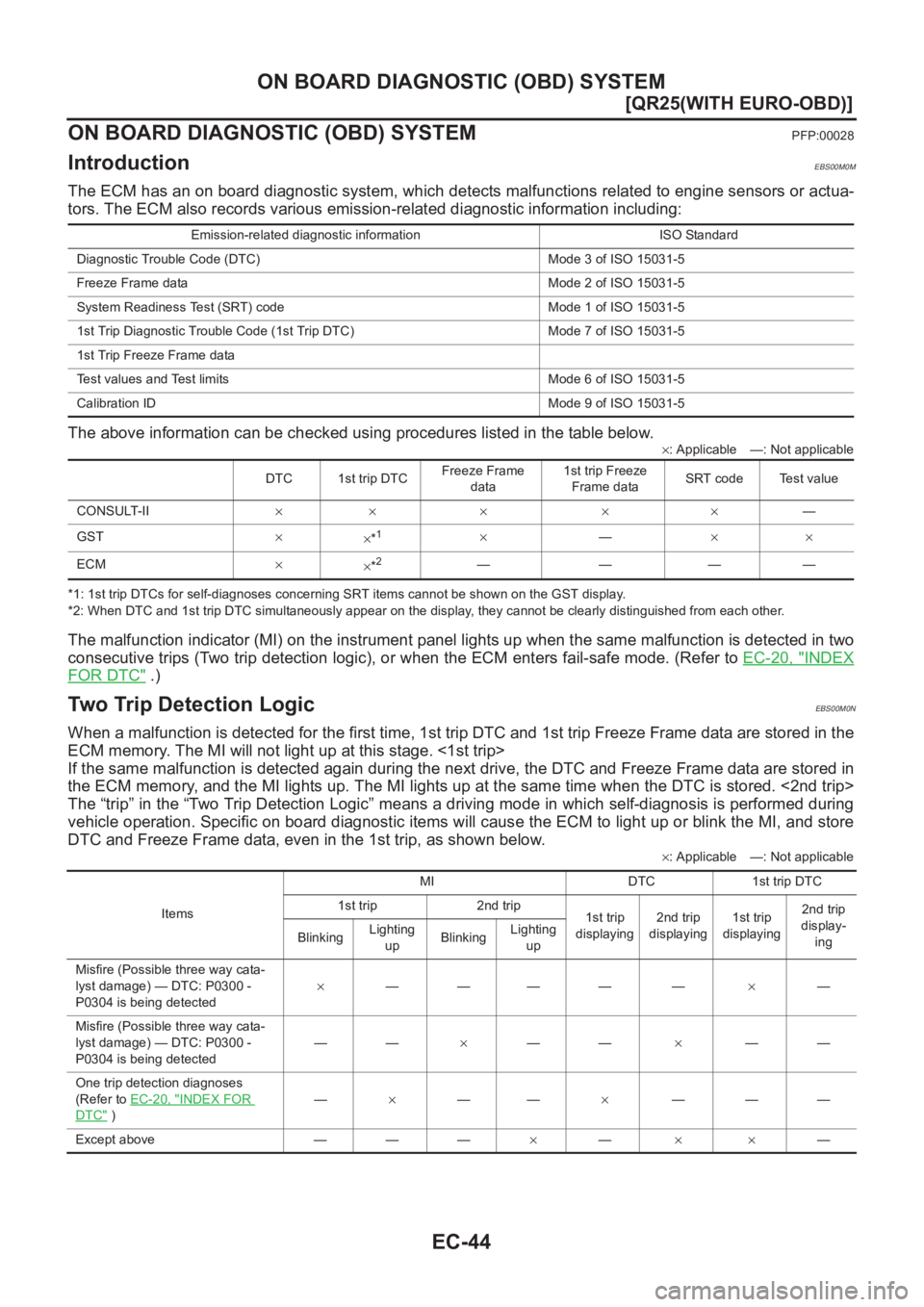

ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOSTIC (OBD) SYSTEM
PFP:00028
IntroductionEBS00M0M
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*1: 1st trip DTCs for self-diagnoses concerning SRT items cannot be shown on the GST display.
*2: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator (MI) on the instrument panel lights up when the same malfunction is detected in two
consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to EC-20, "
INDEX
FOR DTC" .)
Two Trip Detection LogicEBS00M0N
When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MI will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MI lights up. The MI lights up at the same time when the DTC is stored. <2nd trip>
The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed during
vehicle operation. Specific on board diagnostic items will cause the ECM to light up or blink the MI, and store
DTC and Freeze Frame data, even in the 1st trip, as shown below.
×: Applicable —: Not applicable Emission-related diagnostic information ISO Standard
Diagnostic Trouble Code (DTC) Mode 3 of ISO 15031-5
Freeze Frame data Mode 2 of ISO 15031-5
System Readiness Test (SRT) code Mode 1 of ISO 15031-5
1st Trip Diagnostic Trouble Code (1st Trip DTC) Mode 7 of ISO 15031-5
1st Trip Freeze Frame data
Test values and Test limits Mode 6 of ISO 15031-5
Calibration ID Mode 9 of ISO 15031-5
DTC 1st trip DTCFreeze Frame
data1st trip Freeze
Frame dataSRT code Test value
CONSULT-II×× × × ×—
GST×
×*
1×—××
ECM×
×*
2————
ItemsMI DTC 1st trip DTC
1st trip 2nd trip
1st trip
displaying2nd trip
displaying1st trip
displaying2nd trip
display-
ing BlinkingLighting
upBlinkingLighting
up
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0304 is being detected×———— —×—
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0304 is being detected——×——×——
One trip detection diagnoses
(Refer to EC-20, "
INDEX FOR
DTC" )—×——×———
Except above — — —×—××—

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-45
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

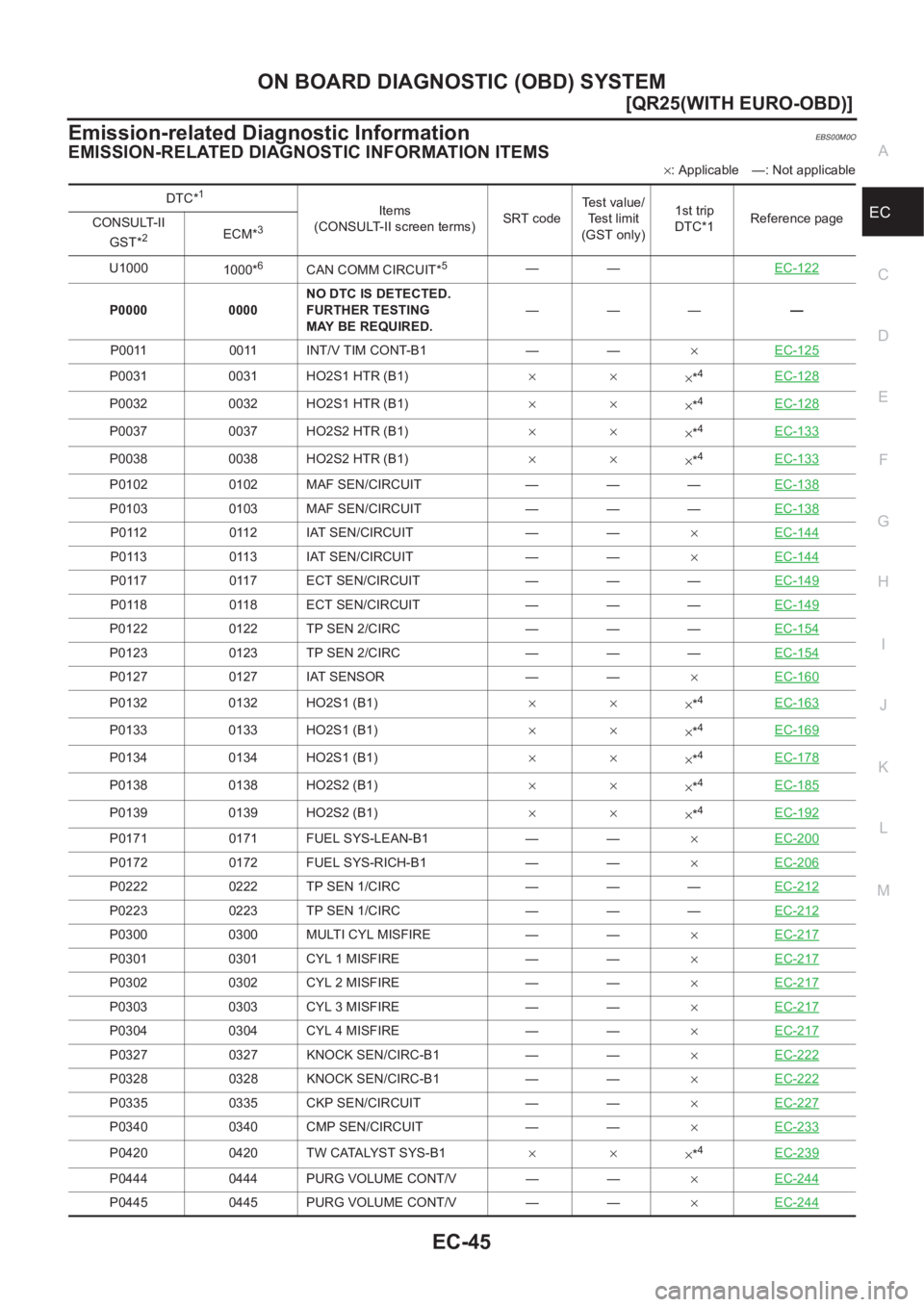

Emission-related Diagnostic InformationEBS00M0O
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
×: Applicable —: Not applicable
DTC*
1
Items
(CONSULT-II screen terms)SRT codeTest value/
Test limit
(GST only)1st trip
DTC*1Reference page
CONSULT-II
GST*
2ECM*3
U1000
1000*6CAN COMM CIRCUIT*5——EC-122
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.————
P0011 0011 INT/V TIM CONT-B1 — —×EC-125
P0031 0031 HO2S1 HTR (B1)××
×*4EC-128
P0032 0032 HO2S1 HTR (B1)××
×*4EC-128
P0037 0037 HO2S2 HTR (B1)××
×*4EC-133
P0038 0038 HO2S2 HTR (B1)××
×*4EC-133
P0102 0102 MAF SEN/CIRCUIT — — —EC-138
P0103 0103 MAF SEN/CIRCUIT — — —EC-138
P0112 0112 IAT SEN/CIRCUIT — —×EC-144
P0113 0113 IAT SEN/CIRCUIT — —×EC-144
P0117 0117 ECT SEN/CIRCUIT — — —EC-149
P0118 0118 ECT SEN/CIRCUIT — — —EC-149
P0122 0122 TP SEN 2/CIRC — — —EC-154
P0123 0123 TP SEN 2/CIRC — — —EC-154
P0127 0127 IAT SENSOR — —×EC-160
P0132 0132 HO2S1 (B1)××
×*4EC-163
P0133 0133 HO2S1 (B1)××
×*4EC-169
P0134 0134 HO2S1 (B1)××
×*4EC-178
P0138 0138 HO2S2 (B1)××
×*4EC-185
P0139 0139 HO2S2 (B1)××
×*4EC-192
P0171 0171 FUEL SYS-LEAN-B1 — —×EC-200
P0172 0172 FUEL SYS-RICH-B1 — —×EC-206
P0222 0222 TP SEN 1/CIRC — — —EC-212
P0223 0223 TP SEN 1/CIRC — — —EC-212
P0300 0300 MULTI CYL MISFIRE — —×EC-217
P0301 0301 CYL 1 MISFIRE — —×EC-217
P0302 0302 CYL 2 MISFIRE — —×EC-217
P0303 0303 CYL 3 MISFIRE — —×EC-217
P0304 0304 CYL 4 MISFIRE — —×EC-217
P0327 0327 KNOCK SEN/CIRC-B1 — —×EC-222
P0328 0328 KNOCK SEN/CIRC-B1 — —×EC-222
P0335 0335 CKP SEN/CIRCUIT — —×EC-227
P0340 0340 CMP SEN/CIRCUIT — —×EC-233
P0420 0420 TW CATALYST SYS-B1××
×*4EC-239
P0444 0444 PURG VOLUME CONT/V — —×EC-244
P0445 0445 PURG VOLUME CONT/V — —×EC-244
