DTC P2135 TP SENSOR
DTC P2135 TP SENSOR
PFP:16119

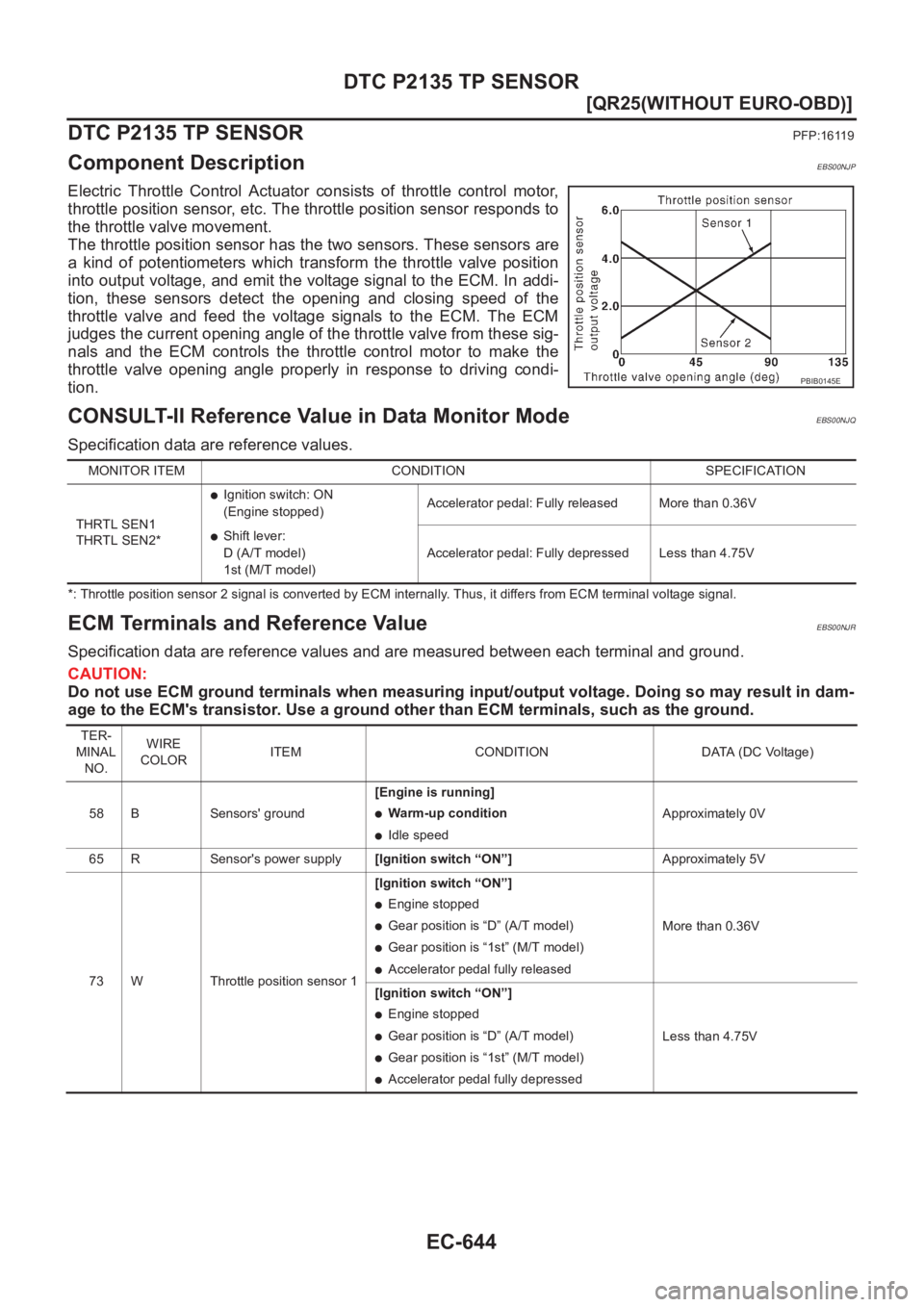

Component DescriptionEBS00NJP
Electric Throttle Control Actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeEBS00NJQ
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
ECM Terminals and Reference ValueEBS00NJR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN1
THRTL SEN2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
●Shift lever:
D (A/T model)
1st (M/T model)Accelerator pedal: Fully depressed Less than 4.75V
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
73 W Throttle position sensor 1[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully releasedMore than 0.36V
[Ignition switch “ON”]
●Engine stopped
●Gear position is “D” (A/T model)
●Gear position is “1st” (M/T model)
●Accelerator pedal fully depressedLess than 4.75V

EC-648
[QR25(WITHOUT EURO-OBD)]
DTC P2135 TP SENSOR

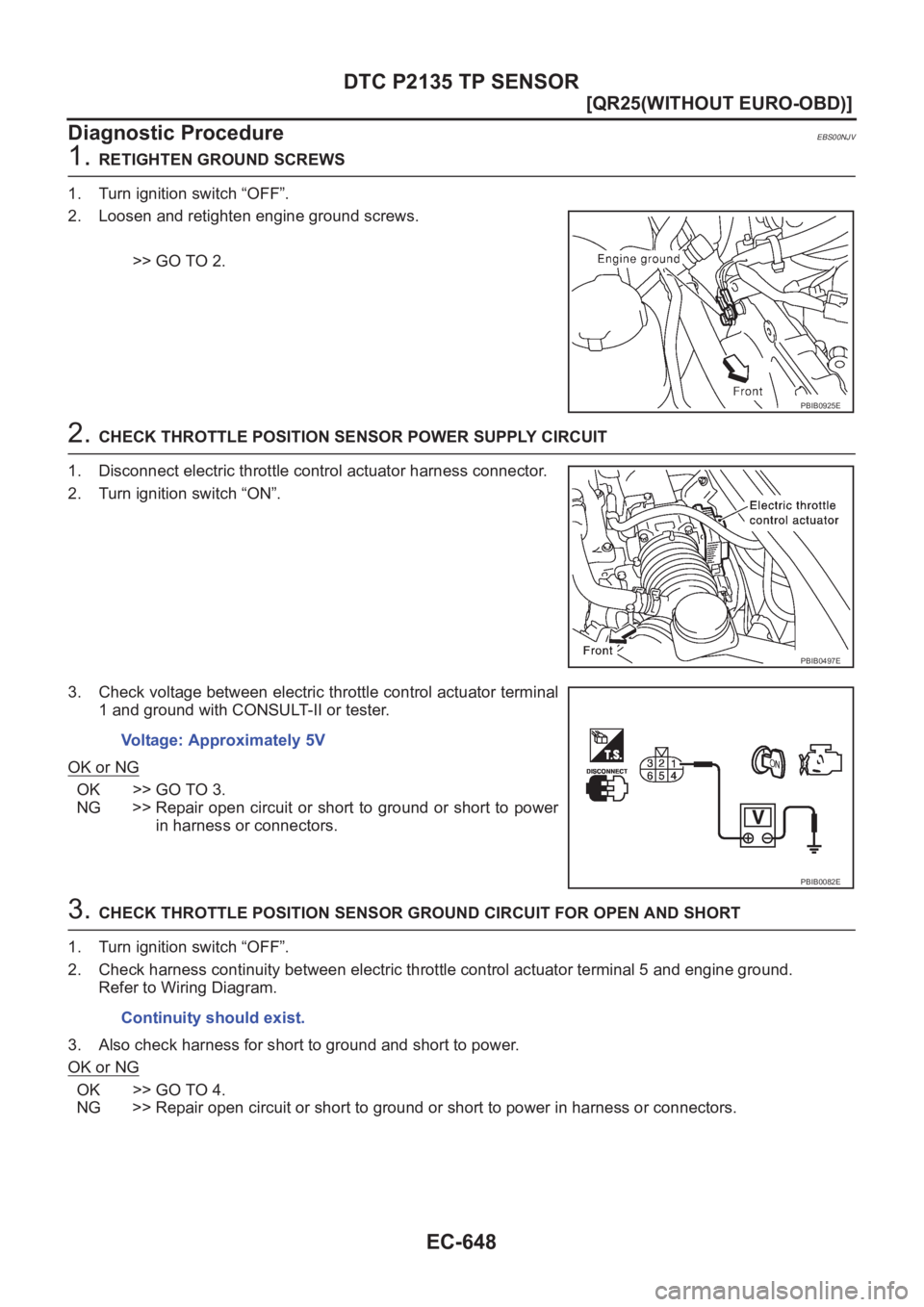

Diagnostic Procedure
EBS00NJV
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between electric throttle control actuator terminal 5 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0925E
PBIB0497E
Voltage: Approximately 5V
PBIB0082E
Continuity should exist.

DTC P2138 APP SENSOR
EC-651
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2138 APP SENSORPFP:18002

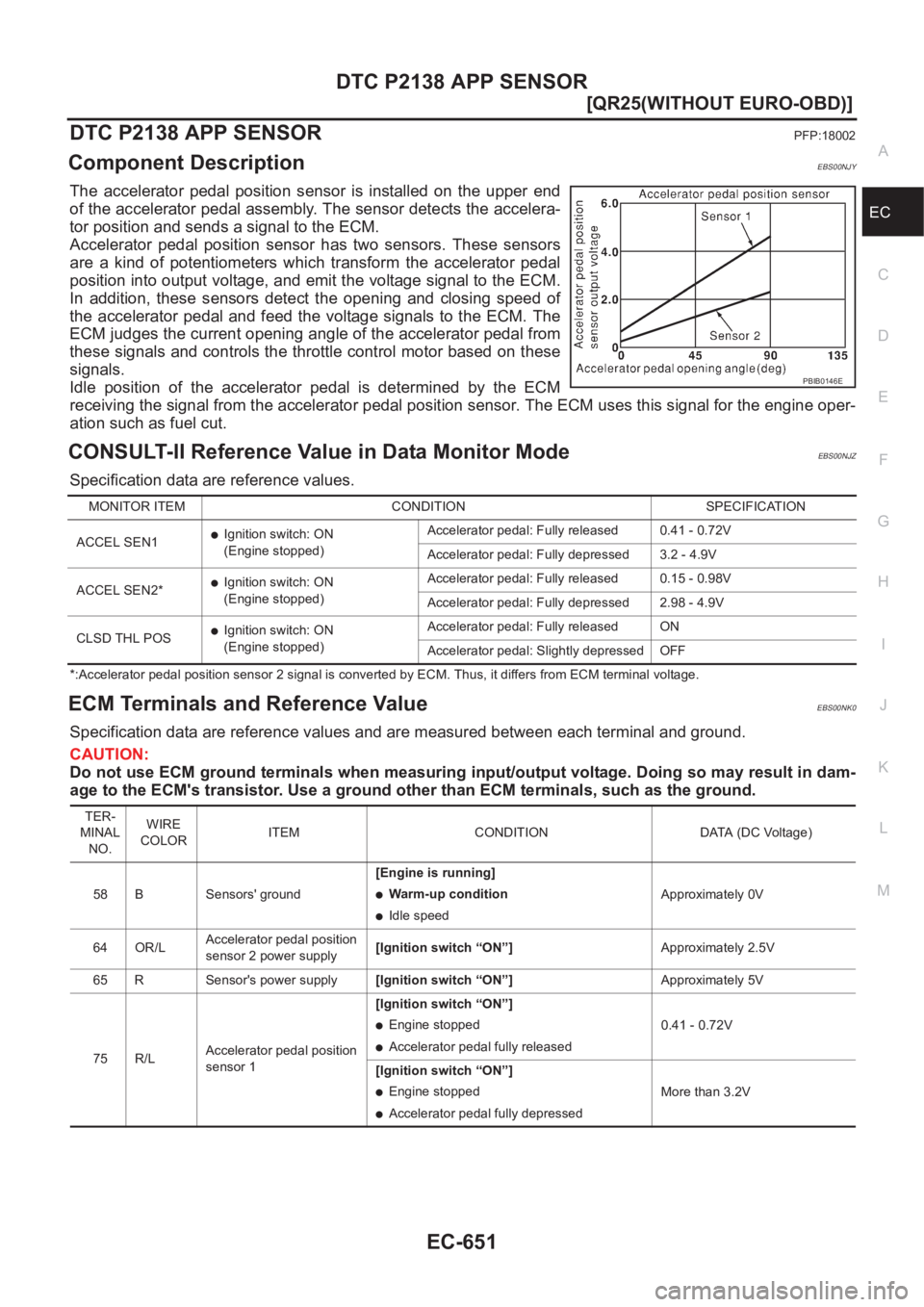

Component DescriptionEBS00NJY
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00NJZ
Specification data are reference values.
*:Accelerator pedal position sensor 2 signal is converted by ECM. Thus, it differs from ECM terminal voltage.
ECM Terminals and Reference ValueEBS00NK0
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.41 - 0.72V
Accelerator pedal: Fully depressed 3.2 - 4.9V
ACCEL SEN2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.15 - 0.98V
Accelerator pedal: Fully depressed 2.98 - 4.9V
CLSD THL POS
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
64 OR/LAccelerator pedal position
sensor 2 power supply[Ignition switch “ON”]Approximately 2.5V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
75 R/LAccelerator pedal position
sensor 1[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.41 - 0.72V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 3.2V

EC-652
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR

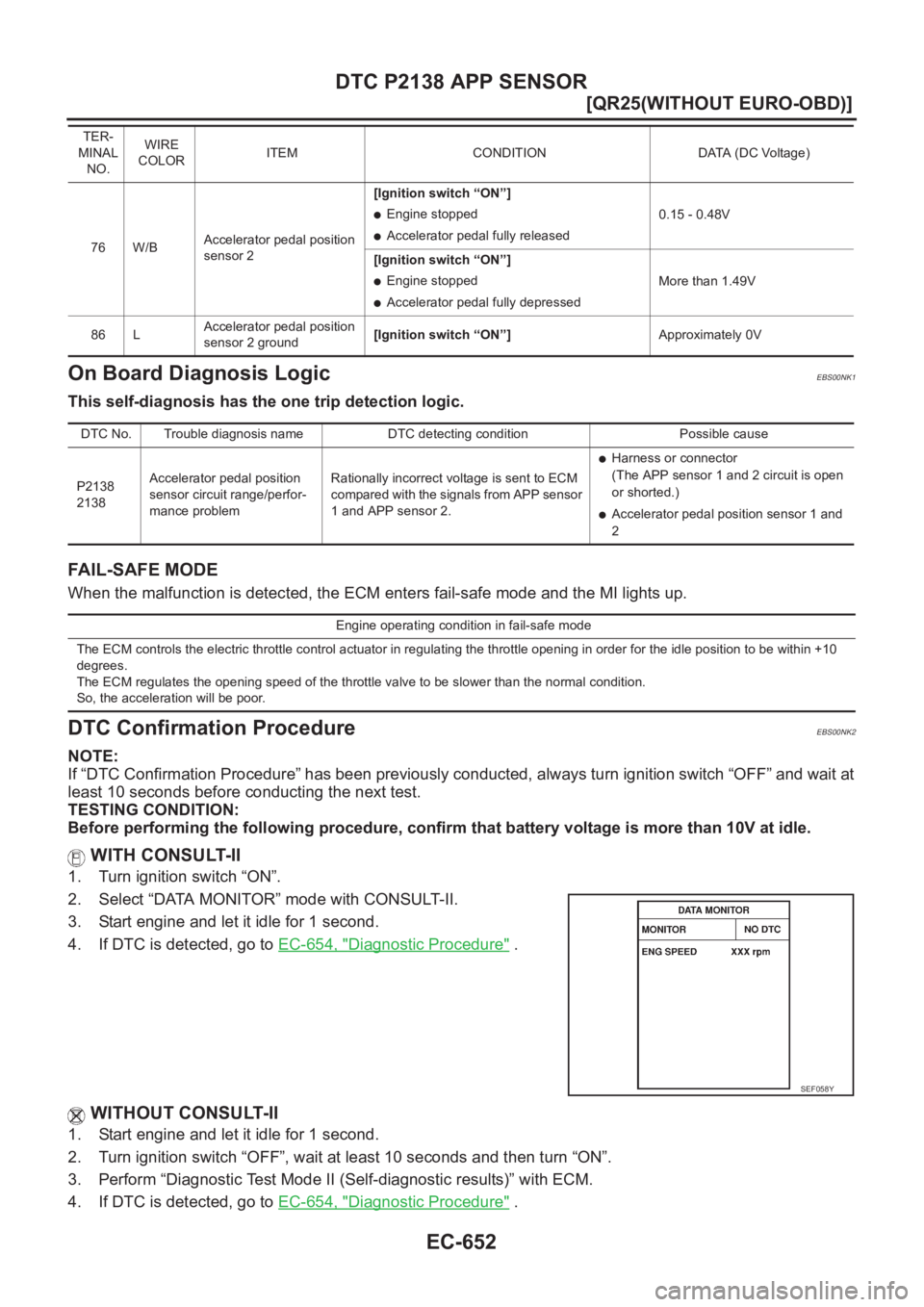

On Board Diagnosis Logic
EBS00NK1
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00NK2
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-654, "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Start engine and let it idle for 1 second.
2. Turn ignition switch “OFF”, wait at least 10 seconds and then turn “ON”.
3. Perform “Diagnostic Test Mode II (Self-diagnostic results)” with ECM.
4. If DTC is detected, go to EC-654, "
Diagnostic Procedure" .
76 W/BAccelerator pedal position
sensor 2[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.15 - 0.48V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 1.49V
86 LAccelerator pedal position
sensor 2 ground[Ignition switch “ON”]Approximately 0V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal position
sensor circuit range/perfor-
mance problemRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.
●Harness or connector
(The APP sensor 1 and 2 circuit is open
or shorted.)
●Accelerator pedal position sensor 1 and
2
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
SEF058Y

DTC P2138 APP SENSOR
EC-653
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

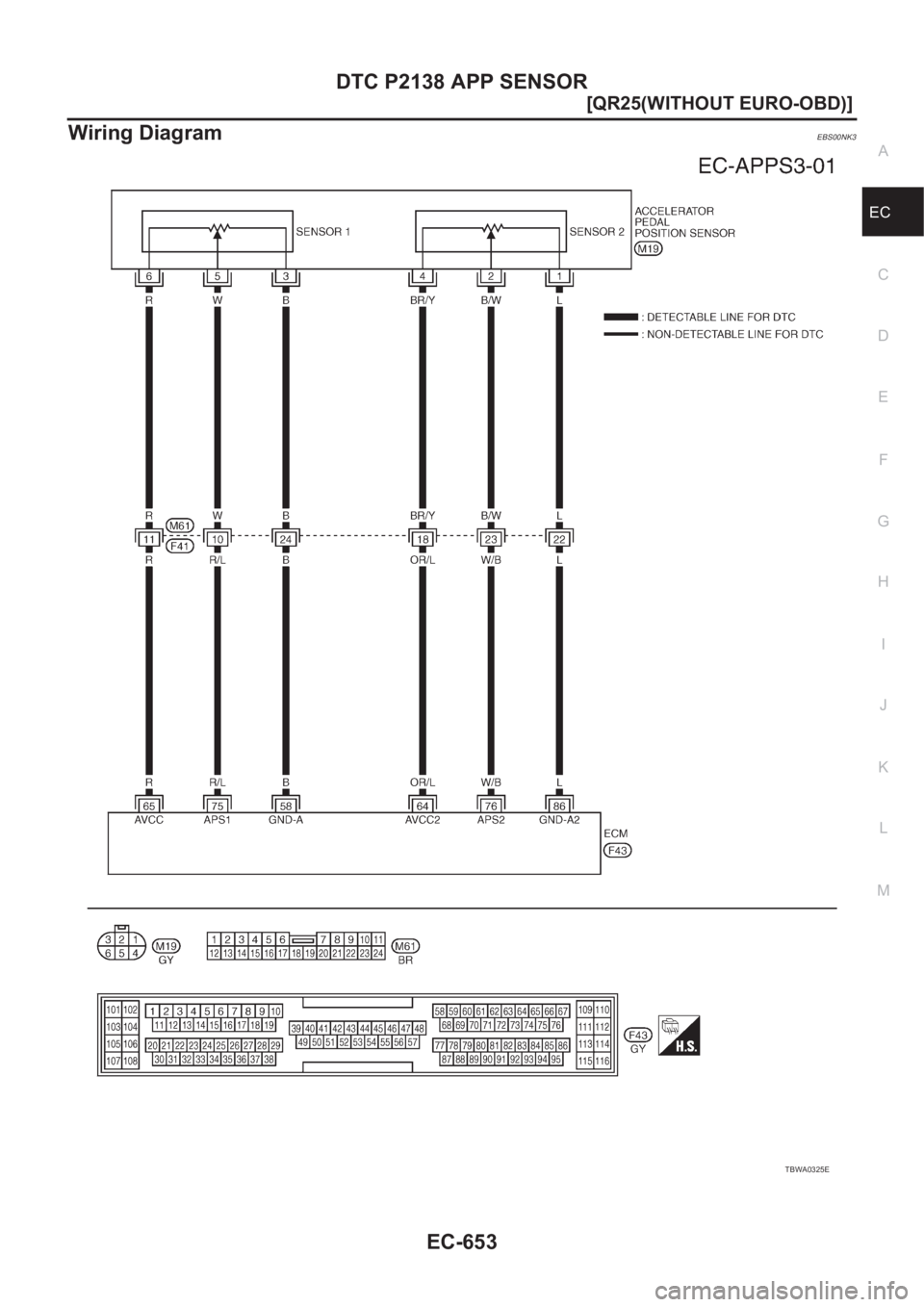

Wiring DiagramEBS00NK3
TBWA0325E

EC-654
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR

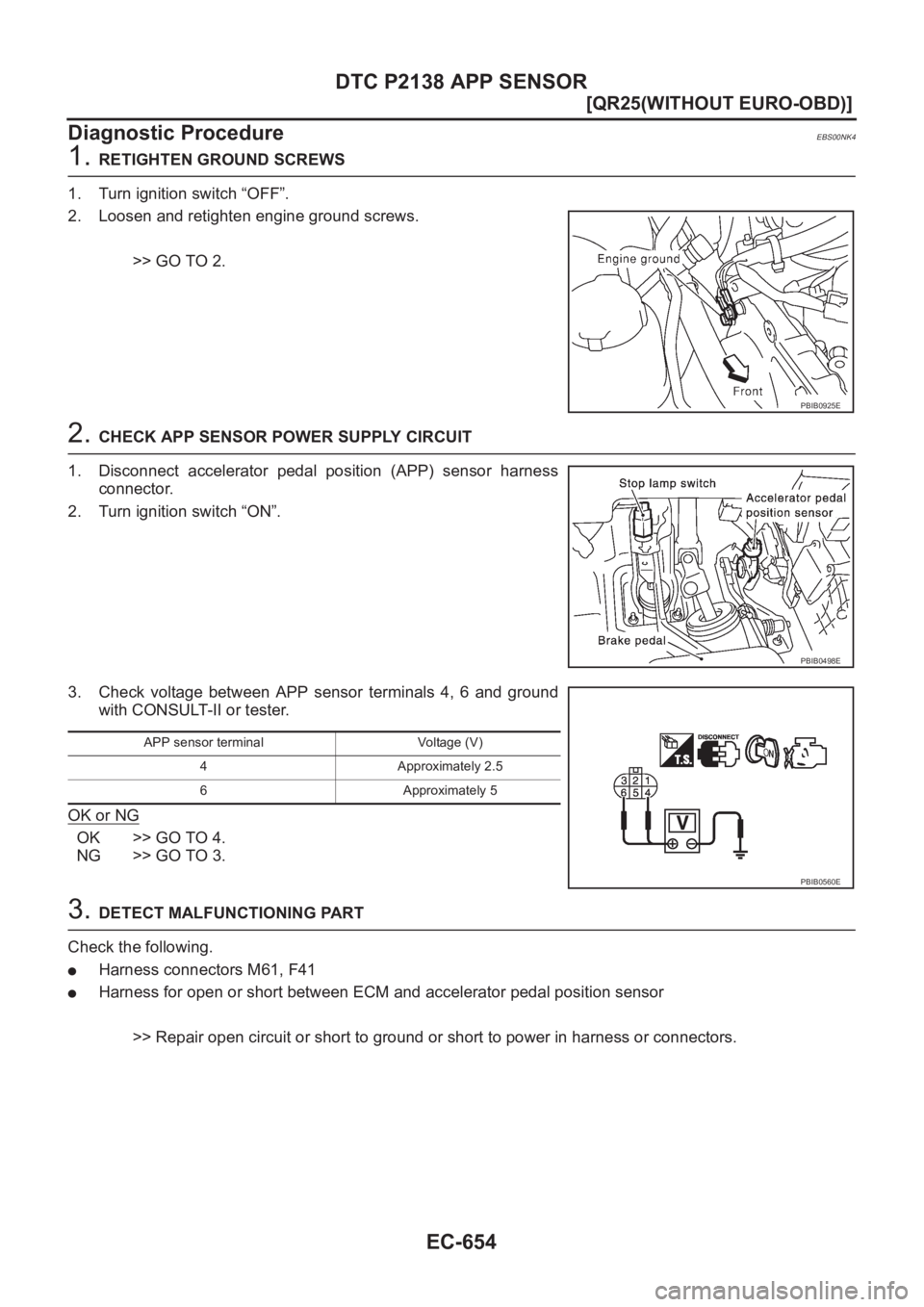

Diagnostic Procedure
EBS00NK4
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2. CHECK APP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch “ON”.
3. Check voltage between APP sensor terminals 4, 6 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0925E
PBIB0498E
APP sensor terminal Voltage (V)
4 Approximately 2.5
6 Approximately 5
PBIB0560E

DTC P2138 APP SENSOR
EC-655
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

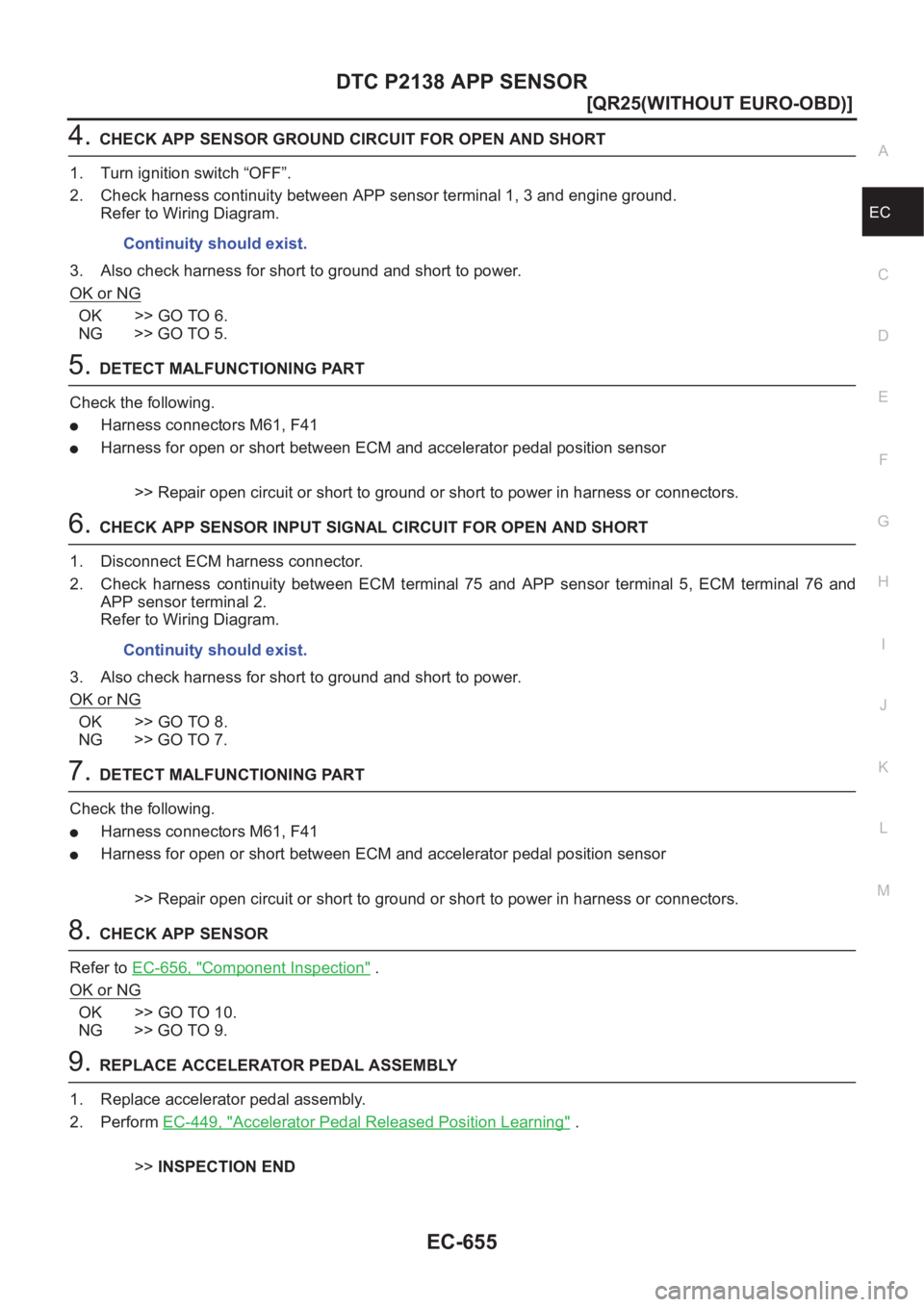

4.CHECK APP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between APP sensor terminal 1, 3 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 75 and APP sensor terminal 5, ECM terminal 76 and
APP sensor terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors M61, F41
●Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK APP SENSOR
Refer to EC-656, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-449, "
Accelerator Pedal Released Position Learning" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

EC-656
[QR25(WITHOUT EURO-OBD)]
DTC P2138 APP SENSOR
10. CHECK INTERMITTENT INCIDENT
Refer to EC-506, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

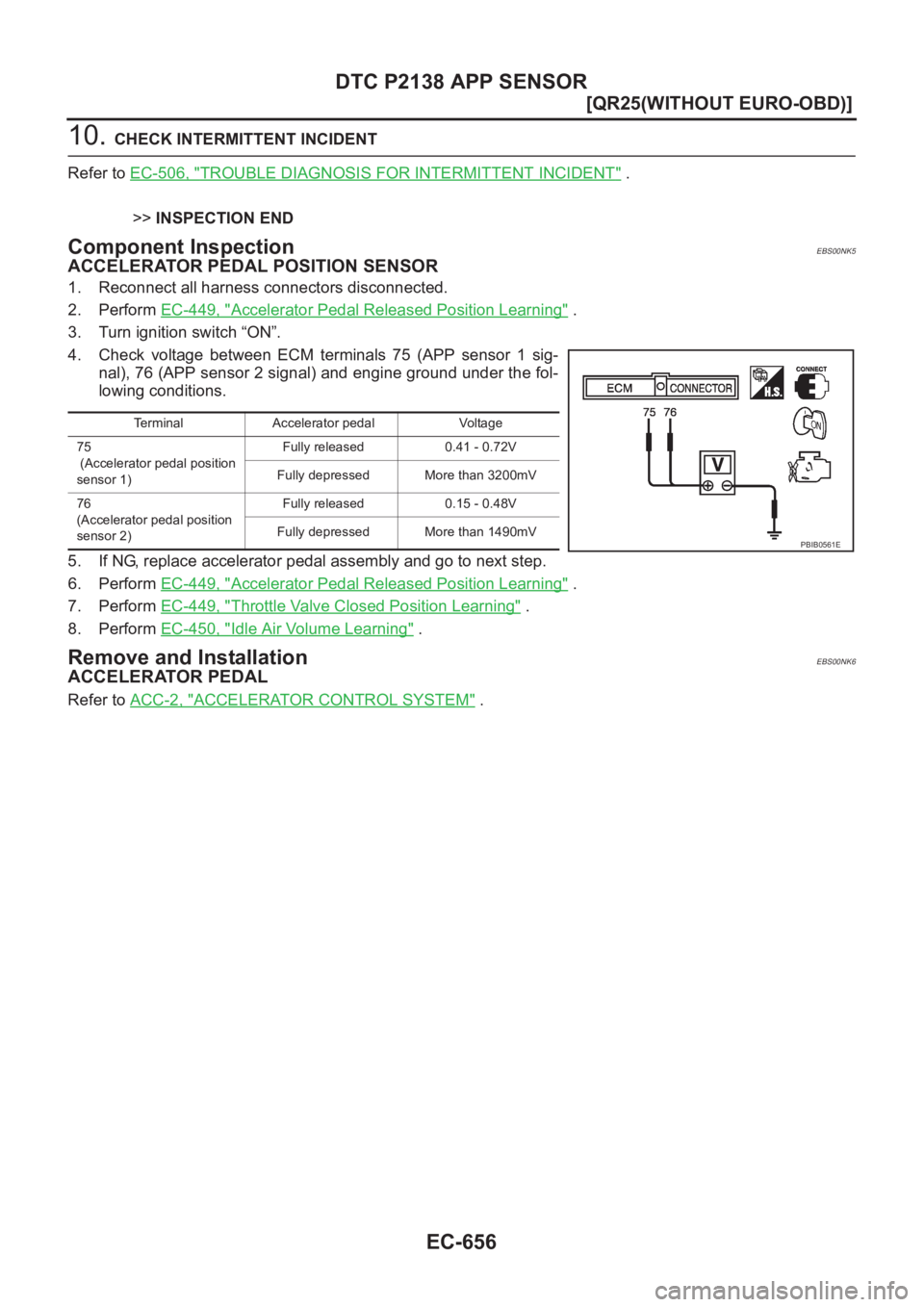

Component InspectionEBS00NK5
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-449, "
Accelerator Pedal Released Position Learning" .
3. Turn ignition switch “ON”.
4. Check voltage between ECM terminals 75 (APP sensor 1 sig-
nal), 76 (APP sensor 2 signal) and engine ground under the fol-
lowing conditions.
5. If NG, replace accelerator pedal assembly and go to next step.
6. Perform EC-449, "
Accelerator Pedal Released Position Learning" .
7. Perform EC-449, "
Throttle Valve Closed Position Learning" .
8. Perform EC-450, "
Idle Air Volume Learning" .
Remove and InstallationEBS00NK6
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
75
(Accelerator pedal position
sensor 1)Fully released 0.41 - 0.72V
Fully depressed More than 3200mV
76
(Accelerator pedal position
sensor 2)Fully released 0.15 - 0.48V
Fully depressed More than 1490mV
PBIB0561E
