CheckingNJEM0042
SEM100G
1. Inspect for cracks, fraying, wear or oil adhesion. If necessary,
replace with a new one.
+When replacing belt, make sure the new belt has the same
number of ribs as the old one.
2. Inspect drive belt deflections by pushing on the belt midway
between pulleys.
3. Turn crankshaft two revolutions and recheck drive belt deflec-
tion.
+Inspect drive belt deflection when engine is cold.
+Adjust if belt deflections exceed the limit.
DRIVE BELTSQG
Checking
EM-15

Belt deflection:
Unit: mm (in)
Applied engineUsed belt deflection
Deflection
of new belt
LimitDeflection
after
adjustment
AlternatorWith air
conditioner
compressorQG15´18DE 8.1 (0.319)5.3 - 5.7
(0.209 -
0.224)4.5 - 5.0
(0.177 -
0.197)
Without air
conditioner
compressorQG15´18DE10.2
(0.402)6.5 - 7.0
(0.256 -
0.276)5.5 - 6.1
(0.217 -
0.240)
Power steering oil
pumpQG15DE 8.5 (0.335)5.2 - 5.8
(0.205 -
0.228)4.6 - 5.2
(0.181 -
0.205)
QG18DE 7.1 (0.280)4.4 - 4.9
(0.173 -
0.193)3.9 - 4.4
(0.154 -
0.173)
Applied pushing force 98 N (10 kg, 22 lb)
Inspect drive belt deflections when engine is cold.
DRIVE BELTSQG
Checking (Cont'd)
EM-16

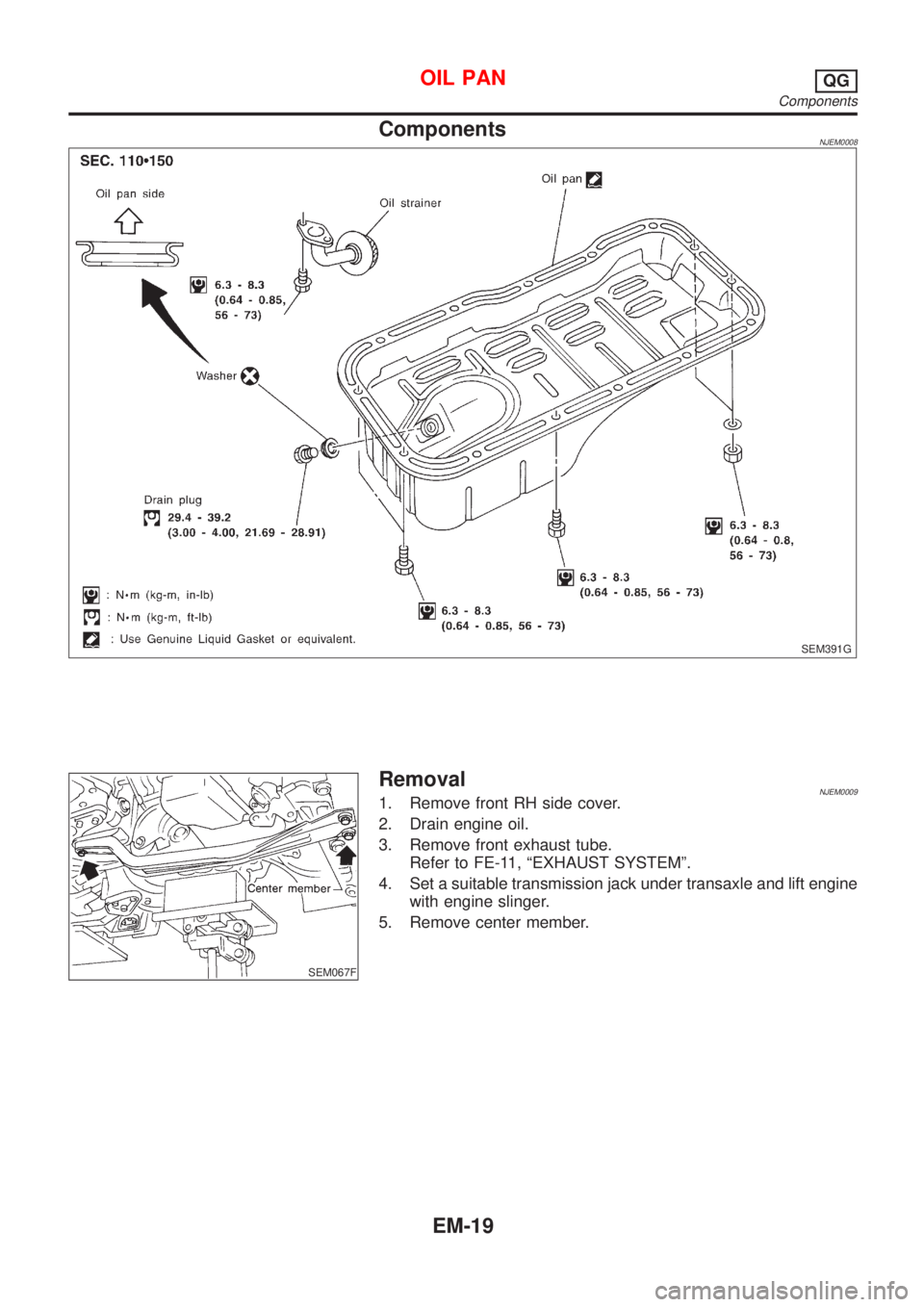

ComponentsNJEM0008
SEM391G
SEM067F
RemovalNJEM00091. Remove front RH side cover.
2. Drain engine oil.
3. Remove front exhaust tube.
Refer to FE-11, ªEXHAUST SYSTEMº.
4. Set a suitable transmission jack under transaxle and lift engine
with engine slinger.
5. Remove center member.
OIL PANQG
Components
EM-19

SEM071FA
SEM110G

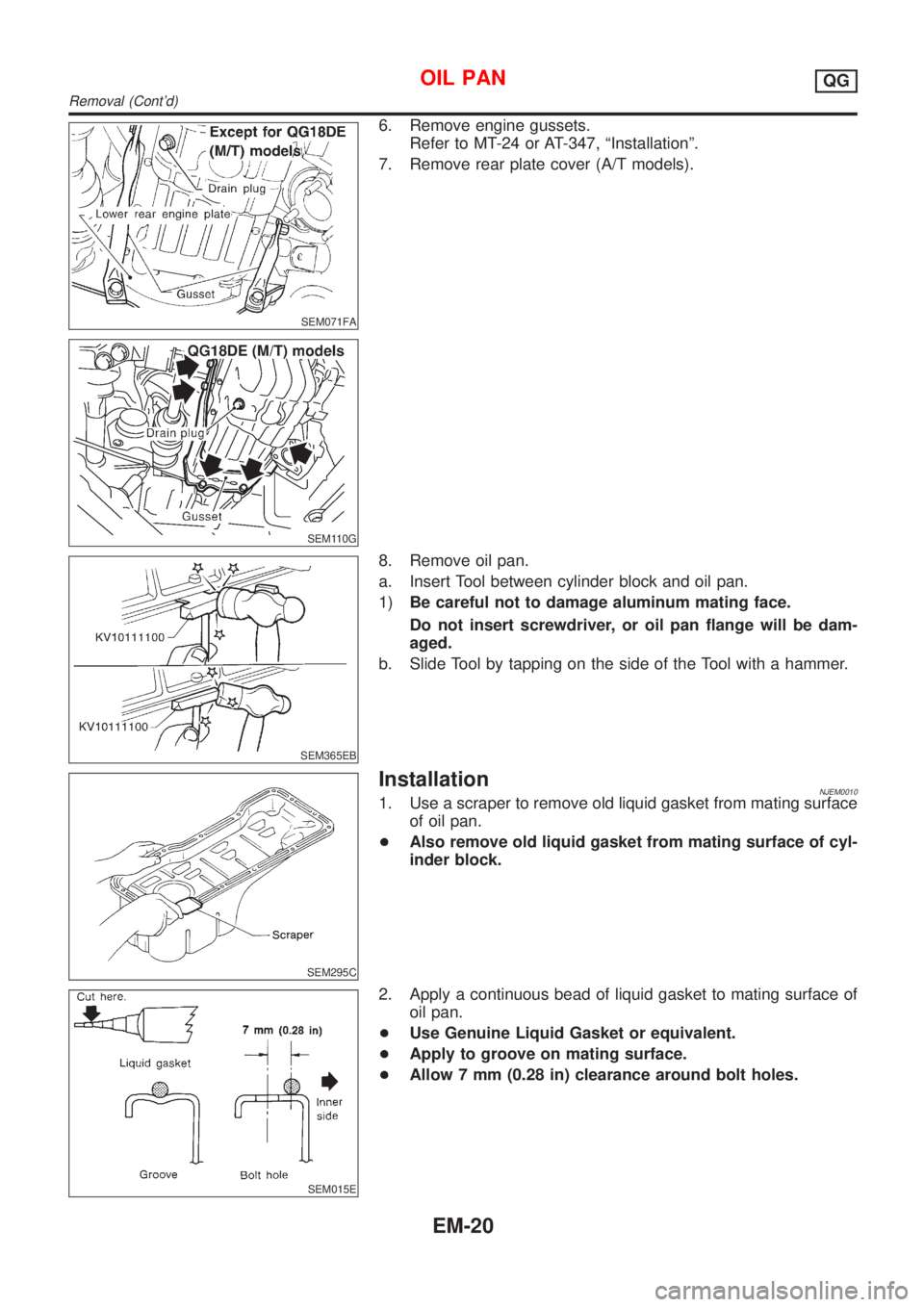

6. Remove engine gussets.
Refer to MT-24 or AT-347, ªInstallationº.
7. Remove rear plate cover (A/T models).
SEM365EB
8. Remove oil pan.
a. Insert Tool between cylinder block and oil pan.
1)Be careful not to damage aluminum mating face.
Do not insert screwdriver, or oil pan flange will be dam-
aged.
b. Slide Tool by tapping on the side of the Tool with a hammer.
SEM295C
InstallationNJEM00101. Use a scraper to remove old liquid gasket from mating surface
of oil pan.
+Also remove old liquid gasket from mating surface of cyl-
inder block.
SEM015E
2. Apply a continuous bead of liquid gasket to mating surface of
oil pan.
+Use Genuine Liquid Gasket or equivalent.
+Apply to groove on mating surface.
+Allow 7 mm (0.28 in) clearance around bolt holes.
OIL PANQG
Removal (Cont'd)
EM-20

SEM259G

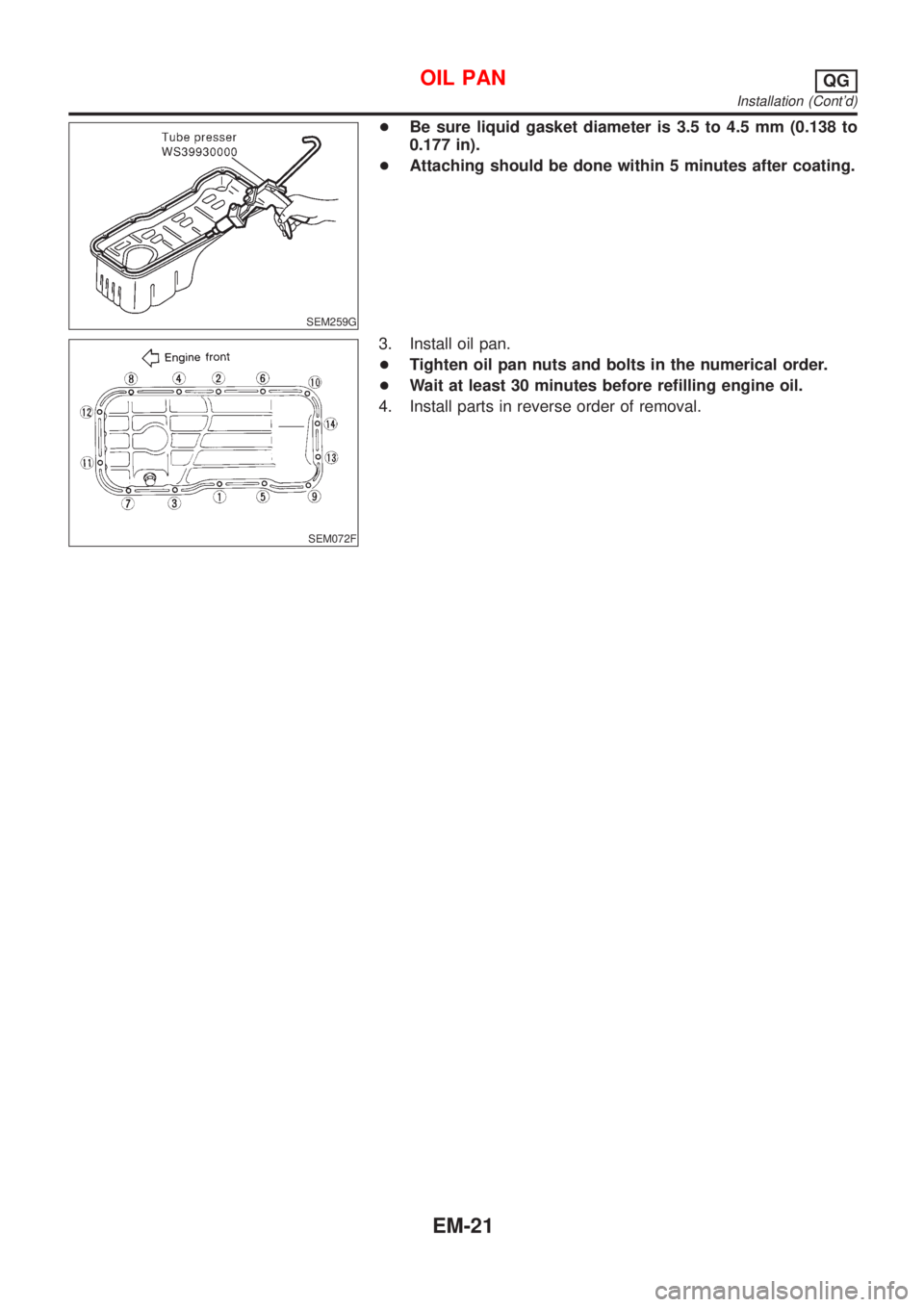

+Be sure liquid gasket diameter is 3.5 to 4.5 mm (0.138 to
0.177 in).
+Attaching should be done within 5 minutes after coating.
SEM072F
3. Install oil pan.
+Tighten oil pan nuts and bolts in the numerical order.
+Wait at least 30 minutes before refilling engine oil.
4. Install parts in reverse order of removal.
OIL PANQG
Installation (Cont'd)
EM-21

CAUTION:
+After removing timing chain, do not turn crankshaft and
camshaft separately, or valves will strike piston heads.
+When installing chain tensioner, oil seats, or other sliding
parts, lubricate contacting surfaces with new engine oil.
+Apply new engine oil to bolt threads and seat surfaces
when installing camshaft sprocket and crankshaft pulley.
+When removing oil pump assembly, remove camshaft
position sensor (PHASE), then remove timing chain from
engine.
+Be careful not to damage sensor edges.
SEM869F
RemovalNJEM01051. Drain engine coolant from radiator and cylinder block.
Be careful not to spill coolant on drive belts.
2. Remove reservoir tank.
3. Release fuel pressure.
Refer to EC-38, ªFuel Pressure Releaseº.
4. Remove the following belts.
+Power steering pump drive belt
+Alternator drive belt
5. Remove front right-side wheel.
6. Remove front/right splash undercover.
7. Remove front exhaust tube.
SEM870F
8. Remove vacuum hoses, fuel hoses, and so on.
9. Remove ignition coils.
10. Remove spark plugs.
SEM102G
11. Remove rocker cover bolts in numerical order as shown in the
figure.
TIMING CHAINQG
Components (Cont'd)
EM-23

SEM008G

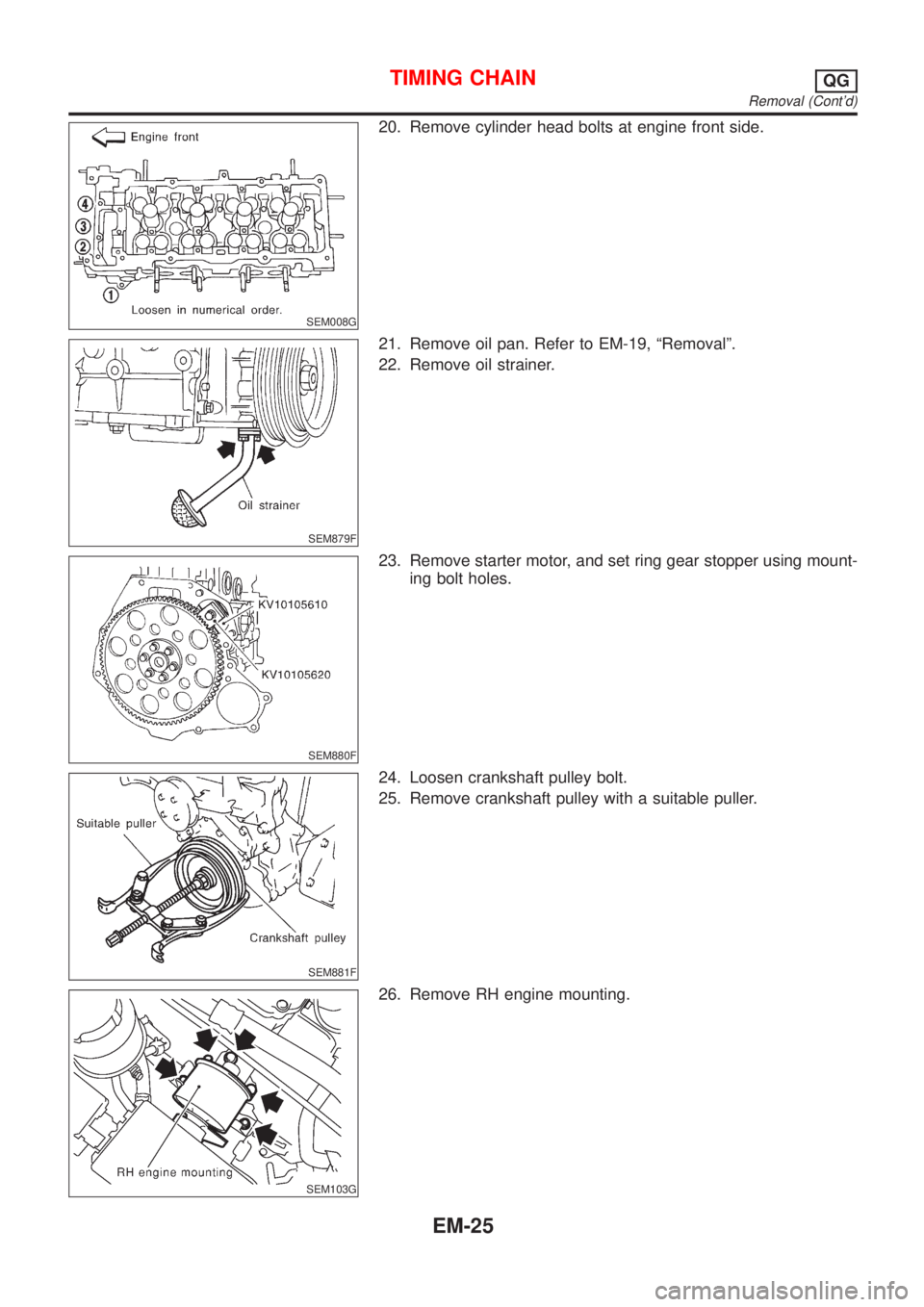

20. Remove cylinder head bolts at engine front side.
SEM879F
21. Remove oil pan. Refer to EM-19, ªRemovalº.
22. Remove oil strainer.
SEM880F
23. Remove starter motor, and set ring gear stopper using mount-
ing bolt holes.
SEM881F
24. Loosen crankshaft pulley bolt.
25. Remove crankshaft pulley with a suitable puller.
SEM103G
26. Remove RH engine mounting.
TIMING CHAINQG
Removal (Cont'd)
EM-25

SEM104G
27. Remove RH engine mounting bracket.
28. Remove idler pulley and bracket.
SEM883F
29. Remove water pump pulley and water pump.
30. Remove front cover bolts and front cover as shown.
H1: Located on water pump
H2: Located on power steering pump adjusting bar
+Inspect for oil leakage at front oil seal. Replace seal if oil leak
is present.
SEM884F
SEM897F
31. Remove timing chain.
32. Remove oil pump drive spacer.
33. Remove chain guides.
34. Remove crankshaft sprocket.
35. Remove O-rings from cylinder block and front cover.
SEM885F
InspectionNJEM0106Check for cracks and excessive wear at roller links. Replace
if necessary.
TIMING CHAINQG
Removal (Cont'd)
