2001 HONDA CIVIC COUPE Owners Manual

This light has two f unctions:This light normally comes on f or a
f ew seconds when you turn the
ignition switch ON (II), and when
the ignition switch is turned to
START (III). If this light comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
cartoyourdealertohaveitchecked.
With the light on, your car still has
normal braking ability but no anti-
lock. For complete inf ormation, see
page .
If this light comes on when the
engine is running, the battery is not
being charged. For complete
inf ormation, see page .
The engine can be severely damaged
if this light f lashes or stays on when
the engine is running. For complete
inf ormation, see page .
This indicator comes on when you
turn the ignition switch ON (II). It
is a reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If the indicator remains lit after
you have f ully released the
parking brake while the engine is
running, or if it comes on while
driving, it can indicate a problem
in the brake system. For complete
inf ormation, see page .
1.
2.
279
278 282192
Only on models equipped with ABS (see
page ) 190
Parking Brake
and Brake
System
Indicator Anti-lock Brake
System (A BS)
Indicator
Charging System
Indicator
L ow Oil Pressure
Indicator
Indicator L ights
Inst rument s and Cont rols62
U.S. Canada
U.S. Canada

This light comes on with the high
beam headlights. See page for
inf ormation on the headlight
controls.
This lights when you set the cruise
control. See page f or inf ormation
on operating the cruise control. On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
See page .
The lef t or right turn signal light
blinks when you signal a lane change
or turn. If the light does not blink or
blinks rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling. This light comes on if the trunk lid is
not closed tightly.
This light comes on as a reminder
that you must ref uel soon.
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the car should f lash. This light comes on when the
washer f luid level is low. Add washer
f luid when you see this light come on
(see page ).
70
71
76
280
248 219
Only on models equipped with CruiseControl System Canadian models only
CONT INUED
High Beam Indicator
Cruise Control Indicator
Malf unction Indicator
Lamp
Turn Signal and
Hazard Warning
Indicators Low Fuel Indicator
Washer Level Indicator Trunk-open Indicator
Indicator L ights
Inst rument s and Cont rols63

µ
This indicator comes on f or a f ew
seconds when you turn the ignition
switch ON (II). It will then go of f if
you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0). This indicator reminds you that it is
time to take your car in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages
.
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch ON (II). Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km) this
indicator will light f or two seconds
when you f irst turn the ignition
switch ON (II), and then f lash f or
ten seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
80 198 204
Indicator L ights
Immobilizer System
Indicator
Maintenance Required
Indicator
Inst rument s and Cont rols64

Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as

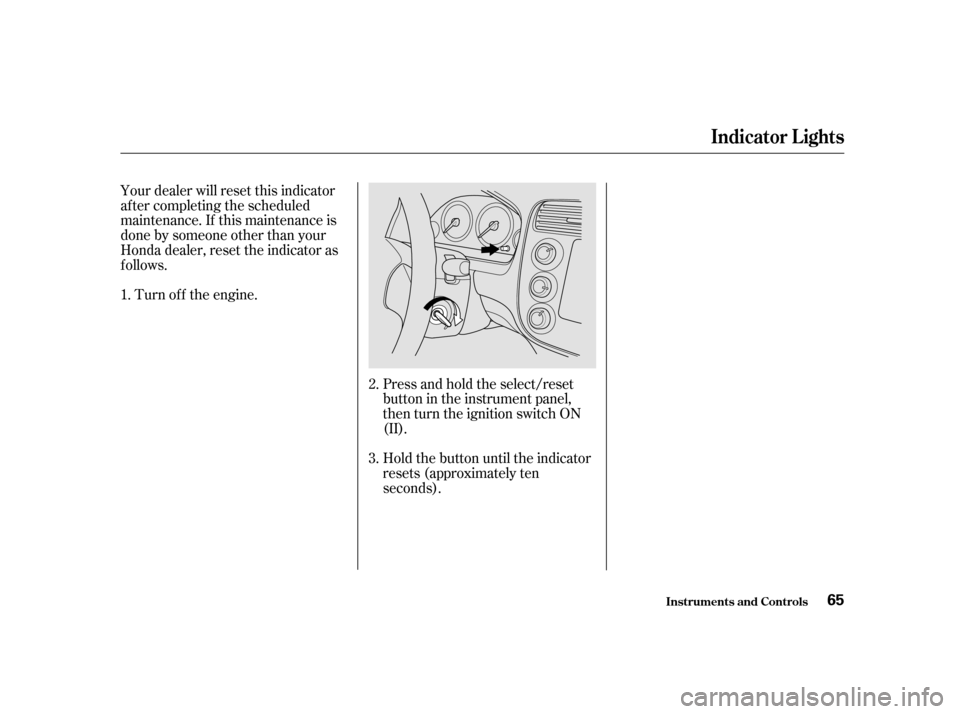

f ollows.Turn of f the engine.
Press and hold the select/reset
button in the instrument panel,
then turn the ignition switch ON
(II).
Hold the button until the indicator
resets (approximately ten
seconds).
1.
2.
3.
Indicator L ights
Inst rument s and Cont rols65

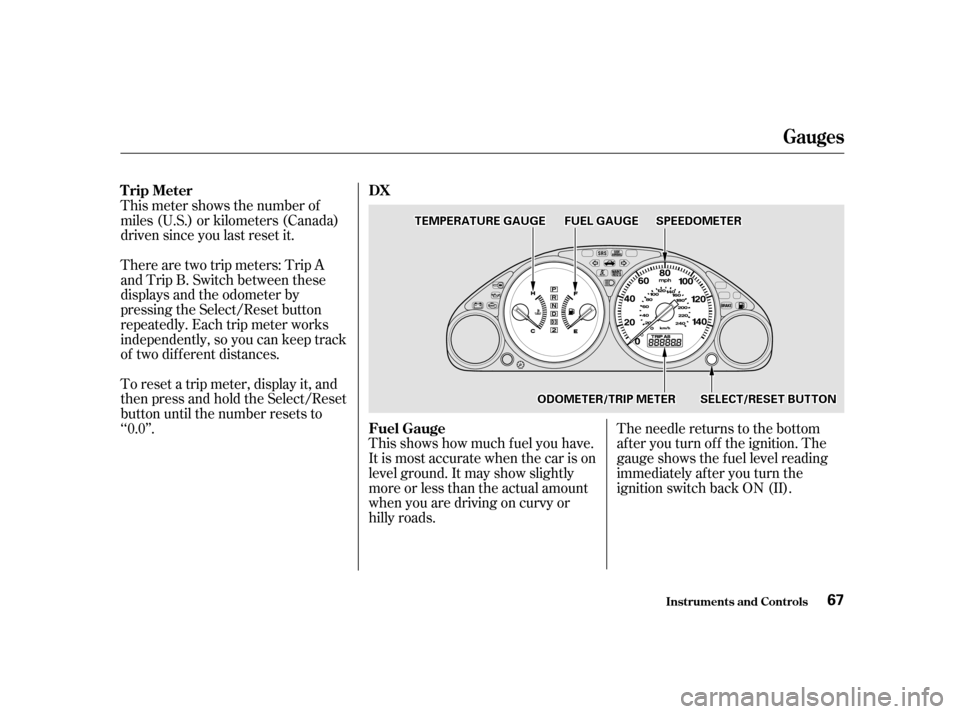

This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph).The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine f rom
damage, never drive with the
tachometer needle in the red zone.
The odometer shows the total dis-
tance your car has been driven. It
measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
U.S. Models
Canadian Models
On HX, LX and EX models in U.S.,
and LX and Si models in Canada
Speedometer T achometer
Odometer
U.S.:HX,LX,EX,Canada:LX,Si
Gauges
Inst rument s and Cont rols66
F FU
UE EL
L G
GAAU
UG GEE
T
T
A
A C
CHH O
OM M E
ET
TE
ER
R
T
T E
EM
M P
PE
ER
RA A T
TU
UR REE G
GAAU
UG GEE
S
SEEL
LEE C
CT T/
/R
RE ES
SE ET
T B
BUUT TT
TO
ON N
O
OD DO
OM M E
ET
TE
ER
R/ /T
T R
RI IPP M
M E
ET
TE
ER
R
S
SP
PE
EE
ED
D O
OM M E
ET
TE
ER
R

This shows how much f uel you have.
It is most accurate when the car is on
level ground. It may show slightly
more or less than the actual amount
whenyouaredrivingoncurvyor
hilly roads.The needle returns to the bottom
after you turn off the ignition. The
gauge shows the f uel level reading
immediately af ter you turn the
ignition switch back ON (II).
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0’’. There are two trip meters: Trip A
and Trip B. Switch between these
displays and the odometer by
pressing the Select/Reset button
repeatedly. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
Gauges
Inst rument s and Cont rols
Trip Meter
Fuel Gauge DX
67
F FUUE EL
L G
GAAU
UG GEE
T
T
E
EM
M P
PE
ER
RA A T
TU
UR REE G
GAAU
UG GEE
O
OD DO
OM M E
ET
TE
ER
R/ /T
T R
RI IPP M
M E
ET
TE
ER
R S
SEEL
LEE C
CT T/
/R
RE ES
SE ET
T B
BUUT TT
TO
ON N
S
SP
PE
EE
ED
D O
OM M E
ET
TE
ER
R

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(Hot) mark, pull saf ely to the side of
the road. Turn to page for
instructions and precautions on
checking the engine’s cooling
system.275
Gauges
Inst rument s and Cont rols
Temperature Gauge
68

Î
Î
Î
Thetwoleversonthesteering
column contain controls f or driving
f eatures you use most of ten. The lef t
lever controls the turn signals,
headlights, and high beams. The
right lever controls the windshield
washers and wipers.
The hazard warning lights switch is
on the dashboard between the
center air vents.
The controls under the lef t air vent
are f or the moonroof , mirrors and
cruise control.
The tilt adjustment lever on the
underside of the steering column
allows you to tilt the steering wheel.To use the horn, press the center
pad of the steering wheel.
:
Controls Near the Steering Wheel
Inst rument s and Cont rols69
H H
A
AZ
ZA
A R
RDD W
WA AR
RNNI INNG G
L
LI IGGH HT
TS
S
M
M O
OOONNRROOO OFF
T
TI
ILLT T A
AD
DJ
JUUS STTM
M E
EN
NT T W
WI
INND DS
SHH I
IEE L
LDD
W
WI IPP E
ER
RS S//W
WA AS
SHH E
ER
RS S
M
M I
IRRR ROOR R C
COON NTTR
RO OL LSS R
RE
EA
A R
R W
WI INND DO
OW W
D
D E
EF
FOOG GGGEER
R
H
H
E
EA
A D
DL
LIIGGH HT
TS
S/ /
T
T U
UR RNN S
SIIGGN NAAL
LSS
C
CRRUUI ISSE E C
COON NTTR
RO OL L
S
SW WI ITT C
CH H E
ES
S
C
CR
RUUI ISSE E C
COON NTTR
RO OL L
M
M A
AS
STTE
ER
R
S
SW WI ITT C
CH H
H
HO
OR RNN
